| Specifications |

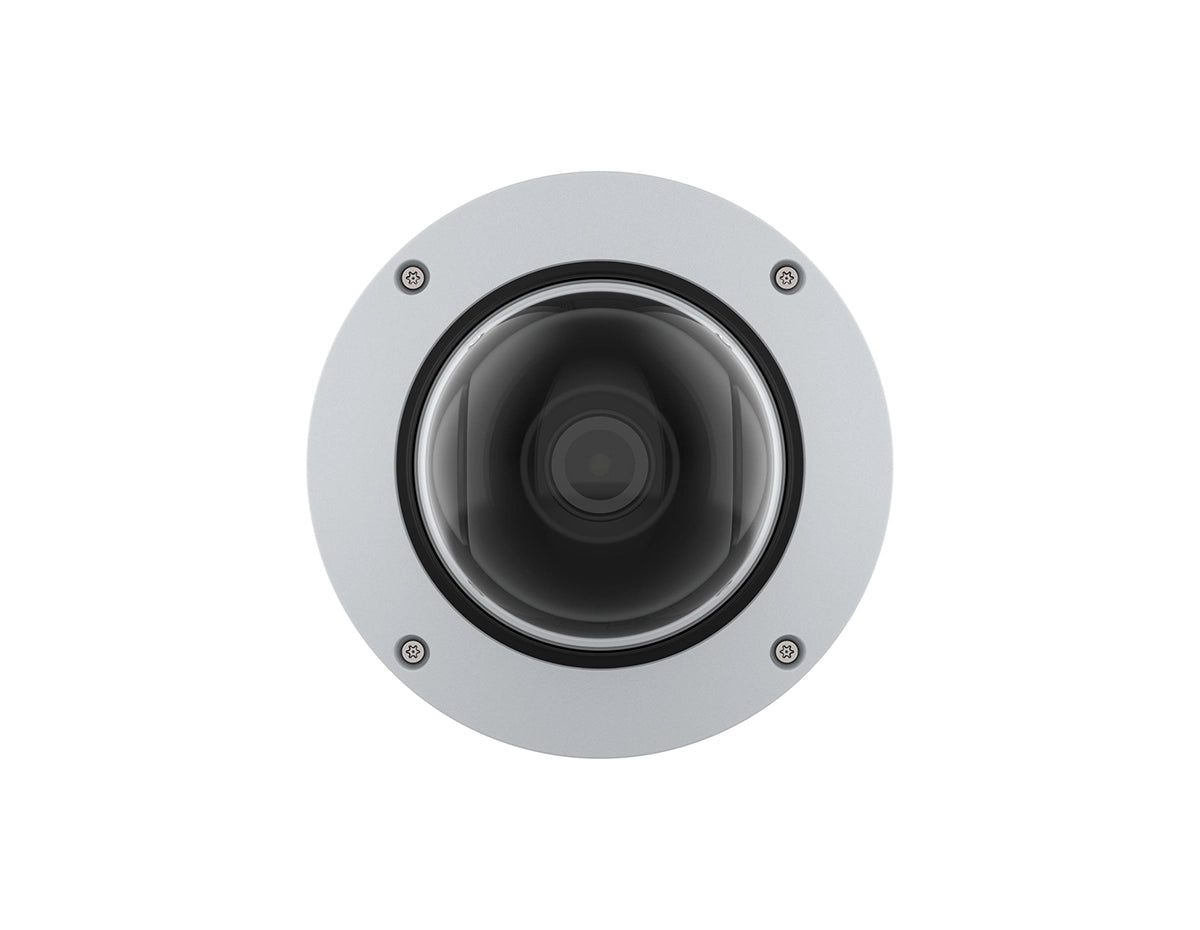

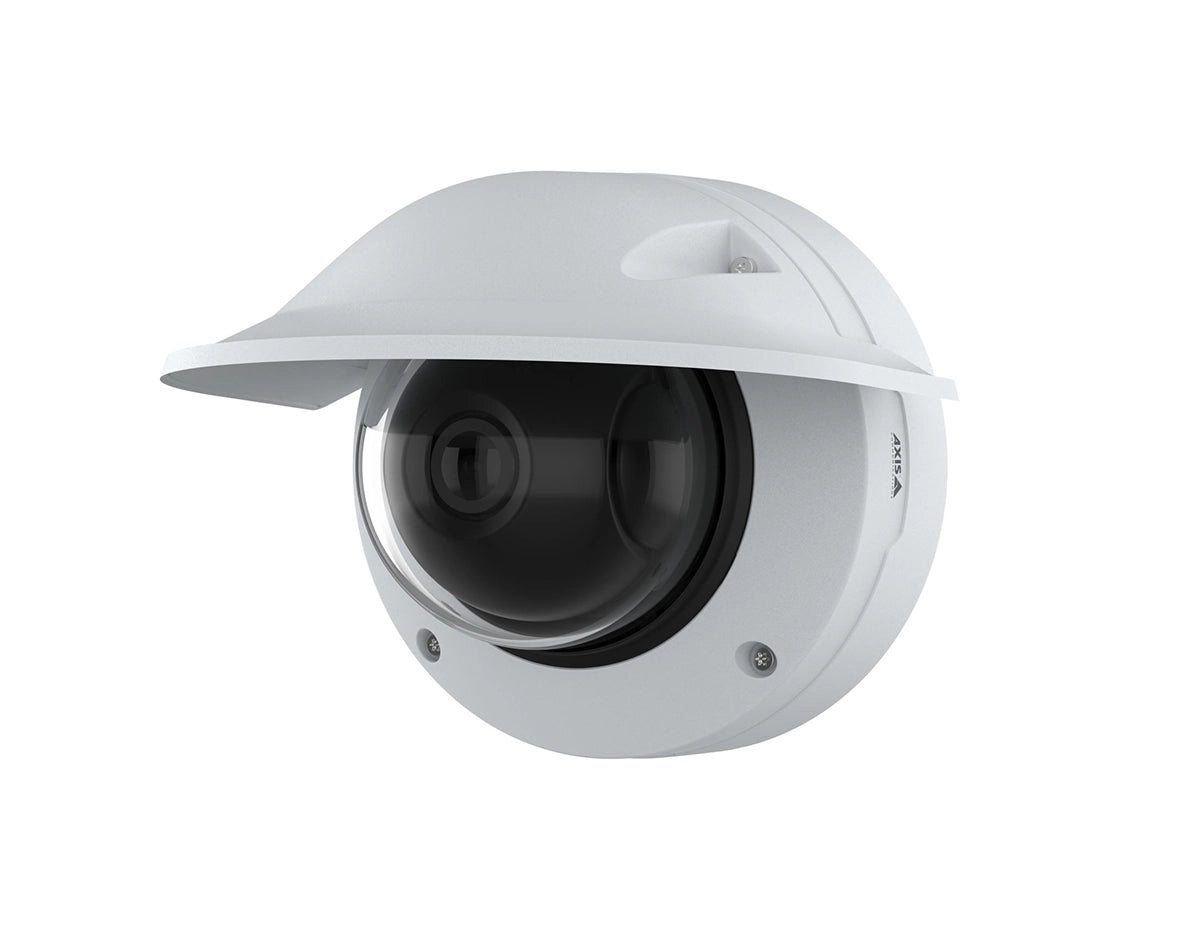

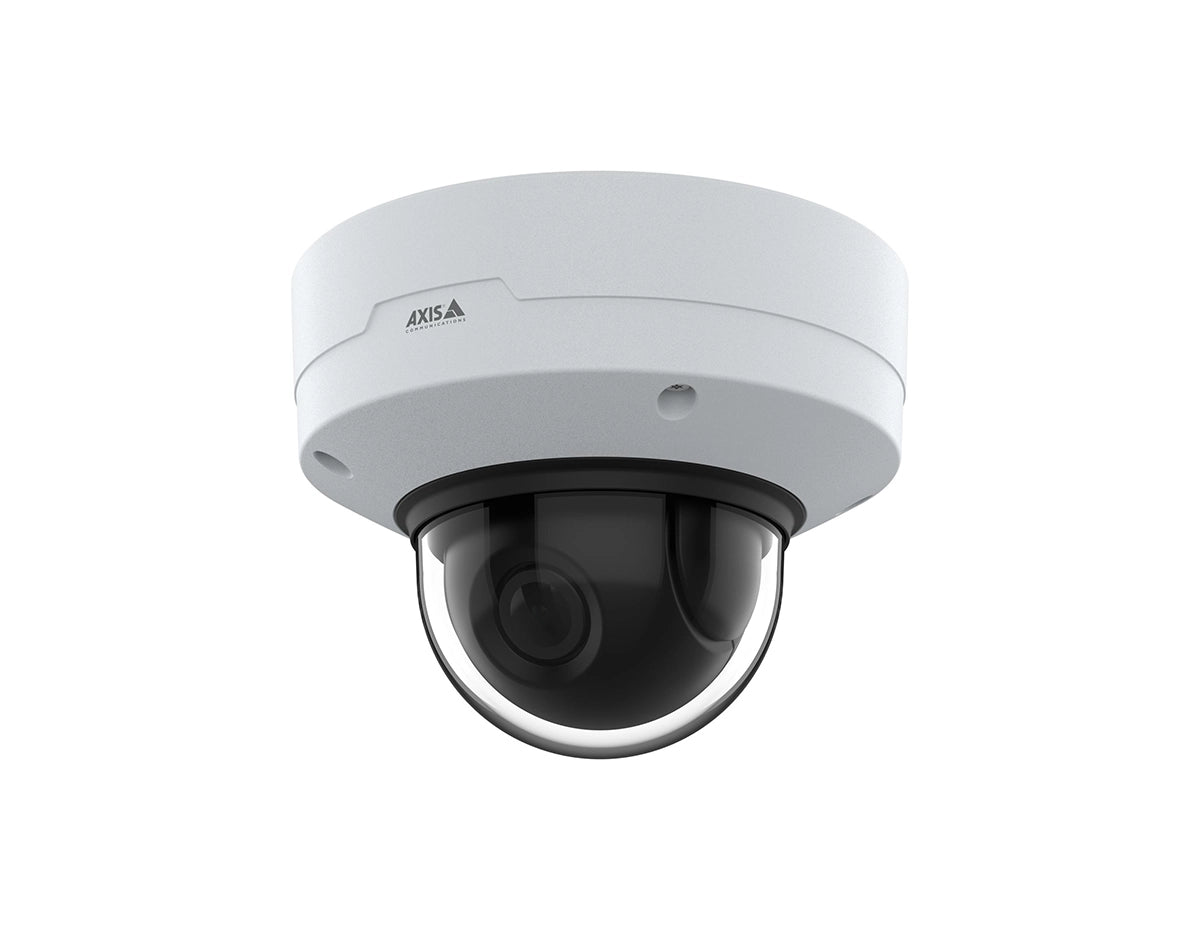

AXIS Q3628-VE Dome Camera |
| Camera |
| Image sensor |
1/1.8” progressive scan RGB CMOS |
| Pixel size 2.9 µm |
| Lens |
Varifocal, 4.3–8.6 mm, F1.5–2.4 |
| Horizontal field of view: 103°–52° |
| Vertical field of view: 56°–30° |
| Minimum focus distance: 0.5 m (1.6 ft) |
| IR corrected, remote zoom and focus, P-Iris control |
| Day and night |
Automatic IR-cut filter |
| Minimum illumination |
Color: 0.06 lux at 50 IRE, F1.5 |
| B/W: 0.01 lux at 50 IRE, F1.5 |
| Shutter speed |
1/91000 s to 1 s with 50 Hz |
| Camera angle adjustment |
Pan ±190°, tilt -8 to +75°, roll ±97° |
| System on chip (SoC) |
| Model |
ARTPEC-8 |
| Memory |
2048 MB RAM, 8192 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
16:9: 2688x1512 to 160x90 |
| 16:10: 1280x800 to 160x100 |
| 4:3: 2016x1512 to 160x120 |
| Frame rate |
With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all resolutions |
| No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions |
| Video streaming |
Up to 20 unique and configurable video streams* |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Low latency mode |
| Video streaming indicator |
| *: We recommend a maximum of 3 unique video streams per camera or channel, for optimized user experience, network bandwidth, and storage utilization. A unique video stream can be served to many video clients in the network using multicast or unicast transport methods via built-in stream reuse functionality |
| Signal-to-noise ratio |
>55 dB |
| WDR |
Forensic WDR: Up to 120 dB depending on the scene |
| Multi-view streaming |
Up to 8 individually cropped-out view areas |
| Noise reduction |
Spatial filter (2D noise reduction) |
| Temporal filter (3D noise reduction) |
| Image settings |
Saturation, contrast, brightness, sharpness, white balance, |
| day/night threshold, local contrast, tone mapping, exposure |
| mode, exposure zones, defogging, barrel distortion correction, |
| electronic image stabilization, compression, rotation: 0°, 90°, |
| 180°, 270° including corridor format, mirroring, dynamic text |
| and image overlay, polygon privacy mask,target aperture |
| Image processing |
Axis Zipstream, Forensic WDR, Lightfinder 2.0 |
| Pan/Tilt/Zoom |
Digital PTZ with preset positions |
| PTRZ preset positions |
| Audio |
| Audio features |
AGC automatic gain control |
| Network speaker pairing |
| Audio streaming |
Configurable duplex: |
| Two-way (half duplex, full duplex) |
| Audio input |
10-band graphic equalizer |
| Input for external unbalanced microphone, optional 5 V |
| microphone power |
| Digital input, optional 12 V ring power |
| Unbalanced line input |
| Audio output |
Output via network speaker pairing |
| Audio encoding |
24bit LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM |
| 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Network |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX®, metadata |
| and AXIS Camera Application Platform (ACAP); specifications at |
| axis.com/developer-community. ACAP includes Native SDK and |
| Computer Vision SDK. |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specifications at onvif.org |
| Support for Session Initiation Protocol (SIP) for integration with |
| Voice over IP (VoIP) systems, peer-to-peer or integrated with |
| SIP/PBX. |
| Video management systems |
Compatible with AXIS Companion, AXIS Camera Station, video |
| management software from Axis’ Application Development |
| Onscreen controls |
Autofocus |
| Electronic image stabilization |
| Day/night shift |
| Defogging |
| Heater |
| Media clip |
| Privacy mask |
| Video streaming indicator |
| Wide dynamic range |
| Event conditions |
Application |
| Audio: audio detection |
| Call: state, state change |
| Device status: above/below/within operating temperature, IP |
| address removed, new IP address, shock detected, network lost, |
| system ready, ring power overcurrent protection, live stream |
| active, casing open |
| Digital audio input status |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: digital input, manual trigger, virtual input |
| MQTT: subscribe |
| Scheduled and recurring: schedule |
| Video: average bitrate degradation, tampering |
| Event actions |
Audio clips: play, stop |
| Calls: answer call, end SIP call, make SIP call |
| Day-night mode |
| Defog mode |
| I/O: toggle I/O once, toggle I/O while the rule is active |
| MQTT: Publish |
| Notification: HTTP, HTTPS, TCP and email |
| Overlay text |
| Pre- and post-alarm video or image buffering for recording or upload |
| Recordings: SD card and network share |
| SNMP traps: send, send while the rule is active |
| Status LED: flash |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| WDR mode |
| Built-in installation aids |
Pan-tilt-roll: designed to withstand at least 500 full movement |
| cycles, autoroll, pixel counter, remote zoom and focus, level grid |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios: line crossing, object in area, crossline counting, |
| occupancy in area, time in area |
| Up to 10 scenarios |
| Metadata visualized with trajectories, color-coded bounding |
| boxes and tables |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, |
| trucks, bikes), license plates |
| Attributes: Vehicle color, upper/lower clothing color, confidence, |
| position |
| Event data: Producer reference, scenarios, trigger conditions |
| Applications |
Included |
| AXIS Object Analytics, AXIS Video Motion Detection, active |
| tampering alarm, audio detection |
| AXIS Live Privacy Shield |
| Support for AXIS Camera Application Platform enabling |
| Approvals |
| Product markings |
CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM |
| Supply chain |
TAA compliant |
| EMC |
CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, |
| EN 50121-4, EN 61000-6-1, EN 61000-6-2 |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A |
| Canada: ICES-3(A)/NMB-3(A) |
| Japan: VCCI Class A |
| Korea: KS C 9835, KS C 9832 Class A |
| USA: FCC Part 15 Subpart B Class A |
| Railway: IEC 62236-4 |
| Safety |
CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, |
| IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), |
| ISO 21207 (Method B), ISO 20653 IP6K9K |
| Network |
NIST SP500-267 |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization |
| Code Flow for centralized ADFS account management, password |
| protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform |
| TPM 2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), |
| system-on-chip security (TEE), Axis device ID, secure |
| keystore, signed video, secure boot, encrypted filesystem |
| (AES-XTS-Plain64 256bit) |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)* , IEEE 802.1AR, HTTPS/HSTS* , TLS v1.2/v1.3*, Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Documentation |
AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy |
| Axis Security Development Model |
| AXIS OS Software Bill of Material (SBOM) |
| General |
| Casing |
IP66-, NEMA 4X- and IK10-rated |
| Polycarbonate hard-coated dome |
| Aluminum casing, weathershield (PA+GF) |
| Color: white NCS S 1002-B |
| Mounting |
Mounting bracket with junction box holes (double-gang, |
| single-gang, 4” square, and 4” octagon) |
| ¾” (M25) conduit side entries |
| Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Typical 7 W, max 25 W |
| 10–28 V DC, typical 7 W, max 25 W |
| Connectors |
Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| I/O: 4-pin 2.5 mm terminal block for two configurable supervised |
| inputs / digital outputs (12 V DC output, max load 50 mA) |
| Audio: 3.5 mm mic/line in |
| Power: DC input, terminal block |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| Operating conditions |
(-50 °C to 55 °C (-58 °F to 131 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Start-up temperature: -40 °C (-40 °F) |
| Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Dimensions |
Height: 141 mm (5.6 in) |
| ø 184 mm (7.2 in) |
| Effective Projected Area (EPA): 0.0399 m² (0,4294 ft² ) |
| Weight |
2100 g (4.6 lb) |
| Box content |
Camera, installation guide, conduit adapter, RESISTORX® TR20 |
| screw bit, terminal block connectors, connector guard, cable |
| gasket, owner authentication key |
| System tools |
AXIS Site Designer, AXIS Device Manager, product selector, |
| accessory selector, lens calculator |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Sustainability |
| Substance control |
PVC free, BFR/CFR free in accordance with JEDEC/ECA Standard |
| JS709 |
| RoHS in accordance with EU RoHS Directive 2011/65/EU/ and |
| EN 63000:2018 |
| REACH in accordance with (EC) No 1907/2006. For SCIP UUID |
| Materials |
Renewable carbon-based plastic content: 62% (bio-based) |
| Screened for conflict minerals in accordance with OECD |
| guidelines |
| Environmental responsibility |
axis.com/environmental-responsibility |
| Axis Communications is a signatory of the UN Global Compact |
