[shortdesc]

Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 10G SFP+ Uplinks, PoE+ (382W), Layer 2

[/shortdesc]

[properties]

Product Name	Cisco CBS220-24FP-4X Managed Switch
Product Description	24-port Gigabit Ethernet PoE+ switch with 4 10G SFP+ uplinks, designed for small to medium-sized businesses needing high-speed connectivity and PoE capabilities.
Compatibility	Cisco Business 220 Series Smart Switches
Ports	24 x 10/100/1000 PoE+ Ethernet, 4 x 10G SFP+ uplink
Total PoE Power Budget	370W
Layer Support	Layer 2
Switching Capacity	128 Gbps
Forwarding Rate	95.23 Mpps
Rackmountable	Yes, 1U
Energy Efficiency	IEEE 802.3az Energy Efficient Ethernet compliant
Security Features	802.1X authentication, Access Control Lists (ACLs), Port Security

[/properties]
[specifications]

Device Type	Managed PoE+ Switch
Dimensions (W x D x H)	17.3 x 10.1 x 1.7 inches (440 x 257 x 44 mm)
Weight	11.82 lbs (5.36 kg)
Power Supply	Internal, 100-240V AC, 50-60 Hz
Power Consumption (Max)	500W
PoE Standards Supported	IEEE 802.3af/at
Operating Temperature Range	0°C to 50°C (32°F to 122°F)
Storage Temperature Range	-20°C to 70°C (-4°F to 158°F)
Humidity Range	10% to 90% (non-condensing)
Management Interfaces	Web-based GUI, CLI, SNMP, Cisco Business Dashboard
Layer 2 Features	VLAN, QoS, Link Aggregation, IGMP Snooping
Uplink Speeds	10 Gbps on SFP+ ports
Compliance	CE, FCC Part 15 (CFR 47) Class A, UL 60950-1

[/specifications]

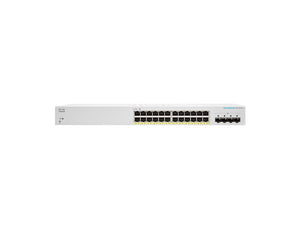

Cisco CBS220-24FP-4X Switch

The Cisco CBS220-24FP-4X is a managed 24-port Gigabit Ethernet switch with full Power over Ethernet (PoE) capabilities and 4 10 Gigabit SFP+ uplinks. It is designed to meet the networking needs of growing businesses by providing high-speed connectivity and the flexibility to power devices like IP phones, cameras, and access points. With a PoE power budget of 370W, this switch is ideal for simplifying network installations while ensuring seamless scalability.

Key Features:

24 x Gigabit PoE+ Ports: Delivers power and connectivity to devices such as IP phones, cameras, and access points with a total PoE budget of 370W.
4 x 10G SFP+ Uplink Ports: Ensures high-speed uplinks for network expansion and better performance.
Advanced Layer 2 Features: Includes VLAN support, QoS, and Link Aggregation for enhanced network management and traffic control.
Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption during periods of low network activity.
Comprehensive Security: Supports 802.1X authentication, ACLs, and port security for secure networking.

Technical Overview:

Recommended for: Small to medium-sized businesses, retail environments, and branch offices.
Ports: 24 x 10/100/1000 PoE+ Ethernet ports, 4 x 10 Gigabit SFP+ uplinks.
PoE Power Budget: 370W.
Switching Capacity: 128 Gbps.
Forwarding Rate: 95.23 Mpps.
Energy Efficiency: Complies with IEEE 802.3az standards for energy savings.

You can check the related tab for the CBS220-24FP-4X datasheet.
