| Specifications |

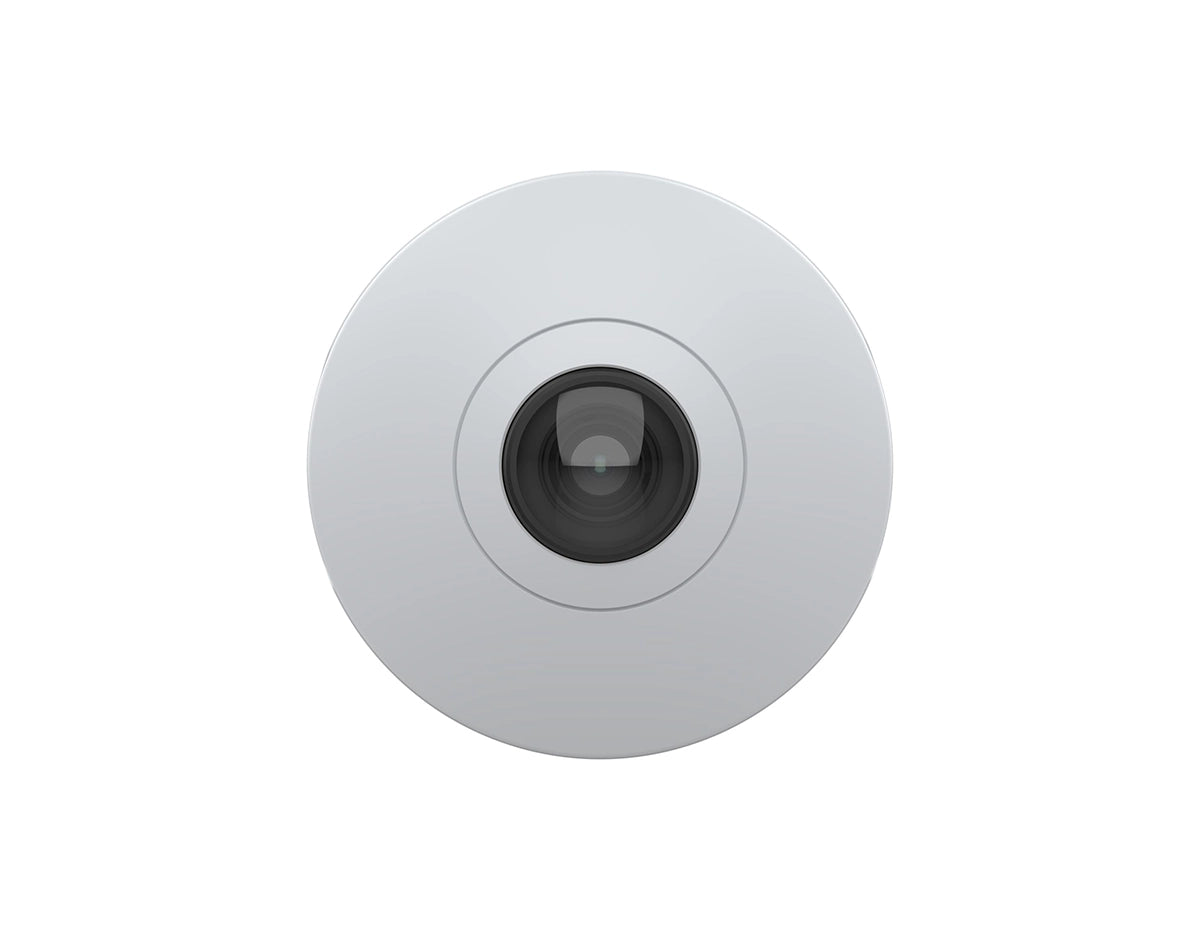

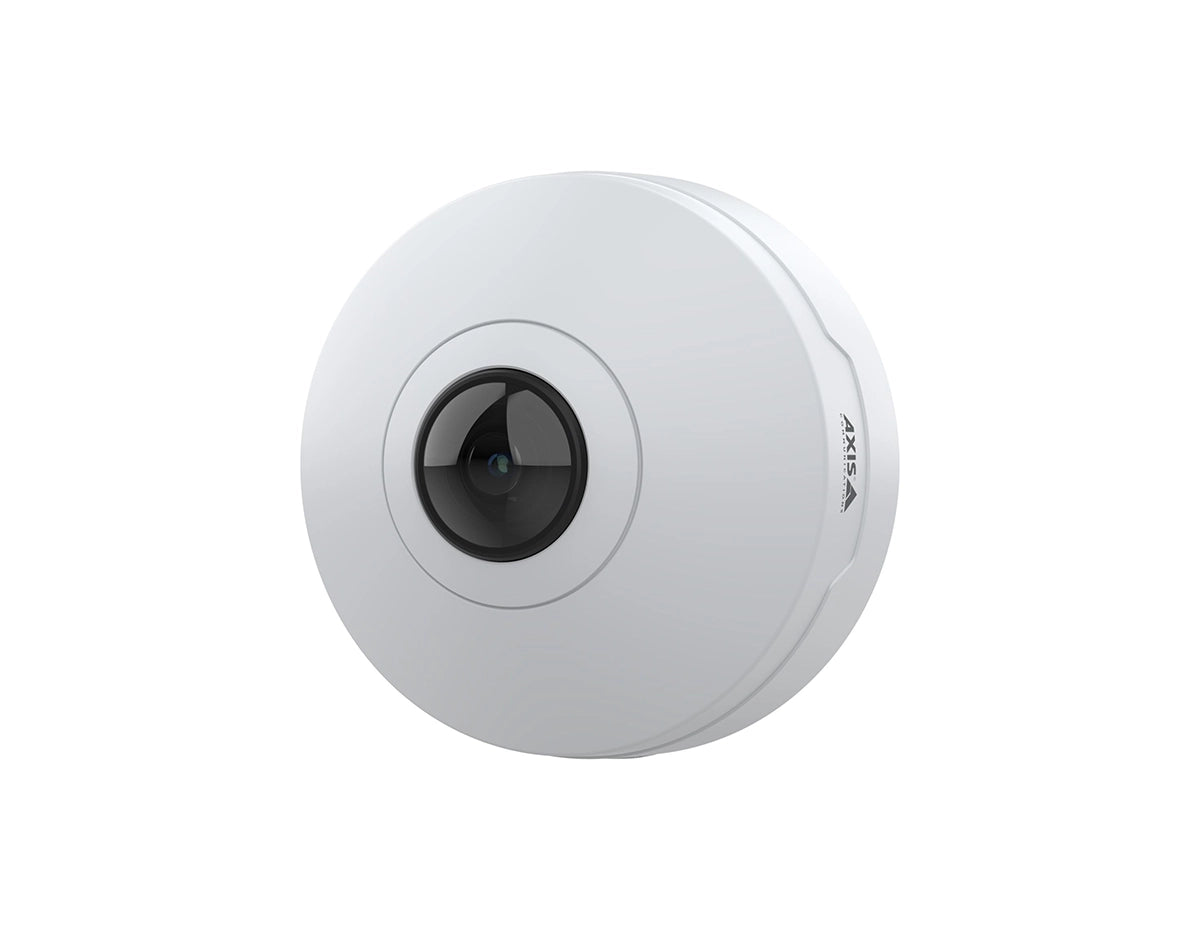

AXIS M4327-P Panoramic Camera |
| Camera |
| Image sensor |
1/1.8” progressive scan RGB CMOS |
| Lens |
1.1 mm, F2.2 |
| Horizontal field of view: 182° |
| Vertical field of view: 182° |
| Fixed iris, fixed focus, IR corrected |
| Day and night |
Automatic IR-cut filter |
| Minimum illumination |
Color: 0.16 lux at 50 IRE, F2.2 |
| B/W: 0.03 lux at 50 IRE, F2.2 |
| Shutter speed |
1/33500 s to 1/5 s |
| Camera angle adjustment |
Digital roll: ±180° |
| System on chip (SoC) |
| Model |
ARTPEC-8 |
| Memory |
2048 MB RAM, 8192 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
Overview: 2160x2160 to 160x160 (1:1) |
| Panorama: 2560x1440 to 192x72 (8:3, 16:9 or 32:9) |
| Double panorama: 2560x1920 to 256x192 (4:3 or 16:9) |
| Quad view: 2560x1920 to 256x192 (4:3 or 16:9) |
| View area 1-4: 1920x1440 to 256x144 (4:3 or 16:9) |
| Corner left/right: 2368x1184 to 192x72 (2:1 or 8:3) |
| Double corner: 2016x2016 to 256x192 (1:1 or 4:3) |
| Corridor: 2560x1920 to 256x144 (4:3 or 16:9) |
| Frame rate |
360° overview only up to max resolution without WDR: |
| 50/60 fps @ 50/60 Hz |
| 360° overview and 4 dewarped views up to max resolution with |
| WDR: up to 25/30 fps @ 50/60 Hz |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Video streaming indicator |
| WDR |
Forensic WDR: Up to 120 dB depending on scene |
| Noise reduction |
Spatial filter (2D noise reduction) |
| Temporal filter (3D noise reduction) |
| Image settings |
Saturation, contrast, brightness, sharpness, local contrast, tone |
| mapping, white balance, day/night threshold, exposure mode, |
| exposure zones, compression, mirroring, dynamic text and image |
| overlay, and polygon privacy mask |
| Image processing |
Axis Zipstream, Forensic WDR |
| Pan/Tilt/Zoom |
Digital PTZ of view areas, digital PT of panorama, corner, corridor |
| and quad views, preset positions, guard tours |
| Audio |
| Audio features |
Network speaker pairing |
| Audio output/output |
Audio features through portcast technology: two-way audio |
| connectivity, voice enhancer |
| Network |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX®, metadata |
| and AXIS Camera Application Platform (ACAP); specifications at |
| axis.com/developer-community. ACAP includes Native SDK and |
| Computer Vision SDK. |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specifications at onvif.org |
| Support for Session Initiation Protocol (SIP) for integration with |
| Voice over IP (VoIP) systems, peer to peer or integrated with |
| SIP/PBX. |
| Video management systems |
Compatible with AXIS Companion, AXIS Camera Station, video |
| management software from Axis’ Application Development |
| Partners available at axis.com/vms |
| Onscreen controls |
Privacy masks |
| Media clip |
| Event conditions |
Device status: above operating temperature, above or below |
| operating temperature, below operating temperature, within |
| operating temperature, IP address removed, new IP address, |
| network lost, system ready, live stream active |
| Edge storage: recording ongoing, storage disruption, storage |
| health issues detected |
| I/O: manual trigger, virtual input |
| MQTT: subscribe |
| Scheduled and recurring: schedule |
| Video: average bitrate degradation, day-night mode, tampering |
| Event actions |
Day-night mode |
| MQTT: publish |
| Notification: HTTP, HTTPS, TCP and email |
| Overlay text |
| Recordings: SD card and network share |
| SNMP traps: send, send while the rule is active |
| Status LED |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share and email |
| WDR mode |
| Built-in installation aids |
Pixel counter, digital roll, level grid |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Scenarios: line crossing, object in area |
| Up to 10 scenarios |
| Metadata visualized with trajectories, color-coded bounding |
| boxes and tables |
| Polygon include/exclude areas |
| ONVIF Motion Alarm event |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
| Attributes: Vehicle color, confidence, position |
| Event data: Producer reference, scenarios, trigger conditions |
| Applications |
Included |
| AXIS Object Analytics, AXIS Video Motion Detection, active |
| tampering alarm, AXIS Image Health Analytics, AXIS Scene Metadata |
| Supported |
| AXIS People Counter |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| Approvals |
| Product markings |
CSA, UL/cUL, BIS, UKCA, CE, KC |
| Supply chain |
TAA compliant |
| EMC |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 |
| Australia/New Zealand: RCM AS/NZS CISPR 32 Class A |
| Canada: ICES-3(A)/NMB-3(A) |
| Japan: VCCI Class A |
| Korea: KS C 9835, KS C 9832 Class A |
| USA: FCC Part 15 Subpart B Class A |
| Safety |
IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, |
| IS 13252 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78 |
| Network |
NIST SP500-267 |
| Cybersecurity |
| Edge security |
Software: Signed firmware, brute force delay protection, digest |
| authentication and OAuth 2.0 RFC6749 OpenID Authorization |
| Code Flow for centralized ADFS account management, password |
| protection, AES-XTS-Plain64 256bit SD card encryption |
| Hardware: Axis Edge Vault cybersecurity platform |
| Secure element (CC EAL 6+), system-on-chip security (TEE), Axis |
| device ID, secure keystore, signed video, secure boot, encrypted |
| filesystem (AES-XTS-Plain64 256bit) |
| Network security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)*, IEEE 802.1AR, HTTPS/HSTS*, TLS v1.2/v1.3a , Network Time Security (NTS), X.509 Certificate PKI, IP address filtering |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Documentation |
AXIS OS Hardening Guide |
| Axis Vulnerability Management Policy |
| Axis Security Development Model |
| General |
| Casing |
Plastic casing, encapsulated electronics |
| Color: white NCS S 1002-B |
| For repainting instructions, go to the product’s support |
| page. For information, go to |
| axis.com |
| Mounting |
Mounting bracket with junction box holes (double-gang, |
| single-gang, and 4” octagon) |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 3.5 W, max 5.1 W |
| Connectors |
Network: Shielded RJ45 10BASE-T/100BASE-TX PoE |
| Audio: Audio and I/O connectivity via portcast technology |
| Storage |
Support for microSD/microSDHC/microSDXC card |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations, see axis.com |
| Operating conditions |
0 °C to 40 °C (32 °F to 104 °F) |
| Humidity 10–85% RH (non-condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Dimensions |
Height: 51 mm (2.0 in) |
| ø 101 mm (4.0 in) |
| Weight |
300 g (0.66 lb) |
| Box content |
Camera, installation guide, owner authentication key |
| System tools |
AXIS Site Designer, AXIS Device Manager, product selector, |
| accessory selector, lens calculator |
| Available at axis.com |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Polish, Traditional |
| Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, |
| Vietnamese |
