CISCO SG250X-24P-K9 SWITCH
| Model: | SG250X-24P-K9 |
| Detail: | Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 10G SFP+ Uplinks, PoE+ (195W), Layer 3 |
| List Price: | |
| Price: | $985.00 |
| You Save: | $511.89 (34% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

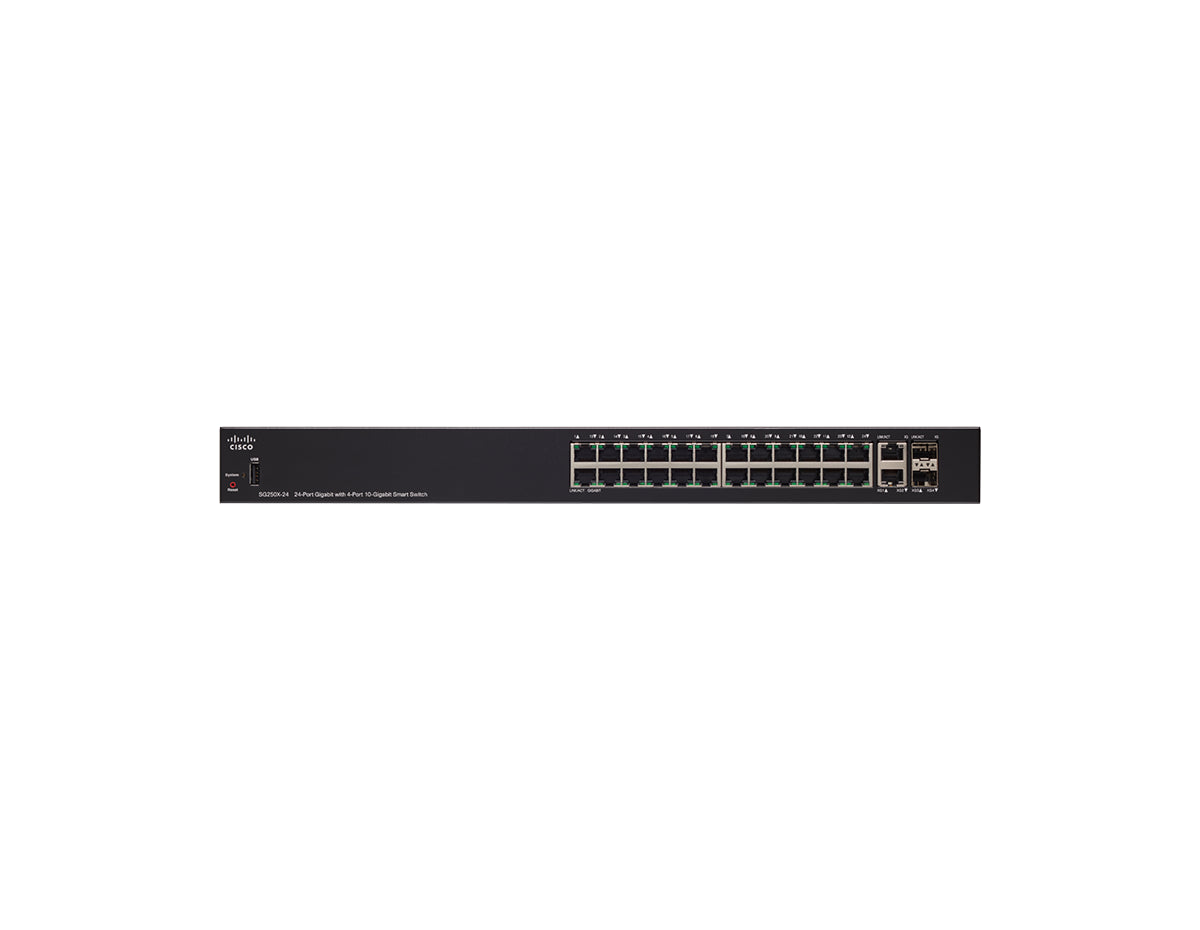

Cisco SG250X-24P-K9 Switch
The Cisco SG250X-24P-K9 is a high-performance managed switch designed for businesses that require advanced networking capabilities, including Power over Ethernet (PoE) support and flexible connectivity options. Featuring 24 Gigabit Ethernet PoE+ ports and 4 10 Gigabit Ethernet uplink ports, this switch provides reliable, scalable, and high-speed connectivity for critical business applications, such as IP phones, cameras, and wireless access points.
Key Features:
- 24 x Gigabit Ethernet PoE+ Ports: Provides up to 195W total PoE power to support devices like IP cameras, phones, and access points.
- 4 x 10 Gigabit Ethernet Uplink Ports: Offers flexible and high-speed uplink options for connecting to servers, data centers, and core switches.
- Layer 2 and Layer 3 Features: Includes VLANs, static routing, and advanced QoS to optimize network traffic and segmentation.
- Energy-Efficient Design: Compliant with IEEE 802.3az, reducing power consumption during low traffic periods.
- Advanced Security: Features 802.1X authentication, IP Source Guard, and ACLs to protect against unauthorized access.
Technical Overview:
- Recommended for: Small to medium-sized businesses, distributed networks, and data-heavy environments.
- Ports: 24 x Gigabit Ethernet PoE+ ports (up to 195W total power), 4 x 10 Gigabit Ethernet ports.
- Switching Capacity: 128 Gbps.
- Forwarding Rate: 95.23 Mpps.
- Layer 2/3 Features: VLAN, static routing, QoS, and IGMP snooping for optimal traffic management.
- Management: Cisco Business Dashboard, Web-based GUI, CLI, and SNMP for comprehensive network management.
- Security: ACLs, 802.1X, and port security for enhanced protection.
- Energy Efficiency: Compliant with IEEE 802.3az standards for energy-efficient operation.
You can check the related tab for the SG250X-24P-K9 datasheet.
Accessories
| Hardware | |
| LEDs | System, Link/Act, PoE, Speed |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T |
| Mounting options | Desktop placement, rackmount (excluding SG250-08 and SG250-08HP) and wall-mount |
| Accessories | There is no additional accessory other than the mounting kit and power cord included in the product package. |
| Supported SFP modules | |
| SKU | Media |
| MGBBX1 | Single-mode fiber |
| MGBSX1 | Multimode fiber |
| MGBLH1 | Single-mode fiber |
| MGBLX1 | Single-mode fiber |
| MGBT1 | UTP cat 5 |
| GLC-LH-SMD= | Single-mode fiber |
| GLC-BX-U= | Single-mode fiber |
| SFP-H10GB-CU1M | Copper coax |
| SFP-H10GB-CU3M | Copper coax |
| SFP-H10GB-CU5M | Copper coax |
| SFP-10G-SR | Multimode fiber |
| SFP-10G-LR | Single-mode fiber |
| SFP-10G-SR-S | Multimode fiber |
| SFP-10G-LR-S | Single-mode fiber |
| Package contents | Cisco 250 Series Smart Switch Power cord (power adapter for 8-port and 10-port SKUs) Quick start guide Mounting kit |
| Minimum requirements | Web browser: Mozilla Firefox version 36 or later; Microsoft Internet Explorer version 9 or later, Chrome version 40 or later, Safari version 5 or later Category 5 Ethernet network cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed |
Specifications
| Specifications | SG250X-24P-K9 |
| Capacity in millions of packets (mpps) | 95.23 |
| Switching capacity (Gbps) | 128.0 |
| Flash Memory | 256 MB |
| CPU | 800 MHz ARM |
| CPU Memory | 512MB |
| Packet Buffer | 12 MB |
| MAC addresses | 8K |
| Head-of-line (HOL) blocking | HOL blocking |
| Quality of Service (QoS) | 8 hardware queues, Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS) |
| Loopback detection | Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330 |
| Operating Temperature |
32° to 122°F (0° to 50°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Warranty | Limited lifetime |
Properties
| Properties | SG250X-24P-K9 |
| Description | 24 10/100/1000 PoE+ ports with 195W power budget 4 10 Gigabit Ethernet (2 x 10GBASE-T + 2 x SFP+) |
| Product Family | SG250 - SF250 Series |
| Product Type | Small Business Switch |
| Number of Ports (Gigabit Ethernet) | 24 Gigabit Ethernet + 4 10 Gigabit Ethernet |
| RJ-45 ports (Gigabit Ethernet) | 24 |
| Downlinks total 10/100/1000 ports | 24 |
| Power dedicated to PoE | 195W |
| Number of ports that support PoE | 24 |
| Power | 100 to 240V 50 to 60 Hz, internal, universal |
| Fans | 2 |
| Unit dimensions in. (W x D x H) | 17.3 x 1.73 x 10.12 |
| Rack-mountable | Yes |
