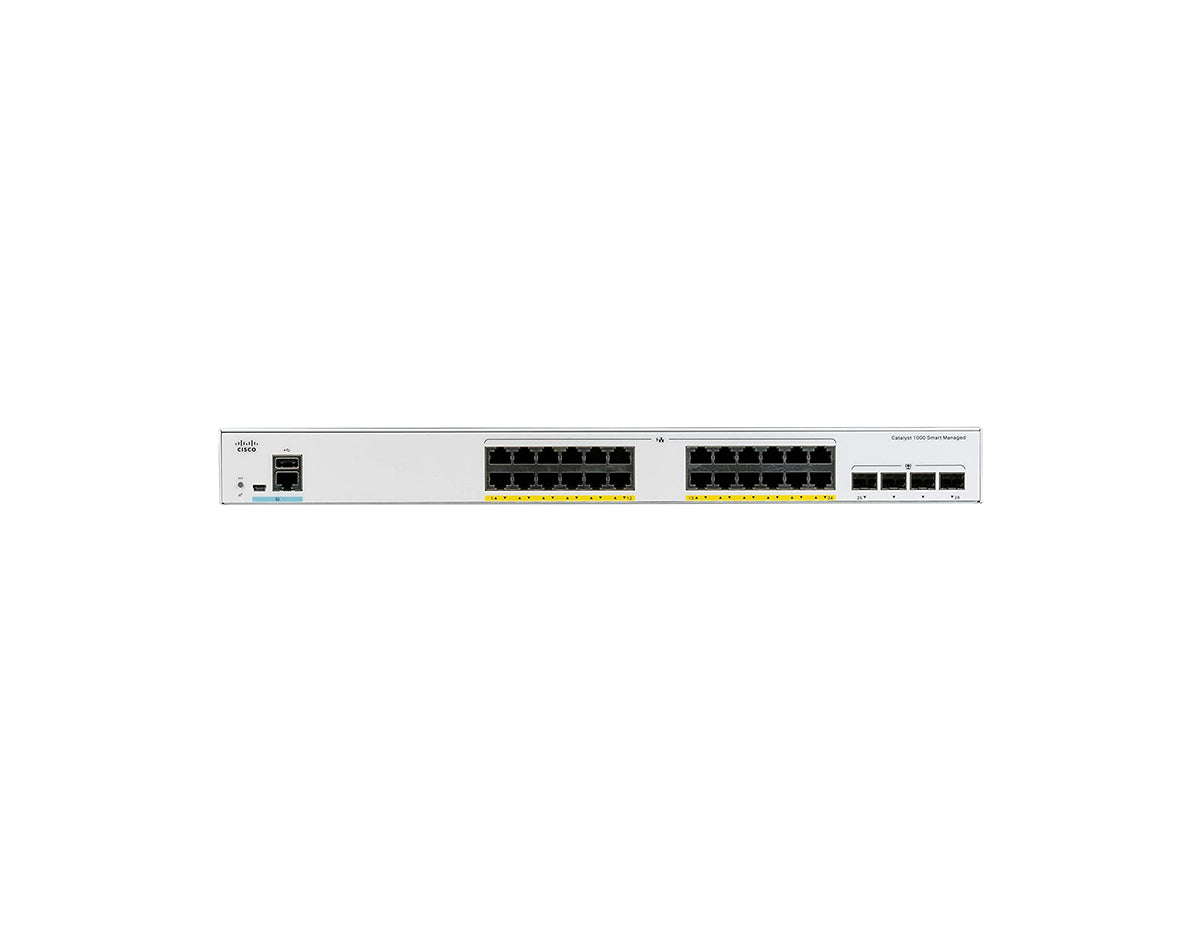

Cisco Catalyst C1000-24FP-4G-L 24-Port Managed PoE+ Switch, 4x1G SFP
The Cisco Catalyst C1000-24FP-4G-L is a 24-port PoE+ Layer 2 managed switch with 4x 1G SFP uplinks. It delivers 370W of PoE and supports Single IP Management.
Overview
The Cisco Catalyst 1000 Series is Cisco's line of fixed managed enterprise-class Layer 2 switches for small business and branch networks, running Cisco IOS with both a command-line interface and an on-box web UI so they can be deployed out of the wiring closet and into IoT-heavy sites. The C1000-24FP-4G-L is the 24-port Full PoE+ configuration with four fixed 1G SFP uplinks. Its 1G SFP uplinks aggregate access traffic back to the distribution layer over fiber or copper. Its larger 370 W Full PoE+ budget, shared across all 24 access ports, supports denser wireless and surveillance rollouts than a partial budget. As a Gigabit Ethernet model it supports Cisco Single IP Management for administering up to eight switches under one IP address, along with Cisco IOS capabilities such as AutoConfig for touchless provisioning and Bluetooth-based local console access.
Technical Details
The Cisco Catalyst C1000-24FP-4G-L is a Layer 2 managed 1U rackmount access switch with 24 Gigabit Ethernet (10/100/1000) PoE+ ports and four fixed 1G SFP uplinks, running Cisco IOS. Switching capacity is 56 Gbps and forwarding rate is 41.67 Mpps. It delivers Full PoE+ (IEEE 802.3af and 802.3at) from a 370 W PoE power budget shared across all 24 access ports; all access ports support PoE+ up to 30W per port, subject to the shared total PoE budget. It provides wired access-layer connectivity and PoE+ power for endpoints such as wireless access points, IP phones, and IP cameras in small business and branch wiring closets.
Small Business
Education
Branch Office
Best For
The Cisco Catalyst C1000-24FP-4G-L suits small business and branch wiring closets that support dense wireless access point or IP camera deployments while aggregating traffic over 1-Gigabit fiber or copper uplinks. A 370 W Full PoE+ budget supports denser powered-device deployments; actual device counts depend on each device's power draw. It runs a single fixed Cisco IOS Layer 2 feature set with no license tiers to select.
Not suitable if:
- you need 10G uplinks, since this model has fixed 1G SFP uplinks
- you need Layer 3 routing between VLANs or dynamic routing protocols, since the Catalyst 1000 is a Layer 2-only switch
- you need true data-plane stacking with a shared switching fabric, since the Catalyst 1000 supports only Single IP Management for administration
- you need more than 24 access ports in a single unit
C1000-24FP-4G-L Specifications
| Class & Licensing | |
|---|---|
| License Tier | None |
| License Detail / MTBF | None; MTBF 698,220 hours |
| Ports & Uplinks | |
| PoE Budget | 370W |
| Port Speed | Gigabit |
| Uplink Configuration | 4x 1G SFP |
| Performance & Scale | |
| Stacking | No |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Table | 16,000 |
| Hardware & Memory | |
| DRAM | 512 MB |
| Flash | 256 MB |
| Power & Thermal | |
| Power Input / PSU | 110-220V AC (auto-sensing); single fixed power supply, 50 to 60 Hz |
| Redundant PSU | No |
| Cooling | Fan-cooled |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 17.48 x 13.59 in |
| Weight | 10.14 lbs (4.6 kg) |
| Operating Temperature | Sea level -5 to 50°C; Up to 5,000 ft (1500 m) -5 to 45°C; Up to 10,000 ft (3000 m) -5 to 40°C |
| Operating System | Cisco IOS |
Part Number Decode
- C1000 — C1000 is the platform prefix, identifying the Cisco Catalyst 1000 Series Gigabit Ethernet model.
- 24 — 24 is the port count, indicating 24 Gigabit Ethernet access ports.
- FP — FP is the port-type marker, indicating Full PoE+ ports backed by a larger shared PoE budget for denser powered-device deployments.
- 4G — 4G is the uplink code, indicating four fixed 1G SFP uplinks.
- L — L is the standard model suffix Cisco uses across the Catalyst 1000 ordering line, and does not denote a selectable license tier.
C1000-24FP-4G-L Accessories
| CAB-CONSOLE-RJ45 | Console Cable 6 Feet with RJ-45 |
| CAB-CONSOLE-USB | Console Cable 6 Feet with USB Type A and mini-B Connectors |
| PWR-CLP | Power Cable Restraining Clip |
| RCKMNT-1RU-2KX | Rackmount kit for 1 RU for C1000, 2960-X and 2960-XR (19/23/24/ETSI) |
FAQ
Does the Cisco Catalyst C1000-24FP-4G-L support PoE+, and what is the power budget?
Yes. The Cisco Catalyst C1000-24FP-4G-L provides Full PoE+ (IEEE 802.3af and 802.3at) on all 24 Gigabit Ethernet access ports, drawing from a 370 W system PoE power budget. All access ports support PoE+ up to 30W per port, subject to the shared total PoE budget, which suits denser deployments of wireless access points, IP phones, and IP cameras. For a lower PoE budget for mixed deployments, the Cisco Catalyst C1000-24P-4G-L provides PoE+ on a partial budget.
What transceivers do the uplinks on the C1000-24FP-4G-L use?
The Cisco Catalyst C1000-24FP-4G-L has four fixed 1G SFP uplink ports. These are 1-Gigabit SFP slots and do not accept 10G SFP+ optics. Specific transceiver compatibility should be verified against the manufacturer's transceiver compatibility matrix at tmgmatrix.cisco.com. Transceivers are sold separately.
Can the Cisco Catalyst C1000-24FP-4G-L be stacked?
The Cisco Catalyst C1000-24FP-4G-L does not support data-plane stacking; there is no shared switching fabric across units. As a Gigabit Ethernet model it does support Cisco Single IP Management, which lets up to eight Catalyst 1000 switches be connected through their uplink ports and managed under a single IP address. This is a management convenience for administering several switches together, not a high-bandwidth stacking backplane, so each switch forwards traffic independently.
What is the difference between the C1000-24FP-4G-L and the C1000-24P-4G-L?
Both are 24-port Gigabit Ethernet Layer 2 switches with the same four 1G SFP uplinks and 56 Gbps switching capacity, and both provide PoE+. They differ in PoE power budget: the C1000-24FP-4G-L has a 370 W Full PoE+ budget that supports denser powered-device deployments, while the C1000-24P-4G-L has a 195 W budget for mixed powered-device deployments. On both, all access ports support PoE+ up to 30W per port, subject to the shared total PoE budget. Choose the FP model for dense access-point or camera deployments; actual device counts depend on each device's power draw.
What is the difference between the C1000-24FP-4G-L and the C1000-24FP-4X-L?
Both are 24-port Full PoE+ Gigabit Ethernet Layer 2 switches with a 370 W PoE budget, and they differ in uplink speed. The C1000-24FP-4G-L has four fixed 1G SFP uplinks and 56 Gbps of switching capacity, while the C1000-24FP-4X-L has four fixed 10G SFP+ uplinks and 128 Gbps of switching capacity. Choose the C1000-24FP-4X-L when the access layer needs 10-Gigabit fiber uplinks to the distribution layer.
Does the Cisco Catalyst C1000-24FP-4G-L support Layer 3 routing?
No. The Cisco Catalyst C1000-24FP-4G-L is a Layer 2 managed switch and does not provide dynamic Layer 3 routing. It runs Cisco IOS with Layer 2 features such as VLANs, spanning tree, and quality of service, and it is designed for the access layer. Networks that need routing between VLANs or dynamic routing protocols should place a Layer 3 switch or router at the distribution layer.
Is the Cisco Catalyst C1000-24FP-4G-L end of life?
Cisco has published an End-of-Sale and End-of-Life notice for the Cisco Catalyst 1000 Series. The last date for Cisco to accept new orders was April 30, 2025, and the Last Date of Support is April 30, 2030. Network Devices Inc. sells new, factory-sealed Catalyst 1000 units from inventory, and Cisco support continues under active service contracts through the Last Date of Support. The C1000-24FP-4G-L remains fully supportable for deployments planned within that window.
What condition is the C1000-24FP-4G-L sold in, and what warranty applies?
The Cisco Catalyst C1000-24FP-4G-L is sold new and factory-sealed. It is covered by a Network Devices Inc. one-year warranty and a 30-day return policy.
