| Specifications |

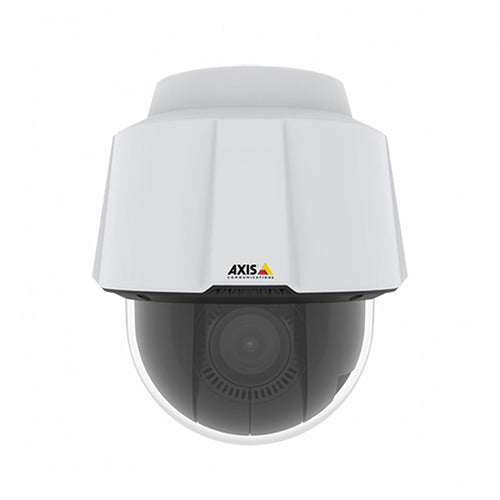

AXIS P5654-E 60HZ PTZ Network Camera |
| Camera |
| Image sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal, 4.0-84.6 mm, F1.6 - 4.5 |
| Horizontal field of view: 77.0°- 3.6° |
| Vertical field of view: 43.1°- 2.0° |
| Autofocus and auto-iris |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.1 lux at 30 IRE F1.6 |
| B/W: 0.01 lux at 30 IRE F1.6 |
| Shutter speed |
1/66500 s to 2 s |
| Pan/Tilt/Zoom |
Pan: 360° endless, 0.1°- 350°/s |
| Tilt: 180°, 0.1°- 350°/s |
| Zoom: 21x optical, 12x digital, Total 252x zoom |
| 256 preset positions, e-flip, limited guard tour, control queue, |
| on-screen directional indicator, set new pan 0°, focus window, |
| focus recall |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Compute capabilities |
Machine learning processing unit (MLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
1280x720 HDTV 720p to 320x180 |
| Frame rate |
Up to 60/50 fps (60/50 Hz) in all resolutions |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG |
| Controllable frame rate and bandwidth |
| Axis Zipstream technology in H.264 and H.265 |
| VBR/ABR/MBR H.264/H.265 |
| Image settings |
Compression, saturation, brightness, sharpness, contrast, local |
| contrast, white balance, exposure control, exposure zones, |
| Forensic WDR: Up to 120 dB depending on scene, defogging, |
| day/night shift level, tone mapping, fine-tuning of low-light |
| behavior, rotation: 0°, 180°, text and image overlay, image |
| freeze on PTZ, electronic image stabilization, scene profiles, 20 |
| individual polygon privacy masks |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS* , TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T, |
| specification at onvif.org |
| Event conditions |
Device status: Above operating temperature, Above or below |
| operating temperature, Below operating temperature, Fan |
| failure, IP address removed, Network lost, New IP address, |
| Shock detected, Storage failure, System ready, Within operating |
| temperature, Edge storage, Recording ongoing, Storage |
| disruption |
| I/O: Manual trigger, Virtual input |
| PTZ: PTZ malfunctioning, PTZ movement: Camera 1, PTZ preset |
| position reached: Camera 1, PTZ ready |
| Scheduled and recurring: Scheduled event |
| Video: Day-night mode, Live stream open |
| Event actions |
Day-night mode, go to preset position, guard tour, upload of |
| images or video clips via FTP, SFTP, HTTP, HTTPS, network share |
| and email, notification to email, HTTP, HTTPS, TCP and SNMP |
| trap, overlay text, prioritize text, record video to SD card and |
| network share, WDR mode |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles |
| Trigger conditions: line crossing, object in area |
| Up to 10 scenarios |
| Metadata visualized with color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Applications |
Included |
| AXIS Object Analytics |
| AXIS Video Motion Detection, advanced gatekeeper, autotracker 2 |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| General |
| Casing |
IP66-, NEMA 4X- and IK10-rated |
| Aluminum casing, polycarbonate (PC) dome |
| Color: white NCS S 1002-B, repaintable skin cover |
| For repainting instructions, |
| contact your Axis partner. |
| Sustainability |
PVC free |
| Power |
Axis PoE+ midspan 1–port: 100–240 V AC, max 37 W |
| IEEE 802.3at, Type 2 Class 4 |
| Camera consumption: typical 8 W, max 16 W |
| (PoE+ midspan not included) |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| RJ45 push-pull connector (IP66) included |
| Storage |
Support for SD/SDHC/SDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-30 °C to 50 °C (-22 °F to 122 °F) |
| Maximum intermittent temperature 55°C |
| Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| EN 50121-4, EN 55024, EN 55032 Class A, EN 61000-3-2, |
| EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),IEC 62236-4, |
| KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, |
| VCCI Class A |
| Safety |
| IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, EC 60068-2-78, IEC/EN 60529 IP66, |
| IEC/EN 62262 IK10, NEMA 250 Type 4X |
| Network |
| NIST SP500-267, IPv6 USGv6 |
| Dimensions |
Height: 217 mm (8.54 in) |
| ø 188 mm (7.4 in) |
| Weight |
2.5 kg (5.5 lb) |
| Included accessories |
RJ45 Push-pull Connector (IP66), hard ceiling mount, spring pipe |
| adaptor, U-profile pipe adaptor, installation guide, Windows® |
| decoder 1-user license, smoked dome |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
