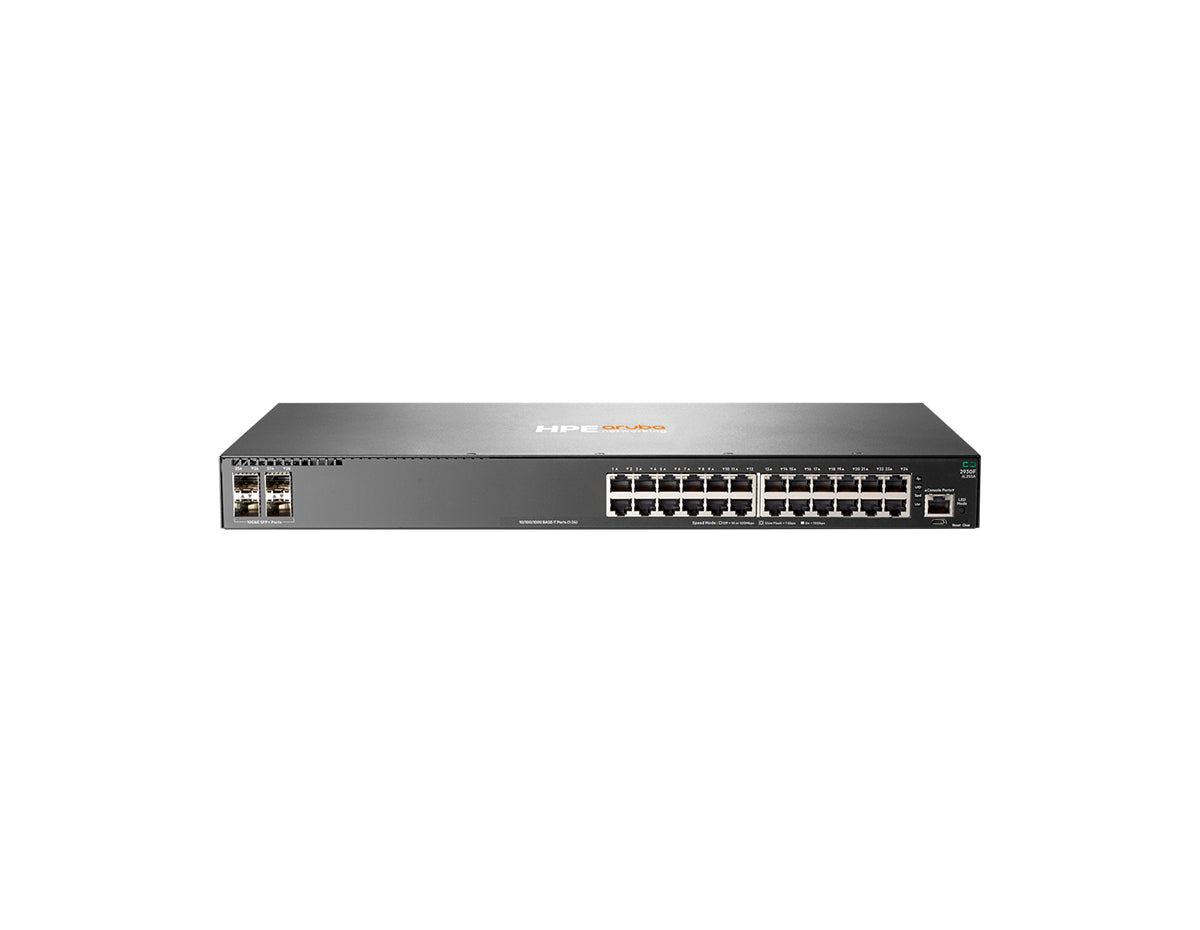

HPE ARUBA 2930F 24G 4SFP+ SWITCH (JL253A)

Model: JL253A-NEW
Detail: Switch, L3, managed, 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink), rack-mountable
List Price: US$3,229.00
Price:
$1,290.00
You Save: $1,939.00 (60% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey
Quantity:
+
-

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

Specifications

Type Aruba 2930F 24G 4SFP+ Switch
I/O ports and slots  24 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port
Memory and processor Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM

Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMC
Management Aruba AirWave Network Management; IMC - Intelligent Management Center

Command-line interface

Web browser

Configuration menu

SNMP manager

Telnet

RMON1

FTP

Out-of-band management (serial RS-232C or micro USB)
Features Aruba 2930F 24G 4SFP+ Switch (JL253A)
1000 Mb Latency < 3.8 s (64-byte packets)
10 Gbps Latency < 1.6 s (64-byte packets)
Throughput up to 95.2 Mp/s
Switching capacity 128 Gb/s
Routing table size 10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size 32768 entries
Dimensions 4.39 x 44.25 x 20.02 cm ( 1.73 x 17.42 x 7.88 in)
1U height
Weight 2.41 kg( 5.31 lb)
80plus.org Certification N/A
Description N/A
Maximum heat dissipation 105.5 kJ/hr(100 BTU/hr)
Voltage 100 - 127 / 200 - 240 V ac, rated
Current 0.6/0.4 A
Maximum power rating 29.3 W
Idle power 19.5 W
Frequency 50/60 Hz
PoE power N/A
Operating temperature 0C to 45C (32F to 113F)

up to 5000 Feet

- 0C to 40C (32F to 104F) up to 10000 Feet
Operating relative humidity 15% to 95% @ 40C ( 104F)

noncondensing
Nonoperating/Storage temperature -40C to 70C (-40F to 158F)

up to 15000 Feet
Nonoperating/Storage temperature 15% to 95% @65C ( 149F)
noncondensing
Acoustic Power: 49.7 dB, Pressure: 37.1 dB
Airflow direction Side-to-side
Safety UL 60950-1, 2nd Edition

EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013

IEC 60950-1:2005 +A1:2009 +A2:2013

CSA 22.2 No. 60950-1-07 2nd

EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Emissions EN 55022:2010/CISPR 22 Class A

FCC CFR 47 Part 15 Class A

VCCI Class A; ICES-003 Class A

CNS 13438
Immunity Generic:EN 55024:2010/CISPR 24

ESDIEC 61000-4-2

RadiatedIEC 61000-4-3

EFT/BurstIEC 61000-4-4

SurgeIEC 61000-4-5

ConductedIEC 61000-4-6

Power frequency magnetic field IEC 61000-4-8

Voltage dips and interruptionsIEC 61000-4-11

HarmonicsIEC/EN 61000-3-2

FlickerIEC/EN 61000-3-3
