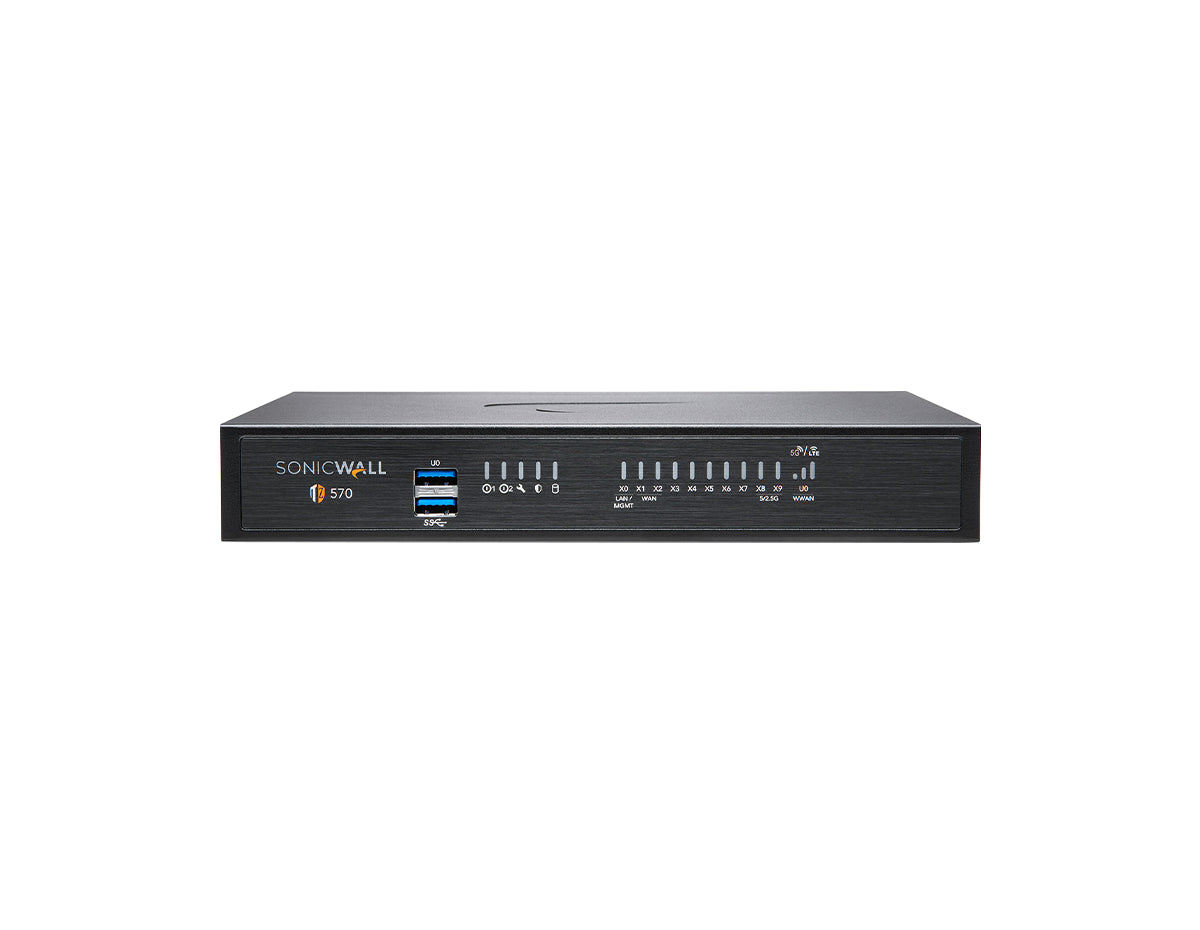

SonicWall TZ570 02-SSC-2833 Desktop Firewall, Appliance Only
- The firewall offers a firewall inspection throughput of 4.0 Gbps, a threat prevention throughput of 2.0 Gbps, a VPN throughput of 1.8 Gbps, and supports a maximum of 400,000 DPI connections, Equipped with 10 ports, including 8x1GbE and 2x5GbE, for efficient connectivity in a compact desktop design
Overview
The SonicWall TZ Series (Gen 7) is an integrated SD-Branch platform for small and midsize businesses and branch offices in a desktop form factor. It runs SonicOS 7 with Secure SD-WAN, zero-touch deployment and management through the cloud or the firewall itself, and it integrates SonicWall Switch, SonicWave access points and Capture Client. The 02-SSC-2833 is the TZ570 appliance. It is supplied as Appliance Only: the firewall, VPN and routing run on SonicOS 7, while SonicWall support and optional security subscriptions are sold separately.
Technical Details
The SonicWall TZ570 02-SSC-2833 is a desktop next-generation firewall running SonicOS 7, with 8×1GbE RJ45, 2×5GbE SFP+. Threat Prevention throughput is 2 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled (4 Gbps firewall inspection), and it holds up to 1,250,000 concurrent SPI connections. This part number is Appliance Only: SonicWall support and optional security subscriptions are sold separately. It is used at a small office, branch or retail site for internet-edge protection, SD-WAN and site-to-site VPN.
Best For
The TZ570 suits a small office, branch or retail site that needs 2 Gbps of Threat Prevention throughput and up to 1,250,000 concurrent SPI connections. It suits buyers who already hold SonicWall support or plan to add it. Size against the Threat Prevention figure, not the firewall inspection throughput.
Not suitable if:
- your inspected traffic exceeds 2 Gbps, the published Threat Prevention throughput
- you need security services included in the part number, since this one is Appliance Only
- you need Power over Ethernet from the firewall, since this model has none
- you require rack mounting without an additional kit, since this is a desktop appliance and requires a separate rackmount kit for rack installation
02-SSC-2833 Specifications
| Ports & Uplinks | |
|---|---|
| Fixed Interfaces | 8×1GbE RJ45, 2×5GbE SFP+ |
| Max Port Speed | 5 GbE |
| Management & Console Ports | 1×Console, 2×USB 3.0 |
| Performance & Scale | |
| Firewall Throughput | 4 Gbps (RFC 2544) |
| Threat Prevention Throughput | 2 Gbps (Gateway AV, Anti-Spyware, IPS and Application Control enabled) |
| TLS/SSL Inspection Throughput | 0.75 Gbps (DPI SSL) |
| IPsec VPN Throughput | 1.8 Gbps (1418-byte UDP, AESGMAC16-256) |
| Maximum Concurrent Sessions | 1,250,000 (SPI) |
| New Sessions per Second | 16,000 |
| Maximum DPI Connections | 400,000 (DPI) |
| Maximum IPsec VPN Tunnels | 200 (site-to-site) |
| Power & Thermal | |
| Power Supply | 60 W external; 100-240 VAC input (50-60 Hz) |
| Redundant Power Supply | Optional |
| Maximum Power Consumption | 13.4 W |
| Physical & Environmental | |
| Form Factor | Desktop |
| Dimensions (H x W x D) | 1.38 × 5.91 × 8.85 in (3.5 × 15 × 22.5 cm) |
| Weight | 2.14 lb (0.97 kg) |
| Operating Temperature | 32 to 105 °F (0 to 40 °C) |
| Software | |
| Operating System | SonicOS 7 |
| High Availability | Active/Standby; stateful synchronization requires the optional Stateful HA Upgrade license |
| Central Management Platform | Network Security Manager, GMS |
| Routing Protocols & IPv6 | BGP, OSPF, RIPv1/v2, static routes, policy-based routing; IPv6/USGv6 certified |
FAQ
Does the SonicWall TZ570 02-SSC-2833 include a security subscription?
No. The 02-SSC-2833 is Appliance Only: firewall, VPN and routing run on SonicOS 7, while SonicWall support and security subscriptions such as the Advanced Protection Security Suite are sold separately.
How much traffic can the SonicWall TZ570 02-SSC-2833 handle?
SonicWall publishes no user count, so size the TZ570 on its figures. Firewall inspection throughput is 4 Gbps, but Threat Prevention throughput is 2 Gbps with Gateway AV, Anti-Spyware, IPS and Application Control enabled; size against that. It holds 1,250,000 concurrent SPI connections and 400,000 DPI connections, and opens 16,000 new connections per second.
What interfaces does the SonicWall TZ570 02-SSC-2833 have?
The TZ570 provides 8×1GbE RJ45, 2×5GbE SFP+. Management and console connectivity is 1×Console, 2×USB 3.0. Transceivers for any SFP-type ports are sold separately.
Does the SonicWall TZ570 02-SSC-2833 support high availability?
The TZ570 supports Active/Standby high availability; stateful synchronization requires SonicWall's optional Stateful HA Upgrade license for the TZ570 series.
What is the difference between the TZ570 and the TZ670?
Both run the same SonicOS 7. The TZ570 is rated at 4 Gbps firewall inspection throughput, 2 Gbps Threat Prevention throughput and 1,250,000 concurrent SPI connections; the TZ670 is rated at 5 Gbps, 2.5 Gbps and 1,500,000. Check both interface sets in the specification tables.
Does the 02-SSC-2833 include SonicWall support?
Support is not included with an Appliance Only part number. SonicWall support and optional security subscriptions are sold separately, and Network Devices Inc. confirms the correct support option before the order is placed.
How is the SonicWall TZ570 02-SSC-2833 managed?
The TZ570 is managed through Network Security Manager (NSM), and locally through the SonicOS web interface and CLI. Firewall policy, SD-WAN, VPN and high availability are configured on the appliance; the security services on it are licensed separately unless this part number bundles them. SonicWall includes centralized management and alerting as part of support, so NSM management needs an active support contract or security bundle.
What condition is the 02-SSC-2833 sold in, and what warranty applies?
Network Devices Inc. supplies the 02-SSC-2833 new and factory sealed. It is covered by a one-year Network Devices Inc. warranty and a 30-day return window. Orders ship from our New Jersey and Texas warehouses.
