| Specifications |

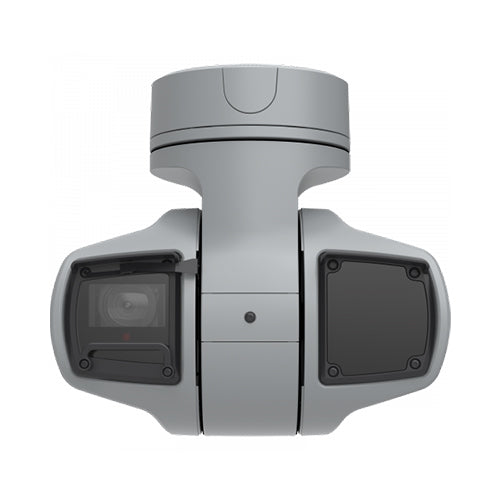

AXIS Q6215-LE 60HZ PTZ Network Camera |
| Camera |
| Image sensor |
1/1.9" progressive scan RGB CMOS |
| Lens |
Zoom lens, 6.7–201 mm, F1.6–5.3 |
| Horizontal field of view: 58.6°–2.2° |
| Vertical field of view: 34.1°–1.2° |
| Autofocus, automatic day/night |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.07 lux at 30 IRE F1.6 |
| B/W: 0.008 lux at 30 IRE F1.6, 0 lux with built-in IR illumination |
| Color: 0.1 lux at 50 IRE F1.6 |
| B/W: 0.01 lux at 50 IRE F1.6, 0 lux with built-in IR illumination |
| Shutter speed |
1/30000 s to 1/6 s |
| Pan/Tilt/Zoom |
Pan: 360° endless, 0.05°/s to 150°/s |
| Tilt: -90° to +90°, 0.05°/s to 150°/s |
| Zoom: 30x optical zoom, 21x digital zoom |
| Preset accuracy: 0.10° |
| 256 preset positions, tour recording, guard tour, control queue, |
| orientation aid PTZ |
| System on chip (SoC) |
| Model |
ARTPEC-6 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Video |
| Video compression |
H.264 Main, High and Baseline Profiles |
| Motion JPEG |
| Resolution |
1920x1080 HDTV 1080p to 320×180 |
| Frame rate |
Up to 60/50 fps (60/50 Hz) in all resolutions |
| Video streaming |
Multiple, individually configurable streams in H.264 and |
| Motion JPEG |
| Axis Zipstream technology in H.264 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264 |
| Image settings |
Saturation, brightness, sharpness, noise reduction, WDR – up to 110 dB depending on scene, white balance, day-night shift priority, exposure mode, manual shutter time, defogging, backlight compensation, highlight compensation, compression, fine tuning of low-light behavior, text and image overlay, privacy masks, electronic image stabilization (EIS)* |
| *: EIS and privacy masks cannot be used simultaneously |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS* , TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, NTCIP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform, specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specification at onvif.org |
| Event triggers |
Analytics, edge storage events, virtual inputs through API |
| Detectors: day/night mode, live stream accessed, shock detection |
| Hardware: fan, network, temperature |
| Input Signal: virtual inputs, manual trigger |
| MQTT subscribe |
| PTZ: auto tracking, error, moving, preset reached, ready |
| Storage: disruption, recording |
| System: system ready |
| Time: use schedule |
| Event actions |
Record video: SD card and network share |
| MQTT publish |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email |
| Pre- and post-alarm video or image buffering for recording or upload |
| Notification: email, HTTP, HTTPS, and TCP |
| PTZ: PTZ preset, start/stop guard tour, auto tracking |
| Overlay text, day/night mode |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter |
| Automatic orientation |
| Analytics |
| Applications |
Included |
| AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard |
| AXIS Video Motion Detection, auto tracking, gatekeeper |
| Supported |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| General |
| Cybersecurity |
Signed firmware |
| Casing |
IP66-, IP68-, NEMA 4X- and IK10-rated aluminum casing |
| Color: urban grey NCS S 5502–B |
| Wiper included (silicone wiper blade) |
| Sustainability |
PVC free |
| Power |
High PoE 95 W midspan 1–port: 100–240 V AC, max 1.35 A |
| IEEE 802.3bt Type 4 Class 8 |
| Camera consumption: typical 25 W, max 71 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| IR illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 400 m (1300 ft) or more depending on the scene |
| Storage |
Support for SD/SDHC/SDXC card |
| Support for SD card encryption (AES-XTS-Plain64 256bit) |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations, see axis.com |
| Operating conditions |
(-50 °C to 55 °C) (-58 °F to 131 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Arctic Temperature Control: Start-up as low as -40 °C (-40 °F) |
| Humidity 10–100% RH (condensing) |
| Wind load (sustained): 68 m/s (150 mph) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Approvals |
EMC |
| EN 55032 Class A, EN 50121-4, EN 61000-3-2, |
| EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, |
| FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, |
| RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35 |
| Safety |
| IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471 risk |
| group 2, IS 13252 |
| Environment |
| IEC/EN 60529 IP66/IP68, NEMA 250 Type 4X, |
| NEMA TS 2 (2.2.7-2.2.9), IEC/EN 62262 IK10, |
| MIL-STD-810G (Method 501.5, 502.5, 506.5, 509.5, |
| 521.3), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, |
| IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Network |
| NIST SP500-267 |
| Midspan: EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB |
| Dimensions |
210 x 330 x 313 mm (4 5/16 x 13 x 12 5/16 in) |
| Weight |
8.7 kg (19.3 lb) |
| Included accessories |
Installation Guide, Windows® |
| decoder 1-user license, IK10 |
| bumper, High PoE Midspan 1-port, RJ45 connector push pull plug |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis’ Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
