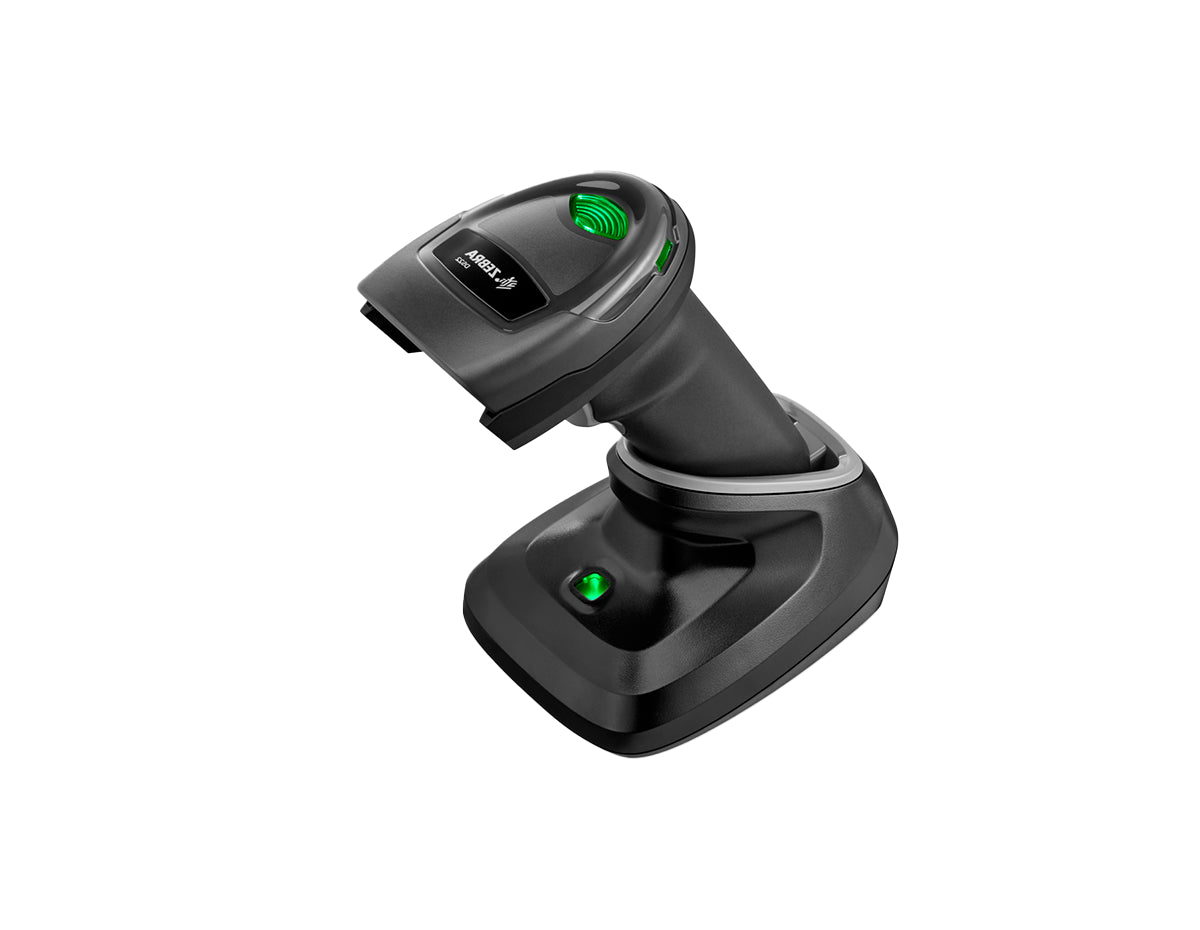

ZEBRA DS2278 HANDHELD SCANNER (DS2278-SR7U2100PRW)

Accessories

Cordless Accessories	CR2278 Presentation Cradle, Spare Battery, Micro USB Cable
Decode capabilities
Input Voltage Range	DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
1D	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D	PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes

Specifications



Specifications	Zebra DS2278 Handheld Scanner (DS2278-SR7U2100PRW)
Physical Characteristics	Cordless DS2278: 6.9 in. H x 2.6 in. W x 3.5 in. D 17.5 cm H x 6.6 cm W x 9.0 cm D Presentation Cradle: 2.8 in. H x 3.7 in. W x 4.8 in. D 7.2 cm H x 9.4 cm W x 12.2 cm D
Weight	Cordless DS2278: 7.5 oz. / 214 g Presentation Cradle: 5.2 oz. / 151 g
Input Voltage Range	DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
Current	Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB
Color	Nova White, Twilight Black
Supported Host Interfaces	USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support	Supports more than 90 international keyboards
User Indicators	Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume)
Performance Characteristics
Motion Tolerance (Handheld)	Up to 5 in./13 cm per second for 13 mil UPC
Swipe Speed (Hands-Free)	Up to 30.0 in./76.2 cm per second for 13 mil UPC
Light Source	Aiming Pattern: Linear 624nm Amber LED
Illumination	(2) 645nm Super-Red LEDs
Imager Field of View	32.8° H x 24.8° V Nominal
Image Sensor	640 x 480 pixels
Minimum Print Contrast	25% minimum reflective difference
Skew/Pitch/Roll Tolerance	(+/- 65°; +/- 65°; 0-360°)
Minimum Element Resolution	Code 39 - 4.0 mil; Code 128 - 4.0 mil Data Matrix - 6.0 mil; QR Code - 6.7 mil
User Environment
Operating Temperature	DS2278 Imagers: 32.0° to 122.0° F/0.0° to 50.0° C Presentation Cradle: 32.0° to 104.0° F/0.0° to 40.0° C
Storage Temperature	(-40.0° to 158.0° F/-40.0° to 70.0° C)
Humidity	5% to 95% RH, non-condensing
Drop Specification	Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification (Note: 1 tumble = 0.5 cycle)	Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler
Environmental Sealing	IP52
Electrostatic Discharge (ESD)	DS2278 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity	0 to 10,000 Foot Candles/0 to 107,600 Lux
Radio specifications
Bluetooth Radio	Standard Bluetooth Version 4.0 with BLE: Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle. Environmental factors may impact results.Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps
Battery
Battery Capacity/ Battery Type	2,400 mAh Li-Ion Battery
Scans Per Battery Charge (Simulated Checkout profile of 10 scans in 10 seconds with a 50 second rest. 3 Refer to )	110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute
Operating Time Per Full Charge (Simulated Checkout profile of 10 scans in 10 seconds with a 50 second rest. 3 Refer to )	84.0 Hours
Charge Time (from Empty)	14 Hour Shift Hours / Full Charge Hours
Standard USB	14 Hour Shift Hours: 4 Full Charge Hours: 17
BC1.2 USB	14 Hour Shift Hours: 1 Full Charge Hours: 5
External 5V Source	14 Hour Shift Hours: 1 Full Charge Hours: 5
Micro USB	14 Hour Shift Hours: 1 Full Charge Hours: 7
BC1.2 Micro USB	14 Hour Shift Hours: 1 Full Charge Hours: 4
Regulatory
Electrical Safety	EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07
Environmental	RoHS EN 50581
LED Safety	IEC 62471
IT Emissions	EN 55032 (Class B)
IT Immunity	EN 55024
Harmonic Current Emissions	EN 61000-3-2
Voltage Fluctuation and Flicker	EN 61000-3-3
Radio Frequency Devices	47 CFR Part 15, Subpart B, Class B
Digital Apparatus	ICES-003 Issue 6, Class B

Properties

Properties	Zebra DS2278 Handheld Scanner (DS2278-SR7U2100PRW)
Description	Handheld Standard Range Area Imager Kit with Presentation Cradle and USB Kit
Product Family	DS2200 Series Handheld Imagers
Product Type	Handheld Scanner
DS2200 Series Features	• Affordable 1D/2D imager • Easy Integration with a Tablet-Based POS • Pre-Configured and Ready to Use, Right Out of the Box • Auto-Host Detect Cables • Deploy Anywhere in the World • Easily Customize Settings with 123Scan • Backwards Compatible with Zebra LS2208 Series Cables • Instant Decoding with PRZM Intelligent Imaging • Unsurpassed Scanning Range • Point-and-Shoot Scanning Simplicity • Patent Pending Technology for the Most Intuitive Aiming • Easiest Pairing on the Planet • Fast, Easy and Flexible Charging • Unique Direct Decode Indicator Improves Productivity • On-the-Fly Switching Between Handheld and Hands-Free Scanning • Control Your Scanners From a Smartphone, Tablet or PC • Eliminate Bluetooth Interference with Zebra’s Proprietary Wi-Fi Friendly Mode
