| Specifications |

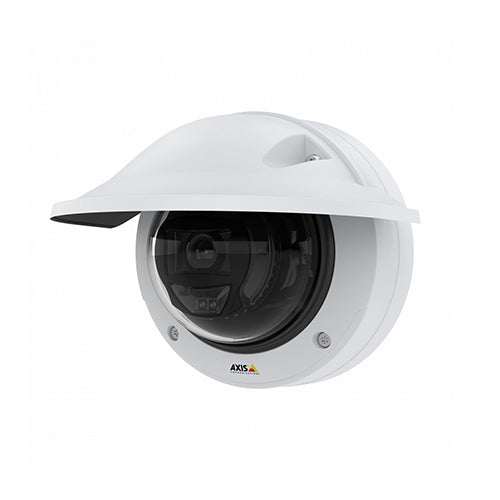

AXIS P3255-LVE Dome Camera |
| Camera |
| Image sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal, 3.4–8.9 mm, F1.8 |
| Horizontal field of view: 100°-36° |
| Vertical field of view: 53°-20° |
| Remote zoom and focus, P-Iris control, IR corrected |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
With Forensic WDR and Lightfinder 2.0: |
| Color: 0.1 lux at 50 IRE, F1.8 |
| B/W: 0.02 lux at 50 IRE, F1.8; 0 lux with IR illumination on |
| Shutter speed |
1/66500 s to 2 s |
| Camera angle adjustment |
Pan ±180° |
| Tilt ±75° |
| Rotation ±175° |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
2048 MB RAM, 1024 MB Flash |
| Compute capabilities |
Deep learning processing unit (DLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
1920x1080 to 160x90 |
| Frame rate |
With WDR: 25/30 fps with power line frequency 50/60 Hz |
| Without WDR: 50/60 fps with power line frequency 50/60 Hz |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265, and |
| Motion JPEG |
| Axis Zipstream technology for H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Multi-view streaming |
Up to 2 individually cropped-out view areas in full frame rate |
| Image settings |
Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, defogging, Forensic WDR: up to 120 dB depending on scene, barrel distortion correction, fine tuning of low-light behavior, dynamic text and image overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270°, including Corridor Format |
| Pan/Tilt/Zoom |
Digital PTZ, preset positions |
| Audio |
| Audio streaming |
Full duplex |
| Audio encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, |
| G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Configurable bit rate |
| Audio output/output |
External microphone input, line input, digital input with ring |
| power, line output, automatic gain control |
| Two-way audio connectivity via optional AXIS T61 Audio and I/O |
| Interfaces with portcast technology |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, signed video, Axis Edge Vault, Axis device ID |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Network protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and |
| ONVIF® Profile T, specification at onvif.org |
| Support for Session Initiation Protocol (SIP) for integration with |
| Voice over IP (VoIP) systems, peer to peer or integrated with |
| SIP/PBX |
| Event conditions |
Analytics, external input, supervision of input, edge storage |
| events, virtual inputs through API |
| MQTT subscribe |
| Event actions |
Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email |
| Pre- and post-alarm video or image buffering for recording or upload |
| Notification: email, HTTP, HTTPS, TCP, and SNMP trap |
| MQTT publish |
| Overlay text, external output activation, play audio clip, make call |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter, remote focus, remote zoom |
| OptimizedIR with adjustable IR illumination intensity |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Trigger conditions: line crossing, object in area, time in areaBETA |
| Up to 10 scenarios |
| Metadata visualized with trajectories and color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Applications |
Included |
| AXIS Object Analytics, AXIS Video Motion Detection, active |
| tampering alarm, audio detection |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap. |
| General |
| Casing |
IP66- and NEMA 4X-rated, IK10 impact-resistant polycarbonate |
| casing with hard-coated dome and dehumidifying membrane |
| Encapsulated electronics and captive screws |
| Color: white NCS S 1002-B |
| For repainting instructions contact |
| your Axis partner. |
| Mounting |
Mounting bracket with holes for junction box (double-gang, |
| single-gang, and 4” octagon) and for wall or ceiling mount |
| ¼”-20 UNC tripod screw thread |
| Sustainability |
PVC free |
| Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Typical 7.8 W, max 14.6 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| I/O: 4–pin 2.5 mm (0.098 in) terminal block for 1 supervised |
| digital input and 1 digital output (12 V DC output, max. load 25 mA) |
| Audio: 4-pin 2.5 mm (0.098 in) terminal block for audio in and out |
| Audio and I/O connectivity via AXIS T61 Audio and I/O Interfaces |
| with portcast technology |
| IR illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Range of reach 40 m (130 ft) or more depending on the scene |
| Storage |
Support for microSD/microSDHC/microSDXC card and encryption |
| Recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-40 °C to 50 °C) (-40 °F to 122 °F) |
| Maximum temperature (intermittent): 55 °C (131 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) |
| Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, |
| EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, |
| ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, |
| KC KN32 Class A, KC KN35 |
| Safety |
| IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, |
| IEC/EN 62471 |
| Environment |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-78 |
| IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, |
| NEMA TS 2 (2.2.7-2.2.9) |
| Network |
| NIST SP500-267 |
| Dimensions |
Without weathershield: |
| Height: 104 mm (4.09 in) |
| ø 149 mm (5.87 in) |
| Weight |
With weathershield: |
| 800 g (1.8 lb) |
| Included accessories |
Installation guide, Windows® decoder 1-user license, drill |
| template, Resistorx® T20 L-key, terminal block connectors, cable gaskets, connector guard, weathershield |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Dimensions |
Height: 103 mm (4.06 in) |
| ø 149 mm (5.87 in) |
| Weight |
650 g (1.4 lb) |
| Included accessories |
Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 L-key, terminal block connectors, cable gaskets, connector guard |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
