CISCO IE-3400-8P2S-E SWITCH
| Part No: | IE-3400-8P2S-E |
| Detail: | Network Essentials Switch Managed 8 x 10/100/1000 + 2 x Gigabit SFP DIN rail mountable DC power |
| List Price: |
|
| Price: |
$4,875.00
|
| You Save: | $5,898.00 (55% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

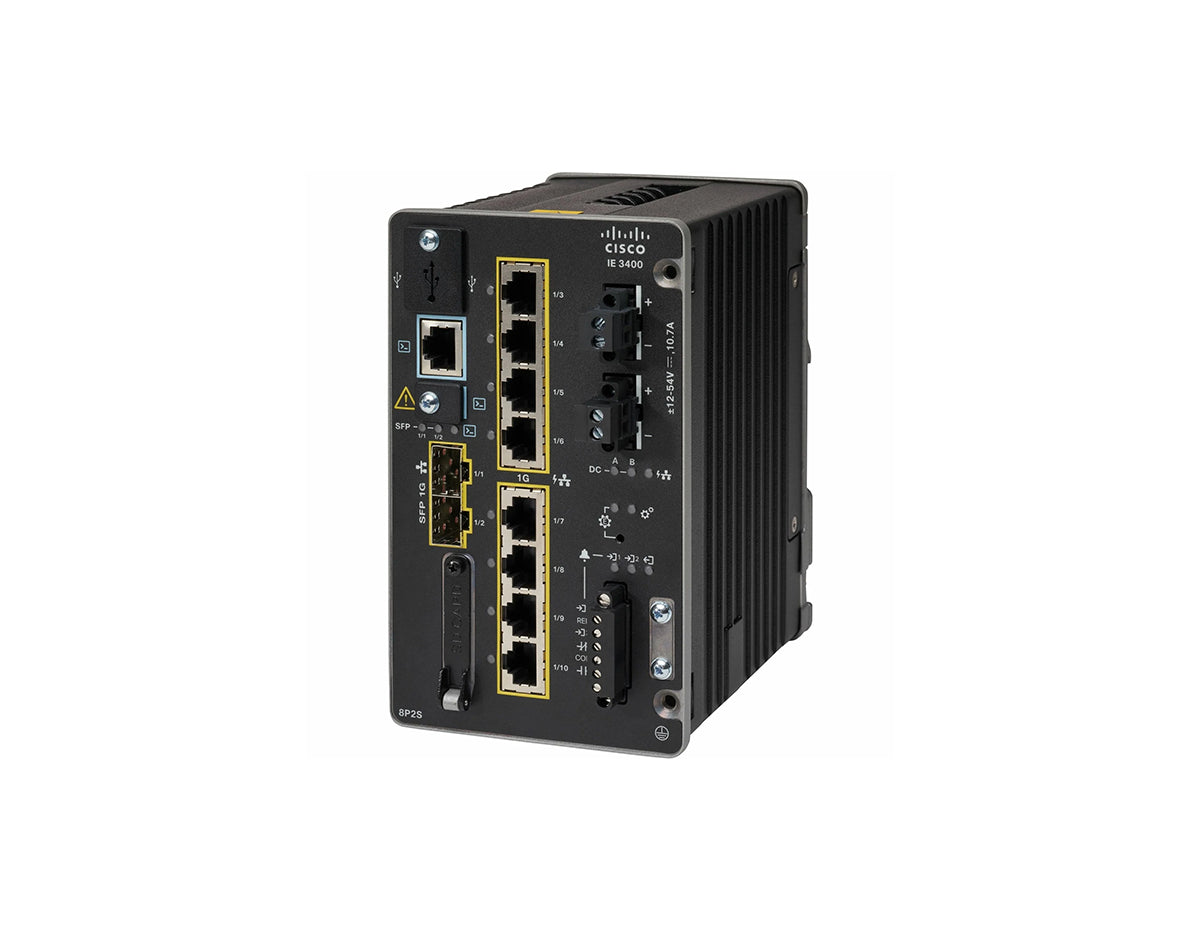

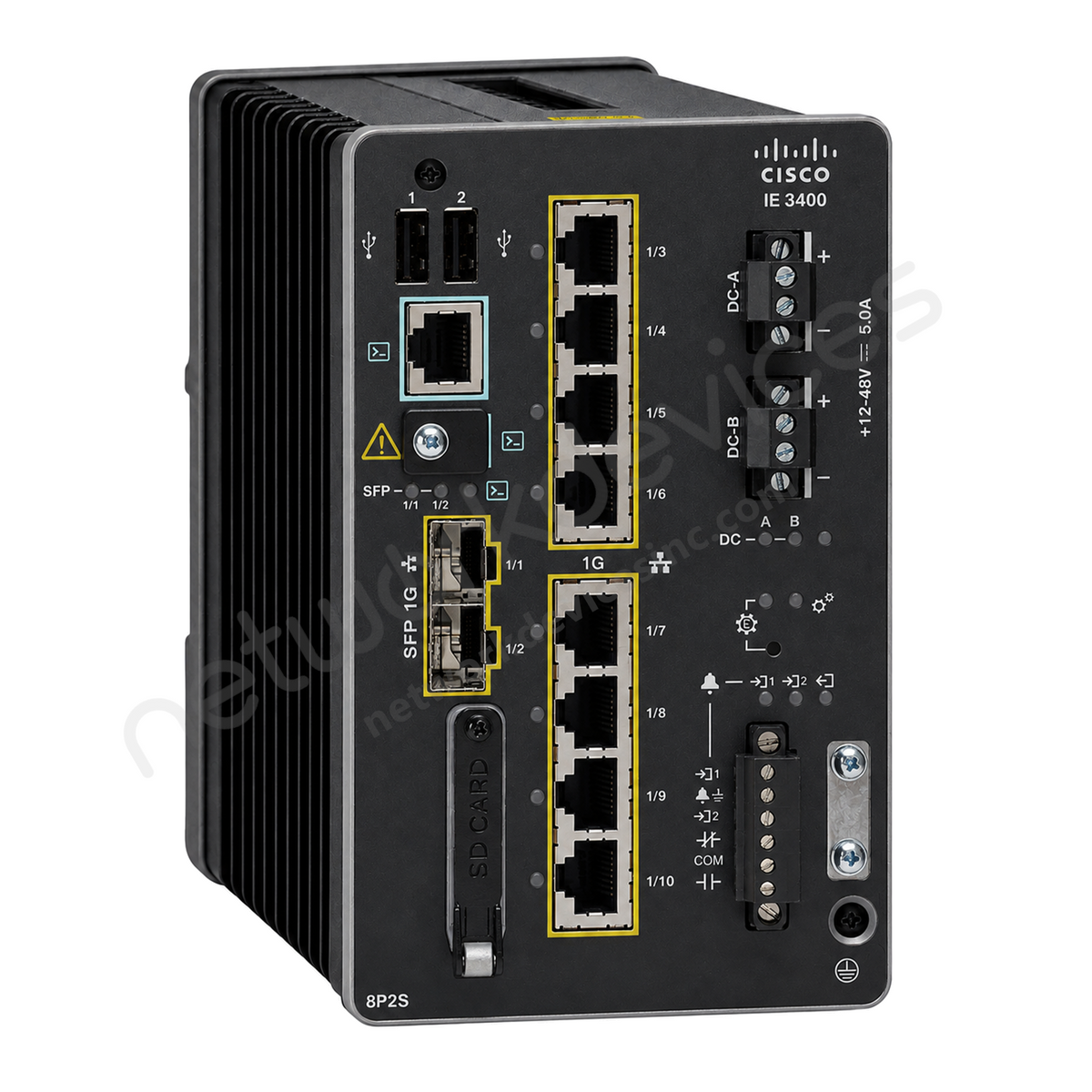

Cisco IE-3400-8P2S-E Industrial Ethernet Switch
The Cisco IE-3400-8P2S-E is a rugged, high-performance industrial Ethernet switch designed to provide reliable and secure network connectivity in harsh environments. This switch features 8 Gigabit Ethernet ports with Power over Ethernet (PoE) support and 2 SFP slots, making it an ideal solution for powering and connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3400-8P2S-E is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.
Key Features:
- 8 x Gigabit Ethernet Ports with PoE: Provides reliable data connectivity while powering PoE-enabled devices, simplifying installation and reducing the need for additional power supplies.
- 2 x SFP Slots: Offers flexible uplink options with fiber connectivity, enabling high-speed data transfer and network scalability.
- Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it ideal for demanding industrial environments.
- Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control and security.
- Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.
Technical Overview:
- Recommended for: Industrial environments requiring robust Ethernet connectivity with PoE support and advanced management features.
- Ports: 8 x Gigabit Ethernet ports with PoE, 2 x SFP slots.
- PoE Budget: Supports PoE with a specific power budget per port as outlined in the datasheet.
- Operating Temperature: Designed to operate in a wide temperature range suitable for harsh industrial applications.
- Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
- Form Factor: Rugged, compact design suitable for space-constrained industrial environments.
You can check the related tab for the Cisco IE-3400-8P2S-E datasheet.
Accessories
| Accessories and License Upgrade PIDs | |
| SD-IE-4GB= | IE 4GB SD memory card for IE |
| STK-RACK-DINRAIL= | STK-RACK-DINRAIL= |
| IE3400-NW-A= | Network Advantage License for IE3400, Perpetual |
| IE3400-DNA-E | Cisco DNA Essentials license for IE3400 Series |
| IE3400-DNA-E-3Y | IE 3400 Cisco DNA Essentials, 3 Year Term license |
| IE3400-DNA-E-5Y | IE 3400 Cisco DNA Essentials, 5 Year Term license |
| IE3400-DNA-E-7Y | IE 3400 Cisco DNA Essentials, 7 Year Term license |
| IE3400-DNA-A | Cisco DNA Advantage license for IE3400 Series |
| IE3400-DNA-A-3Y | IE 3400 Cisco DNA Advantage, 3 Year Term license |
| IE3400-DNA-A-5Y | IE 3400 Cisco DNA Advantage, 5 Year Term license |
| IE3400-DNA-A-7Y | IE 3400 Cisco DNA Advantage, 7 Year Term license |
| LIC-MRP-MGR-XE= | MRP Ring Manager License |
| LIC-MRP-CLIENT-XE= | MRP Ring Client License |
| IE 3400 Series Power Supplies | |
| PWR-IE50W-AC | 50W AC Power Supply |
| PWR-IE50W-AC-IEC= | 50W AC-IEC Power Supply |
| PWR-IE50W-AC-L | 50W AC-L Power Supply |
| PWR-IE65W-PC-AC | 65W PC-AC Power Supply |
| PWR-IE65W-PC-DC | 65W PC-DC Power Supply |
| PWR-IE170W-PC- AC | 170W PC-AC Power Supply |
| PWR-IE170W-PC- DC | 170W PC-DC Power Supply |
| PWR-IE240W-PCAC-L | 240W PCAC-L Power Supply |
| PWR-IE480W-PCAC-L | 480W PCAC-L Power Supply |
| SFPs | |
| GLC-FE-100FX-RGD= | 100BASE-FX Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX-RGD | 100BASE-LX10 Rugged SFP for Fast Ethernet SFP Ports |
| GLC-FE-100FX= | 100BASE-FX SFP for Fast Ethernet SFP Ports |
| GLC-FE-100LX= | 100BASE-LX10 SFP for Fast Ethernet SFP Ports |
| GLC-FE-100EX= | 100BASE-EX for Fast Ethernet SFP Ports |
| GLC-FE-100ZX= | 100BASE-ZX for Fast Ethernet SFP Ports |
| GLC-FE-100BX-D= | 100BASE-BX10-D SFP for Fast Ethernet SFP Ports |
| GLC-FE-100BX-U= | 100BASE-BX10-U SFP for Fast Ethernet SFP Ports |
| GLC-SX-MM-RGD= | 1000BASE-SX short wavelength; rugged |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH long wavelength; rugged |
| GLC-ZX-SM-RGD= | 1000BASE-ZX extended distance; rugged |
| GLC-BX40-U-I= | 1000BASE-BX40-U for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-D-I= | 1000BASE-BX40-D for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX40-DA-I= | 1000BASE-BX40-D (Alternative) for 40km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-U-I= | 1000BASE-BX80-U for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-BX80-D-I= | 1000BASE-BX80-D for 80km Single-Fiber Bidirectional Applications; with DOM |
| GLC-SX-MMD= | 1000BASE-SX short wavelength; with DOM |
| GLC-LH-SMD= | 1000BASE-LX/LH long-wavelength; with DOM |
| GLC-EX-SMD= | 1000BASE-EX long-wavelength; with DOM |
| GLC-ZX-SMD= | 1000BASE-ZX extended distance; with DOM |
| GLC-BX-D= | 1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
| GLC-BX-U= | 1000BASE-BX10-U upstream bidirectional single fiber; with DOM |
| GLC-BX-D-I= | 1000BASE-BX10-D downstream bidirectional single fiber, (IND) rated, with DOM |
| GLC-BX-U-I= | 1000BASE-BX10-U upstream bidirectional single fiber, (IND) rated, with DOM |
| SFP-GE-S= | Cisco SFP-GE-S Duplex SFP 1Gbps 500m MMF DDM 850nm |
| SFP-GE-L= | 1000BASE-LX/LH SFP (DOM) |
| SFP-GE-Z= | Cisco 1000BASE-ZX SFP transceiver module for SMF |
| GLC-SX-MM= | Cisco GLC_x0090_SX_x0090_MM SFP, Duplex, 1Gbps, 500m, 7.5dB, MMF, 850nm |
| GLC-LH-SM= | Cisco Glc Lh Sm 1000Base Lh Sm Sfp Transceiver Module |
| GLC-ZX-SM= | Cisco 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, commercial operating temperature range. |
| GLC-TE= | 1000BASE-T standard |
| GLC-T-RGD= | 1000BASE-T standard |
| CWDM-SFP-1470 | Cisco CWDM 1470-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel |
| CWDM-SFP-1610 | Cisco CWDM 1610-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel |
| CWDM-SFP-1530 | Cisco CWDM 1530-nm SFP; Gigabit Ethernet and 1 and 2-Gb Fibre Channel |
| CWDM-SFP-1490 | Cisco CWDM 1490-nm SFP; Gigabit Ethernet and 1 and 2 Gb Fibre Channel |
| DWDM-SFP-3033 | 1000BASE-DWDM 1530.33 nm SFP (100-GHz ITU grid) |
| DWDM-SFP-3112 | 1000BASE-DWDM 1531.12 nm SFP (100-GHz ITU grid) |
Specifications
| Specifications | IE-3400-8P2S-E |
| DRAM | 4 GB |
| Flash Memory | 1.5 GB |
| Hardware | |
| PoE power budget | 480W (including expansion module) |
| Removable storage | USB (Optional), SD card (Optional) |
| Alarms | 2 alarms in, 1 alarm out |
| Console ports | 1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power inputs | Dual DC power inputs |
| Number of Queues | 8 |
| Forwarding Rate | Line rate for all ports and all packet sizes |
| Unicast MAC addresses | 8000 |
| Jumbo Frames | 2000 bytes |
| No. of VLANs | 256 |
| IPv4 Indirect routes | 2000 |
| IPv6 Indirect routes | 512 |
| Internet Group Managament Protocol (IGMP) Multicast Groups | 1000 |
| Spanning Tree Protocol (STP) instances |
128 |
| Access Control Entries (PACL/VACL/RACL) |
3000 |
| SD card capacity (Optional) | 4 GB |
| Input Voltage Range | Redundant DC input voltage: 9.6 to 60VDC 48VDC is required for PoE and 54VDC is required for PoE+ |
| Maximum Input Current | 10.6A |
| Power Consumption | 47W |
| Operating Temperature | -40°C to +70°C (40 LFM vented enclosure) -40°C to +60°C (sealed enclosure) -34°C to +75°C (Min. 200 LFM fan or blower-equipped enclosure) +85°C (type tested for 16 hours) |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 15,000 feet |
| Storage Altitude | 15,000 feet |
| Mean Time Between Failures (MTBF) | 401,313 |
| Industrial Automation Control System |
IEC 62443-4-1 IEC 62443-4-2 |
| Electromagnetic emissions | FCC 47 CFR Part 15 subpart B Class A EN 55032/CISPR 32 Class A VCCI Class A AS/NZS CISPR 32 Class A CISPR 11 Class A ICES 003 Class A CNS 13438 Class A KN 32 Class A EN 300 386 |
| Electromagnetic immunity | CISPR 24 EN 55024 KN 35 EN 61000-4-2 Electro Static Discharge (air 15kV, contact 8kV) EN 61000-4-3 Radiated RF (10V/m UTP, 20V/m STP) EN 61000-4-4 Electromagnetic Fast Transients (4kV) EN 61000-4-5 Surge (2KV/1KV Power, 4KV STP) EN 61000-4-6 Conducted RF (10Vrms UTP) EN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m) EN 61000-4-16 Conducted CM Disturbances (30V, Cont/300V, 1 sec) EN 61000-4-17 Ripple Immunity DC Power (10%) EN 61000-4-18 Damped Oscillatory Wave (2.5kV, 1MHz) EN-61000-4-29 DC Voltage Dips and interruptions |
| Industry standards | EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity EN 61326-1 Measurement, Control and Laboratory Equipment IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking EN50121-4 Railway Signaling and Telecommunications Apparatus EN50155- Railway applications - Rolling stock ODVA Industrial EtherNet/IP NEMA TS 2-2016 IP30 |
| Marine I | DNC Certification according to class guideline DNV-CG-0339 Additional Standards: IEC 60945, IACS UR E10 |
| Safety standards and certifications |
Information technology equipment: UL/CSA 60950-1, IEC 60950-1 CB with all country deviations UL/CSA 62368-1, IEC 62368-1 CB with all country deviations Industrial floor (control equipment): UL/CSA 61010-2-201 CB report and certificate to IEC/EN 61010-2-201 Hazardous locations: UL121201 (Class l, Div 2, groups A-D) CSA 213 (Class l, Div 2, groups A-D) UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC) IEC 60079-0, -15 IECEx test report (Class l, Zone 2, Gc/IIC) EN 60079-0, -15 ATEX certificate (Class l, Zone 2, Gc/IIC) Cabinet enclosure required |
| Humidity | Relative humidity of 5% to 95% non-condensing IEC 60068-2-78 IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 3ms, half sine) IEC 60068-2-27 (non-operational shock, 65-80G, 9ms, trapezoidal) MIL-STD-810, Method 514.4 IEC 60068-2-6 (vibration-sinusiodal, 5Hz-150Hz) |
| Corrosion | IEC 60068-2-52 (salt fog) IEC 60068-2-60 (flowing mixed gas) |
Properties
| Properties | Cisco IE-3400-8P2S-E |
| Description | Catalyst IE3400 with 8 GE PoE/PoE+, 2 GE SFP, Adv. Modular, Network Essentials |
| Product Family | Industrial Ethernet 3400 |
| Product Type | Ethernet Switch |
| Switches | |
| Total Ports | 10 |
| 10/100/1000 RJ45 Copper Ports | 8 |
| 100/1000 SFP Ports | 2 |
| 1GE/2.5G RJ45 Copper ports | - |
| Software License (Default) | Network Essentials |
| PoE/PoE (+) budget | 240W (base), 360W (with module) |
| Software Features | |
| Network Essentials License (Perpetual) |
Features |
| Layer 2 Switching | IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP, VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP |
| Multicast | IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier |
| Managament | WebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF |
| Security | Port security, 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control - unicast, multicast, broadcast, SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, Access Lists (PACL,VACL,RACL), SUDI 2099 (Secure Unique Device identifier), Full Flexible NetFlow (FNF), MACsec-128 |
| Quality of Service (QoS) | Ingress policing, rate limit, egress queuing and shaping, auto QoS |
| IPv6 | IPv6 host support, SNMP over IPv6, HTTP/HTTP(s) over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless Auto Config SCP/SSH, Radius, TACACS+, NTP over IPv6, IPv6 VRF aware BGPv6, IPV6 ND cache expire, IPv6 support for TFTP, IPv6 DNS transport, IPv6 QoS, IPv6 FHS RA Guard, IPv6 FHS DHCPv6 Guard |
| Layer 3 Routing | Inter-VLAN routing, Static routing |
| Utility | Dying gasp, SCADA protocol classification - GOOSE messaging, MODBUS TCP/IP |
| Industrial Ethernet | CIP Ethernet/IP, IEEE 1588 PTP v2 (default and power), PROFINET |
| Redundancy | Resilient Ethernet Protocol (REP) ring, PROFINET-Media Redundancy Protocol (MRP), REP Preferred, Fast REP |
| Automation | YANG, NETCONF, RESTCONF |
| Industrial Management | Layer 2 switching with 1:1 switch Network Address Translation (L2NAT) |
| IOx | Container (Native docker) |
| Dimensions (HxWxD) Inches | 6 in. X 3.6 in. X 5.3 in. 15.2 cm. x 9.1 cm. x 13.5 cm |
| Weight | 5.0 lbs (2.3 Kg) |
| Mounting | DIN Rail |
