HPE ARUBA 6000 48G SWITCH (R8N85A)
| Model: | R8N85A |
| Detail: |
|
| List Price: | |
| Price: | $995.00 |
| You Save: | $2,744.00 (73% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

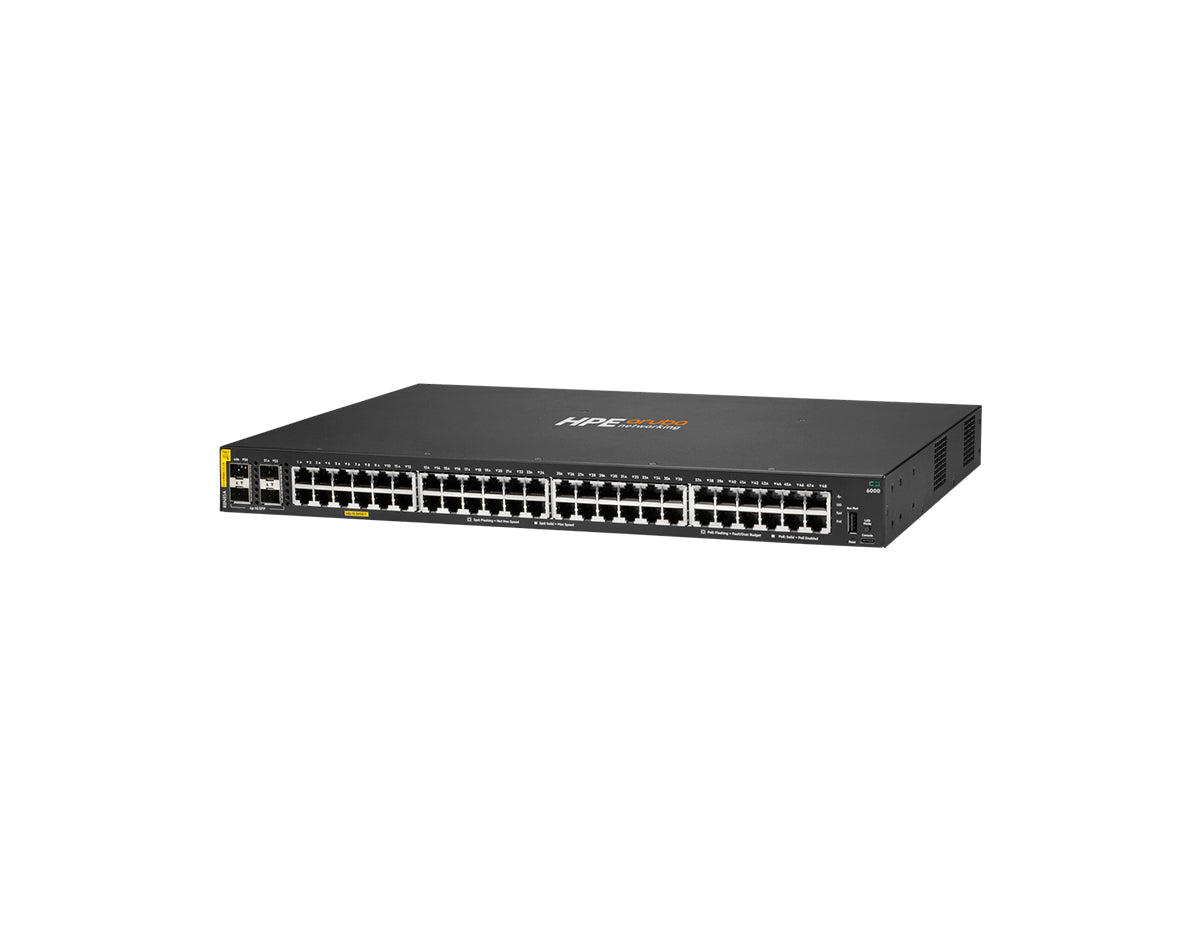

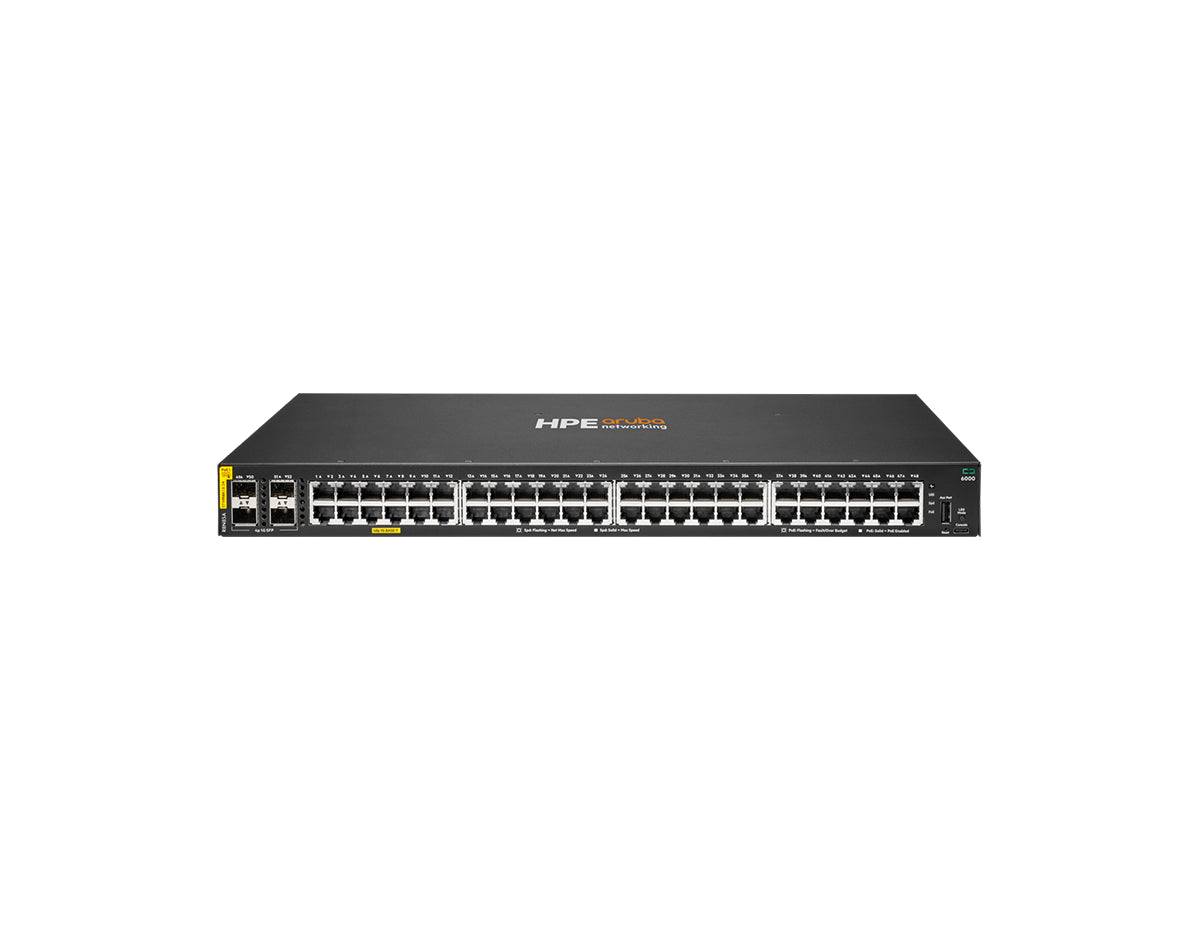

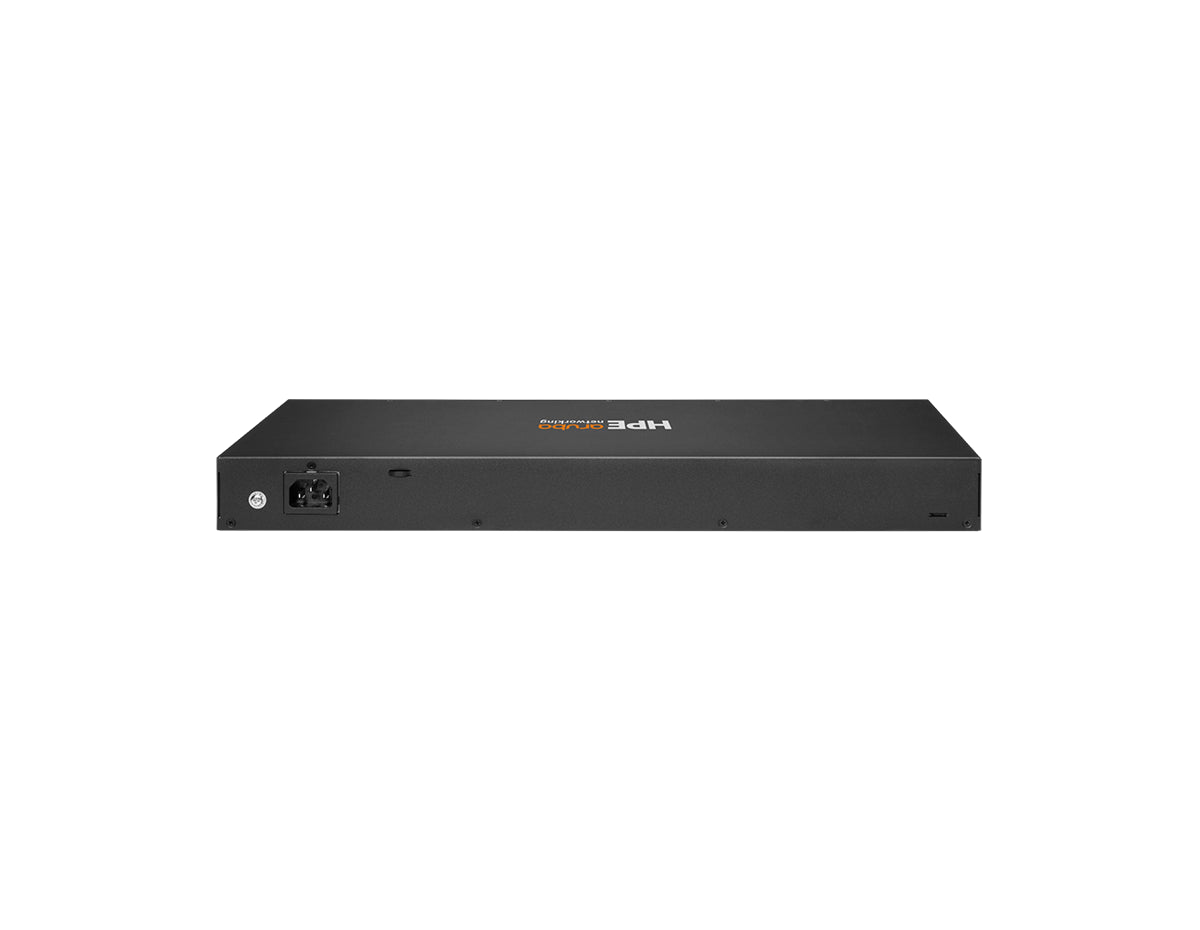

HPE Aruba 6000 48G Switch (R8N85A)
The HPE Aruba 6000 48G Switch is designed for small to mid-sized businesses, offering reliable and secure Layer 2 networking with 48 Gigabit Ethernet ports. Ideal for environments that require high-speed connectivity, this switch delivers robust performance with advanced traffic management features like VLAN and QoS. It supports simplified management through Aruba Central and ensures secure access with integrated security features.
Key Features:
- 48 x Gigabit Ethernet Ports: Offers fast, reliable connectivity for a wide range of network devices.
- Layer 2 Switching: Supports VLAN, QoS, and traffic prioritization for enhanced network performance.
- Energy-Efficient Design: Compliant with energy-saving standards to reduce power consumption during low usage periods.
- Advanced Security: Features ACLs and 802.1X authentication for secure network access.
- Simplified Management: Managed via Aruba Central, Web GUI, CLI, and SNMP.
Technical Overview:
- Recommended for: Small to mid-sized businesses, branch offices, and educational institutions.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports.
- Switching Capacity: 104 Gbps.
- Forwarding Rate: 77.3 Mpps.
- Management: Managed via Aruba Central, CLI, Web GUI, SNMP.
- Energy Efficiency: Compliant with energy-saving standards.
You can check the related tab for the HPE Aruba 6000 48G Switch (R8N85A) datasheet.
Accessories
| Accessories | |
| JL742A | Aruba X511 12-port Cable Guard |
| J9583B | Aruba X414 1U Universal 4-post Rack Mount Kit |
| R9G48A | Aruba USB-A to RJ45 PC-to-Switch Cable |
| R8Z87A | Aruba USB-A to RJ45 PIN3TX-6RX Cable |
| R9J32A | Aruba USB-A to USB-C PC-to-Switch Cable |
| R9J33A | Aruba USB-C to USB-C PC-to-Switch Cable |
| Transceivers | |
| J4858D | Aruba 1G SFP LC SX 500m MMF Transceiver |
| J4859D | Aruba 1G SFP LC LX 10km SMF Transceiver |
| J8177D | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver |
Specifications
| Specifications | CX6000-R8N85A |
| CPU | Dual Core ARM Cortex A9 @1.016 GHz |
| Memory and Flash | 4 GB DDR3 16 GB Emmc |
| Packet Buffer | 1 MB |
| Model Switching Capacity | 104 Gbps |
| Model Throughput Capacity | 77.3 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 1.9 μSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 512 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate by 1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) noncondensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) noncondensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB |
| Primary Airflow | Side-to-side |
| Safety | IEC / EN 62368-1: 2014 IEC / EN 62368-1: 2018 UL 62368-1: 2014, 2nd Ed., CSA C22.2 No. 62368-1:14, 2nd Ed. |
| Emissions | VCCI-CISPR 32, Class A CNS 15936, Class A FCC CFR 47 Part 15, Class A; EN 55032:2015 / A11:2020 / CISPR-32, Class A ICES-003 Issue 7: 2020, Class A AS/NZS CISPR 32: 2015, Class A |
| Lasers | IEC / EN 60825-1:2014, Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) |
| Immunity | CISPR 35: 2016 EN 55035:2017 / A11:2020 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3 |
Properties
| Properties | HPE Aruba CX6000 R8N85A |
| Description | Switch, 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP, rack-mountable, managed, side to side airflow, PoE (370 W) |
| Product Family | CX6000 Series |
| Product Type | Ethernet Switch |
| I/O ports and slots | 48x 10/100/1000BASE-T Ports |
| 4x 1G SFP ports | |
| Supports PoE Standards IEEE 802.3af, 802.3at |
|
| Additional ports and slots | 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply Up to 370W of Class 4 PoE Power |
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| Voltage | 100-127 VAC / 200-240 VAC |
| Current | 4.9 A / 2.4 A |
| Power Consumption (230 VAC) | Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W |
| Fans | Fixed fans |
| Dimensions | 17.4 (w) x 12.0 (d) x 1.73 (h) (44.2 x 30.48 x 4.39 cm) (1U height) |
| Weight | 5.02 kg (11.07 lbs) |
| Mounting and enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting. |
