AXIS Q6100-E 60HZ NETWORK CAMERA

Model: 01711-001
Detail:

  • For 360 degree real-time monitoring and great detail, 360 degree camera with one-click PTZ control, 4 x 5 MP sensors, total 20 MP resolution, Exchangeable and tiltable lenses, Current AXIS Q61/Q63/P56-E PTZ Camera recommended, Directional audio detection included,
List Price: US$1,799.00
Price:
$1,645.00
You Save: $154.00 (9% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

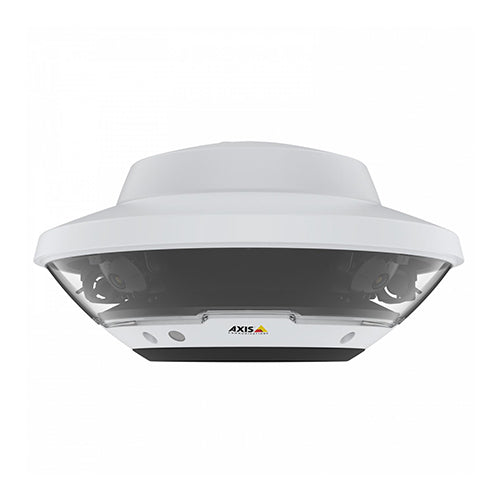

AXIS Q6100-E 60HZ Network Camera (01711-001)

The AXIS Q6100-E Network Camera is a camera that can capture images in multiple directions and provides a 360° overview. AXIS Q6100-E is a camera that comes with four 5 MP sensors, providing a total resolution of 20 MP, which is suitable for both day and night. It  can work with any AXIS Q61 PTZ Network Camera, allowing you to capture high-resolution images in one complete camera solution. This product is handy for city surveillance applications such as street crossings or squares.

Quick Specs:

  • 360 camera with one-click PZT control
  • Exchangeable and tiltable lenses
  • Current AXIS Q61/Q63/P56-E PTZ Camera recommended
  • Directional audio detection included

Please see the related tabs for the 01711-001 datasheet and compatible accessories.

Feature AXIS Q6100-E AXIS Q6135-LE
Max video resolution 2592x1944 1920x1080
Horizontal field of view 360 58.3-2.4
Alarm inputs/outputs - -
Lightfinder - Lightfinder 2.0
Wide dynamic range WDR Forensic WDR
Zipstream
Electronic image stabilization
Optical zoom - 32
Pan range 360 endless 360 endless
Tilt range - +20 to -90
Autotracking version - Autotracking 2
Vandal rating IK10 IK08

Accessories

Optional accessories • AXIS Lens M12 6 mm 5P
• AXIS Lens M12 12 mm 5P
• AXIS Lens M12 16 mm 5P
• AXIS Lens M12 25 mm 5P
• AXIS T91 Mounting accessories
• AXIS Midspan 60 W 1–port
• AXIS Camera Heater Power Supply

Specifications

Specifications AXIS Q6100-E 60HZ Network Camera
Camera
Supported products AXIS Q61-E PTZ Network Cameras
AXIS Q63-E PTZ Network Cameras
Image sensor 4 x 5 MP progressive scan RGB CMOS 1/2.5”
Lens Autofocus lenses, Fixed iris, F2.0, Focal length: 2.8 mm
Horizontal field of view: 360°
Vertical field of view: 84°
Day and night Automatically removable infrared-cut filter
Minimum illumination Color: 0.4 lux at 50 IRE, F2.0
B/W: 0.03 lux at 50 IRE, F2.0
Shutter speed 1/32500 to 1/20 s
Camera angle adjustment Pan, tilt and rotate
Pan/Tilt/Zoom One-click PTZ control
System on chip (SoC)
Model ARTPEC-7
Memory 1024 MB RAM, 512 MB Flash
Video
Video compression H.264 (MPEG-4 Part 10/AVC), Main and High Profiles
H.265 (MPEG-H Part 2/HEVC), Main Profile
Resolution 4 x 2592x1944 to 320x240
Default: 2592x1944
Frame rate Up to 20 fps (50/60 Hz) in all resolutions
Video streaming Multiple, individually configurable streams in H.264 and H.265
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Image settings Resolution, compression, saturation, brightness, sharpness,
contrast, white balance, exposure level, exposure mode, shutter
& gain fine tuning of behavior at normal and low light, polygon
privacy masks (maximum 8 per channel), WDR, dynamic text
and image overlay
Network
Security Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection
*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Supported protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS* , HTTP/2, SSL/TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T,
specification at onvif.org
Analytics Included
Directional audio detection, autopilot, AXIS Motion Guard,
AXIS Fence Guard, and AXIS Loitering Guard, AXIS Video Motion
Detection, active tampering alarm, edge storage events
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
Event conditions  Analytics, edge storage events, virtual inputs through API
Device status: above operating temperature, above or below
operating temperature, below operating temperature, fan failure,
IP address removed, network lost, new IP address, storage failure,
system ready, within operating temperature
Edge storage: recording ongoing, storage disruption
I/O: manual trigger, virtual input
MQTT subscribe
PTZ: PTZ ready
Scheduled and recurring: scheduled event
Video: day-night mode, live stream open, tampering
Event actions Record video: SD card and network share
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share and email
Pre- and post-alarm video or image buffering for recording or upload
Notification: email, HTTP, HTTPS, TCP and SNMP trap
PTZ: PTZ preset
Overlay text, day/night mode, Status LED, WDR mode
MQTT publish
Data streaming Event data
Built-in installation aids Installation focus, lens selection, positioning calibration, PTZ
remote connection
General
Casing IP66-, NEMA 4X- and IK10-rated
Polycarbonate hardcoated dome
Aluminum casing
Sustainability PVC free
Power Power consumption without PTZ: PoE typical 9 W, max 23 W
Connectors RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
RJ45 10BASE-T/100BASE-TX/1000BASE-T Q61-E port
Storage Support for SD/SDHC/SDXC card and encryption
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating conditions (-50 °C to 50 °C) (-58 °F to 122 °F) with AXIS Camera Heater
Power Supply
-40 °C to 50 °C (-40 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
(165 °F)
Start-up temperature: -40 °C (-40 °F)
Humidity 10–100% RH (condensing)
Storage conditions (-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Approvals EMC
EAC, EN 55032 Class A, EN 55035, EN 50121-4, IEC 62236-4,
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A,
RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KN35
Safety
IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1,
IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66,
IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)
Network
NIST SP500-267
Dimensions ø 361 mm (14.2 in)
Height: 192 mm (7.6 in)
Weight 4.0 kg (8.8 lb)) excluding an AXIS Q61-E PTZ Network Camera or
AXIS Q63-E PTZ Network Camera
Included accessories AXIS Q61-E and AXIS Q63-E adapter, bayonet screws, installation
guide, Windows® decoder 1-user license
Required accessories AXIS Camera Heater Power Supply is required when
AXIS Q6315-LE is used.
Video management software AXIS Companion, AXIS Camera Station, video management
software from Axis Application Development Partners available
at axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese

Properties

Properties AXIS Q6100-E 60HZ Network Camera
Description The AXIS Q6100-E Network Camera provides 360° real-time monitoring with four 5 MP sensors for detailed day and night surveillance. It offers one-click PTZ control, autopilot tracking, and directional audio detection. The camera requires AXIS Q61 or Q63 Series cameras, exchangeable lenses with autofocus, and a total resolution of 20 MP. An AXIS Camera Heater Power Supply is needed for use with AXIS Q6315-LE.
Product Family AXIS Q6100-E Network Camera
Product Type Camera
