AXIS F2105-RE Standard Sensor - Network Devices Inc

AXIS F2105-RE Standard Sensor (02640-001)

Name: AXIS F2105-RE Standard Sensor (02640-001)
Brand: Axis
SKU: 02640-001-NEW
Price: 282.45 USD
Availability: InStock

Part Number: 02640-001

Technical Details

2nd generation: Discreet standard sensor with 1080p, Only compatible with 2nd generation main units and cables, Up to 60 fps at 1080p and up to 180 fps at 720p, 108° horizontal field of view, Rugged sensor unit, IP66/IP67/IP6K9K rated, 2nd gen cable is required

$282.45

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

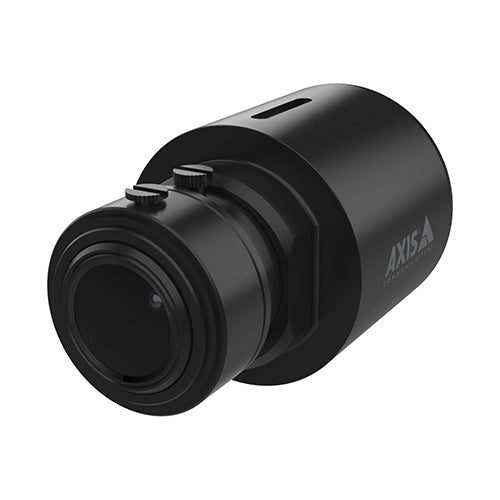

AXIS F2105-RE Standard Sensor (02640-001)

The AXIS F2105-RE is designed for reliable use with Axis 2nd generation main units and cables, ensuring durable performance in demanding indoor and outdoor conditions. It captures HDTV 1080p at up to 60 fps and up to 180 fps at 720p, depending on the main unit. The compact sensor enables discreet installation in vehicles, machinery, or other rugged environments, offering reliable operation with IP66/IP67/IP6K9K and NEMA 4X ratings.

Quick Specs:

Only compatible with 2^nd generation main units and cables
Up to 60 fps at 1080p and up to 180 fps at 720p
Rugged sensor unit
IP66/IP67/IP6K9K rated

Please see the related tabs for the 02640-001 datasheet and compatible accessories.

Feature	AXIS F2105-RE Standard Sensor	AXIS F2115-R Varifocal Sensor	AXIS F2135-RE Fisheye Sensor	AXIS F4105-LRE Dome Sensor	AXIS F4105-SLRE Dome Sensor	AXIS F7225-RE Pinhole Sensor
Outdoor Ready	✔	–	✔	✔	✔	✔
Horizontal field of view	108	107.4 - 56.3	185	110	110	92

Properties

Properties	AXIS F2105-RE
Description	AXIS F2105-RE Standard Sensor is ideal for indoor and outdoor installations in machines, buses, and emergency vehicles. It connects via a single SMA interface and uses Axis 2nd generation SMA-FAKRA cables to withstand vibrations and ensure a ruggedized setup.
Product Family	Axis Cameras
Product Type	Sensor
Image sensor	1/2.8” progressive scan RGB CMOS
Wide dynamic range	–
PoE Class	–
Connectors	SMA connector (uses Axis cables with SMA-FAKRA connectors)
Built-in IR	–
Local storage (memory card slot)	–
Outdoor Ready	Yes
Vandal rating	–
IP rating	IP66, IP67, IP6K9K, NEMA 4X
Power (max)	1.7 W
Power (average)	1.0 W
Dimensions	46 mm (1.8 in) ø 29.8 mm (1.2 in)
Weight	50 g (0.1 lb)
Operating Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Sustainability	PVC free

Specifications

Specifications	AXIS F2105-RE
Min illumination/ light sensitivity (Color)	0.1 lux
Min illumination/ light sensitivity (B/W)	-
Max video resolution	1920x1080
Max frames per second	180
Day and Night functionality	–
Electronic image stabilization	–
Focal length	3.1 mm
Varifocal lens	No
Aperture	2.0
Horizontal field of view	108°
Vertical field of view	58°
Lens mount	M12
Replaceable lens	Yes
Audio Support	–

Accessories

Optional accessories
AXIS TU6002	Right-angle SMA Adaptor
AXIS TU6004-E	2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TU6005	2nd generation Plenum Cable
AXIS TU6007-E	2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras
AXIS TF1801-R	Lens Hood
AXIS TF1201-RE	Recessed mounting of modular sensor units
AXIS TF1202-RE	Recessed mounting of modular sensors
AXIS TF1802-RE	Lens Protector
AXIS TF1901-RE	Swivel Mount
AXIS TF1902-RE	Mounting Bracket
