Palo Alto PAN-PA-5400-BC-A Module - Network Devices Inc

PALO ALTO PA-5400-BC-A MODULE

Part No:	PAN-PA-5400-BC-A
Detail:	PA-5400 Base Card,
Price:	$48,762.00
Condition:	Brand New Sealed
Availability:	SPECIAL ORDER
Shipping:	FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax:	$0.00 Tax Outside NJ, TX, FL and PA
Quantity:	+ -

Description
Properties
Specifications
Accessories
Shipping

Description

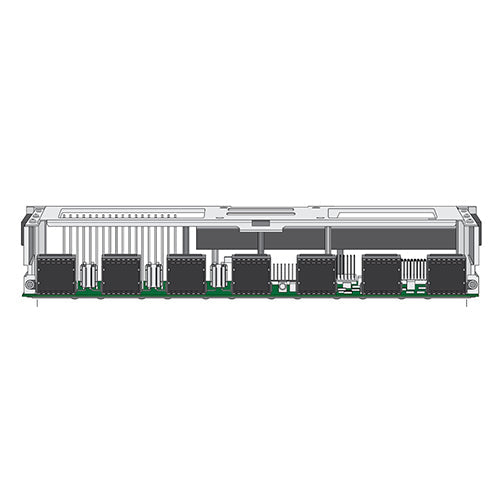

Palo Alto PA-5400-BC-A Module

The PA-5400-BC-A is an internal baseboard that provides connections to the front card slots, power supplies, and fan assemblies. It functions as the link between all static and modular components of the PA-5450 firewall.

The PA-5400-BC-A serves as a control plane ethernet switch, a data plane manager, and a first packet processor subsystem. It comes installed in a PA-5450 firewall by default.

Accessories

Specifications

Specifications	PA-5400 Series
Interface Modes	L2, L3, tap, virtual wire (transparent mode)
Routing	OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP, static routing Policy-based forwarding Point-to-Point Protocol over Ethernet (PPPoE) and DHCP supported for dynamic address assignment Multicast: PIM-SM, PIM-SSM, IGMP v1, v2, and v3 Bidirectional Forwarding Detection (BFD)
SD-WAN	Path quality measurement (jitter, packet loss, latency) Initial path selection (PBF) Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication)
IPv6	L2, L3, tap, virtual wire (transparent mode) Features: App-ID, User-ID, Content-ID, WildFire, and SSL Decryption SLAAC
IPsec and SSL VPN	Key exchange: manual key, IKEv1, and IKEv2 (pre-shared key, certificate-based authentication) Encryption: 3des, AES (128-bit, 192-bit, 256-bit) Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 GlobalProtect Large Scale VPN for simplified configuration and management* Secure access over IPsec and SSL VPN tunnels using GlobalProtect gateway and portals*
VLANs	802.1Q VLAN tags per device/per interface: 4,094/4,094 Aggregate interfaces (802.3ad), LACP
Network Address Translation	NAT modes (IPv4): static IP, dynamic IP, Dynamic IP and Port (port address translation) NAT64, NPTv6 Additional NAT features: dynamic IP reservation, tunable Dynamic IP and Port oversubscription
High Availability	Modes: active/active, active/passive, HA clustering Failure detection: path monitoring, interface monitoring
Mobile Network Infrastructure	5G Security GTP Security SCTP Security * Requires GlobalProtect license
Hardware Specifications
1/O	1G/2.5G/5G/10G (8), 1G/10G SFP/SFP+ (12), 1G/10G/25G SFP/SFP+/SFP28 (4), 40G/100G QSFP+/QSFP28 (4)
Management I/O	1G/10G SFP/SFP+ out-of-band management port (1), 1G/10G SFP/SFP+ high availability (2), 40G QSFP+ high availability (1), RJ-45 console port (1), Micro USB
Storage Capacity	480 GB SSD pair, system storage
Power Supply (Avg/Max Power Consumption)	630/760 W
Max BTU/hr	1638
Power Supplies (Base/Max)	1:1 fully redundant (2/2)
AC Input Voltage (Input Hz)	100–240 VAC (50–60 Hz)
AC Power Supply Output	1,200 watts/power supply
Max Current Consumption	AC: 7 A @ 100 VAC, 3 A @ 240 VAC DC: 15 A @ -48 VDC, 12 A @ -60 VDC
Max Inrush Current	AC: 50 A @ 230 VAC, 50 A @ 120 VAC DC: 200 A @ 72 VDC
Mean Time Between Failure (MTBF)	22 years
Rack Mount Dimensions	2U, 19" standard rack (3.45" H x 22.5" D x 17.34" W)
Weight (Standalone Device/As Shipped)	35.2 lbs/48.8 lbs
Safety	cTUVus, CB
EMI	FCC Class A, CE Class A, VCCI Class A
Environment	Operating temperature: 32°F to 122°F, 0°C to 50°C Nonoperating temperature: -4°F to 158°F, -20°C to 70°C Humidity tolerance: 10% to 90% Maximum altitude: 10,000 ft/3,048 m Airflow: front to back

Properties

Properties	PA-5400 BC-A
Description	72-differential-pair ortho-direct signal connectors that interface with the NC, DPC, and MPC slots.
Product Family	PA-5400 Series firewalls
Product Type	Expansion Module
Slot	Base Card
Card Status	Up
Power (w)	195
Power Specification (Power Produced (+) or Rated Consumption (-))	(-230 Watts)
