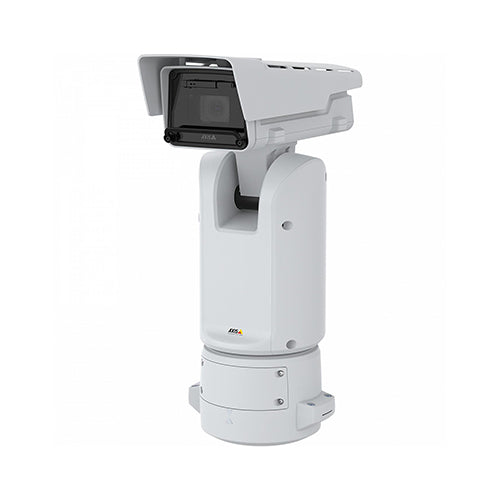

AXIS Q8615-E 60HZ PTZ CAMERA

Accessories

Optional accessories

• AXIS T94J01A Wall Mount • AXIS T94N01G Pole Mount • AXIS T95A64 Corner Bracket • AXIS PT IR Illuminator Kit C • AXIS Washer Kit B • AXIS Cable 24 V DC/24-240 V AC 22 m • AXIS T8611 SFP Module LC.LX • AXIS T8612 SFP Module LC.SX • AXIS T8613 SFP Module 1000BASE-T • Power supply DIN PS24 480 W

Specifications

Specifications	AXIS Q8615-E 60HZ PTZ Camera
Camera
Image sensor	1/2” progressive scan RGB Outdoor CMOS
Lens	Varifocal, 6.9–214.6 mm, F1.36–4.6
	Horizontal field of view: 60.6°–2.0°
	Vertical field of view: 36.5°–1.1° P-Iris control
	Minimum focus distance: 1 m (3.3 ft)
Day and night	Automatically removable infrared-cut filter
Minimum illumination	Color: 0.06 lux at 50 IRE F1.36
	B/W: 0.001 lux at 50 IRE F1.36
Shutter speed	1/111000 to 1/2 s
Pan/Tilt/Zoom	Pan: 360° endless, 0.05°/s to 120°/s
	Tilt (default): -90° to +45°,
	Tilt (inverteda): -45° to +90°
	Tilt speed: 0.05°/s to 60°/s
	Jerk-free movements at low speed: ±0.01°/s (at 0.05°/s) Zoom: 31x optical zoom, 12x digital zoom, total 372x zoom Preset accuracy: 0.05°
	256 preset positions, guard tour, control queue, on-screen directional indicator, focus recall, de-icing control, dynamic load balancing
System on chip (SoC)
Model	ARTPEC-7
Memory	2048 MB RAM, 512 MB Flash
Compute capabilities	Machine learning processing unit (MLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	16:9: 1920x1080 to 320x180
Frame rate	Up to 50/60 fps (50/60 Hz)
Video streaming	Multiple, individually configurable streams in H.264, H.265, and Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265 Video streaming indicator
Image settings	Saturation, contrast, brightness, sharpness, Forensic WDR – Up to 120 dB depending on scene, white balance, day/night threshold, tone mapping , exposure mode, exposure zones, defogging, barrel distortion correction, electronic image stabilization, compression, dynamic text and image overlay, 32 individual polygon privacy masks including mosaic and chameleon privacy masks
Network
Security	Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot Axis Edge Vault with Axis device ID, signed video, secure keystore (CC EAL4 certified hardware protection of cryptographic operations, certificates and keys), TPM 2.0 FIPS 140-2 level 2
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK. One-click cloud connection
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specifications at onvif.org
Onscreen controls	Timed wiper
	Privacy masks
	White light LED
	IR illumination
Event conditions	Device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, PTZ power failure, storage failure, system ready, within operating temperature
	Edge storage: recording ongoing, storage disruption, storage health issues detected
	I/O: digital input, manual trigger, virtual input
	MQTT: subscribe
	PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready
	Scheduled and recurring: scheduled event
	Video: average bitrate degradation, day-night mode, live stream open
Event actions	Day-night mode
	Defog: toggle defog once, use defog filter while the rule is active Guard tour: run while the rule is active, start
	I/O: toggle I/O once, toggle I/O while the rule is active
	IR illumination: turn on, use IR lights while the rule is active MQTT: publish
	Notification: HTTP, HTTPS, TCP and email
	Overlay text
	Preset positions
	PTZ autotracking
	Recordings: SD card and network share
	SNMP trap messages: send, send while the rule is active
	Washer
	WDR mode
	White illumination
	Wiper
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email
Built-in installation aids	Pixel counter
Analytics
AXIS Object Analytics	Object classes: humans, vehicles
	Trigger conditions: line crossing, object in area, time in areaBETA Up to 10 scenarios
	Metadata visualized with trajectories and color-coded bounding boxes
	Polygon include/exclude areas
	Perspective configuration
	ONVIF Motion Alarm event
Metadata	Object data: Classes: humans, faces, vehicles, license plates Confidence, position
	Event data: Producer reference, scenarios, trigger conditions
Applications	Included
	AXIS Object Analytics, AXIS Video Motion Detection, Orientation Aid PTZ, AXIS OSDI Zones, AXIS PTZ Autotracking, active gatekeeper
	Supported
	AXIS Perimeter Defender
	Support for additional applications if the device is used with compatible accessories. For more information, contact your Axis partner.
	Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap
General
Casing	IP66-, IK10*- and NEMA 4X-rated powder coated aluminum casing
	Color: white NCS S 1002-B
	Front window: tempered glass with anti-reflective coating
	Long-life silicone wiper
	Sunshield: high-impact UV-stabilized thermoplastic
	*: Excluding front window.
Sustainability	PVC-free, 18% recycled plastics, 1% bioplastic
Power	20-28 V AC/DC
	Typical: 9.6 W
	Max: 204 W
	Power loss recovery
	TVS 2 kV surge protection I/O connector
	Output voltage: 12 V DC
	Max load: 50 mA
Connectors	Network: SFP slot (SFP module not included)*
	Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T
	Power: DC input, terminal block
	I/O: 6-pin terminal block with 4 configurable inputs/outputs
	*:If the network link is established via both the SFP and RJ45 connectors, the former acts as the primary link and the latter as the failover link.
Storage	Support for SD/SDHC/SDXC card
	Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	Normal: -50 °C to 55 °C (-58 °F to 131 °F)
	Maximum (intermittent): 65 °C (149 °F)
	Arctic Temperature Control: start-up at -40 °C (-40 °F) Start-up temperature: -40 °C
	Humidity 10–100% RH (condensing)
	Wind speed (sustained): 47 m/s (106 mph), without sunshield > 60 m/s (135 mph)*
	*: The values shown are based on results from actual wind tunnel testing. The maximum wind speed when the unit is stationary is not known due to wind speed limit of 60 m/s (135 mph) at the test lab. For drag force calculations, use Effective Projected Area (EPA).
Storage conditions	(-40 °C to 70 °C (-40 °F to 158 °F) Humidity 5–95% RH (non-condensing)
Approvals	EMC
	EN 55032 Class A, EN 55035, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
	FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
	IEC 62236-4, RCM AS/NZS CISPR 32 Class A, VCCI Class A, KS C 9832 Class A, KS C 9835
	Safety
	CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3
	Environment
	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC 62262 IK10c,
	IEC/EN 60529 IP66, ISO 4892-2, NEMA 250 Type 4x,
	NEMA TS 2 (2.2.7-2.2.9)
	Network
	NIST SP500-267
Dimensions	229 x 411 x 579 mm (9 x 16 x 22.8 in)
	Maximum height with 45° tilt upwards: 680 mm (27 in)
	Maximum width/depth with 360° pan clearance: 633 mm (25 in)
	Effective projected area (EPA): 0.119 m2
Weight	14.4 kg (31.7 lb)
Included accessories	Installation guide, Windows® decoder 1-user license, power connector, I/O connector
	AXIS Q8615-E 60 Hz: ferrite
Video management software	AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners available at axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese

Properties

Properties	AXIS Q8615-E 60HZ PTZ Camera
Description	The AXIS Q8615-E PTZ Camera provides high-performance surveillance with HDTV 1080p, 31x optical zoom, and a 1⁄2” sensor. Offering a 360° panoramic view, it excels in low-light conditions with Forensic WDR and Lightfinder. The built-in analytics include Axis Object Analytics for person and vehicle detection, and it features an SFP slot for long-distance fiber connection. With cybersecurity features, optional IR illumination, and a durable silicone wiper, it ensures efficient and reliable monitoring.
Product Family	AXIS Q8615-E PTZ Camera
Product Type	Camera
