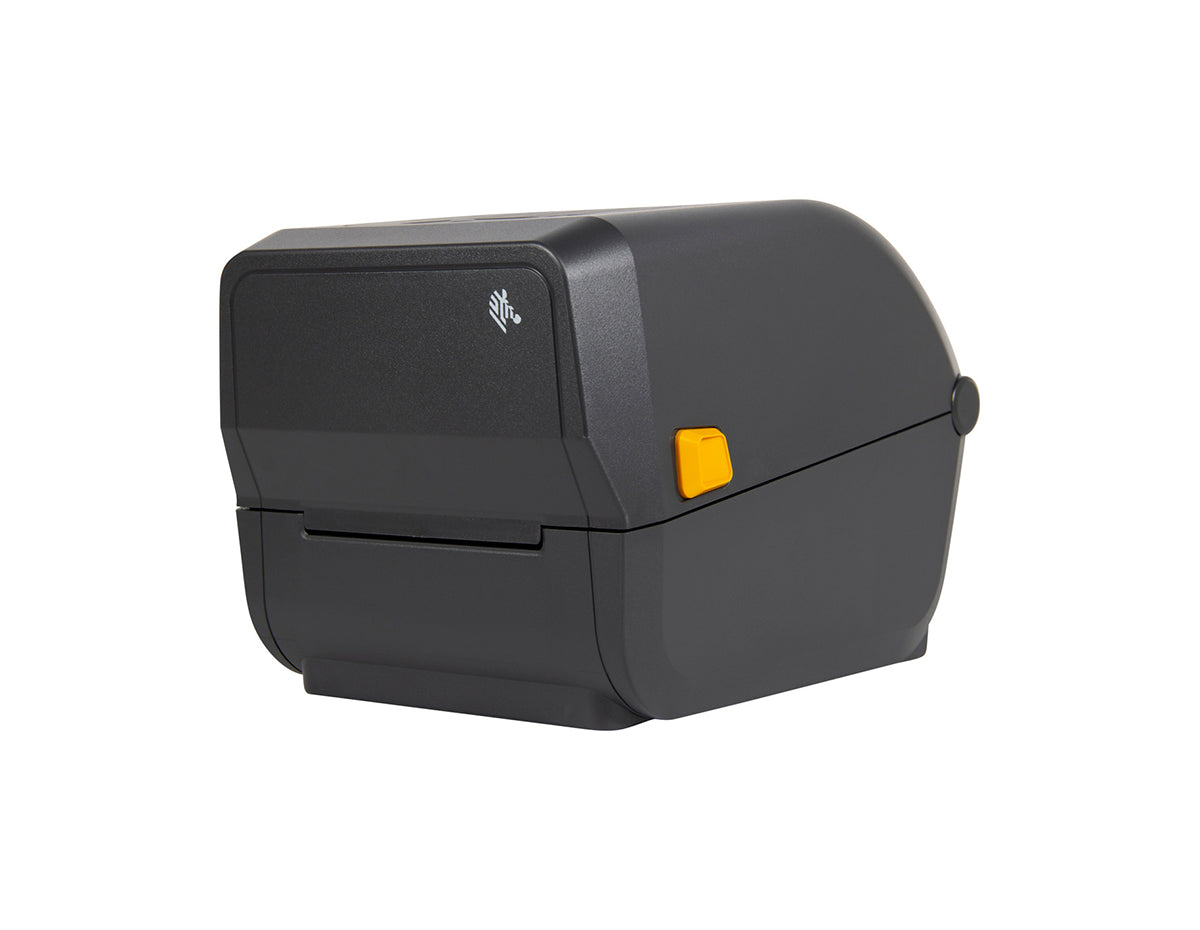

ZEBRA ZD22042-T01G00EZ PRINTER (ZD220T)

Specifications

Specifications	ZD220
Memory	128 MB Flash; 128 MB SDRAM
Maximum Print Width	4.09 in./104 mm
Maximum Print Length	39.0(991 mm)
Maximum Print Speed	4 in./102 mm per second
Media Sensors	Movable black mark sensor, limited range from center to left side Fixed off-center gap sensor
Maximum Label Length	39.0 in./991 mm
Maximum Label and Media Width	1.00 in. / 25.4 mm to 4.4 in. / 112 mm
Media Roll Size	5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)
Media Thickness	0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter	1.34 in./ 34 mm (74 m)
Maximum Ribbon Length	244 ft. (74 m)
Ribbon Ratio	1:1 media to ribbon (74 m)
Ribbon Width	1.33 in./ 33.8 mm ~ 4.3 in./ 109.2 mm
Ribbon Core I.D.	74 Meter ribbon 0.5 in./ 12.7 mm
Media Handling	Factory installed peeler
Fonts and Graphics	16 resident expandable ZPL II bitmap fonts Two resident scalable ZPL fonts Five resident expandable EPL2 fonts Native open-type font support Unicode compliant for multi-language, on demand thermal printing 50 MB user available non-volatile memory, 8 MB user available SDRAM
Barcode Symbologies
Barcode Ratios	2:1 and 3:1
Linear Barcodes	Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2-Dimensional	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Software	Zebra Print DNA software, powered by LinkOS. For a full list of applications, utilities and developer tools, visit www.zebra.com/printdna Set-Get-Do commands to set and get printer configuration details ZPL II Universal language for Zebra printers. Simplifies label formatting and enables format compatibility with existing systems that run Zebra printers EPL2 Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications
Firmware	EPL2 Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications ZPL II Universal language for Zebra printers. Simplifies label formatting and enables format compatibility with existing systems that run Zebra printers Web View Connect and control Zebra barcode printers via the printers Web interface using a common Web browser (ZPL mode)
Operating Temperature	40º to 105ºF (4.4º to 41ºC)
Storage Temperature	-40º to 140ºF (-40º to 60ºC)
Operating Humidity	10% to 90% non-condensing R.H.
Storage Humidity	5% to 95% non-condensing R.H.
Regulatory	IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

Properties

Properties	Zebra ZD220 ZD22042-T01G000EZ
Description	ZD220, Thermal transfer, monochrome, 4.25-inch roll, 203 dpi, USB serial interface
Product Family	ZD Series
Product Type	Label Printer
Standard Features	Thermal Transfer or Direct Thermal print method ZPL and EPL programming languages Single LED status indicator Single button for feed/pause USB connectivity OpenACCESS for easy media loading Dual-wall frame construction ENERGY STAR qualified ZebraDesigner Essentials easy label design tool free at www.zebra.com/zebradesigner Two-year standard warranty
Communication and Interface Capabilities	USB: Version 2.0 full speed, bi-directional Supported in Win98 and Win98SE, Win Me and Windows 2000 platforms Connector Type B Female
Printing	Thermal Transfer print method
Resolution	203 dpi/8 dots per mm
Dimensions (W x H x D)	7.75 x 7.5 x 10.5 in. (197 mm x 191 mm x 267 mm)
Weight	2.5 lbs./1.1 kg
Power	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, 24 VDC, 3.125A output; ENERGY STAR qualified
