[shortdesc]

Switch
L3
managed
24 x Gigabit SFP + 8 x shared 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+
rack-mountable

[/shortdesc]

[properties]

Properties	HPE FlexNetwork 5130 - JG933A
Description	Switch, L3, managed, 24 x Gigabit SFP + 8 x shared 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+, rack-mountable
Product Family	FlexNetwork Series
Product Type	Ethernet Switch
I/O ports and slots	16 SFP 100/1000 Mbps ports
	8 SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports
	4 SFP+ fixed 1000/10000 SFP+ ports
Additional ports and slots	1 RJ-45 serial console port
Power supplies	2 power supply slots 1 minimum power supply required (ordered separately)
Electrical characteristics
Frequency	50/60 Hz
Voltage	100 - 240 VAC -48 to -60 VDC
Current	5 A
Maximum heat dissipation	102/204 BTU/hr (107.61/215.22 kJ/hr), for AC Powered units. For DC powered units heat dissipation is 130 BTU/hr min, 232 BTU/hr max
Maximum power rating	60 W
Idle power	30 W
Dimensions	17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height)
Weight	17.64 lb (8 kg)
Mounting and enclosure	Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)

[/properties]

[specifications]

Specifications	5130-JG933A
Memory and processor	1 GB SDRAM, 512 MB flash; packet buffer size: 1.5 MB
Performance
1000 Mb Latency	< 5 µs
10 Gbps Latency	< 3 µs
Throughput	96 Mpps
Routing/Switching capacity	128 Gbps
Routing table size	512 entries (IPv4), 256 entries (IPv6)
MAC address table size	16384 entries
Management	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Operating temperature	23°F to 113°F (-5°C to 45°C)
Operating relative humidity	10% to 90%, noncondensing
Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity	5% to 95%, noncondensing
Acoustic	Low-speed fan: 47.1 dB, High-speed fan: 50.7 dB; ISO 7779
Safety	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Emissions	EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3- 2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A
Immunity	EN 55024 EN300 386
Standard and protocols
Device management	RFC 1157 SNMPv1/v2c RFC 1305 NTPv3 RFC 2573 (SNMPv3 Applications) RFC 2819 (RMON groups Alarm, Event, History and Statistics only) RFC 3416 (SNMP Protocol Operations v2) HTML and telnet management Multiple Configuration Files SNMP v3 and RMON RFC support SSHv1/SSHv2 Secure Shell TACACS/TACACS+ Web UI
General protocols	IEEE 802.1ad Q-in-Q IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.1X PAE IEEE 802.3 Type 10BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-X IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X RFC 768 UDP RFC 783 TFTP Protocol (revision 2) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 TELNET RFC 951 BOOTP RFC 1213 Management Information Base for Network Management of TCP/IP-based internets RFC 1305 NTPv3 RFC 1350 TFTP Protocol (revision 2) RFC 1519 CIDR RFC 1812 IPv4 Routing RFC 1866 Hypertext Markup Language - 2.0 RFC 2131 DHCP RFC 2236 IGMP Snooping RFC 2616 HTTP Compatibility v1.1 RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs) RFC 2865 Remote Authentication Dial In User Service (RADIUS) RFC 2866 RADIUS Accounting RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3) RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP) RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) RFC 3576 Ext to RADIUS (CoA only) RFC 4213 Basic IPv6 Transition Mechanisms802.1r - GARP Proprietary Attribute Registration Protocol (GPRP
IPv6	RFC 2461 IPv6 Neighbor Discovery RFC 2463 ICMPv6 RFC 3162 RADIUS and IPv6 RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses RFC 3315 DHCPv6 (client and relay)
MIBs	RFC 1212 Concise MIB Definitions RFC 1213 MIB II RFC 1493 Bridge MIB RFC 1757 Remote Network Monitoring MIB RFC 2096 IP Forwarding Table MIB RFC 2233 Interface MIB RFC 2571 SNMP Framework MIB RFC 2572 SNMP-MPD MIB RFC 2573 SNMP-Notification MIB RFC 2573 SNMP-Target MIB RFC 2574 SNMP USM MIB RFC 2618 RADIUS Authentication Client MIB RFC 2620 RADIUS Accounting Client MIB RFC 2665 Ethernet-Like-MIB RFC 2668 802.3 MAU MIB RFC 2674 802.1p and IEEE 802.1Q Bridge MIB RFC 2737 Entity MIB (Version 2) RFC 2819 RMON MIB RFC 2863 The Interfaces Group MIB RFC 2925 Ping MIB RFC 3414 SNMP-User based-SM MIB RFC 3415 SNMP-View based-ACM MIB RFC 3418 MIB for SNMPv3 RFC 3621 Power Ethernet MIB
Network management	IEEE 802.1AB Link Layer Discovery Protocol (LLDP) RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) SNMPv1/v2c/v3
Security	IEEE 802.1X Port Based Network Access Control RFC 1492 TACACS+ RFC 2138 RADIUS Authentication RFC 2139 RADIUS Accounting RFC 2865 RADIUS (client only) RFC 2866 RADIUS Accounting Secure Sockets Layer (SSL) SSHv2 Secure Shell

[/specifications]

[accesories]

Transceivers
JD102B	HPE X115 100M SFP LC FX Transceiver
JD120B	HPE X110 100M SFP LC LX Transceiver
JD100A	HPE X115 100M SFP LC BX 10-U Transceiver
JD101A	HPE X115 100M SFP LC BX 10-D Transceiver
JD103A	HPE X120 1G SFP LC LH100 Transceiver
JD118B	HPE X120 1G SFP LC SX Transceiver
JD119B	HPE X120 1G SFP LC LX Transceiver
JD098B	HPE X120 1G SFP LC BX 10-U Transceiver
JD099B	HPE X120 1G SFP LC BX 10-D Transceiver
JD089B	HPE X120 1G SFP RJ45 T Transceiver
JD092B	HPE X130 10G SFP+ LC SR Transceiver
JD094B	HPE X130 10G SFP+ LC LR Transceiver
JL290A	HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable
JL291A	HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable
JL292A	HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable
JG081C	HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
Cables
AJ833A	HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable
AJ834A	HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable
AJ835A	HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable
AJ836A	HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable
AJ837A	HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable
AJ838A	HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable
AJ839A	HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable
QK732A	HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable
QK733A	HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable
QK734A	HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable
QK735A	HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable
QK736A	HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable
QK737A	HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable
Power Supplies
JD362B	HPE X361 150W 100-240VAC to 12VDC Power Supply
JD366B	HPE X361 150W 48-60VDC to 12VDC Power Supply
JD183A	HPE RPS 800 Redundant Power Supply
JD186A	HPE X290 500 V 1m RPS Cable

[/accesories]

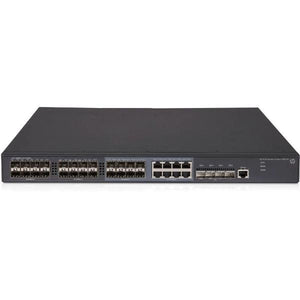

HPE FlexNetwork 5130-24G-SFP-4SFP+ EI Switch (JG933A)

The HPE 5130 EI Switch Series includes Layer 3 static routing, IPv4 and IPv6 support, ACLs, and Spanning Tree Protocols. These capabilities provide administrators with granular control over their networks, ensuring optimal performance and security. HPE FlexNetwork 5130-24G-SFP-4SFP+ EI Switch (JG933A) offers a combination of high-speed connectivity and flexibility, making it suitable for various network scenarios with its 24 Gigabit Ethernet ports and 4 SFP+ ports.

Key Features:

Fixed 10GbE ports
Powerful QoS
IPv6 Ready Certified

To explore detailed specifications, access the HPE JG933A datasheet from the tabs above.
