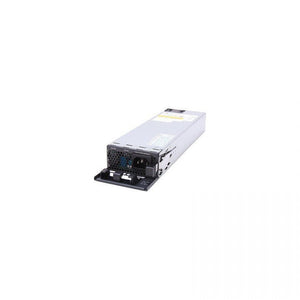

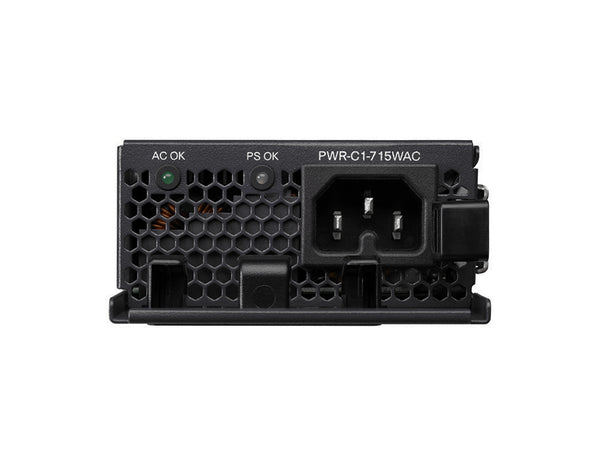

Cisco PWR-C1-715WAC-P Power Supply is designed to provide power to Cisco Catalyst Switches efficiently with the Cisco Power Supply. This power adapter is designed as a plug-in-module that fits perfectly in compatible Cisco Catalyst 3850 Series switches.
Cisco PWR-C1-715WAC-P Power Supply is built to deliver a 715-watt redundant power supply at AC 100-240 V for use convenience and high-performance. This power supply delivers 715-watt power at 2465 BTU/hr.
Power your networking device efficiently with the Cisco Power Supply. It is compatible with the Cisco Catalyst 9300 series switches. This hot-plug, 1100-watt power supply modules features an internal fan and comes with a blank cover in the second power supply slot.
Ensure a reliable power supply to devices with the Cisco Power Supply. This 350-watt plug-in module is compatible with the Cisco Catalyst 3850-12, 3850-16, 9300 and more switches.
Power supply rated maximum | 1100W |
Total output BTU (Note: 1000 BTU/hr = 293W) | 3793 BTU/hr, 1100W |
Input-voltage range and frequency | 115-240VAC, 50-60 Hz |
Input current | 12-6A |
Output ratings | -56V at 19.64A |
Output holdup time | 10 ms minimum at 102.5VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 13A |
Physical specifications | (H x W x D): 1.58 X 3.25 X 13.7 in Weight: 3 lb (1.4 kg) |
Operating temperature | 23 to 113F (-5 to 45C) |
Storage temperature | -40 to 158F (-40 to 70C) |
Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
Altitude | 10,000 ft. (3000 meters), up to 45C |
MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
EMI and EMC compliance | FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
LED indicators | "AC OK": Input power to the power supply is OK "PS OK": Output power from the power supply is OK |
Â
Â
Â

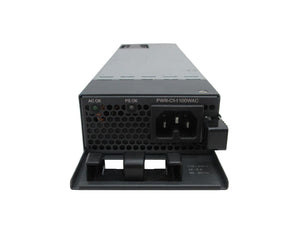

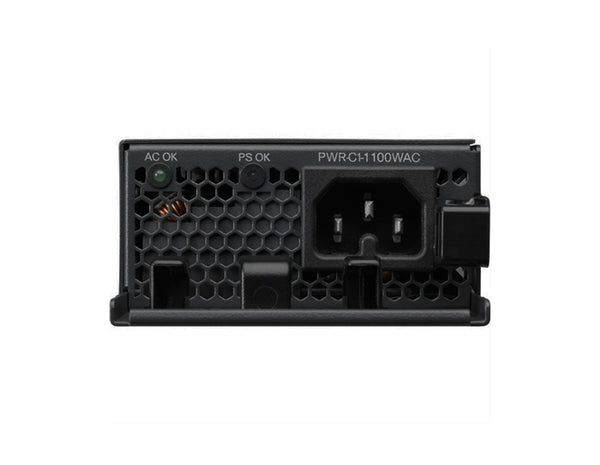

Cisco PWR-C1-1100WAC Power Supply is the right choice for power supply to Catalyst 3850-48F-E and giving uninterrupted power supply experience to specific Cisco switch models. Â
Cisco PWR-C1-1100WAC Power Supply requires 50-60 Hz frequency and AC 115-240 V input voltage for optimum performance. This 1100-watt AC power supply spare plug-in module features Power IEC 320 EN 60320 C16 connector.
Power supply rated maximum | 715W |
Total output BTU (Note: 1000 BTU/hr = 293W) | 2465 BTU/hr, 715W |
Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
Input current | 10-5A |
Output ratings | -56V at 12.8A |
Output holdup time | 16.7 ms minimum at 100VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 13A |
Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.8 lb (1.3 kg) |
Operating temperature | 23 to 113F (-5 to 45C) |
Storage temperature | -40 to 158F (-40 to 70C) |
Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
Altitude | 10,000 ft. (3000 meters), up to 45C |
MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level). |
EMI and EMC compliance | FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
LED indicators | "AC OK": Input power to the power supply is OK "PS OK": Output power from the power supply is OK |

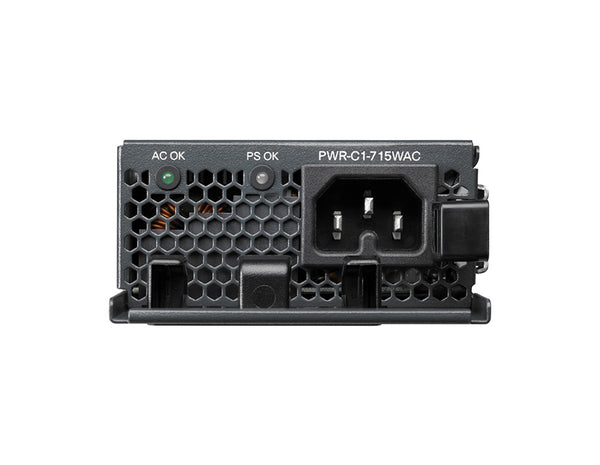

Cisco PWR-C1-715WAC Power Supply is designed to efficiently provide power to Cisco catalyst switch. This plug-in module fits perfectly in compatible Cisco Catalyst Series Switches.
Cisco PWR-C1-715WAC Power Supply can autorange units to support input voltages from 100 through 240 VAC. Find a power cord for connection to an AC power outlet. It delivers a 715-watt redundant power supply at AC 100-240 Watt for user convenience and high performance.Â
Â
Power supply rated maximum | 715W |
Total output BTU (Note: 1000 BTU/hr = 293W) | 2465 BTU/hr, 715W |
Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
Input current | 10-5A |
Output ratings | -56V at 12.8A |
Output holdup time | 16.7 ms minimum at 100VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 13A |
Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.8 lb (1.3 kg) |
Â
Power supply rated maximum | 350W |
Total output BTU (Note: 1000 BTU/hr = 293W) | 1207BTU/hr, 350W |
Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
Input current | 4-2A |
Output ratings | -56V at 6.25A |
Output holdup time | 16.7 ms minimum at 100VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 10A |
Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.6 lb (1.2 kg) |
Operating temperature | 23 to 113F (-5 to 45C) |
Storage temperature | -40 to 158F (-40 to 70C) |
Relative humidity operating and nonoperating noncondensing | 5 to 90% noncondensing |
Altitude | 10,000 ft. (3000 meters), up to 45C |
EMI and EMC compliance | FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
Safety compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking |
LED indicators | "AC OK": Input power to the power supply is OK "PS OK": Output power from the power supply is OK |

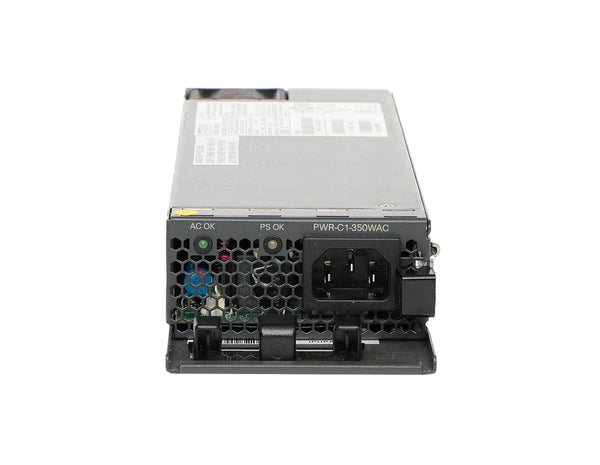

Cisco PWR-C1-350WAC Power Supply is perfect for redundant power supply guarantee. It features a replacement plug-in module and Power IEC 320 EN 60320 C16 connector. For uninterrupted power supply, its external power supply module requires 50-60 Hz frequency and AC 100-200 V input voltage.Â
Cisco PWR-C1-350WAC Power Supply offers compact form factor for easy portability and 350 W redundant power supply for a superior performance. Plus, guarantees power supply for Catalyst 3850-24T-E, 3850-24T-L, 3850-24T-S, 3850-48T-E, 3850-48T-L, and 3850-48T-S.
Â
Power supply rated maximum | 350W |
Total output BTU (Note: 1000 BTU/hr = 293W) | Â 1207BTU/hr, 350W |
Input-voltage range and frequency | 100-240VAC, 50-60 Hz |
Input current | 4-2A |
Output ratings | -56V at 6.25A |
Output holdup time | 16.7 ms minimum at 100VAC |
Power-supply input receptacles | IEC 320-C16 (IEC60320-C16) |
Power cord rating | 10A |
Physical specifications | (H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.6 lb (1.2 kg) |
Cisco PWR-C1-715WDC Power Supply is designed for Cisco ONE Catalyst 3850 and Catalyst 9300 Series Switches.
Cisco PWR-C1-715WDC Power Supply is a hot-plug or redundant plug-in module.
