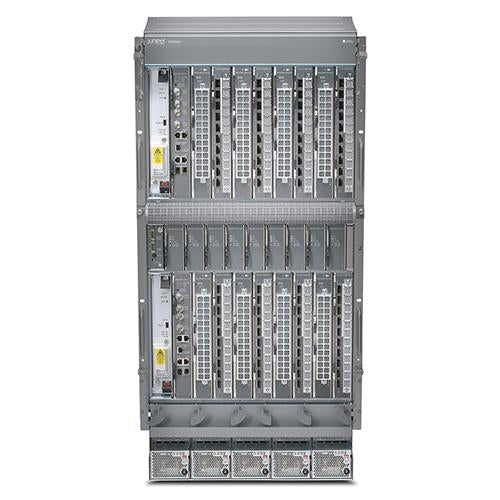

JUNIPER PTX3000BASE ROUTER
| Model: | PTX3000BASE |
| Detail: |
|
| List Price: | |
| Price: | $78,624.00 |
| You Save: | $33,696.00 (30% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
The PTX3000 is a dense, ultra-compact 8 Tbps core router that is highly optimized to meet the service provider challenges of space and power. We designed this router to support IP/MPLS applications, including Internet backbone, peering, label-switched routing, metro packet optical, regional cores, space-constrained central offices (COs), and colocation facilities.
Accessories
| PTX3000 Routing Engines and Craft Interface | |
| RCB-PTX-X6-32G-R | Integrated 2.0 GHz 6 core PTX3K Routing Engine, control board, and CCG, redundant |
| RCB-PTX-X6-32G-S | Integrated 2.0 GHz 6 core PTX3K Routing Engine, control board, and CCG, spare |
| RCB-CC-R | RCP companion card, redundant |
| RCB-CC-S | RCP companion card, spare |
| RE-DUO-C2600-16G-R | Routing Engine - redundant |
| RE-DUO-C2600-16G-S | Routing Engine spare |
| FPD-SFF-PTX-S | Craft Panel spare |
| PTX3000 Switch Fabric | |
| SIB3-SFF-PTX | PTX second generation Small Form Factor Fabric Module |
| SIB-SFF-PTX-240-R | Switching Board redundant |
| SIB-SFF-PTX-240-S | Switching Board spare |
| PTX3000 Supported FPCs | |
| FPC3-SFF-PTX-1H-IR | PTX3K FPC3 1T for high-scale LSR or peering application (half capacity) |
| FPC3-SFF-PTX-1H-R | PTX3K FPC3 1T full IP core, no scale restriction (half capacity) |
| FPC3-SFF-PTX-1T-IR | PTX3K FPC3 1T for high-scale LSR or peering application |
| FPC3-SFF-PTX-1T-R | PTX3K FPC3 1T full IP core, no scale restriction |
| FPC-SFF-PTX-P1-A | Flexible PIC Concentrator (FPC) |
| PTX3000 Supported PICs | |
| P3-10-U-QSFP28 | PTX Series third generation universal 10x100/10x40/40x10 QSFP28 PIC |
| P1-PTX-2-100G-C-WDM-C | 2-port 100G DWDM PIC |
| P1-PTX-2-100GE-CFP | 2 x 100GbE PIC |
| P1-PTX-2-40GE-CFP | 2 x 40GbE PIC |
| P1-PTX-24-10GE-SFPP | 24 x 10GbE (LAN) |
| PIC P1-PTX-24-10G-W-SFPP | 24 x 10GbE (LAN/WAN) PHY PIC |
| SFF-SLOT-BLNK FPC | Slot filler/blank |
| SFF-PSM-BLNK PSM | Slot filler/blank |
| PIC-BLANK-PTX PIC | Slot filler/blank |
| PTX3000 Fan Trays and Spares | |
| FAN-SFF-PTX-S | Fan tray spare |
| CB-SFF-PTX-R | Control Board for redundancy |
| CB-SFF-PTX-S | Control Board for sparing |
| PTX3000 Air Filter | |
| FLTR-SFF-PTX-S | Air filter spare |
| PTX3000 Power Modules | |
| PSM-SFF-PTX-AC-R | AC Power Supply (single phase) redundant |
| PSM-SFF-PTX-AC-S | AC Power Supply (single phase) spare |
| PSM-SFF-PTX-DC-R | DC Power Supply redundant |
| PSM-SFF-PTX-DC-S | DC Power Supply spare |
Specifications
| Specifications | PTX3000BASE |
| System capacity |
up to 8 Tbps or 16 Tbps per one standard 19-inch telecommunications rack
|
| PTX3000 Supported FPC and PIC Compatibility | |
| First Generation PIC 24x10GbE LAN-PHY | FPC1 |
| First Generation PIC 24x10GbE Ethernet/OTN | FPC1 and FPC3 |
| First Generation PIC 2x100GbE | FPC1 |
| First Generation PIC 2x40GbE | FPC1 |
| First Generation PIC 2x100GbE OTN DWDM | FPC1 and FPC3 |
| Second Generation PIC 48x10GbE / 12x40GbE Ethernet/OTN QSFPP | FPC3 |
| Second Generation PIC 4x100GbE Ethernet/OTN CFP2 | FPC3 |
| Second Generation PIC 4x100GbE CXP (SR10) | FPC3 |
| Third Generation PIC 96x10GbE/24x40GbE Universal | FPC3 |
| Third Generation PIC 40x10GbE/10x40GbE/10x100GbE QSFP28 Universal | FPC3 |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Safety | CAN/CSA-C22.2 No. 60950-1 Information Technology EquipmentSafety UL 60950-1 Information Technology EquipmentSafety EN 60950-1 Information Technology EquipmentSafety IEC 60950-1 Information Technology EquipmentSafety (All country deviations) EN 60825-1 Safety of Laser ProductsPart 1: Equipment Classification |
| EMC | 47CFR Part 15, (FCC) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A EN 55024 CISPR 24 EN 300 386 VCCI Class A AS/NZA CISPR22 Class A KN22 Class A CNS 13438 Class A EN 61000-3-2 EN 61000-3-3 ETSI ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment ETSI EN 300 019-2-1 (2000)Storage ETSI EN 300 019-2-2 (1999)Transportation ETSI EN 300 019-2-3 (2003)Stationary Use at Weatherprotected Locations ETSI EN 300 019-2-4 (2003)Stationary Use at NonWeather-protected Locations ETS 300753 (1997)Acoustic noise emitted by telecommunications equipment |
Properties
| Properties | Juniper PTX3000BASE |
| Description | Base chassis (sheet metal, 1 x RE, 1 x CB, 2 x horizontal fan tray, craft panel, 3 x PSMs, 9 x SIBs) |
| Product Family | PTX3000 Series |
| Product Type | Base Unit |
| Port Densities | |
| Max. 10GbE | 768 |
| Max. 40GbE | 192 |
| Max. 100GbE | 80 |
| Dimension (WxHxD) | 17.6 x 38.5 x 10.6 in (44.7 x 97.8 x 26.9 cm) |
| Maximum weight | 310 lbs (140.61kg) |
| Mounting | Front or center Rack mount |
| Power system rating | 50 A @ -48 VDC per input |
| Typical power consumption | 6.3 kW, fully loaded |
| Rack units | 22U |
| Component Slots | |
| Control Board | 1 |
| Routing Engine | 1 |
| Switch Interface Board | 9 |
| Power Supply Modules | 3 |
| Fan Trays | 2 |
