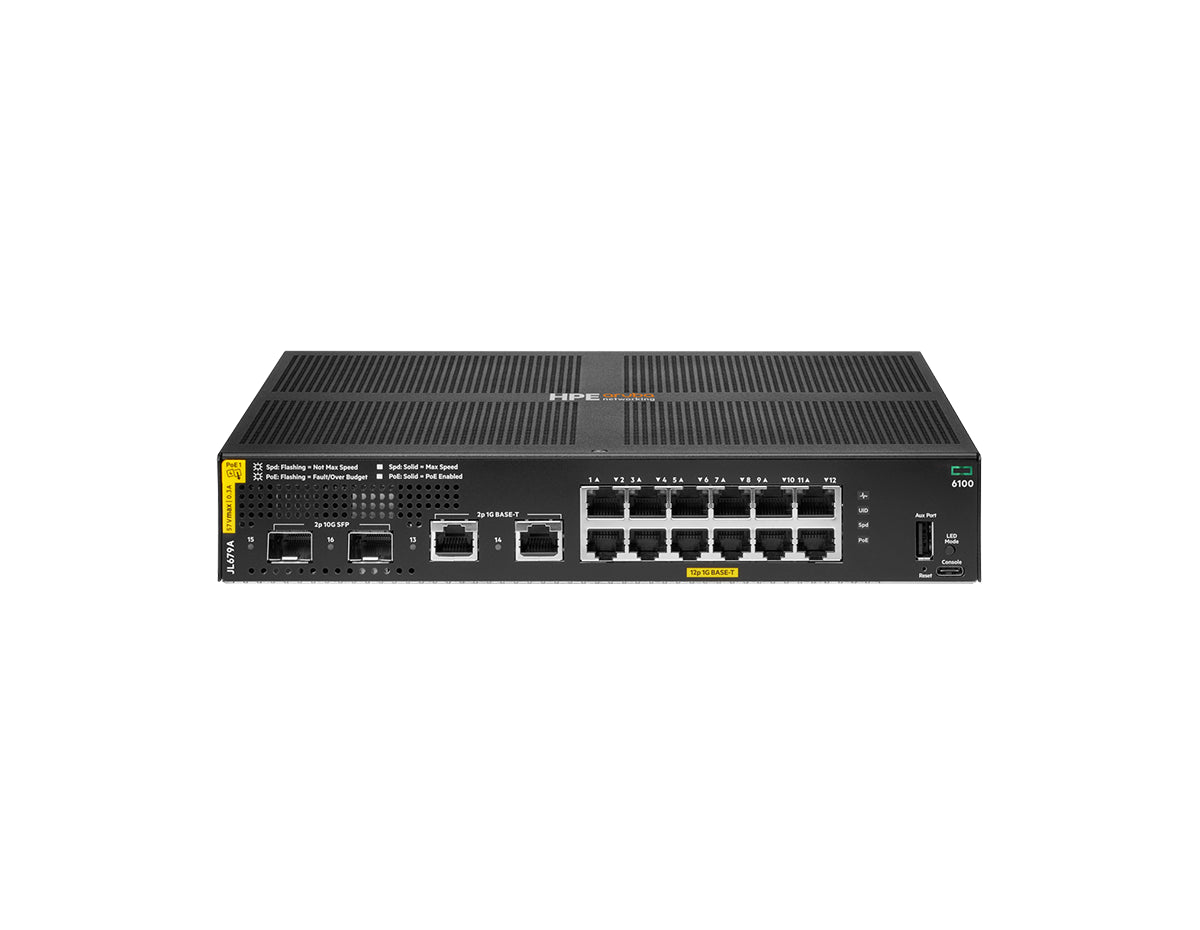

HPE Aruba Networking JL679A CX6100 12G Class4 PoE Switch

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)

The HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch is a compact, high-performance solution designed for small businesses and branch offices. Featuring 12 Gigabit Ethernet PoE ports and two 1G/10G SFP+ uplink ports, this switch delivers reliable connectivity for powering devices like IP phones, cameras, and access points with a 139W PoE budget. It offers advanced Layer 2 switching features, making it a great option for growing networks with limited space.

Key Features:

• 12 x Gigabit Ethernet Ports with PoE: Provides up to 30W per port, perfect for powering connected devices such as IP cameras and phones.
• 2 x SFP+ Uplink Ports: Offers high-speed 1G/10G fiber uplink options for scalable network growth.
• 2 x Additional 1G Ethernet Ports: Flexible options for extra device connections.
• Layer 2 Switching: Includes VLAN support, QoS, and traffic management for optimized network performance.
• Energy-Efficient Operation: Reduces power consumption during periods of low activity.

Technical Overview:

• Recommended for: Small to medium-sized businesses, branch offices, and educational institutions.
• Ports: 12 x 10/100/1000 Mbps PoE ports, 2 x 1GbE ports, 2 x 1G/10G SFP+ uplink ports.
• PoE Power Budget: 139W.
• Switching Capacity: 68 Gbps.
• Forwarding Rate: 45.1 Mpps.
• Management: Managed via Aruba Central, CLI, Web GUI, SNMP.
• Energy Efficiency: Compliant with IEEE 802.3az standards.

Properties	12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
Description	The Aruba CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A) provides 12 Gigabit Ethernet PoE ports, 2 additional 1GbE ports, and 2 SFP+ uplinks in a compact fanless design for reliable small business and branch networking.
Product Family	CX6100 Series
Product Type	Ethernet Switch
Ports and Slots	12 x 10/100/1000BASE-T PoE+ ports 2 x 1GbE ports 2 x 1G/10G SFP+ uplink ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies	Fixed power supply Up to 139W of Class 4 PoE Power
Frequency	50/60 Hz
Voltage	100-127 VAC / 200-240 VAC
Current	1.8 A / 0.9 A
Power Consumption (230 VAC)	Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
Fans	Fanless
Dimensions	4.4 x 25.4 x 25.5 cm (1.73 x 10.0 x 10.4 in)
Weight	2.8 kg (6.13 lbs)
Mounting and enclosure	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting.

Specifications	12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
CPU	Dual Core ARM Cortex A9 @ 1016 MHz
Memory and Flash	4 GB DDR3 SDRAM, 16 GB eMMC
Packet Buffer	1 MB
Model Switching Capacity	68 Gbps
Model Throughput Capacity	45.1 Mpps
Average Latency (LIFO-64-bytes packets)	1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec
Switched Virtual Interfaces (dual stack)	16
IPv4 Host Table (ARP)	1,024
IPv6 Host Table (ND)	512
IPv4 Unicast Routes	512
IPv6 Unicast Routes	512
MAC Table Capacity	8,192
IGMP Groups	512
MLD Groups	512
IPv4/IPv6/MAC ACL Entries (ingress)	256 / 128 / 256
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Acoustic	Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB
Primary Airflow	-
Safety	EN 60950-1/IEC 60950-1 EN 60825 CAN/CSA C22.2 No. 60950, 2nd Edition UL 60950-1, 2nd Edition
Emissions	FCC Class A VCCI Class A EN 55022/CISPR 22 Class A
Lasers	EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity	EN 55024, CISPR 24 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-3, IEC 61000-3-3

Accessories
JL742A	Aruba X511 12-port Cable Guard
J9583B	Aruba X414 1U Universal 4-post Rack Mounting Kit
R9G48A	Aruba USB-A to RJ45 PC-to-Switch Cable
R8Z87A	Aruba USB-A to RJ45 PIN3TX-6RX Cable
R9J32A	Aruba USB-A to USB-C PC-to-Switch Cable
R9J33A	Aruba USB-C to USB-C PC-to-Switch Cable
Cables
J9281D	Aruba 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
J9283D	Aruba 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
Transceivers
J4858D	Aruba 1G SFP LC SX 500m MMF Transceiver
J4859D	Aruba 1G SFP LC LX 10km SMF Transceiver
J8177D	Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
J9150D	Aruba 10G SFP+ LC SR 300m MMF Transceiver
J9151E	Aruba 10G SFP+ LC LR 10km SMF Transceiver
