Ubiquiti USW-16-POE Switch USW 16 Port POE GEN2

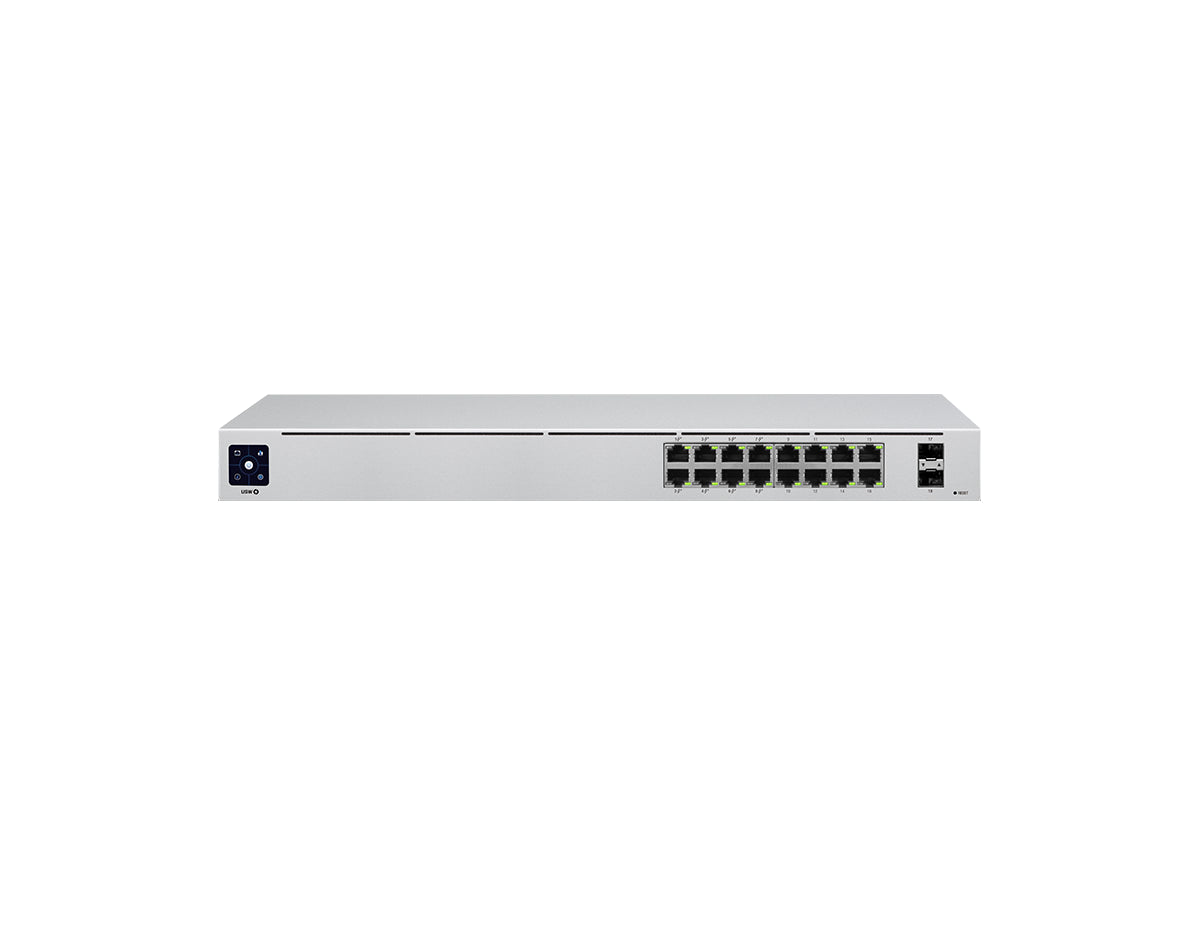

Ubiquiti USW-16-POE Switch

The USW-16-PoE is a customizable Gigabit Layer 2 switch equipped with 16 Gigabit Ethernet ports, comprising eight auto-sensing 802.3at PoE+ ports and two SFP ports. This switch facilitates Gigabit PoE connections for RJ45 Ethernet devices and offers Gigabit fiber uplink alternatives for enterprise networks. Notably, the USW-16-PoE is integrated with a 1.3" touch LCM to furnish status updates. Its compact fanless design, with a depth of 7.9", allows for convenient installation in an SOHO rack cabinet.

Quick Specs:

• 8x Gigabit RJ45 ports with 802.3af/at
• 8x Gigabit RJ45 ports
• 2x 1G SFP ports
• 1U Rackmountable (hardware included)

Please see the related tabs for the USW-16-PoE datasheet and compatible accessories.

Product Name	Ubiquiti USW-16-POE Switch
Product Description	16-port Gigabit Layer 2 switch with 8 PoE+ ports and 2 SFP ports, featuring a fanless design and 1.3" touch LCM for status monitoring.
Compatibility	UniFi Network Controller
Ports	16 Gigabit RJ45 ports (8 with 802.3af/at PoE+), 2 SFP ports
Data Transfer Rate	1 Gbps per port
Form Factor	1U Rackmountable
Compliances	CE, FCC, IC
Management Interface	Ethernet In-Band
Forwarding Rate	26.78 Mpps
Power Method	Universal input, 100—240V AC, 50/60 Hz
Power Supply	AC/DC, internal, 60W
Max. Power Consumption	18W (Excluding PoE output)



Total Non-Blocking Throughput	18 Gbps
Switching Capacity	36 Gbps
Total Available PoE	42W
Max. PoE Wattage per Port	32W
Operating Temperature Range	-5 to 40° C (23 to 104° F)
Operating Humidity Range	10 to 90% noncondensing
Dimensions (W x D x H)	442 x 200 x 44 mm (17.4 x 7.9 x 1.7 inches)
Weight	2.8 kg (6.2 lbs) without mounting brackets; 2.9 kg (6.4 lbs) with mounting brackets
Certifications	CE, FCC, IC
