Distributed Denial of Service (DDoS) attacks are ever-evolving and use a variety of technologies. To successfully combat these attacks, you need a dynamic, multi-layered security solution. FortiDDoS protects from both known and zero day attacks with very low latency. Its easy to deploy and manage, and includes comprehensive reporting and analysis tools.
| Properties | FDD-1500E |

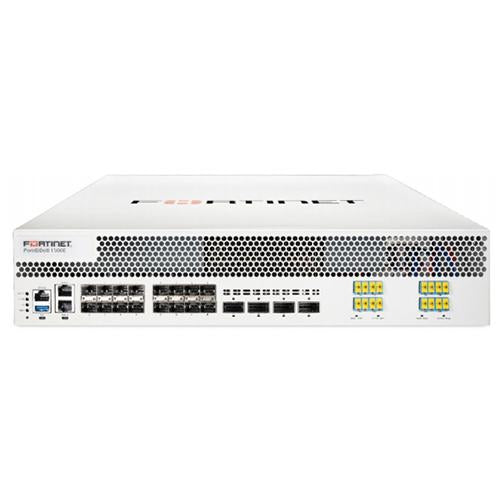

| Description | DDoS Protection Appliance 10 port-pairs DDoS Defence Ports, including 8 pairs x 10 GE SFP+ or GE SFP and 2 pairs x 40 GE QSFP+ or 100GE QSFP28 ports plus 2-link optical bypass module (1310nm), 2x GE RJ45 Management Ports, Dual AC Power Supply. Includes 960 GB SSD storage. >35 Gbps / 38 Mpps inspected Mitigation (280 Gbps Max Mitigation). Supports Advanced DNS and NTP DDoS attack mitigation. |
| Product Family | FortiDDoS |
| Product Type | Security Appliance |
| LAN Interfaces Copper GE with built-in bypass | |
| WAN Interfaces Copper GE with built-in bypass | |
| LAN Interfaces SFP GE | |
| WAN interfaces SFP GE | |
| LAN Interfaces SFP+ 10 GE / SFP GE | 8 |
| WAN Interfaces SFP+ 10 GE / SFP GE | 8 |
| LAN Interfaces LC (850 nm, 10 GE) with built-in bypass |
|
| WAN Interfaces LC (850 nm, 10 GE) with built-in bypass |
|
| LAN Interfaces QSFP+ 40 GE or QSFP28 100 GE | 2 |
| WAN Interfaces QSFP+ 40 GE or QSFP28 100 GE | 2 |
| Passive Optical Bypass |
8 Ports (2 links) 1/10/40/100 GE 1310nm
|
| Trusted Platform Module (TPM) | NO |
| Storage | 1x 960 GB SSD |
| Form Factor | 2U Appliance |
| Power Supply | Dual AC/DC Hot-Swappable |
| Maximum Inspected Throughput (Gbps) | 45 |
| Inspected Throughput (Enterprise Mix Gbps) | 35 |
| Inspected Packet Throughput (Mpps) | 38 |
| Maximum Mitigation (Gbps/Mpps) | 280 / 420 |
| SYN Flood Mitigation (SYN In + Cookie Out) Mpps | 27 |
| Simultaneous TCP Connections (M) | 12 |
| Simultaneous Sources (M) | 12 |
| Session Setup/Teardown (kcps) | >1500 |
| Latency (µs) Maximum/Typical | <50/<10 |
| DDoS Attack Mitigation Response Time | 1st packet to <2 seconds |
| Advanced DNS/NTP Mitigation | DNS / NTP |
| DNS/NTP Queries per second (M) | 4 / 3 |
| DNS/NTP Response Validation under Flood (M Responses/s) |
4 / 3 |
| Open Hybrid Cloud Mitigation Support | Yes |
| Central Manager | Yes |
| FortiOS Security Fabric Dashboard Integration | Yes |
| Dimensions in. | 3.5 x 17.24 x 22.05 |
| Input Voltage |
100240V AC, 5060 Hz / 40-72V DC
|
| Power Consumption (Average) | 314 W |
| Power Consumption (Maximum) | 580 W |
| Maximum Current |
110VAC / 5.3A, 220VAC / 2.6A, 48VDC / 12A
|
| Heat Dissipation | 2151 BTU/hr |
| Operating Temperature | 32104°F (040°C) |
| Safety Certifications |
FCC Class A Part 15, UL/CB/cUL, C-Tick, VCCI, CE
|
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FR-TRAN-ZX |
1 G SFP transceivers, -4085°C operation, 90 km range for all systems with SFP slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FR-TRAN-SX |
1 GE SFP SX transceiver module, -4085°C, over MMF, for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FS-TRAN-GC |
1GE SFP RJ45 transceiver module for FortiSwitch D Series with SFP and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| SP-CABLE-FS-SFP+1 |
10 GE SFP+ passive direct attach cable, 1 m for systems with SFP+ and SFP/SFP+ slots.
|
| SP-CABLE-FS-SFP+3 |
10 GE SFP+ passive direct attach cable, 3 m for systems with SFP+ and SFP/SFP+ slots.
|
| SP-CABLE-FS-SFP+5 |
10 GE SFP+ passive direct attach cable, 5 m for systems with SFP+ and SFP/SFP+ slots.
|
| SP-CABLE-FS-SFP+7 |
10 GE SFP+ passive direct attach cable, 7 m for systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10GE copper SFP+ RJ45 Fortinet Transceiver (30m range) for systems with SFP+ slots.
|
| SP-CABLE-ADASFP+ |
10 GE SFP+ active direct attach cable, 10 m/32.8 ft for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+ER |
10Gbase-ER SFP+ transceivers for FortiSwitch and FortiGate, 1550nm. Single Mode. 40 km range for systems with SFP+ slots.
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceivers, long range for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceivers, short range for all systems with QSFP+ slots.
|
| FG-TRAN-QSFP+SR-BIDI |
40 GE QSFP+ transceiver, short range BiDi for systems with QSFP+ slots.
|
| SP-CABLE-FS-QSFP+1 |
40 GE QSFP+ passive direct attach cable, 1 m for systems with QSFP+ slots.
|
| SP-CABLE-FS-QSFP+3 |
40 GE QSFP+ passive direct attach cable, 3 m for systems with QSFP+ slots.
|
| SP-CABLE-FS-QSFP+5 |
40 GE QSFP+ passive direct attach cable, 5 m for systems with QSFP+ slots.
|
| FN-TRAN-QSFP28-LR |
100 GE QSFP28 transceivers, long range for all systems with QSFP28 slots.
|
| FN-TRAN-QSFP28-SR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 slots.
|
| FN-TRAN-QSFP28-ER |
100 GE QSFP28 transceivers, extended long range 20KM for all systems with QSFP28 Slots.
|
| FN-TRAN-QSFP28-CWDM4 |
100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 Slots.
|
