AXIS ExCam XF Q1785 Explosion-Protected Network Camera - Network Devices Inc

AXIS ExCam XF Q1785 Explosion-Protected Network Camera (01572-001)

Name: AXIS ExCam XF Q1785 Explosion-Protected Network Camera (01572-001)
Brand: Axis
SKU: 01572-001-NEW
Price: 15954.0 USD
Availability: InStock

Part Number: 01572-001

Technical Details

Zone 1-certified fixed camera with 32x zoom, Certified for ATEX, IECEx, EAC Ex, IA, UKCA, INMETRO; Zones 1, 2, 21 and 22; Groups IIC and IIIC, Cost-efficient installation with PoE, 2 MP, HDTV 1080p at up to 60 fps, -60 degreeC to 60 degreeC (-76 degreeF to 140 degreeF) operating temperature, Electronic image stabilization

$15,954.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

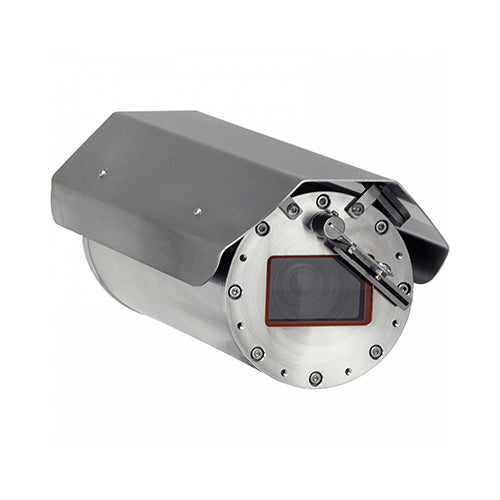

ExCam XF Q1785 Explosion-Protected Network Camera is a high-performance, fixed box network camera with outstanding 32x optical zoom in an explosion-protected stainless-steel housing. ExCam XF Q1785 has also been developed to withstand the typical shock and vibration associated with hazardous environments. Feature highly appreciate it when monitoring conveyor belts. Like all our explosion-protected cameras, you can use ExCam XF Q1785 for visual verification of safety information from your sensor system. Plus, you can incorporate applications that provide man-down alarms, hardhat detection, and more

Properties

Properties	XF Q1785
Description	AXIS ExCam XF Q1785 is a high-performance, fixed-box network camera with 32x optical zoom in an explosion-protected stainless-steel housing. It distinguishes with cost-efficient installation with PoE and electronic image stabilization.
Product Family	ExCam XF Series
Product Type	Explosion-protected Camera
Image sensor	1/2.8" progressive scan RGB CMOS
Lightfinder	Lightfinder
Wide dynamic range	Forensic WDR
PoE Class	3
Connectors	EXTB-3 Junction Box ExCam: 10 terminal clamp UT 2.5 2 conductor terminal USLKG 5
Signed firmware	Signed OS
Secure boot	–
TPM	–
Remote focus	–
Remote zoom	Yes
Local storage (memory card slot)	Yes
Outdoor Ready	Yes
IP rating	IP68
DC input voltage	24 V DC (heater/wiper), PoE Class 3 for camera
Max consumption	12.95 W (camera via PoE), up to 40 W (heater at 24 V DC)
Dimensions	396 x 135 x 171 mm (15 9/16 x 5 5/16 x 6 3/4 in)
Weight	11.1 kg (24.5 lb)
Operating Temperature	-60 °C to 60 °C (-76 °F to 140 °F)
Event actions	Pre- and post-alarm video buffering File upload: FTP, SFTP, HTTP, HTTPS, network share and email MQTT publish Notification: email, HTTP, HTTPS, TCP and SNMP trap
Applications	AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm, gatekeeper
Supported	AXIS Perimeter Defender Support for AXIS Camera Application Platform enabling installation of third-party applications

Specifications

Specifications	XF Q1785
System on chip (SoC) Model	ARTPEC-6
Memory	1024 MB RAM, 512 MB Flash
Min illumination/ light sensitivity (Color)	0.16 lux
Min illumination/ light sensitivity (B/W)	0.03 lux
Max video resolution	1920x1080
Max frames per second	Up to 50/60 fps without WDR, up to 25/30 fps with WDR
Electronic image stabilization	Yes
Focal length	4.3 - 137 mm
Pan/Tilt/Zoom	Digital ptz Zoom: 32x Optical, 12x Digital, Total 384x Preset positions
Horizontal field of view	60-2.3 °
Vertical field of view	39-1.3 °
Zipstream	Yes
H.264	Baseline, High, Main
H.265	-
Motion JPEG	Yes
Security	Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management, brute force delay protection
Certifications	Camera: Model key: T08-VA2.3.K3.BOR5-LL.H-005.A-T ATEX: II 2 G Ex db IIC T5 Gb, II 2 D Ex tb IIIC T95°C Db Certificate: TÜV 18 ATEX 8218X IECEx: Ex db IIC T5 Gb, Ex tb IIIC T95°C Db Certificate: IECEx TUR 18.0023X INMETRO: Ex db IIC T5 Gb, Ex tb IIIC T95°C Db Certificate: TÜV 23.0363X UKCA: Ex db IIC T5 Gb, Ex tb IIIC T95°C Db Certificate: TÜV 22 UKEx 7137 X EAC Ex: 1Ex db IIC T5 Gb, Ex tb IIIC T95°C Db Certificate: RU C-DE.HA65.B.01652/22 IA: Ex db IIC T5 Gb, Ex tb IIIC T95°C Db Certificate: MASC MS/18-3256X EXTB-3 Junction Box ExCam: Model key: T12-3M20 ATEX: II 2 G Ex eb IIC T5 Gb, Ex II 2 D Ex tb IIIC T95°C Db IP66 Certificate: PTB 99 ATEX 3103 IECEx: Ex e IIC T5 Gb, Ex IIIC T95°C Db IP66 Certificate: IECEx PTB 06.0026 EAC Ex: 1Ex e IIC T5 Gb X, Ex tb IIIC T95°C Db X Certificate: RU C-DE.AA71.B.00120

Accessories

Included accessories	Installation Guide, Windows decoder 1-user license, Weathershield ExCam XF, ASKDP03-T Cable ExCam 5 m (16 ft), EXTB-3 Junction Box ExCam, AXIS Surveillance microSDXC Card 128 GB
SKDP03-T	Non-armored data and power cable
ASKDP03-T	Armored data and power cable
ExConnection Rail 4-Port PoE	Four 30 W PoE ports
ExConnection Rail 8-Port PoE	Eight 30 W PoE ports
Wall Mount ExCam
Pole Mount 50-150 mm, stainless steel
Weathershield ExCam XF
Wall Mount, stainless steel
