[specifications]
Form factor | Fixed platform Virtual Chassis configuration consisting of up to four switches Junos Fusion Enterprise Satellite device |
Ports | 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Backplane speed | 80 Gbps |
Data rate | 176 Gbps |
Throughput | 130 Mpps (wire speed) |
10/100/1000BASE-T port densities | N/A |
10GBASE-X port densities | N/A |
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
Resiliency | Integrated power supply and fans |
Operating system | Junos OS |
Traffic monitoring | sFlow |
Quality-of-service (QoS) queues/port | 8 |
MAC addresses | 16,000 |
Jumbo frames | 9216 bytes |
IPv4 unicast / multicast routes | 4096 / 2048 |
IPv6 unicast / multicast routes | 2048 / 1024 |
Number of VLANs | 4093 |
ARP entries | 1500 |
Â
Â
Â
[/specifications]
Â
Â

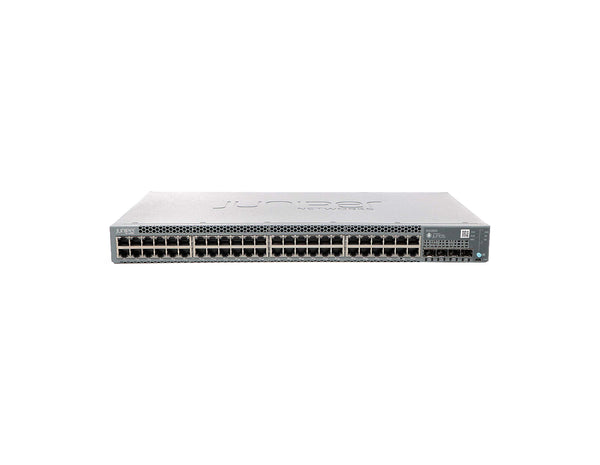

The EX2300 Ethernet switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small footprint, the EX2300 are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
Â
Backplane speed | 80 Gbps |
Data rate | 176 Gbps |
Throughput | 130 Mpps (wire speed) |
Ports | 48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unit |
[specifications]
Form factor | Fixed platform Virtual Chassis configuration consisting of up to four switches Junos Fusion Enterprise Satellite device |
Ports | 24-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unit |
Backplane speed | 80 Gbps |
Data rate | 128 Gbps |
Throughput | 95 Mpps (wire speed) |
10/100/1000BASE-T port densities | N/A |
10GBASE-X port densities | N/A |
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
Resiliency | Integrated power supply and fans |
Operating system | Junos OS |
Traffic monitoring | sFlow |
Quality-of-service (QoS) queues/port | 8 |
MAC addresses | 16,000 |
Jumbo frames | 9216 bytes |
IPv4 unicast / multicast routes | 4096 / 2048 |
IPv6 unicast / multicast routes | 2048 / 1024 |
Number of VLANs | 4093 |
ARP entries | 1500 |
Â
Â
Â
[/specifications]
Â
Â
The Juniper Networks EX2300 Ethernet Switch offers an economical, entry-level, standalone solution for access layer deployments in branch and remote offices, as well as enterprise campus networks. To simplify network operations, the EX2300 is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. For smaller networks, up to four EX2300 switches can be interconnected in a Virtual Chassis configuration, allowing them to be managed as a single switch. The Juniper Networks EX2300 line of Ethernet switches offers a compact, high-performance solution for supporting today's converged network access deployments. Each EX2300 switch includes an ASIC-based Packet Forwarding Engine (PFE) with an integrated CPU to consistently deliver wire-rate forwarding, even with all control plane features enabled. The PoE-enabled EX2300 switch includes a maximum system budget of 740 Watts to deliver up to 30 Watts to select ports.
Â
Backplane speed | 80 Gbps |
Data rate | 128 Gbps |
Throughput | 95 Mpps (wire speed) |
Ports | 24-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unit |
[specifications]
Form factor | Fixed platform Virtual Chassis configuration consisting of up to four switches Junos Fusion Enterprise Satellite device |
Ports | 48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Dimensions (W x H x D) | 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm) 1 rack unit |
Backplane speed | 80 Gbps |
Data rate | 176 Gbps |
Throughput | 130 Mpps (wire speed) |
10/100/1000BASE-T port densities | N/A |
10GBASE-X port densities | N/A |
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
Resiliency | Integrated power supply and fans |
Operating system | Junos OS |
Traffic monitoring | sFlow |
Quality-of-service (QoS) queues/port | 8 |
MAC addresses | 16,000 |
Jumbo frames | 9216 bytes |
IPv4 unicast/multicast routes | 4096 / 2048 |
IPv6 unicast/multicast routes | 2048 / 1024 |
Number of VLANs | 4093 |
ARP entries | 1500 |
Â
Â
[/specifications]
JUNIPER EX2300-48P SWITCH offers a compact, high-performance solution to support todays converged network access deployments. Every EX2300 switch has an ASIC-based Packet Forwarding Engine with CUP integration to provide wire-rate forwarding support with constant basis, side by side with all control features enabled.
The PEE has the same level of carrier-class performance and reliability to the EX2300 switches that Juniper Networks routers add to the worlds largest service provider networks. Get a maximum system budget of 740 watts to deliver up to 30 watts to select ports.
JUNIPER EX2300-48P SWITCH is ideal selection for EX2300 models and to support the 802.3af Class 3 Power over Ethernet (PoE) and 802.3at PoE+ standards for supporting networked devices such as telephones, video cameras, IEEE 802.11ac WLAN access points, and videophones in converged networks. Users will get exceptional value for their enterprise-class environments. Juniper Networks Junos Fusion Enterprise gives more than 100 EX2300 switches to be configured as satellite devices that connect to EX9200 core aggregation devices.
Â
Backplane speed | 80 Gbps |
Data rate | 176 Gbps |
Throughput | 130 Mpps (wire speed) |
Ports | 48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Dimensions (W x H x D) | 17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm) 1 rack unit |
Â
Â
[specifications]
Form factor | Fixed platform Virtual Chassis configuration consisting of up to four switches Junos Fusion Enterprise Satellite device |
Ports | 24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) Dimensions (W x H x D) |
Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unit |
Backplane speed | 80 Gbps |
Data rate | 128 Gbps |
Throughput | 95 Mpps (wire speed) |
10/100/1000BASE-T port densities | N/A |
10GBASE-X port densities | N/A |
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
Resiliency | Integrated power supply and fans |
Operating system | Junos OS |
Traffic monitoring | sFlow |
Quality-of-service (QoS) queues/port | 8 |
MAC addresses | 16,000 |
Jumbo frames | 9216 bytes |
IPv4 unicast / multicast routes | 4096 / 2048 |
IPv6 unicast / multicast routes | 2048 / 1024 |
Number of VLANs | 4093 |
ARP entries | 1500 |
Â
[/specifications]
Juniper EX2300-24P Switch brings a cost-saving, entry-level, and standalone solution, ideal for access layer deployments in branch and remote offices, as well as enterprise campus networks.Â
Juniper EX2300-24P Switch is hardware-ready to act as a satellite device to support Juniper Networks Junos Fusion Enterprise deployment. It is the right solution to simplify network operations and to combine several wiring closets into one logical management platform.Â
Use up to four Juniper EX2300-24P Switches to interconnect in a Virtual Chassis configuration to manage them as a single switch for smaller networking requirements. Juniper Networks EX2300 line of Ethernet switches offers a compact and efficient solution to support today’s converged network access deployments.Â
ASIC-based Packed Forwarding Engine (PFE) comes with each Juniper EX2300-24P Switch. EX2300 Switch also includes an integrated CPU to consistently deliver wire-rate forwarding, even with all control panel features enabled. EX2300 Switch is also PoE-enabled including a maximum system budget of 740 Watts to deliver up to 30 Watts to select ports.Â
Â
Model | EX2300-24P |
Backplane speed | 80 Gbps |
Data rate | 128 Gbps |
Throughput | 95 Mpps (wire speed) |
Ports | 24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm) 1 rack unit |
