Cisco 4000 ISR Series Routers

ISR4000

The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.

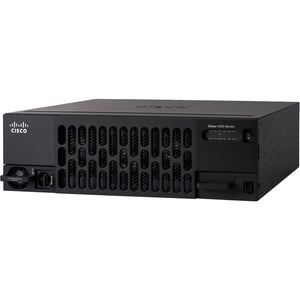

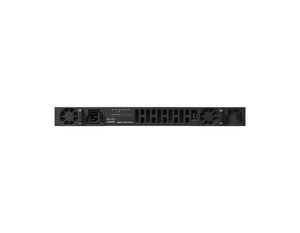

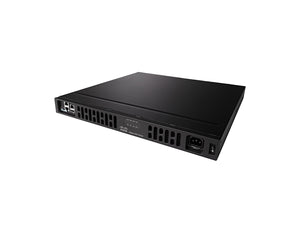

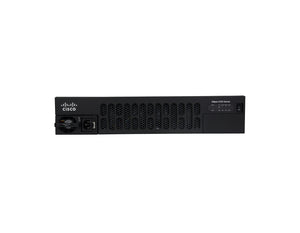

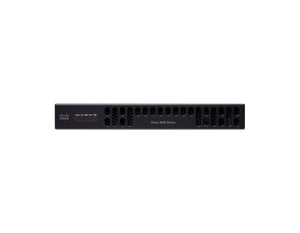

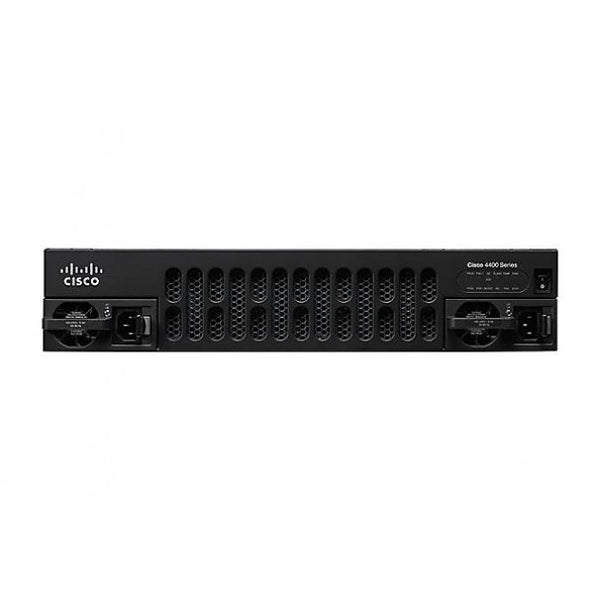

The Cisco 4000 Family contains the following platforms: the 4461, 4451, 4431, 4351, 4331, 4321, and 4221 ISRs.

Cisco 4000 ISR Series Routers

Show on page:

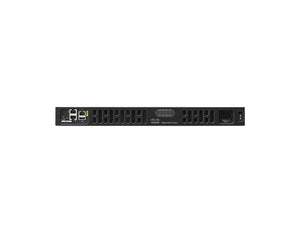

  • Cisco ISR4331-SEC/K9 Router - Network Devices Inc.
    Save $3,740.75

    CISCO ISR4331-SEC/K9 ROUTER

    CISCO ISR4331-SEC/K9 ROUTER

    $2,999.00
    $6,739.75

    • 100Mbps-300Mbps system throughput
    • 2 WAN/LAN ports
    • 2 SFP ports
    • multi-Core CPU
    • 1 service module slots
    • Security
    • Voice
    • WAAS
    • Intelligent WAN
    • OnePK
    • AVC

    [specifications]

    Type Cisco ISR4331/K9 with Security Bundle
    Aggregate Throughput 100 Mbps to 300 Mbps
    Total onboard WAN or LAN 10/100/1000 ports 3
    RJ-45-based ports 2
    SFP-based ports 2
    Enhanced service-module slots 1
    Doublewide service-module slots 0
    NIM slots 2
    OIR (all I/O modules) Yes
    Onboard ISC slot 1
    Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM
    (Combined control/services/data planes)
    4 GB
    Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 16 GB
    Default memory DDR3 ECC DRAM (data plane) NA
    Maximum memory DDR3 ECC DRAM (data plane) NA
    Default memory DDR3 ECC DRAM (control/services plane) NA
    Maximum memory DDR3 ECC DRAM (control/services plane) NA
    Default flash memory 4 GB
    Maximum flash memory 16 GB
    External USB 2.0 slots (type A) 1
    USB console port -type B mini (up to 115.2 kbps) 1
    Serial console port - RJ45 (up to 115.2 kbps) 1
    Serial auxiliary port - RJ45

    (up to 115.2 kbps)
    1
    Power-supply options Internal: AC and PoE
    Redundant power supply N/A
    AC input voltage 100 to 240 VAC autoranging
    AC input frequency 47 to 63 Hz
    AC input current range, AC power supply (maximum) 3 to 1.3A
    AC input surge current 60 A peak and less than 5 Arms per half cycle
    Typical power (no modules) (watts) 42
    Maximum power with AC power supply (watts) 250
    Maximum power with PoE power supply (platform only) (watts) 530
    Maximum endpoint PoE power available from PoE power supply (watts) 250



    [/specifications]

    Use Cisco ISR4331-SEC/K9 Router for Application-aware Networking Solutions

    Cisco ISR4331-SEC/K9 Router is WAN communication featured Cisco ISR4331/K9 router with Security Bundle. Ideal for distributed enterprise branch environment, this router has built-in intelligent network capabilities and convergence.

    Key Benefits of Cisco ISR4331-SEC/K9 Router

    Cisco ISR4331-SEC/K9 Router is built to address the growing need for application-aware networking in distributed enterprise environment, which tends to have lean IT resources. At the same time, those have an increasing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.



    Bundle Security Bundle
    Aggregate Throughput 100 Mbps to 300 Mbps
    Total onboard WAN or LAN 10/100/1000 ports 3
    RJ-45-based ports 2
    SFP-based ports 2
    Enhanced service-module (SM-X) slot 1
    NIM (Network Interface Modules) slots 2
    Onboard ISC slot 1
    Memory 4 GB (default) / 16 GB (maximum)
    Flash Memory 4 GB (default) / 16 GB (maximum)
    Power-supply options Internal: AC and PoE
    Rack height 1 RU
    Dimensions (H x W x D) 44.45 x 438.15 x 438.15 mm
    Package Weight 12.96 Kg
