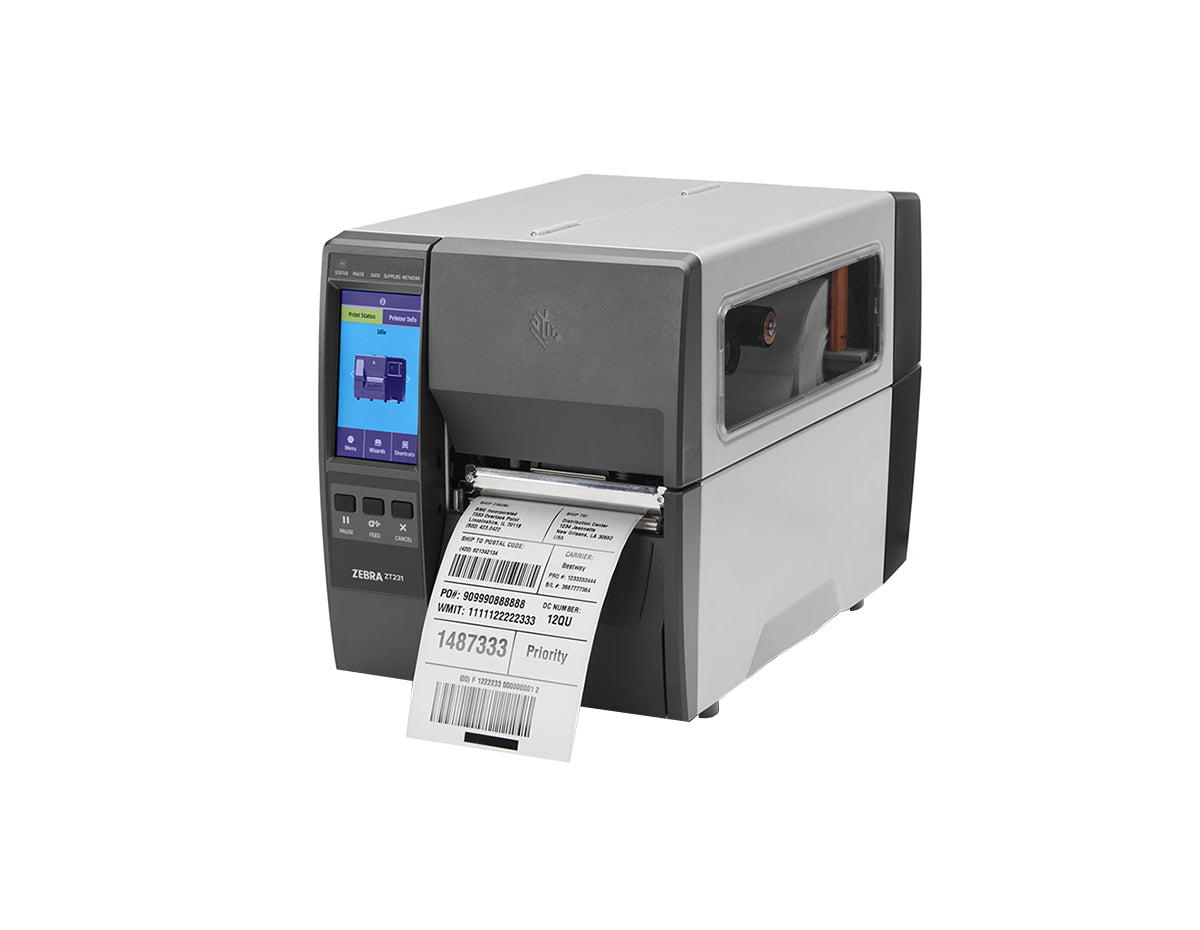

ZEBRA ZT23142-T01000FZ INDUSTRIAL PRINTER (ZT231)

Accessories

Optionsal Accessories	Zebra ZT23142-T01000FZ Industrial Printer
Communication	• 802.11ac Wi-Fi option card • 10/100 Ethernet option card • Applicator Interface
Media Handling	• Peel—a front-mount, passive-peel with no take-up spindle • Peel—a front-mount, passive-peel with liner take-up spindle (factory-fit only) • Cutter—a front-mount guillotine cutter
RFID	• UHF field-installable RFID kit
Keyboard Display Unit	• ZKDUTM keyboard display units for stand-alone printing applications

Specifications

Specifications	Zebra ZT23142-T01000FZ Industrial Printer
Physical Characteristics
Dimensions	ZT231 Closed: 17 in. L x 9.5 in. W x 11 in. H 432 mm L x 241 mm W x 279 mm H ZT231 with Liner Takeup Unit: 17 in. L x 9.5 in. W x 12.75 in. H 432 mm L x 241 mm W x 324 mm H
Weight	ZT231: 20 lbs./9.1 kg ZT231 with Liner Takeup Unit: 24 lbs./10.9 kg
Printer Specifications
Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Memory	256 MB SDRAM memory 256 MB on-board linear Flash memory
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	12 ips (203 dpi) 8 ips (300 dpi)
Media Sensors	Moveable transmissive and reflective sensors
Maximum Print Length	203 dpi: 157 in/3988 mm 300 dpi: 73in/1854 mm
Media Characteristics
Minimum Label and Liner Length	Tear mode: 0.7 in/18 mm Cutter mode: 1 in/25 mm Peel mode: 0.5 in/13 mm
Media Width	0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size	8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness	0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types	Continuous, die-cut, notch, black mark
Operating Characteristics
Operating Temp.	Thermal transfer: 40oF to 105oF/5o to 40oC Direct thermal: 32oF to 105oF/0o to 40oC
Storage/Transportation Temperature	(-40oF to 140oF/-40o to 60oC )
Operating Humidity	20% to 85% non-condensing
Storage Humidity	5% to 85% non-condensing
Electrical	Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz ENERGY STAR certified
Agency Approvals	IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, and BIS
Firmware	ZBI 2.0TM—Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. ZPL and ZPL IITM—Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers. EPL and EPL2TM— Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)
Barcode Symbologies	Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)
Fonts and Graphics	7 bitmapped, 1 smooth-scalable (CG TriumvirateTM Bold Condensed) Pre-loaded UnicodeTM-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850 Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM

Properties



Properties	Zebra ZT23142-T01000FZ Industrial Printer
Description	Includes USB, Serial, Ethernet and USB Host. Tap to pair and print with compatible mobile devices with the Print Touch tag (NFC). Add a second Ethernet port, 802.11ac or an Applicator port.
Product Family	Zebra ZT231 Industrial Printer
Product Type	Industrial Printer
ZT231 Industrial Printer Standart Features	• Print methods: direct-thermal or thermal-transfer • Construction: metal frame and metal enclosures • Bi-fold media door with large clear window • Side-loading supplies path for simplified media and ribbon loading • Thin film printhead with E3TM Element EnergyTM Equalizer for superior print quality • Three-color LEDs for quick printer status • 4.3” color resistive touch screen with intuitive menu for quick operation and settings • Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host • ENERGY STAR® certified • Bluetooth Low Energy (BTLE) technology for enhanced location precision
