| Specifications |

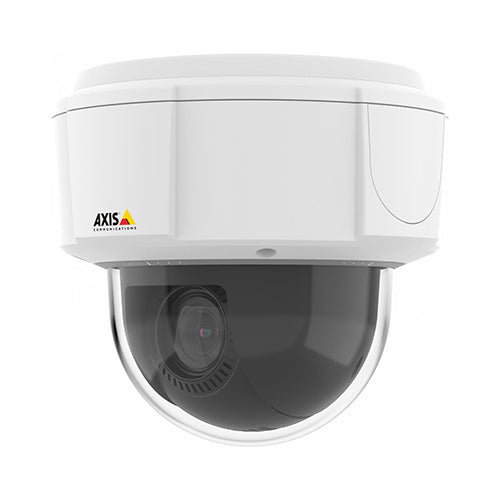

AXIS M5525-E PTZ Network Camera |
| Camera |
| Image sensor |
1/2.8” progressive scan CMOS |
| Lens |
4.7–47 mm, F1.6–3.0 |
| Horizontal field of view: 61.8°–6.7° |
| Vertical field of view: 37.2°–3.8° |
| Autofocus, auto-iris |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.45 lux at 30 IRE F1.6 |
| B/W: 0.01 lux at 30 IRE F1.6 |
| Color: 0.55 lux at 50 IRE F1.6 |
| B/W: 0.01 lux at 50 IRE F1.6 |
| Shutter speed |
1/66500 s to 2 s |
| Pan/Tilt/Zoom |
Pan: 360° endless, 1.8°–150°/s |
| Tilt: 90°,1.8°–150°/s |
| 10x optical zoom, 12x digital zoom, total 120x zoom |
| Nadir flip, 100 preset positions, limited guard tour, control queue, |
| on-screen directional indicator |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| Motion JPEG |
| Resolution |
1920x1080 to 320x180 |
| Frame rate |
Up to 25/30 fps with power line frequency 50/60 Hz |
| Video streaming |
Multiple, individually configurable streams in H.264 and Motion |
| JPEG |
| Axis Zipstream technology in H.264 |
| Controllable frame rate and bandwidth |
| VBR/MBR H.264 |
| Image settings |
Saturation, brightness, sharpness, WDR – forensic capture, white |
| balance, exposure mode, exposure zones, compression, text |
| and image overlay, 20 individual 3D privacy masks, contrast, |
| scene profiles, image freeze on PTZ, local contrast, max shutter, |
| max gain, noise/motion priority, aperture lock, exposure level, |
| rotation: 0°, 180° |
| Audio |
| Audio streaming |
Two-way, full duplex |
| Audio encoding |
AAC-LC 8/16/32 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, |
| Opus 8/16 kHz, LPCM 32 kHz |
| Configurable bit rate |
| Audio input/output |
External microphone input or line input, line output |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1X* network access control, Digest authentication, User access log, Centralized Certificate Management, Brute force delay protection |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, SFTP CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System Integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-click cloud connection |
| ONVIF® Profile S and ONVIF® Profile G, specification at onvif.org |
| Event conditions |
Analytics, edge storage events |
| Detectors: day/night mode, live stream accessed, audio detection |
| Hardware: network, temperature |
| Input Signal: digital input port, manual trigger, virtual inputs |
| PTZ: error, moving, preset reached, ready |
| Storage: disruption, recording |
| System: system ready |
| Time: recurrence, use schedule |
| Event actions |
Record video: SD card and network share |
| Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network |
| share, and email |
| Pre- and post-alarm video or image buffering for recording or upload |
| Notification: email, HTTP, HTTPS, TCP, and SNMP trap |
| PTZ: PTZ preset, start/stop guard tour |
| Overlay text, play audio clip, external output activation, WDR mode |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter |
| Analytics |
| Applications |
Included |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard |
| AXIS Video Motion Detection, audio detection, advanced |
| gatekeeper |
| Supported |
| AXIS Cross Line Detection |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| General |
| Casing |
IP66-, NEMA 4X- and IK09-rated |
| Repaintable plastic casing, polycarbonate (PC) dome |
| Sustainability |
PVC free |
| Memory |
512 MB RAM, 256 MB Flash |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Typical 6.6 W, max 12.95 W |
| 20–28 V DC, typical 6.3 W, max 13 W |
| (PoE midspan and power supply not included) |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
| DC input terminal block |
| I/O: 6–pin terminal block with push-in spring connection for |
| four configurable inputs/outputs |
| Audio: mic/line in, line out terminal block with push-in spring |
| connection |
| Storage |
Support for microSD/SDHC/SDXC card (not included) |
| Support for SD card encryption |
| Support for recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
(-20 °C to 50 °C) (-4 °F to 122 °F) |
| Humidity 15–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C) (-40 °F to 149 °F) |
| Approvals |
EMC |
| EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, |
| EN 61000-6-1, EN 61000–6–2, FCC Part 15 Subpart B Class A, |
| ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, |
| KC KN32 Class A, KN35 |
| Safety |
| IEC/EN/UL 62368–1, IEC/EN/UL 60950-22, IS 13252 |
| Environment |
| IEC 60068-2–27, IEC 60068–2–6, IEC/EN 60529 IP66, |
| IEC/EN 62262 IK09 |
| Network |
| NIST SP500–267 |
| Dimensions |
Height: 132 mm (5.2 in), ø 165 mm (6.5 in) |
| Weight |
1.1 kg (2.4 lb) |
| Recessed mount (plenum rated): 1.0 kg (2.2 lb) |
| Included accessories |
Conduit adapter 3/4”, smoked dome, adapter bayonette |
| Installation Guide, Windows® |
| decoder 1-user license |
| Video management software |
AXIS Companion, AXIS Camera Station, video management |
| software from Axis’ Application Development Partners available |
| at axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
