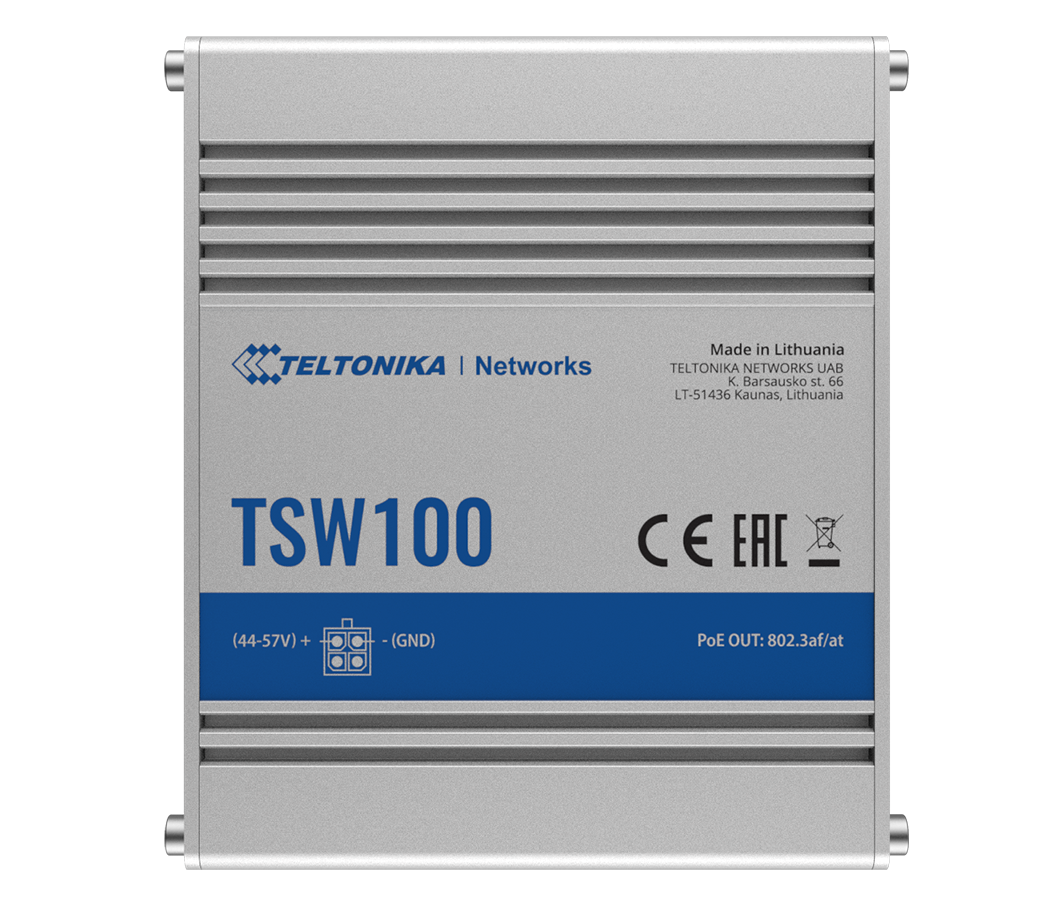

Teltonika TSW100 Switch (TSW100000010)

Teltonika TSW100 Switch (TSW100000010)

The TSW100 is the first industrial unmanaged switch from Teltonika Networks. This product features five Gigabit Ethernet ports, with four supporting IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE). As a power source equipment (PSE), it facilitates a centralized power supply, delivering up to 30 watts per port and streamlining power installation efforts. Additionally, its 10/100/1000 Mbps Ethernet ports offer a cost-effective high-bandwidth solution for industrial Ethernet networks. This robust unmanaged industrial switch is well-suited for professional applications requiring high bandwidth, where reliable data connectivity and power supply are essential.

Quick Specs:

• 5x 10/100/1000 Mbps RJ45 ports
• PoE ports: Port1-4
• PoE power budget: 120W
• Non-blocking bandwidth: 10 Gbps

Please see the related tabs for the TSW100000010 datasheet and compatible accessories.

Properties	TSW100 Switch (TSW100000010)
Description	The TSW100 is a PoE-enabled Gigabit Ethernet switch with 5 ports, delivering up to 30 watts per port for efficient industrial networking.
Product Family	Teltonika TWS Switches
Product Type	Switch
PoE standard	802.3af/at (max 30 W per port, total power budget 120W*)
Ethernet	5 x 10/100/1000 Ethernet ports: 4 x PoE, 1 x Uplink
Housing	Aluminum housing with wall or DIN rail mounting option and grounding capability
Dimensions	115 x 32 x 95 mm
Weight	340 g
Mounting	DIN rail and surface mounting options
Input voltage range	7 - 57 VDC
Input voltage range for PoE	44 - 57 VDC
Power consumption (idle/max no PoE/max)	2 W/9 W/129 W

Bandwidth	10 Gbps
Packet buffer	128 KB
MAC address table size	2K entries
Auto MDI/ MDI-X Cable Detection	Yes
Status LEDs	1 x Power LED, 10 x LAN status LED’s
Ingress protection rating	IP30
Operating temperature	-40 °C to 75 °C
Operating humidity	10 % to 90 % non-condensing

Power adapter

Input: 1.8 A @100-240 VAC, Output: 48 VDC, 1.3 A, 4 pin plug
