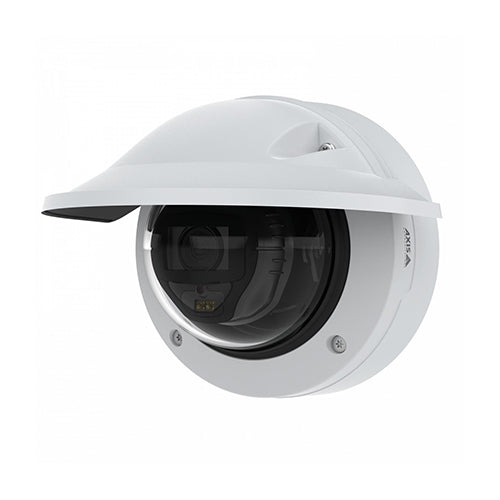

AXIS P3267-LVE DOME CAMERA

Accessories

[shortdesc]

• Outdoor 5 MP dome with IR and deep learning, Excellent image quality in 5 MP, Lightfinder 2.0, Forensic WDR, and OptimizedIR, Analytics with deep learning, Audio and I/O connectivity, Built-in cybersecurity features

[/shortdesc]

[properties]

Properties	AXIS P3267-LVE Dome Camera
Description	The AXIS P3267-LVE Dome Camera is a powerful outdoor 5 MP dome with IR and deep learning. Equipped with Lightfinder 2.0, Forensic WDR, and OptimizedIR, it excels in delivering superior image quality in all lighting conditions. Its advanced features include analytics with deep learning, audio and I/O connectivity for equipment integration, and built-in cybersecurity for enhanced system protection.
Product Family	AXIS P3267-LVE Dome Camera
Product Type	Camera

[/properties] [specifications]

Specifications	AXIS P3267-LVE Dome Camera
Camera
Image sensor	1/2.7” progressive scan RGB CMOS
Lens	Varifocal, 3–8 mm, F1.3
	Horizontal field of view: 104°–40°
	Vertical field of view: 74°–29°
	Minimum focus distance: 1 m (3.28 ft)
	IR corrected, remote zoom and focus, P-Iris control
Day and night	Automatically removable infrared-cut filter
Minimum illumination	With Forensic WDR and Lightfinder 2.0:
	Color: 0.13 lux at 50 IRE, F1.3
	B/W: 0 lux at 50 IRE, F1.3
Shutter speed	1/33500 s to 1/5 s
Camera angle adjustment	Pan ±190°
	Tilt -10 to +80°
	Rotation ±190°
System on chip (SoC)
Model	ARTPEC-8
Memory	2048 MB RAM, 8192 MB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles
	H.265 (MPEG-H Part 2/HEVC) Main Profile
	Motion JPEG
Resolution	2592x1944 to 160x90
Frame rate	25/30 fps with power line frequency 50/60 Hz
Video streaming	Multiple, individually configurable streams in H.264, H.265, and
	Motion JPEG
	Axis Zipstream technology in H.264 and H.265
	Controllable frame rate and bandwidth
	VBR/ABR/MBR H.264/H.265
	Video streaming indicator
Multi-view streaming	Up to 2 individually cropped-out view areas in full frame rate
Image settings	Saturation, contrast, brightness, sharpness, Forensic WDR: up to
	120 dB depending on scene, white balance, day/night threshold,
	local contrast, tone mapping, exposure mode, exposure zones,
	defogging, barrel distortion correction, compression, rotation: 0°,
	90°, 180°, 270° including Corridor Format, mirroring, dynamic
	text and image overlay, privacy masks, polygon privacy mask
Pan/Tilt/Zoom	Digital PTZ, preset positions
Audio
Audio streaming	Audio in, simplex, two-way audio via edge-to-edge technology
Audio encoding	24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz,
	G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
	Configurable bit rate
Audio output/output	External microphone input, line input, digital input with ring
	power, automatic gain control, network speaker pairing
Network
Security	Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified)
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
Supported protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa*, HTTP/2, TLS*, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
	*: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young
System Integration
Application Programming Interface	Open API for software integration, including VAPIX® and
	AXIS Camera Application Platform; specifications at axis.com
	One-click cloud connection
	ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and
	ONVIF® Profile T, specification at onvif.org
	Support for Session Initiation Protocol (SIP) for integration with
	Voice over IP (VoIP) systems, peer to peer or integrated with
	SIP/PBX.
Onscreen controls	Day/night shift
	Defogging
	Wide dynamic range
	Video streaming indicator
	IR illumination
Event conditions	Analytics, external input, supervised external input, virtual inputs through API
	Call: state, state change
	Device status: above operating temperature, above or below
	operating temperature, below operating temperature, within
	operating temperature, IP address removed, new IP address,
	network lost, system ready, ring power overcurrent protection,
	live stream active, casing open
	Digital audio: digital signal contains Axis metadata, digital signal
	has invalid sample rate, digital signal missing, digital signal okay
	Edge storage: recording ongoing, storage disruption, storage health issues detected
	I/O: digital input, manual trigger, virtual input
	MQTT: subcribe
	Scheduled and recurring: schedule
	Video: average bitrate degradation, day-night mode, live stream
	open, tampering
Event actions	Overlay text, external output activation, zoom preset, day/night
	mode, flash status LED, use lights, set defog mode, set WDR mode
	Calls: end SIP call, make SIP call, answer call
	I/O: toggle I/O once, toggle I/O while the rule is active
	MQTT: publish
	Notification: email, HTTP, HTTPS, TCP, and SNMP trap
	Pre- and post-alarm video or image buffering for recording or upload
	Record video: SD card and network share
	Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email
Data streaming	Event data
Built-in installation aids	Remote zoom and focus, straighten image, pixel counter, level grid
Analytics
AXIS Object Analytics	Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
	Trigger conditions: line crossing, object in area
	Up to 10 scenarios
	Metadata visualized with color-coded bounding boxes
	Polygon include/exclude areas
	Perspective configuration
	ONVIF Motion Alarm event
Applications	Included
	AXIS Object Analytics
	AXIS Video Motion Detection, active tampering alarm, audio
	detection
	Support for AXIS Camera Application Platform enabling
	installation of third-party applications, see axis.com/acap
General
Casing	IP66-, NEMA 4X- and IK10-rated
	Polycarbonate hard coated dome
	Polycarbonate casing and weathershield
	Color: white NCS S 1002-B
	For repainting instructions, go to the product’s support
	page. For information about the impact on warranty, go to
	axis.com/warranty-implication-when-repainting.
Mounting	Mounting bracket with junction box holes (double-gang,
	single-gang, and 4” octagon) and for wall or ceiling mount
Sustainability	PVC free, BFR/CFR free
	6.5% bioplastics
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
	Typical 6.4 W, max 12.1 W
Connectors	RJ45 10BASE-T/100BASE-TX PoE
	I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised
	digital input and 1 digital output (12 V DC output, max. Load 25 mA)
	Audio: 3.5 mm mic/line in
IR illumination	OptimizedIR with power-efficient, long-life 850 nm IR LEDs
	Range of reach 40 m (130 ft) or more depending on the scene
Storage	Support for microSD/microSDHC/microSDXC card
	Support for SD card encryption (AES-XTS-Plain64 256bit)
	Recording to network-attached storage (NAS)
	For SD card and NAS recommendations see axis.com
Operating conditions	(-40 °C to 50 °C) (-40 °F to 122 °F)
	Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C
	(165 °F)
	Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F)
	Humidity 10–100% RH (condensing)
Storage conditions	(-40 °C to 65 °C) (-40 °F to 149 °F)
	Humidity 5–95% RH (non-condensing)
Approvals	EMC
	EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2,
	EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,
	FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4,
	KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A,
	VCCI Class A
	Safety
	CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3,
	IEC/EN 62471, IS 13252
	Environment
	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
	IEC 60068-2-27, IEC 60068-2-78
	IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X,
	NEMA TS2 (2.2.7-2.2.9)
	Network
	NIST SP500-267
Dimensions	Without weathershield:
	Height: 107 mm (4.21 in)
	ø 149 mm (5.87 in)
Weight	With weathershield:
	900 g (2.0 lb)
Included accessories	Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 screw bit, terminal block connectors, cable gaskets, connector guard
Video management software	AXIS Companion, AXIS Camera Station, video management
	software from Axis Application Development Partners available
	at axis.com/vms
Languages	English, German, French, Spanish, Italian, Russian, Simplified
	Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese

[/specifications]
