Model: IE-2000-4TS-G-B
Detail: --> Switch
, Managed, 4 x 10/100 + 2 x Gigabit SFP, DIN Rail Mountable, <
List Price: US$1,732.93
You Save: $387.39 (22% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey

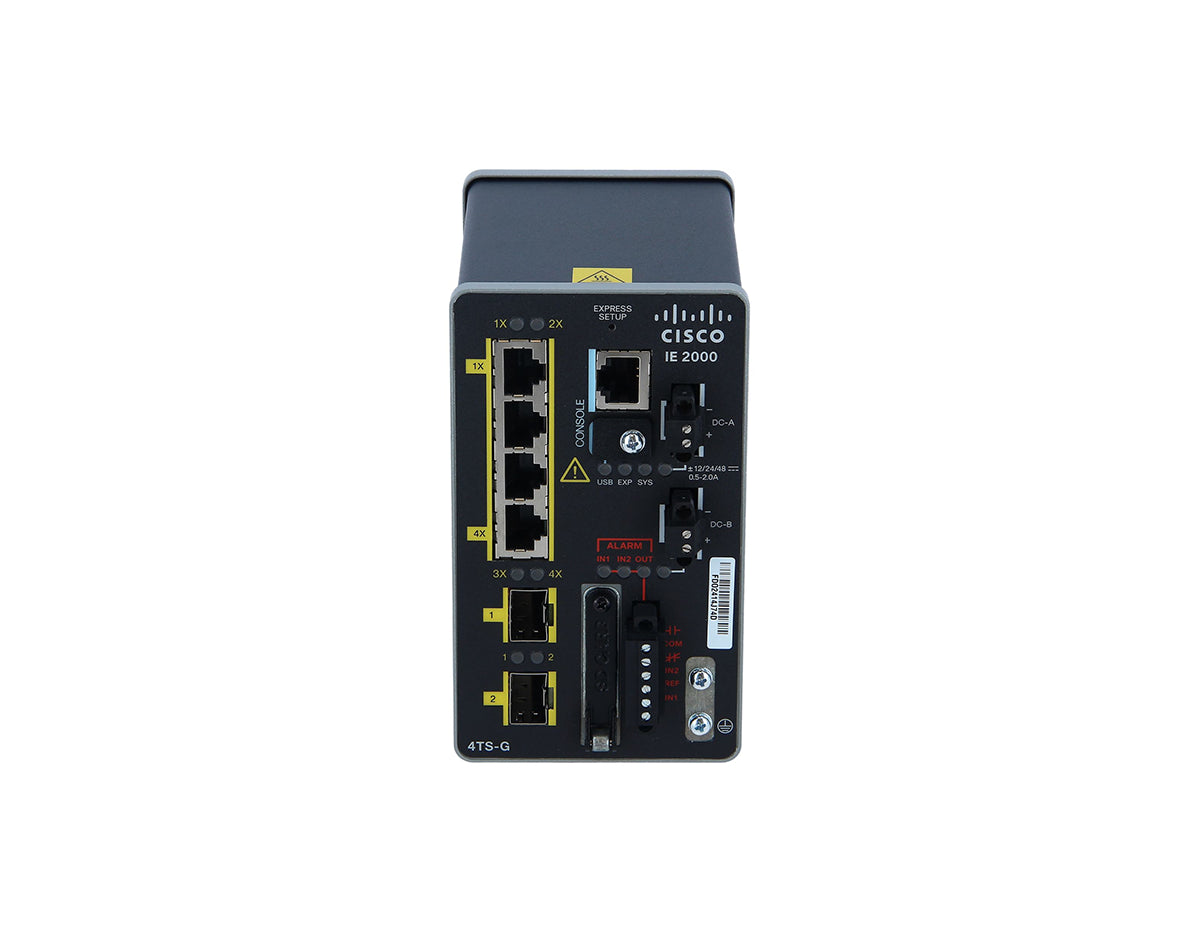

CISCO IE-2000-4TS-G-B SWITCH is one of the switches in the Cisco Industrial Ethernet 2000 (IE 2000) series. This series offers a variety of compact, industrially ruggedized access switches.

Key Benefits of CISCO IE-2000-4TS-G-B SWITCH

CISCO IE-2000-4TS-G-B SWITCH is easy to use, access secure and resilient. Cisco Resilient Ethernet Protocol (REP) has industry leading convergence that is leveraged by multiple industries, such as automotive, oil and gas, mining, transportation, and energy companies. It offers IP based networking solution in their production areas. CISCO IE-2000-4TS-G-B SWITCH features the IE 2000 additions that are intended to support access layer connectivity and to meet the growing requirements for security, voice, and video traffic across industrial networks.


Total Ports 6
RJ45 Ports 4 FE
SFP Ports 2 GE
Manufacturing license LAN Base
Dimensions (H x W x D)

including DIN rail
5.1" H x 2.95" W x 4.51" D in

(130mm H x 74.9mm W x 115mm D)
Weight IE-2000 6 ports chassis: 2.45 lb (1.11 kg)



Total Ports 6
RJ45 Ports 4 FE
Manufacturing license LAN Base
Hardware   256 MB DRAM with ECC memory

  IEEE 1588v2 FPGA

  64 MB onboard flash memory

  1GB removable SD flash memory card (optional)

  Mini-USB connector
Alarm   Alarm I/O: Two-alarm inputs to detect dry contact open or close; one alarm output relay
Power consumption 4-port downlink models: 9.5-15 W
Connectors and cabling 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
(H x W x D)

including DIN rail
IE-2000 6 ports (copper downlinks) chassis: 5.1"H x 2.95"W x 4.51"D in (130mm H x 74.9mm W x 115mm D)
Weight  IE-2000 6 ports chassis: 2.45 lb (1.11 kg)
LAN Lite license Baseline features
Layer 2 switching IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
Security SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, Syslog
Industrial Ethernet EtherNet/IP, Profinet v2
LAN Base license Additional features
Layer 2 switching VTPv3, EtherChannel, Voice VLAN, Flexlink
Security IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Quality of service IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Management Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
Industrial Ethernet IEEE 1588 PTPv2
IPv4 routing IPv4 static routing
IPv6 routing IPv6 host support, HTTP over IPv6, SNMP over IPv6
Enhanced LAN Base Additional features
Industrial management Layer 2 switching with 1:1 static Network Address Translation (NAT)
IP Lite license Additional features
IPv4 routing RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode.
IPv6 Routing IPv6 Static routing, OSPFv3
Security FIPS 140-2
Embedded Event Manager EEM feature enabled with IP Lite license
DNA Essentials Additional features
Visibility DNA assurance, Device 360
Day-zero network bring-up automation Cisco Network Plug-and-Play application
