AXIS FA1080-E 2.2MM 8.3 FPS THERMAL SENSOR UNIT
| Model: | 02089-001 |
| Detail: |
|
| List Price: | |
| Price: | $675.00 |
| You Save: | $24.00 (3% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

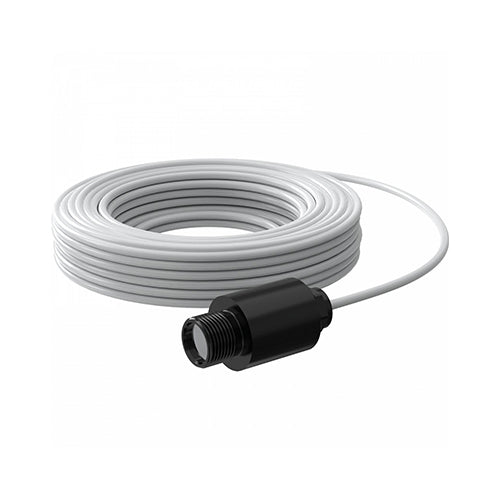

AXIS FA1080-E 2.2M 8.3 FPS is a modular thermal sensor unit to be used together with AXIS FA54 Main Unit. The thermal sensor unit provides 208x156 resolution and includes a 2.2 mm lens with 63-degree horizontal FOV. The flexible form factor allows it to be placed in locations with limited space and can be used with a wide range of mounting accessories to enable wall, ceiling, and recessed installations. The sensor unit is outdoor-ready and has a 12 m/39.4 ft cable. This product contains U.S.-origin controlled technology/component, the US Export Administration Regulations (EAR) are always applicable to the product. You should comply at all times with all applicable national and international (re-) export control regulations.
| Feature | AXIS FA1080-E Thermal Sensor Unit | AXIS FA1105 Sensor Unit | AXIS FA1125 Sensor Unit | AXIS FA3105-L Eyeball Sensor Unit | AXIS FA4090-E Thermal Sensor Unit | AXIS FA4115 Dome Sensor Unit |
|---|---|---|---|---|---|---|
| Horizontal field of view | 35.4 / 63 | 111 | 91 | 103 | 35.4 | 99-53 |
| Built-in IR | - | - | - | ✔ | - | - |
| Thermal sensitivity (NETD) | <100 mK | - | - | - | <100 mK | - |
Accessories
| Optional accessories | AXIS F8203 Fixed Mount Bracket AXIS F8204 Mounting band AXIS F8205 Bullet Accessory AXIS F8212 Trim Ring |
Specifications
| Specifications | AXIS FA1080-E 2.2mm 8.3 fps Thermal Sensor Unit |
| Image sensor | Uncooled Microbolometer 208 x 156 pixels, Pixel size 12 μm, Spectral range: 8-14 μm |
| Lens | Athermalized, 2.2 mm, F1.05 Horizontal field of view: 63° Vertical field of view: 47° |
| Sensitivity | NETD <100 mK |
| Frame rate | 8.3 fps |
| General | |
| Casing | Aluminum IP66 and IP67–rated |
| Connectors | RJ12 for connection to AXIS FA54 Main Unit |
| Operating conditions | –30°C to 55 °C (–22°F to 131 °F) Maximum temperature (intermittent): 60 °C (140 °F) Start-up temperature: -30 °C Humidity 10–100% RH (condensing) |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Approvals | EMC 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, ICES-003 Class A, Safety IEC/EN/UL 62368-1 Environment (Thermal unit) IEC 60068-2-1, IEC 60068-2-2, IEC 60068–2–6, IEC 60068-2-14, IEC 60068–2–27, IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP66/IP67, IEC/EN/UL 60950-22, NEMA 250 Type 4X |
| Dimensions | 53 mm (2 1/16 in) ø 30 mm (1 3/16 in) Cable length: 12 m (39 ft) |
| Weight | Sensor with cable 370 g (0.8 lb) |
| Required hardware | AXIS FA54 Main Unit |
| Included accessories | AXIS F8201 Vari-angle Mounting Bracket |
| Warranty | 5-year warranty |
Properties
| Properties | AXIS FA1080-E 2.2mm 8.3 fps Thermal Sensor Unit |
| Description | The AXIS FA1080-E with a 2.2 mm lens is a discreet and outdoor-ready thermal sensor unit designed for versatile installation options, including behind surfaces, on walls, or recessed. This unit, when paired with the AXIS FA54 Main Unit, offers reliable 24/7 thermal detection with a wide-angle view. The 2.2 mm lens is ideal for broad surveillance needs, ensuring a low rate of false alarms and providing a reliable solution for discreet and effective monitoring. |
| Product Family | Axis FA Series Modular Cameras |
| Product Type | Thermal Camera |
