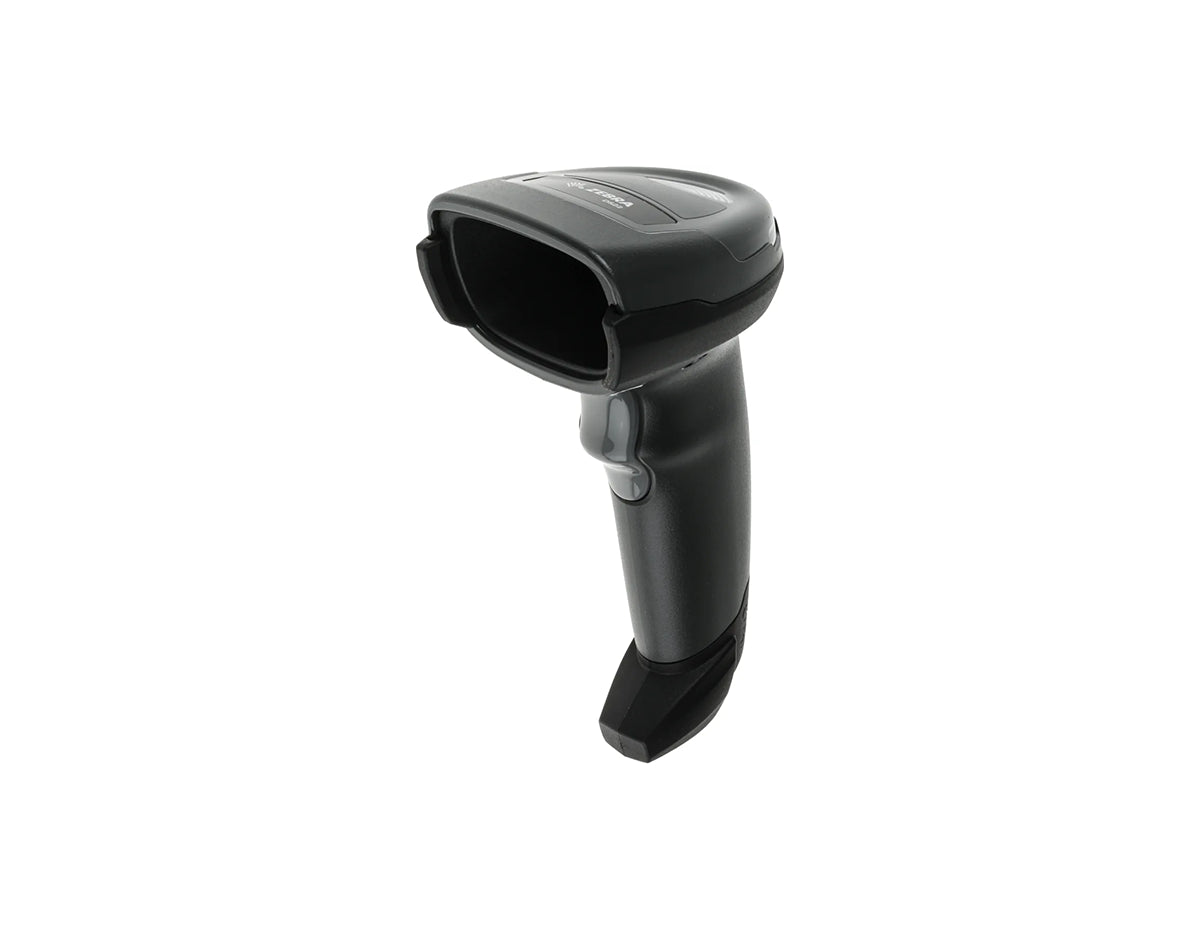

Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)

Zebra DS2208-SR7U2100SGW Handheld Scanner

The cost-effective, versatile barcode scanner Zebra DS2208 can swiftly read both 1D and 2D barcodes, including those on traditional paper and plastic labels and smartphone displays. It can efficiently capture items such as customer cards, promotional cards, and vouchers for convenient payment processing, including direct scanning from a customer's smartphone. This feature makes it particularly suitable for use in retail and hospitality settings, even during periods of high demand. Additionally, the DS2208 is equipped with automatic recognition of handheld and presentation modes, activated by placing it in or removing it from the presentation stand.

Quick Specs:

• Corded operation for reliable power
• 1D and 2D barcode scanning
• Easy to deploy and manage
• Ergonomic design for comfortable use

Please see the related tabs for the DS2208-SR7U2100SGW datasheet and compatible accessories.



Properties	Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)
Description	Handheld Standard Range Area Imager Kit with Presentation Cradle and USB Kit
Product Family	DS2200 Series Handheld Imagers
Product Type	Handheld Scanner





Specifications	Zebra DS2208 Handheld Scanner (DS2208-SR7U2100SGW)
Physical Characteristics	Corded DS2208: 6.5 in. H x 2.6 in. W x 3.9 in. D 16.5 cm H x 6.6 cm W x 9.9 cm D
Weight	5.7 oz. / 161.6 g
Input Voltage Range	DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
Current	Corded DS2208 Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image) Corded DS2208 Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Color	Nova White, Twilight Black
Supported Host Interfaces	USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support	Supports more than 90 international keyboards
User Indicators	Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume)
Performance Characteristics
Motion Tolerance (Handheld)	Up to 5 in./13 cm per second for 13 mil UPC
Swipe Speed (Hands-Free)	Up to 30.0 in./76.2 cm per second for 13 mil UPC
Light Source	Aiming Pattern: Linear 624nm Amber LED
Illumination	(2) 645nm Super-Red LEDs
Imager Field of View	32.8° H x 24.8° V Nominal
Image Sensor	640 x 480 pixels
Minimum Print Contrast	25% minimum reflective difference
Skew/Pitch/Roll Tolerance	(+/- 65°; +/- 65°; 0-360°)
Minimum Element Resolution	Code 39 - 4.0 mil; Code 128 - 4.0 mil Data Matrix - 6.0 mil; QR Code - 6.7 mil
User Environment
Operating Temperature	DS2208 Imager: 32.0° to 122.0° F/0.0° to 50.0° C
Storage Temperature	(-40.0° to 158.0° F/-40.0° to 70.0° C)
Humidity	5% to 95% RH, non-condensing
Drop Specification	Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification (Note: 1 tumble = 0.5 cycle)	Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler
Environmental Sealing	IP52
Electrostatic Discharge (ESD)	ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity	0 to 10,000 Foot Candles/0 to 107,600 Lux
Radio specifications
Bluetooth Radio	Standard Bluetooth Version 4.0 with BLE: Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle. Environmental factors may impact results. Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps
Battery
Battery Capacity/ Battery Type	2,400 mAh Li-Ion Battery
Scans Per Battery Charge (Simulated Checkout profile of 10 scans in 10 seconds with a 50 second rest. 3 Refer to )	110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute
Operating Time Per Full Charge (Simulated Checkout profile of 10 scans in 10 seconds with a 50 second rest. 3 Refer to )	84.0 Hours
Charge Time (from Empty)	14 Hour Shift Hours / Full Charge Hours
Standard USB	14 Hour Shift Hours: 4 Full Charge Hours: 17
BC1.2 USB	15 Hour Shift Hours: 1 Full Charge Hours: 5
External 5V Source	15 Hour Shift Hours: 1 Full Charge Hours: 5
Micro USB	15 Hour Shift Hours: 1 Full Charge Hours: 7
BC1.2 Micro USB	15 Hour Shift Hours: 1 Full Charge Hours: 4
Regulatory
Electrical Safety	EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07
Environmental	RoHS EN 50581
LED Safety	IEC 62471
IT Emissions	EN 55032 (Class B)
IT Immunity	EN 55024
Harmonic Current Emissions	EN 61000-3-2
Voltage Fluctuation and Flicker	EN 61000-3-3
Radio Frequency Devices	47 CFR Part 15, Subpart B, Class B
Digital Apparatus	ICES-003 Issue 6, Class B
