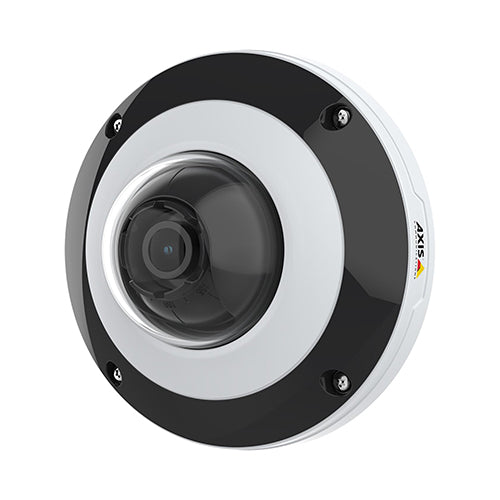

AXIS F4105-LRE DOME SENSOR
| Model: | 02364-001 |
| Detail: |
|
| Price: | $320.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description
AXIS F4105-LRE is a 1080p mini-dome sensor with IR light part for the F-series. It has 110 degree Horizontal Field of View and 2.8mm focal length. AXIS F4105-LRE uses detachable M12 lenses. Several M12 lenses can be purchased separately offering different types of Horizontal Field of View and Focal Length. AXIS F4105-LRE is a rugged outdoor mini-dome sensor. It is both IP66 and IP6K9K certified. It can deliver up a 1080p resolution at 60fps (all AXIS F91 main units) or 720p at 180fps (AXIS F9111 main unit only). AXIS F4105-LRE does not come with a cable. An AXIS TU600X cable has to be purchased separately. AXIS F4105-LRE does not come with any mounting accessory. Mounting accessories can be purchased separately.
| Feature | AXIS F2105-RE Standard Sensor | AXIS F2115-R Varifocal Sensor | AXIS F2135-RE Fisheye Sensor | AXIS F4105-LRE Dome Sensor | AXIS F4105-SLRE Dome Sensor | AXIS F7225-RE Pinhole Sensor |
|---|---|---|---|---|---|---|
| Outdoor Ready | ✔ | – | ✔ | ✔ | ✔ | ✔ |
| Horizontal field of view | 108 | 107.4 - 56.3 | 185 | 110 | 110 | 92 |
Accessories
| Optional accessories | |
| AXIS TU6002 | Right-angle SMA Adaptor |
| AXIS TU6004-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS TU6005 | 2nd generation Plenum Cable |
| AXIS TU6007-E | 2nd generation Indoor and outdoor rated cable for AXIS F Series modular cameras |
| AXIS F8202 | Straight Mounting Bracket |
| AXIS F92A01 | Height Strip Housing |
|
Lens M12 2.1 mm F1.8 IR |
Optional lens for a wider field of view for advanced Axis onboard cameras |
|
Lens M12 3.6 mm F1.8 IR |
Optional lens for a narrower field of view for advanced Axis onboard cameras |
|
Lens M12 6 mm F1.9 IR |
Optional lens for a narrower field of view for advanced Axis onboard cameras |
|
Lens M12 8 mm F1.8 IR |
Optional lens for a narrower field of view for advanced Axis onboard cameras |
Specifications
| Specifications | AXIS F4105-LRE |
| Min illumination/ light sensitivity (Color) | 0.3 lux |
| Min illumination/ light sensitivity (B/W) | - |
| Max video resolution | 1920x1200 |
| Max frames per second | 50/60 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
| Focal length | 2.8 mm |
| Varifocal lens | No |
| Aperture | 2.0 |
| Horizontal field of view | 110 ° |
| Vertical field of view | 61 ° |
| Lens mount | M12 |
| Replaceable lens | Yes |
| Audio Support | – |
Properties
| Properties | AXIS F4105-LRE |
| Description | AXIS F4105-LRE is a discreet mini dome sensor with IR. Only compatible with 2nd generation main units and cables. Ideal solution for retail stores or offices. |
| Product Family | Axis Cameras |
| Product Type | Sensor |
| Image sensor | 1/2.8” (effective) progressive scan RGB CMOS |
| Wide dynamic range | Forensic Capture |
| PoE Class | – |
| Connectors | SMA connectors |
| Zipstream | – |
| H.264 | – |
| H.265 | – |
| Motion JPEG | – |
| Built-in IR | Yes |
| Local storage (memory card slot) | – |
| Outdoor Ready | Yes |
| Vandal rating | IK10 |
| IP rating | IP66, IP67, IP6K9K |
| Dimensions | Depth: 83 mm (3.3 in) ø 112 mm (4.4 in) 55 mm (2.2 in) Cable length: 116 mm (4.55 in) |
| Weight | 240 g (0.53 lb) |
| Operating Temperature | With IR illumination off -30 °C to 55 °C (-22 °F to 131 °F) With IR illumination on -30 °C to 45 °C (-22 °F to 113 °F) |
| Warranty | 5-year warranty |
| Sustainability | PVC and BFR/CFR free |
