[shortdesc]

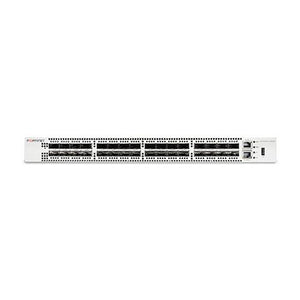

Layer 2/3 FortiGate switch controller compatible switch with 32 x 100 GE QSFP28, Dual AC Power Supplies

[/shortdesc]

[properties]

Properties	FS-3032E
Description	Layer 2/3 FortiGate switch controller compatible switch with 32x 100 GE QSFP28, Dual AC power supplies.
Product Family	FortiSwitch
Product Type	Switch
Total Network Interfaces	32x 40 GE / 100 GE QSFP+ / QSFP28 ports
Dedicated Management 10/100/1000 Ports	1
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack Mount
Power over Ethernet (PoE) Ports	-
PoE Power Budget (single/dual PSU)	-
Mean Time Between Failures	> 10 years

[/properties]

[specifications]

Switching Capacity (Duplex)	4000 Gbps
Packets Per Second (Duplex)	5952 Mpps
Mac Address Storage	40 K
Network Latency	< 1 us
VLANs Supported	4 K
IPv4/IPv6 Routing	Yes
Link Aggregation Group Size	Up to 48
Total Link Aggregation Groups	48
Queues/Port	8
Packet Buffers	16 MB
DRAM	8 GB
NAND	128 MB
Dimensions in.	1.69 x 18.11 x 17.26
Power Required	100240V AC, 50-60 Hz
Power Supply	Dual hot swappable AC
Power Consumption (Average / Maximum)	-/ 463.8 W
Heat Dissipation	1582.5 BTU/h
Operating Temperature	32°104°F (0°40°C)
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

[/specifications]

The FortiSwitch family delivers outstanding security, performance, and manageability. FortiSwitch is the right choice for threat conscious businesses of all sizes. Single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
