Cisco Catalyst Switches
Aruba 2930F Series Switches
Aruba 2930F Layer 3 Series Switches are designed to best serve small and medium-sized businesses and offices. Their limited lifetime warranty secures you against extra costs. Easy deployment becomes especially useful since there isn't usually an engineer dedicated to networking systems in SMBs. The series includes the following features:
- Advanced network security with Aruba ClearPass Policy Manager
- Easy deployment and usage with Aruba AirWave and zero-touch provisioning
- Ability to integrate wired and wireless networks
- Efficient power usage with increased adaptability
-
Save $2,359.00HPE ARUBA 2930F 48G 4SFP SWITCH (JL260A)
HPE ARUBA 2930F 48G 4SFP SWITCH (JL260A)
$1,850.00$4,209.00- Switch
- L3
- managed
- 48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
- rack-mountable
[specifications]
Type Aruba 2930F 48G 4SFP Switch I/O ports and slots 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only
4 SFPAdditional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port Memory and processor Dual-Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 GB 4.5MB Ingress/7.875MB Egress, 4 GB eMMCManagement Aruba AirWave Network Management; IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)1000 Mb Latency < 3.8 s (64-byte packets) 10 Gbps Latency N/A Throughput up to 77.4 Mp/s Switching capacity 104 Gb/s Routing table size 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size 32768 entries Dimensions 4.39 x 44.25 x 24.63 cm ( 1.73 x 17.42 x 9.7 in)
1U heightWeight 3.10 kg ( 6.83 lb) 80plus.org Certification N/A Description N/A Maximum heat dissipation 167.74 kJ/hr (159 BTU/hr) Voltage 100 - 127 / 200 - 240 V ac, rated Current 0.9/0.6 A Maximum power rating 46.6 W Idle power 32.7 W Frequency 50/60 Hz PoE power N/A Operating temperature 0C to 45C (32F to 113F)
up to 5000 Feet
- 0C to 40C (32F to 104F) up to 10000 FeetOperating relative humidity 15% to 95% @ 40C ( 104F)
noncondensingNonoperating/Storage temperature -40C to 70C (-40F to 158F)
up to 15000 FeetNonoperating/Storage temperature 15% to 95% @65C ( 149F)
noncondensingAcoustic Power: 54.1 dB, Pressure: 40.2 dB Airflow direction Side-to-side Safety UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
IEC 60950-1:2005 +A1:2009 +A2:2013
CSA 22.2 No. 60950-1-07 2nd
EN 60825-1:2007 / IEC 60825-1:2007 Class 1Emissions EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A
VCCI Class A; ICES-003 Class A
CNS 13438Immunity Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3[/specifications]The Aruba 2930F Switch Series is designed for customers creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
-
Save $3,180.00HPE ARUBA 2930F 24G 4SFP+ SWITCH (JL253A)
HPE ARUBA 2930F 24G 4SFP+ SWITCH (JL253A)
$1,799.00$4,979.00- Switch
- L3
- managed
- 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- rack-mountable
[specifications]
Type Aruba 2930F 24G 4SFP+ Switch I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports; PHY-lessAdditional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port Memory and processor Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMCManagement Aruba AirWave Network Management; IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)Features Aruba 2930F 24G 4SFP+ Switch (JL253A) 1000 Mb Latency < 3.8 s (64-byte packets) 10 Gbps Latency < 1.6 s (64-byte packets) Throughput up to 95.2 Mp/s Switching capacity 128 Gb/s Routing table size 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size 32768 entries Dimensions 4.39 x 44.25 x 20.02 cm ( 1.73 x 17.42 x 7.88 in)
1U heightWeight 2.41 kg( 5.31 lb) 80plus.org Certification N/A Description N/A Maximum heat dissipation 105.5 kJ/hr(100 BTU/hr) Voltage 100 - 127 / 200 - 240 V ac, rated Current 0.6/0.4 A Maximum power rating 29.3 W Idle power 19.5 W Frequency 50/60 Hz PoE power N/A Operating temperature 0C to 45C (32F to 113F)
up to 5000 Feet
- 0C to 40C (32F to 104F) up to 10000 FeetOperating relative humidity 15% to 95% @ 40C ( 104F)
noncondensingNonoperating/Storage temperature -40C to 70C (-40F to 158F)
up to 15000 FeetNonoperating/Storage temperature 15% to 95% @65C ( 149F)
noncondensingAcoustic Power: 49.7 dB, Pressure: 37.1 dB Airflow direction Side-to-side Safety UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
IEC 60950-1:2005 +A1:2009 +A2:2013
CSA 22.2 No. 60950-1-07 2nd
EN 60825-1:2007 / IEC 60825-1:2007 Class 1Emissions EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A
VCCI Class A; ICES-003 Class A
CNS 13438Immunity Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3[/specifications]The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
-
Save $4,280.00HPE ARUBA 2930F 24G POE+ 4SFP+ SWITCH (JL255A)
HPE ARUBA 2930F 24G POE+ 4SFP+ SWITCH (JL255A)
$1,699.00$5,979.00- Switch
- L3
- managed
- 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- rack-mountable
- PoE+ (370 W)
[specifications]
Type Aruba 2930F 24G PoE+ 4SFP+ Switch I/O ports and slots 24 RJ-45 autosensing 10/100/1000 PoE+ ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only
4 SFP+ 1/10GbE ports; PHY-lessAdditional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port Memory and processor Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 GB 4.5MB Ingress/7.875MB Egress, 4 GB eMMCManagement Aruba AirWave Network Management; IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)1000 Mb Latency < 3.8 s (64-byte packets) 10 Gbps Latency < 1.6 s (64-byte packets) Throughput up to 95.2 Mp/s Switching capacity 128 Gb/s Routing table size 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size 32768 entries Dimensions 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U heightWeight 3.9 kg ( 8.6 lb) 80plus.org Certification Silver Description N/A Maximum heat dissipation 1601.49 kJ/hr (1518 BTU/hr) Voltage 100 - 127 / 200 - 240 V ac, rated Current 4.9/2.4 A Maximum power rating 445 W Idle power 36.8 W Frequency 50/60 Hz PoE power 370 W PoE+ Operating temperature 0C to 45C (32F to 113F)
up to 5000 Feet
- 0C to 40C (32F to 104F) up to 10000 FeetOperating relative humidity 15% to 95% @ 40C ( 104F)
noncondensingNonoperating/Storage temperature -40C to 70C (-40F to 158F)
up to 15000 FeetNonoperating/Storage temperature 15% to 95% @65C ( 149F)
noncondensingAcoustic Power: 54.1 dB, Pressure: 40.2 dB Airflow direction Side-to-side Safety UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
IEC 60950-1:2005 +A1:2009 +A2:2013
CSA 22.2 No. 60950-1-07 2nd
EN 60825-1:2007 / IEC 60825-1:2007 Class 1Emissions EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A
VCCI Class A; ICES-003 Class A
CNS 13438Immunity Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3[/specifications]The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
-
Save $4,824.00HPE ARUBA 2930F 48G 4SFP+ SWITCH (JL254A)
HPE ARUBA 2930F 48G 4SFP+ SWITCH (JL254A)
$2,475.00$7,299.00- Switch
- L3
- managed
- 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- rack-mountable
[specifications]
Type Aruba 2930F 48G 4SFP+ Switch I/O ports and slots 48 RJ-45 autosensing 10/100/1000 ports
(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only
4 SFP+ 1/10GbE ports; PHY-lessAdditional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port Memory and processor Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 GB 4.5 MB Ingress/7.875MB Egress, 4 GB eMMCManagement Aruba AirWave Network Management; IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)1000 Mb Latency < 3.8 s (64-byte packets) 10 Gbps Latency < 1.6 s (64-byte packets) Throughput up to 112.0 Mp/s Switching capacity 176 Gb/s Routing table size 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size 32768 entries Dimensions 4.39 x 44.25 x 24.63 cm ( 1.73 x 17.42 x 9.7 in)
1U heightWeight 3.10 kg ( 6.83 lb) 80plus.org Certification N/A Description N/A Maximum heat dissipation 167.74 kJ/hr ( 159 BTU/hr) Voltage 100 - 127 / 200 - 240 V ac, rated Current 0.9/0.6 A Maximum power rating 46.6 W Idle power 32.7 W Frequency 50/60 Hz PoE power N/A Operating temperature 0C to 45C (32F to 113F)
up to 5000 Feet
- 0C to 40C (32F to 104F) up to 10000 FeetOperating relative humidity 15% to 95% @ 40C ( 104F)
noncondensingNonoperating/Storage temperature -40C to 70C (-40F to 158F)
up to 15000 FeetNonoperating/Storage temperature 15% to 95% @65C ( 149F)
noncondensingAcoustic Power: 49.7 dB, Pressure: 37.1 dB Airflow direction Side-to-side Safety UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
IEC 60950-1:2005 +A1:2009 +A2:2013
CSA 22.2 No. 60950-1-07 2nd
EN 60825-1:2007 / IEC 60825-1:2007 Class 1Emissions EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A
VCCI Class A; ICES-003 Class A
CNS 13438Immunity RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3
[/specifications]The Aruba 2930F Switch Series is designed for customers creating digital workplaces optimized for mobile users. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for SDN, Access OSPF, 10GbE uplinks, robust QoS, static and RIP routing and requires no software licensing.
-

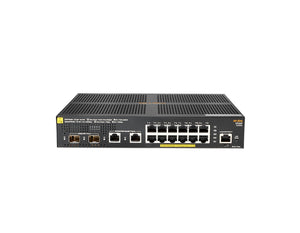

Save $1,484.00HPE ARUBA 2930F 8G POE+ 2SFP+ SWITCH (JL258A)
HPE ARUBA 2930F 8G POE+ 2SFP+ SWITCH (JL258A)
$975.00$2,459.00- Switch
- L3
- managed
- 8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- rack-mountable
- PoE+ (125 W)
[specifications]
Type Aruba 2930F 8G PoE+ 2SFP+ Switch I/O ports and slots 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full onlyAdditional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port Memory and processor Dual-Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMCManagement Aruba AirWave Network Management; IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
1000 Mb Latency < 3.8 s (64-byte packets) 10 Gbps Latency < 1.6 s (64-byte packets) Throughput up to 41.7 Mp/s Switching capacity 56 Gb/s Routing table size 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size 32768 entries Dimensions 4.39 x 25.4 x 25.4 cm ( 1.73 x 10 x 10 in)
1U heightWeight 2.0 kg ( 4.41 lb) 80plus.org Certification N/A Description Power supply meets DoE VI certification Maximum heat dissipation 558.09 kJ/hr ( 529 BTU/hr) Voltage 90 - 264 V ac, rated Current 1.5/0.8 A Maximum power rating 155 W Idle power N/A Frequency 50/60 Hz PoE power 125 W PoE+ Operating temperature 0C to 45C (32F to 113F)
up to 5000 Feet
- 0C to 40C (32F to 104F) up to 10000 FeetOperating relative humidity 15% to 95% @ 40C ( 104F)
noncondensingNonoperating/Storage temperature -40C to 70C (-40F to 158F)
up to 15000 FeetNonoperating/Storage temperature 15% to 95% @65C ( 149F)
noncondensingAcoustic Power: 0 dB, Pressure: 0 dB Fanless Airflow direction Side-to-side Safety UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
IEC 60950-1:2005 +A1:2009 +A2:2013
CSA 22.2 No. 60950-1-07 2nd
EN 60825-1:2007 / IEC 60825-1:2007 Class 1Emissions EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A
VCCI Class A; ICES-003 Class A
CNS 13438Immunity Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3[/specifications]The Aruba 2930F Switch Series is designed for customers creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
-
Save $1,189.00HPE ARUBA 2930F 24G POE+ 4SFP SWITCH (JL261A)
HPE ARUBA 2930F 24G POE+ 4SFP SWITCH (JL261A)
$2,010.00$3,199.00- Switch
- L3
- managed
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- rack-mountable
- PoE+ (370 W)
[specifications]
Type Aruba 2930F 24G PoE+ 4SFP Switch I/O ports and slots 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port Memory and processor Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMCManagement Aruba AirWave Network Management; IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)1000 Mb Latency < 3.8 s (64-byte packets) 10 Gbps Latency N/A Throughput up to 41.7 Mp/s Switching capacity 56 Gb/s Routing table size 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size 32768 entries Dimensions 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U heightWeight 3.9 kg ( 8.6 lb) 80plus.org Certification Silver Description N/A Maximum heat dissipation 1601.49 kJ/hr (1518 BTU/hr) Voltage 100 - 127 / 200 - 240 V ac, rated Current 4.9/2.4 A Maximum power rating 445 W Idle power 36.8 W Frequency Frequency 50/60 Hz PoE power 370 W PoE+ Operating temperature 0_C to 45_C (32_F to 113_F)
up to 5000 Feet
- 0C to 40C (32F to 104F) up to 10000 FeetOperating relative humidity 15% to 95% @ 40_C ( 104_F)
noncondensingNonoperating/Storage temperature -40_C to 70_C (-40_F to 158_F)
up to 15000 FeetNonoperating/Storage temperature 15% to 95% @65_C ( 149_F)
noncondensingAcoustic Power: 54.1 dB, Pressure: 40.6 dB Airflow direction Side-to-side Safety UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
IEC 60950-1:2005 +A1:2009 +A2:2013
CSA 22.2 No. 60950-1-07 2nd
EN 60825-1:2007 / IEC 60825-1:2007 Class 1Emissions EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A
VCCI Class A; ICES-003 Class A
CNS 13438Immunity Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic fieldIEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3HPE Aruba 2930F 24G PoE+ 4SFP Switch (JL261A) Overview
The Aruba 2930F Switch Series is designed for customers creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
-
Save $3,059.00HPE ARUBA 2930F 48G POE+ 4SFP SWITCH (JL262A)
HPE ARUBA 2930F 48G POE+ 4SFP SWITCH (JL262A)
$2,550.00$5,609.00- Switch
- L3
- managed
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- rack-mountable
- PoE+ (370 W)
[specifications]
Type Aruba 2930F 48G PoE+ 4SFP Switch I/O ports and slots 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port Memory and processor Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMCManagement Aruba AirWave Network Management; IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)1000 Mb Latency < 3.8 s (64-byte packets) 10 Gbps Latency N/A Throughput up to 77.4 Mp/s Switching capacity 104 Gb/s Routing table size 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size 32768 entries Dimensions 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U heightWeight 4.46 kg ( 9.83 lb) 80plus.org Certification Silver Description N/A Maximum heat dissipation 1652.13 kJ/hr (1566 BTU/hr ) Voltage 100 - 127 / 200 - 240 V ac, rated Current 5.1/2.5 A Maximum power rating 459 W Idle power 48.6 W Frequency 50/60 Hz PoE power 370 W PoE+ Operating temperature 0C to 45C (32F to 113F)
up to 5000 Feet
- 0C to 40C (32F to 104F) up to 10000 FeetOperating relative humidity 15% to 95% @ 40C ( 104F)
noncondensingNonoperating/Storage temperature -40C to 70C (-40F to 158F)
up to 15000 FeetNonoperating/Storage temperature 15% to 95% @65C ( 149F)
noncondensingAcoustic Power: 55.7 dB, Pressure: 41.7 dB Airflow direction Side-to-side Safety UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
IEC 60950-1:2005 +A1:2009 +A2:2013
CSA 22.2 No. 60950-1-07 2nd
EN 60825-1:2007 / IEC 60825-1:2007 Class 1Emissions EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A
VCCI Class A; ICES-003 Class A
CNS 13438Immunity Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3[/specifications]The Aruba 2930F Switch Series is designed for customers creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
-

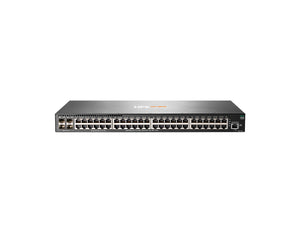

Save $3,249.00HPE ARUBA 2930F 48G POE+ 4SFP+ SWITCH (JL256A)
HPE ARUBA 2930F 48G POE+ 4SFP+ SWITCH (JL256A)
$3,750.00$6,999.00- Switch
- L3
- managed
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- rack-mountable
- PoE+ (370 W)
[specifications]
Type Aruba 2930F 48G PoE+ 4SFP+ Switch I/O ports and slots 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Duplex: 10BASE-T/100BASETX: half or full 1000BASE-T: full only
4 SFP+ 1/10GbE ports; PHY-lessAdditional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port Memory and processor Dual Core ARM Coretex @ 1016 MHz, 1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress, 4 GB eMMCManagement Aruba AirWave Network Management; IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)1000 Mb Latency < 3.8 s (64-byte packets) 10 Gbps Latency < 1.6 s (64-byte packets) Throughput up to 112.0 Mp/s Switching capacity 176 Gb/s Routing table size 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size 32768 entries Dimensions 4.39 x 44.25 x 30.42 cm ( 1.73 x 17.42 x 11.98 in)
1U heightWeight 4.46 kg ( 9.83 lb) 80plus.org Certification Silver Description N/A Maximum heat dissipation 1652.13 kJ/hr (1566 BTU/hr) Voltage 100 - 127 / 200 - 240 V ac, rated Current 5.1/2.5 A Maximum power rating 459 W Idle power 48.6 W Frequency 50/60 Hz PoE power 370 W PoE+ Operating temperature 0C to 45C (32F to 113F)
up to 5000 Feet
- 0C to 40C (32F to 104F) up to 10000 FeetOperating relative humidity 15% to 95% @ 40C ( 104F)
noncondensingNonoperating/Storage temperature -40C to 70C (-40F to 158F)
up to 15000 FeetNonoperating/Storage temperature 15% to 95% @65C ( 149F)
noncondensingAcoustic Power: 55.7 dB, Pressure: 41.7 dB Airflow direction Side-to-side Safety UL 60950-1, 2nd Edition
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
IEC 60950-1:2005 +A1:2009 +A2:2013
CSA 22.2 No. 60950-1-07 2nd
EN 60825-1:2007 / IEC 60825-1:2007 Class 1Emissions EN 55022:2010/CISPR 22 Class A
FCC CFR 47 Part 15 Class A
VCCI Class A; ICES-003 Class A
CNS 13438Immunity Generic:EN 55024:2010/CISPR 24
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsIEC/EN 61000-3-2
FlickerIEC/EN 61000-3-3
[/specifications]The Aruba 2930F Switch Series is designed for customers creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
