CISCO CBS110-24PP SWITCH
| Model: | CBS110-24PP |
| Detail: |
|
| List Price: | |
| Price: | $330.00 |
| You Save: | $31.54 (9% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

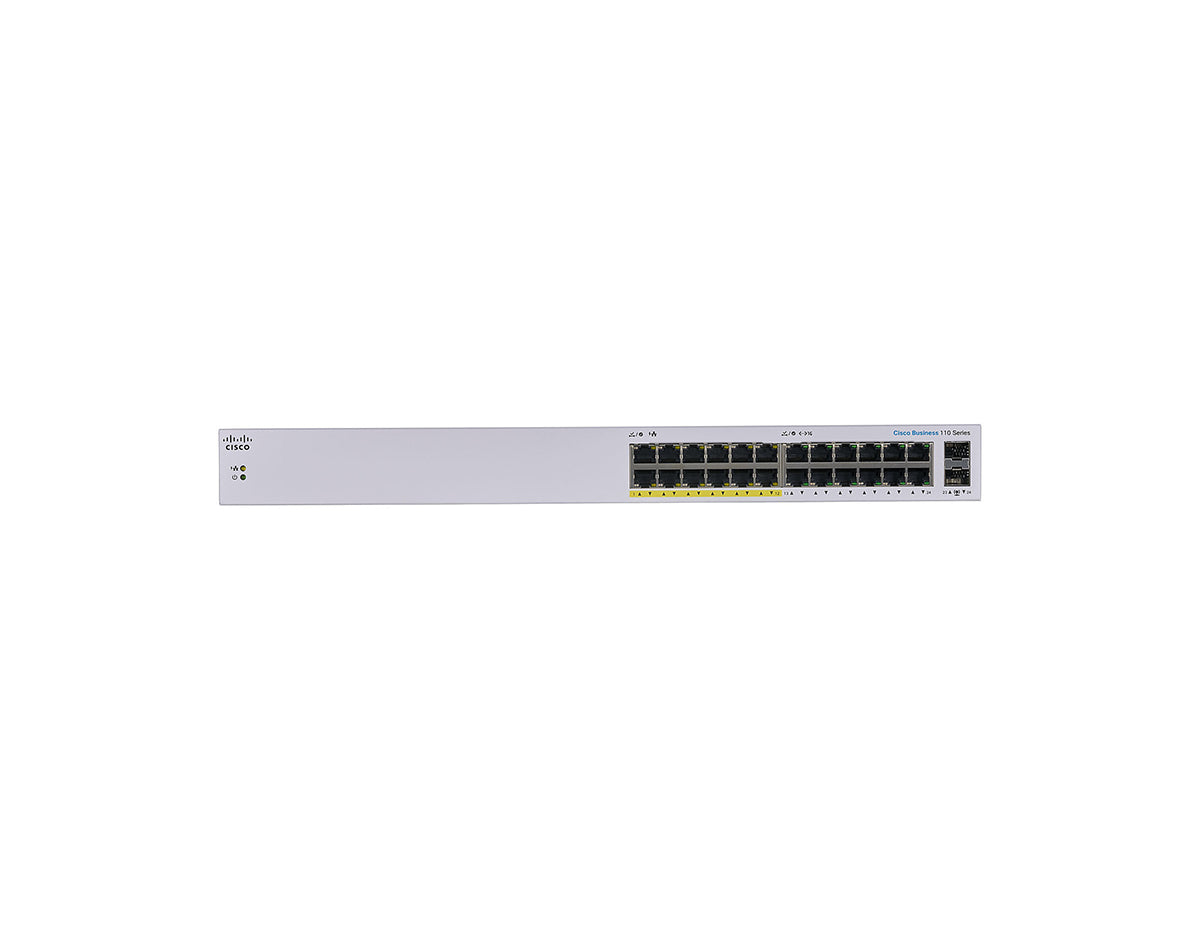

Cisco CBS110-24PP Switch
The Cisco CBS110-24PP is a 24-port Gigabit Ethernet switch that includes Power over Ethernet (PoE) capabilities, designed to provide fast and reliable networking for small to medium-sized businesses. With 12 PoE ports and a total power budget of 100W, this switch simplifies the deployment of IP phones, cameras, and other network devices without the need for additional power outlets. The fanless design ensures silent operation, making it an excellent choice for office environments.
Key Features:
- 24 x Gigabit Ethernet Ports: Provides high-speed connections for various devices, including computers, printers, and IP phones.
- 12 x PoE Ports with 100W Budget: Powers IP devices such as cameras and phones directly over Ethernet.
- Energy-Efficient Design: Complies with IEEE 802.3az standards, reducing power consumption when network traffic is low.
- Fanless Operation: Silent performance ideal for noise-sensitive environments such as offices.
- Plug-and-Play: No configuration required for immediate deployment.
Technical Overview:
- Recommended for: Small businesses, retail environments, and branch offices.
- Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet ports, 12 PoE-enabled.
- PoE Budget: 100W across 12 ports.
- Switching Capacity: 48 Gbps.
- Forwarding Rate: 35.7 Mpps.
- Energy Efficiency: Meets IEEE 802.3az standards for power-saving operation.
You can check the related tab for the CBS110-24PP datasheet.
Accessories
| Hardware | |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE. |
| Cabling type | Category 5e or better |
| Mounting options | Desktop, wall-mount or rack mount |
| Physical security lock | Kensington lock slot |
| Accessories | There is no additional accessories other than the power supply and the mounting kit which are included with the device package . |
| Supported SFP modules | |
| MGBSX1 | Multimode fiber |
| MGBLX1 | Single-mode fiber |
MGBLH1 |
Single-mode fiber |
| MGBT1 | UTP cat 5e |
| Package contents | |
| Cisco Business 110 Series switch | |
| Power cord or adapter | |
| Quick start guide | |
| Mounting kit | |
| Minimum requirements | |
| Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet | |
| Cat5e or better Ethernet cable | |
| Network interface card for each computer | |
Specifications
| Specifications | CBS110-24PP |
| Capacity in millions of packets | 35.7 mpps |
| Switching capacity | 48 Gbps |
| Flash Memory | 8 MB |
| CPU | 400 MHz ARM |
| CPU Memory | 64 MB |
| Packet Buffer | 2 Mbit |
| MAC addresses | 8K |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Operating Temperature |
32° to 104°F (0° to 40°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models |
| Warranty | Limited lifetime |
Properties
| Properties | CBS110-24PP |
| Description | 24 10/100/1000 ports (12 support PoE with 100W power budget) 2 Gigabit SFP (combo with 2 10/100/1000 ports) |
| Product Family | CBS 110 Series |
| Product Type | Small Business Switch |
| Number of Ports | 24 |
| RJ-45 ports | 24 Gigabit Ethernet |
| Downlinks total 10/100/1000 ports | 24 |
| Power dedicated to PoE | 100W |
| Number of ports that support PoE | 12 |
| Power | 100 to 240V, 50 to 60 Hz, internal, universal |
| Fans | Fanless |
| Unit dimensions in. (W x D x H) | 17.32 x 7.97 x 1.73 |
| Rack-mountable | Yes |
