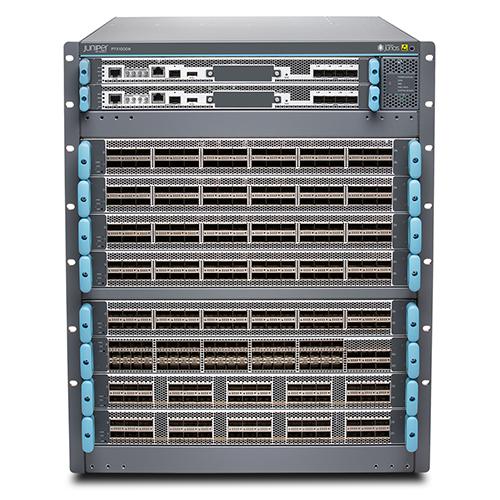

Juniper PTX10008-BASE Chassis



The Juniper Networks PTX10008 Packet Transport Router enables cloud and data center operators to smoothly transition from 10-Gigabit and 40-Gigabit Ethernet networks to 100-Gigabit and 400-Gigabit Ethernet high-performance networks. This flexible, 13 rack unit (13-U) modular chassis has eight line card slots that can support a maximum of 288 400-Gigabit Ethernet ports that can also be configured as 576 200-Gigabit Ethernet ports, 1152 100-Gigabit Ethernet ports, 288 50-Gigabit Ethernet ports, 288 40-Gigabit Ethernet ports, 288 25-Gigabit Ethernet ports, or 1152 10-Gigabit Ethernet ports.

Properties	Juniper PTX10008-BASE
Description	PTX10008 8-slot chassis [JNP10008], half duplex. Includes 1 RE, 3 power supplies, 2 fan trays, 2 fan tray controllers, and 5 switch fabric cards.
Product Family	PTX10000 Series
Product Type	Base Unit
Modular Chassis Options
3T (30 x 100GbE; 144 x 10GbE)	24T
4.8T (4 x 400GbE; 48 x 100GbE)	38.4T
14.4T (36 x 400GbE; 144 x 100GbE)	115.2T
Height	8 slots/13 RU
Interfaces
Max. 10GbE	1152
Max. 25GbE	1152
Max. 40GbE	288
Max. 100GbE	1152
Max. 400GbE	288
Shared Hardware Components
Switch Fabrics	SF (3 Tbps/slot, Express2) SF3 (14.4Tbps/slot, Express4)
Routing Engines	JNP10K-RE0: The first-generation RE0 RE features a quad-core 2.5 GHz Intel processor with 32 GB memory and 2x50 GB solid-state drive (SSD) storage. JNP10K-RE1: The second-generation RE1 RE features a 10-core 2.2 GHz Intel processor with memory options of 64 GB or 128 GB and 2x200 GB solid-state drive (SSD) storage.
Express-based Line Cards
PTX10K-LC1201-36CD (JNP10K-LC1201)	Bandwidth: 14.4 Tbps Silicon: Express4 100GbE Ports: 144 400GbE Ports: 36 QSFP56-DD/ QSFP56/QSFP28-DD/QSFP28/QSFP+
PTX10K-LC1202-36MR (JNP10K-LC1202)	Bandwidth: 4.8 Tbps Silicon: Express4 100GbE Ports: 32 400GbE Ports: 34 QSFP56-DD and QSFP28
PTX10K-LC1101 (JNP10K-LC1101)	Bandwidth: 3 Tbps Silicon: Express2 100GbE Ports: 30 QSFP28/QSFP+
PTX10K-LC1102 (JNP10K-LC1102)	Bandwidth: 1.4 Tbps Silicon: Express2 100GbE Ports: 12 QSFP28/QSFP+
PTX10K-LC1104 (JNP10K-LC1104)	Bandwidth: 1.2 Tbps Silicon: Express2 100GbE Ports: 6 DWDM
PTX10K-LC1105 (JNP10K-LC1105)	Bandwidth: 3 Tbps Silicon: Express2 100GbE Ports: 30 QSFP28/QSFP+
Dimension (WxHxD)	Spare: 17.4 x 22.55 x 32 in.(44.2 x 57.76 x 81.28 cm); 39.37 in. (100 cm) depth with EMI door AC configuration: 17.4 x 22.55 x 35 in.(44.2 x 57.4 x 88.9 cm); 42.4 in. (107.7 cm) with EMI door DC configuration: 17.4 x 22.55 x 35 in.(44.2 x 57.4 x 88.9 cm); 42.4 in. (107.7 cm) with EMI door
Weight	Spare Chassis: 145.2 lb (65.86 kg) AC configuration: 273 lb (123.83 kg) DC configuration: 270 lb (122.47 kg) Maximum: 493 lb (223.62 kg)
Mounting	Front rack mount
Power system rating	200-240 VAC / 50-60 Hz -48 VDC @ 60 A
Typical power consumption	17.3 kW with Express4 line cards, fully loaded
Power supply slots	6

Specifications	PTX10008-BASE
System capacity	115.2 Tbps
Slot capacity	4.8 Tbps – 14.4 Tbps
Silicon	Express4
Operating temperature	32° to 115° F (0° to 46° C) at sea level
Operating altitude	No performance degradation to 6562 feet (2000 meters)
Humidity	Relative humidity operating: 5 to 90% (noncondensing)

Routing Engines
JNP10K-RE0-BB	PTX10000/JNP10000 RE X4, base bundle
JNP10K-RE0-R	PTX10000/JNP10000 RE X4, redundant
JNP10K-RE0	PTX10000/JNP10000 RE X4
JNP10K-RE1-BB	PTX10000/JNP10000 RE X8, base bundle
JNP10K-RE1-R	PTX10000/JNP10000 RE X8, redundant
JNP10K-RE1	PTX10000/JNP10000 RE X8
JNP10K-RE1-E-BB	PTX10000/JNP10000 RE X8 with Junos Evolved, base bundle
JNP10K-RE1-E-R	PTX10000/JNP10000 RE X8 with Junos Evolved, redundant
JNP10K-RE1-E	PTX10000/JNP10000 RE X8 with Junos Evolved
JNP10K-RE1-S128-BB	JNP10000 RE with SONiC, base bundle
JNP10K-RE1-S128	JNP10000 RE with SONiC
Switch Fabrics
JNP10008-SF3-BB	PTX10008/JNP10008 switch fabric card supporting up to 14.4 Tbps LC, base bundle
JNP10008-SF3-R	PTX10008/JNP10008 switch fabric card supporting up to 14.4 Tbps LC, redundant
JNP10008-SF3	PTX10008/JNP10008 switch fabric card supporting up to 14.4 Tbps LC
JNP10008-SF-BB	PTX10008/JNP10008 switch fabric card, base bundle
JNP10008-SF-R	PTX10008/JNP10008 switch fabric card, redundant
JNP10008-SF	PTX10008/JNP10008 switch fabric card
Express4 Line Cards
PTX10K-LC1201-36CD	36x400GbE/36x200GbE/36x100GbE/36x40GbE line card [JNP10K-LC1201]
PTX10K-LC1202-36MR	4x400GbE and 32x100GbE [JNP10K-LC1202]
S-PTX10K-144C-A1-3	SW, PTX10000 14.4T RTU Adv1 Lic, 3-year term, with SW support
S-PTX10K-144C-A2-3	SW, PTX10000 14.4T RTU Adv2 Lic, 3-year term, with SW support
S-PTX10K-144C-P1-3	SW, PTX10000 14.4T RTU Prem1 Lic, 3-year term, with SW support
S-PTX10K-144C-P2-3	SW, PTX10000 14.4T RTU Prem2 Lic, 3-year term, with SW support
S-PTX10K-144C-A1-5	SW, PTX10000 14.4T RTU Adv1 Lic, 5-year term, with SW support
S-PTX10K-144C-A2-5	SW, PTX10000 14.4T RTU Adv2 Lic, 5-year term, with SW support
S-PTX10K-144C-P1-5	SW, PTX10000 14.4T RTU Prem1 Lic, 5-year term, with SW support
S-PTX10K-144C-P2-5	SW, PTX10000 14.4T RTU Prem2 Lic, 5-year term, with SW support
S-PTX10K-144C-A1-P	SW, PTX10K, 14.4T, Adv1, without SW support, perpetual
S-PTX10K-144C-A2-P	SW, PTX10K, 14.4T, Adv2, without SW support, perpetual
S-PTX10K-144C-P1-P	SW, PTX10K, 14.4T, Pre1, without SW support, perpetual
S-PTX10K-144C-P2-P	SW, PTX10K, 14.4T, Pre2, without SW support, perpetual
S-PTX10K-48C-A1-3	SW, PTX10K, 4.8T, Advanced 1, with SW support, 3 year
S-PTX10K-48C-A2-3	SW, PTX10K, 4.8T, Advanced 2, with SW support, 3 year
S-PTX10K-48C-P1-3	SW, PTX10K, 4.8T, Premium 1, with SW support, 3 year
S-PTX10K-48C-P2-3	SW, PTX10K, 4.8T, Premium 2, with SW support, 3 year
S-PTX10K-48C-A1-5	SW, PTX10K, 4.8T, Advanced 1, with SW support, 5 year
S-PTX10K-48C-A2-5	SW, PTX10K, 4.8T, Advanced 2, with SW support, 5 year
S-PTX10K-48C-P1-5	SW, PTX10K, 4.8T, Premium 1, with SW support, 5 year
S-PTX10K-48C-P2-5	SW, PTX10K, 4.8T, Premium 2, with SW support, 5 year
S-PTX10K-48C-A1-P	SW, PTX10K, 4.8T, Adv1, without SW support, perpetual
S-PTX10K-48C-A2-P	SW, PTX10K, 4.8T, Adv2, without SW support, perpetual
S-PTX10K-48C-P1-P	SW, PTX10K, 4.8T, Pre1, without SW support, perpetual
S-PTX10K-48C-P2-P	SW, PTX10K, 4.8T, Pre2, without SW support, perpetual
Fan Tray and Controller
JNP10008-FAN-BB	PTX10008/JNP10008 fan, base bundle
JNP10008-FAN	PTX10008/JNP10008 fan
JNP10008FANCTRL-BB	PTX10008/JNP10008 fan tray controller, base bundle
JNP10008-FAN-CTRL	PTX10008/JNP10008 fan tray controller
JNP10008-FAN2-BB	JNP10008 fan, Gen2, base bundle
JNP10008-FAN2	JNP10008 fan, Gen2
JNP10008-FTC2-BB	JNP10008 fan tray controller, Gen2, base bundle
JNP10008-FTC2	JNP10008 fan tray controller, Gen2
Power Cables
CBL-PWR2-L6-30P	Power cord, JNP10000 AC2 L6-30P
CBL-PWR2-L6-30P-RA	Power cord, JNP10000 AC2 RA L6-30P
CBL-PWR2-330P6W	Power cord, JNP10000 AC2 IEC309-330P6W
CBL-PWR2-330P6W-RA	Power cord, JNP10000 AC2 RA IEC309-330P6W
CBL-PWR2-332P6W	Power cord, JNP10000 AC2 IEC309-332P6W
CBL-PWR2-332P6W-RA	Power cord, JNP10000 AC2 RA IEC309-332P6W
Power Modules
JNP10K-PWR-AC2-BB	JNP10000 5000 watts AC/HVDC power supply base bundle
JNP10K-PWR-AC2-R	JNP10000 5000 watts AC/HVDC power supply redundant
JNP10K-PWR-AC2	JNP10000 5000 watts AC/HVDC power supply
JNP10K-PWR-DC2-BB	JNP10000 5000 watts DC power supply base bundle
JNP10K-PWR-DC2-R	JNP10000 5000 watts DC power supply redundant
JNP10K-PWR-DC2	JNP10000 5000 watts DC power supply
JNP10K-PWR-AC-BB	PTX10000/JNP10000 2700 W AC power supply, base bundle
JNP10K-PWR-AC-R	PTX10000/JNP10000 2700 W AC power supply, redundant
JNP10K-PWR-AC	PTX10000/JNP10000 2700 W AC power supply
JNP10K-PWR-DC-BB	PTX10000/JNP10000 2500 W DC power supply, base bundle
JNP10K-PWR-DC-R	PTX10000/JNP10000 2500 W DC power supply,redundant
JNP10K-PWR-DC	PTX10000/JNP10000 2500 W DC power supply
Front Panels
JNP10008-FRPNL-BB	PTX10008/JNP10008 front panel, base bundle
JNP10008-FRNT-PNL	PTX10008/JNP10008 front panel
JNP10008-FRPNL1-BB	PTX10008/JNP10008 front panel with filter, base bundle
JNP10008-FRPNL1	PTX10008/JNP10008 front panel with filter
JNP10008-FLTR	PTX10008/JNP10008 replaceable filter
