| Specifications |

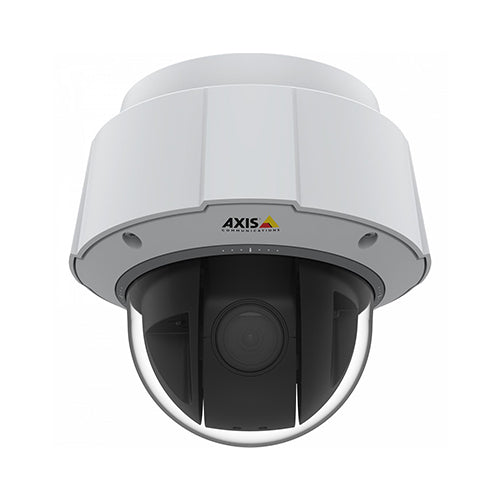

AXIS Q6075-E 60HZ PTZ Network Camera |
| Camera |
| Image sensor |
1/2.8” progressive scan CMOS |
| Lens |
4.25–170 mm, F1.6–4.95 |
| Horizontal field of view: 65.1°–2.00° (1080p) |
| Vertical field of view: 39.1°–1.18° (1080p) |
| Autofocus, auto-iris |
| Day and night |
Automatically removable infrared-cut filter |
| Minimum illumination |
Color: 0.15 lux at 50 IRE, F1.6 |
| B/W: 0.003 lux at 50 IRE, F1.6 |
| Shutter speed |
1/11000 s to 1/3 s with 60 Hz |
| Pan/Tilt/Zoom |
Pan: 360° endless, 0.05°–450°/s |
| Tilt: 220°, 0.05°–450°/s |
| Zoom: 40x optical, 12x digital, total 480x zoom |
| E-flip, 256 preset positions, tour recording (max 10, max |
| duration 16 minutes each), guard tour (max 100), control queue, |
| on-screen directional indicator, orientation aid PTZ, set new pan |
| 0°, adjustable zoom speed, focus recall |
| System on chip (SoC) |
| Model |
ARTPEC-7 |
| Memory |
1024 MB RAM, 512 MB Flash |
| Compute capabilities |
Machine learning processing unit (MLPU) |
| Video |
| Video compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| H.265 (MPEG-H Part 2/HEVC) Main Profile |
| Motion JPEG |
| Resolution |
HDTV 1080p 1920x1080 to 320x180 |
| Frame rate |
Up to 50/60 fps (50/60 Hz) in HDTV 1080p |
| Video streaming |
Multiple, individually configurable streams in H.264, H.265 and |
| Motion JPEG |
| Axis Zipstream technology in H.264 and H.265 |
| Controllable frame rate and bandwidth |
| VBR/ABR/MBR H.264/H.265 |
| Image settings |
Manual shutter time, compression, color, brightness, sharpness, |
| white balance, exposure control, exposure zones, fine tuning of |
| behavior at low light, rotation: 0°, 180°, text and image overlay, |
| polygon privacy masks, electronic image stabilization (EIS), freeze |
| on PTZ, automatic defog, backlight compensation, scene profiles |
| Wide Dynamic Range (WDR): Up to 120 dB depending on scene, |
| highlight compensation |
| Network |
| Security |
Password protection, IP address filtering, HTTPS* encryption, IEEE 802.1x (EAP-TLS)* network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, secure keystore (CC EAL4 certified), TPM (FIPS 140-2 certified) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| Supported protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS* , TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, CDP, MQTT, Syslog, Link-Local address (ZeroConf) |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young |
| System integration |
| Application Programming Interface |
Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com |
| One-Click Cloud Connection |
| ONVIF® Profile G, ONVIF® Profile S and ONVIF® Profile T, |
| specification at onvif.org |
| Event conditions |
Device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature |
| Edge storage: recording ongoing, storage disruption |
| I/O: manual trigger, virtual input |
| MQTT subscribe |
| PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position |
| reached, PTZ ready |
| Scheduled and recurring: scheduled event |
| Video: live stream open |
| Event actions |
Day/night mode, overlay text, video recording to edge storage, |
| pre- and post-alarm video buffering, send SNMP trap |
| PTZ: PTZ preset, start/stop guard tour |
| File upload via FTP, SFTP, HTTP, HTTPS network share and email |
| Notification via email, HTTP, HTTPS and TCP |
| MQTT publish |
| Data streaming |
Event data |
| Built-in installation aids |
Pixel counter, leveling guide |
| Analytics |
| AXIS Object Analytics |
Object classes: humans, vehicles |
| Trigger conditions: line crossing, object in area |
| Up to 10 scenarios |
| Metadata visualized with color-coded bounding boxes |
| Polygon include/exclude areas |
| Perspective configuration |
| ONVIF Motion Alarm event |
| Applications |
Included |
| AXIS Object Analytics, AXIS Video Motion Detection, |
| AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, |
| auto tracking 2, active gatekeeper |
| Basic analytics (not to be compared with third-party analytics): |
| object removed, enter/exit detector, object counter |
| Supported |
| Support for AXIS Camera Application Platform enabling |
| installation of third-party applications, see axis.com/acap |
| General |
| Casing |
IP66-, IP67-, NEMA 4X- and IK10-rated |
| Metal casing (aluminum), polycarbonate (PC) clear dome, |
| sun shield (ASA) |
| Sustainability |
PVC free |
| Power |
Axis High PoE 60 W SFP midspan: 100–240 V AC, max 66.1 W |
| Camera consumption: typical 14 W, max 51 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE, RJ45 Push-pull Connector |
| (IP66/IP67) included |
| Storage |
Support for SD/SDHC/SDXC card |
| Support for SD card encryption |
| Support for recording to network-attached storage (NAS) |
| For SD card and NAS recommendations see axis.com |
| Operating conditions |
With 30 W: -20 °C to 50 °C (-4 °F to 122 °F) |
| With 60 W: -50 °C to 50 °C (-58 °F to 122 °F) |
| Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C |
| (165 °F) |
| Arctic Temperature Control: Start-up as low as -40 °C (-40 °F) |
| Humidity 10–100% RH (condensing) |
| Storage conditions |
(-40 °C to 65 °C (-40 °F to 149 °F) |
| Humidity 5–95% RH (non-condensing) |
| Approvals |
EMC |
| EN 55032 Class A, EN 55035, EN 61000-3-2, |
| EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, |
| FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, |
| RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35 |
| EN 50121-4, IEC 62236-4 |
| Safety |
| IEC/EN/UL 60950-1, IS 13252 |
| IEC/EN/UL 60950-22, IEC/EN/UL 62368–1 |
| Environment |
| IEC/EN 60529 IP66/IP67, NEMA TS 2 (2.2.7-2.2.9), |
| IEC 62262 IK10, ISO 4892-2, EN 50121-4, IEC 62236-4, |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, |
| IEC 60068-2-27, IEC 60068-2-60, IEC 60068-2-78, |
| NEMA 250 Type 4X |
| Network |
| NIST SP500-267 |
| Midspan: EN 60950-1, GS, UL, cUL, CE, FCC, VCCI, CB, KCC, |
| UL-AR |
| Dimensions |
Ø232 x 271 mm (Ø9.13 x 10.7 in) |
| Weight |
3.75 kg (8.3 lb) |
| Included accessories |
Axis High PoE 60 W SFP midspan 1-port, RJ45 Push-pull |
| Connector (IP66), Sunshield |
| Installation Guide, Windows decoder 1-user license |
| Video management software |
AXIS Companion, AXIS Camera Station, Video management |
| software from Axis’ Application Development Partners available |
| on www.axis.com/vms |
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
