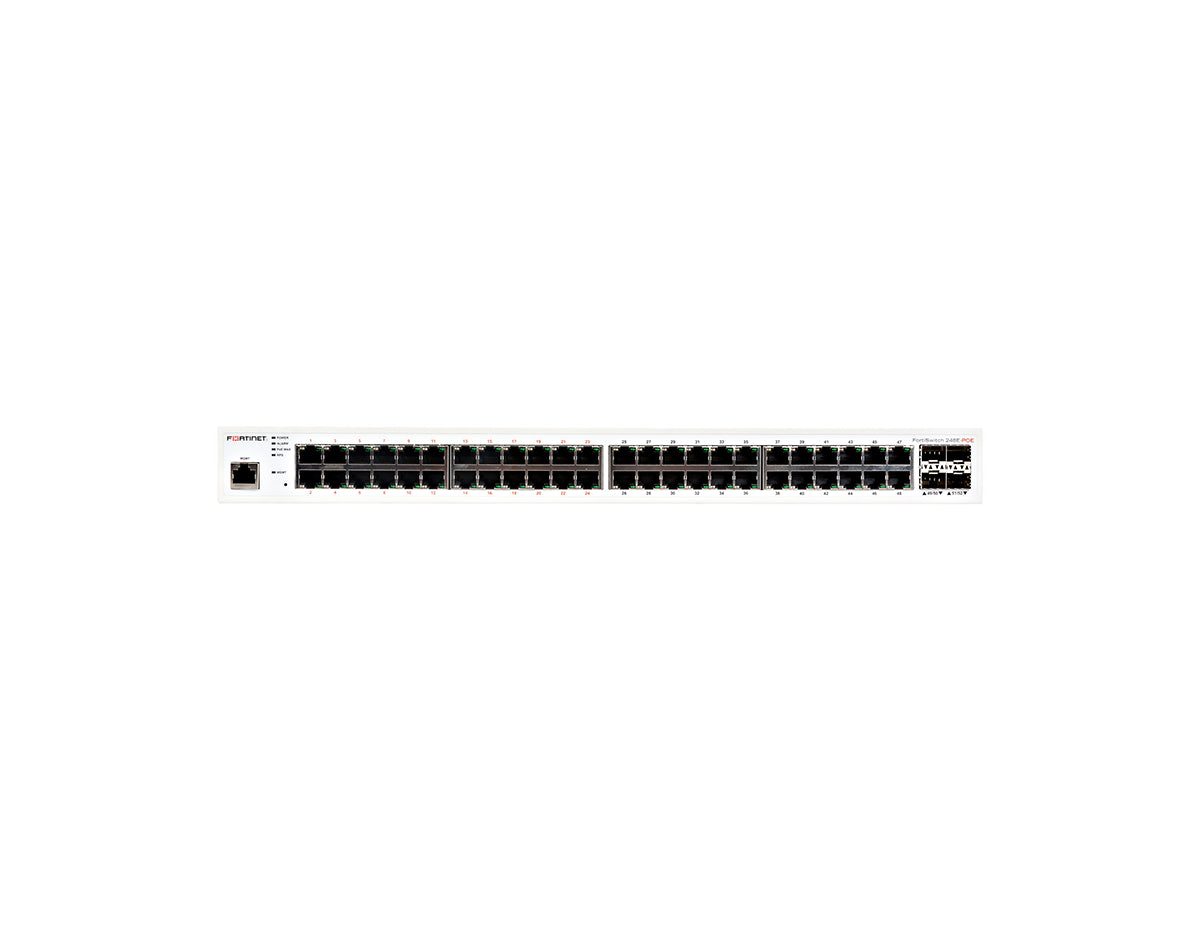

Fortinet FS-248E-FPOE Switch

Name: Fortinet FS-248E-FPOE Switch
Brand: Fortinet
SKU: FS-248E-FPOE-NEW
Price: 1225.0 USD
Availability: InStock

Part Number: FS-248E-FPOE

Technical Details

Layer 2/3 FortiGate switch controller compatible PoE+ switch with 48 x GE RJ45 ports, 4 x GE SFP, with automatic Max 740W POE output limit

$3,119.00

$1,225.00

61% OFF

You Save: $1,894.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

Fortinet FS-248E-FPOE Switch

The FS-248E-FPOE switch is equipped with PoE+ technology, streamlining network deployment and reducing cable congestion. With 52 ports, it is suitable for high-density business applications. This rack-mountable switch includes integrated monitoring features, such as port mirroring, to facilitate efficient and accurate troubleshooting. It adheres to IEEE standards such as LLPD and LACP, enhancing its versatility.

Quick Specs:

48x GE RJ45 ports
4x GE SFP uplink ports
Rack-mountable
48x PoE Ports

Please see the related tabs for the FS-248E-FPOE datasheet and compatible accessories.

Properties

Properties	FS-248E-POE
Description	Layer 2/3 FortiGate switch controller compatible PoE+ switch with 48 GE RJ45 + 4 SFP ports, 48 port PoE with maximum 740 W limit.
Product Family	FortiSwitch
Product Type	Switch
Total Network Interfaces	48x GE RJ45 ports and 4x GE SFP ports
Dedicated Management 10/100/1000 Ports	1
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack Mount
Power over Ethernet (PoE) Ports	48 (802.3af/802.3at)
PoE Power Budget (single/dual PSU)	740 W
Mean Time Between Failures	> 10 years

Specifications

Switching Capacity (Duplex)	104 Gbps
Packets Per Second (Duplex)	155 Mpps
MAC Address Storage	16 K
Network Latency	< 1µs
VLANs Supported	4 K
Link Aggregation Group Size	8
Total Link Aggregation Groups	Up to number of ports
Packet Buffers	1.5 MB
DRAM	512 MB DDR3
FLASH	128 MB
ACL	512
Spanning Tree Instances	16
Route Entries (IPv4/IPv6)	64/32
Multicast Route Entries	-
Host Entries	512
Dimensions in.	1.73 x 16.1 x 17.3
Power Required	100240V AC, 50-60 Hz
Power Supply	AC built in
Redundant Power	Optional FRPS-740
Power Consumption (Average / Maximum)	842 W / 855.02 W
Heat Dissipation	162.87865 BTU/h
Operating Temperature	32°122°F (0°50°C)
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Accessories

FRPS-740

Redundant AC power supply for up to 2 units: FS-224D-FPOE, FS-224E-POE, FS-248E-POE, FS-248E-FPOE.
