AXIS FA4090-E Thermal Sensor Unit - Network Devices Inc

AXIS FA4090-E Thermal Sensor Unit (01729-001)

Name: AXIS FA4090-E Thermal Sensor Unit (01729-001)
Brand: Axis
SKU: 01729-001-NEW
Price: 789.00 USD
Availability: InStock

Part Number: 01729-001

Technical Details

Outdoor-ready thermal sensor unit, Reliable thermal detection 24/7, Possibilities for multi-channel setup, Compatible with AXIS FA54 Main Unit, Flexible mounting options

$789.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

AXIS FA4090-E Thermal Sensor Unit (01729-001)

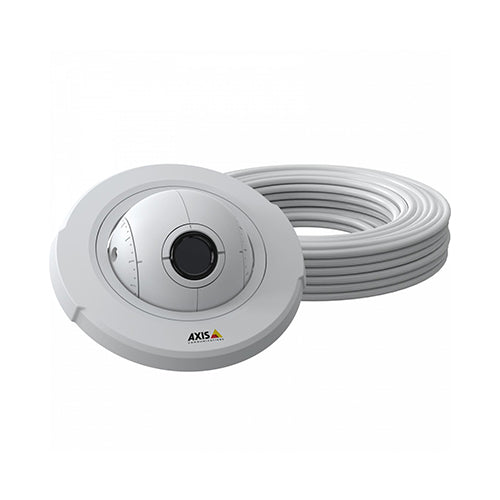

The AXIS FA4090-E Thermal sensor unit is a dome-shaped thermal sensor unit that comes pre-configured for immediate use. Its adaptable and inconspicuous design allows for versatile installation options, including placement behind surfaces for discreet monitoring, on walls, or recessed into structures. The FA4090-E serves as a surveillance sensor that prioritizes the protection of personal privacy. When paired with the AXIS FA54 Main Unit, it is compatible with the AXIS Camera Application Platform, facilitating the implementation of advanced analytics such as the AXIS Guard Suite. This unit provides a dependable solution for detection while minimizing the occurrence of false alarms.

Quick Specs:

Reliable thermal detection 24/7
Possibilities for multi-channel setup
Compatible with AXIS FA54 Main Unit
Flexible mounting option

Please see the related tabs for the 01729-001 datasheet and compatible accessories.

Feature	AXIS FA1080-E Thermal Sensor Unit	AXIS FA1105 Sensor Unit	AXIS FA1125 Sensor Unit	AXIS FA3105-L Eyeball Sensor Unit	AXIS FA4090-E Thermal Sensor Unit	AXIS FA4115 Dome Sensor Unit
Horizontal field of view	35.4 / 63	111	91	103	35.4	99-53
Built-in IR	-	-	-	✔	-	-
Thermal sensitivity (NETD)	<100 mK	-	-	-	<100 mK	-

Properties

Properties	AXIS FA4090-E Thermal Sensor Unit
Description	AXIS FA4090-E Thermal Sensor Unit offers discreet outdoor surveillance with low false alarms. Its flexible design and compatibility with AXIS FA54 Main Unit make it a reliable and budget-friendly choice for enhanced security.
Product Family	Axis FA Series Modular Cameras
Product Type	Thermal Sensor Unit

Specifications

Specifications	AXIS FA4090-E Thermal Sensor Unit
Camera
Image sensor	Uncooled Microbolometer 208 x 156 pixels, Pixel size 12 μm,
Image sensor	Spectral range: 8-14 μm
Lens	Athermalized, 4 mm, F1.2
	Horizontal field of view: 35.4°
	Vertical field of view: 28°
	Near focus distance: 1m
Sensitivity	NETD <100 mK
Frame rate	8.3 fps
General
Casing	Aluminum
Casing	IP66 and IP67–rated
Connectors	RJ12 for connection to AXIS FA54 Main Unit
Operating conditions
	–30°C to 55 °C (–22°F to 131 °F)
	Maximum temperature (intermittent): 60 °C (140 °F)
	Start-up temperature: -30 °C
	Humidity 10–100% RH (condensing)
Storage conditions	(-40 °C to 65 °C (-40 °F to 149 °F))
Approvals	EMC
	55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024,
	EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
	VCCI Class A, RCM AS/NZS CISPR 32 Class A, ICES-003 Class A,
	Safety
	IEC/EN/UL 62368-1
	Environment (Thermal unit)
	IEC 60068-2-1, IEC 60068-2-2, IEC 60068–2–6, IEC 60068-2-14, IEC 60068–2–27, IEC 60068-2-30, IEC 60068-2-78, IEC 60529 IP66/IP67, IEC/EN/UL 60950-22, NEMA 250 Type 4X
Dimensions	62 mm (2 7/16 in)
	ø 30 mm (1 3/16 in)
	Cable length: 12 m (39 ft)
Weight	Sensor with cable 370 g (0.8 lb)
Required hardware	AXIS FA54 Main Unit
Included accessories	AXIS F8201 Vari-angle Mounting Bracket

Accessories

Optional accessories

AXIS F8203 Fixed Mount Bracket
AXIS F8204 Mounting band
AXIS F8205 Bullet Accessory
AXIS F8212 Trim Ring
