Cisco Catalyst 9500 Series Switches

Cisco Catalyst 9500 Series Switches

Cisco Catalyst 9500 Series Switches is the first 40-Gb switch that is purpose-built for the enterprise campus. Designed for security, the Internet of Things (IoT), and the cloud, the Cisco Catalyst 9500 Series is the next generation of the most widely deployed switching platform.



     The series offer:

     - Software-Defined Access, Cisco’s leading enterprise architecture

     - Purpose-built fixed core

     - Industry's first purpose-built 40 Gigabit Ethernet line

     - 12 to 60 port options, depending on your needs

     - SFP, SFP+, QSFP, QSFP28, and QSFP-DD uplinks

Cisco Catalyst 9500 Series Switches

Show on page:

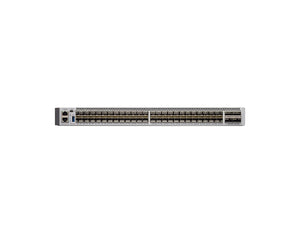

  • Cisco C9500-48Y4C-E Switch - Network Devices Inc.
    Save $13,596.58

    CISCO C9500-48Y4C-E SWITCHES

    CISCO C9500-48Y4C-E SWITCHES

    $15,041.07
    $28,637.65

    • High-performance 48-port 25G, Layer 3 Switch

    [specifications]

    Switching capacity Up to 1.6 Tbps
    Forwarding rate Up to 1 Bpps
    Total number of MAC addresses Up to 82,000
    Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 212,000 indirect + direct

    Up to 90,000 host/ARP
    Total number of IPv6 routes Up to 212,000 indirect + direct

    Up to 90,000 host/ARP
    QoS ACL scale Up to 16000
    Security ACL scale Up to 27000
    FNF entries Up to 98,000
    DRAM 16 GB
    Flash 16 GB
    VLAN IDs 4000
    Total Switched Virtual Interfaces (SVIs) 4000
    Jumbo frame 9216 bytes
    Power Supply Selection C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
    Dimensions (H x W x D) 1.73 x 17.5 x 18.0 in
    Rack units (RU) 1 RU
    Chassis with 2 power supplies and built-In fan 21.96 lb (9.96 kg)
    Input voltage 90 to 264 VAC
    Operating temperature 32 to 104F (0 to 40C)
    Storage temperature -4 to 149F (-20 to 65C)
    Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

    Ambient (noncondensing) nonoperating and storage: 5% to 95%
    Altitude Operation up to 13,000 feet at 40C
    MTBF (hours) 316,960







    [/specifications]The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

    quick view
    Availability: In Stock
    $28,637.65
    $15,041.07
    quick view

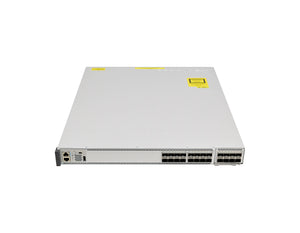

  • Cisco C9500-24X-E Switch - Network Devices Inc.
    Save $7,581.11

    CISCO C9500-24X-E SWITCH

    CISCO C9500-24X-E SWITCH

    $12,800.00
    $20,381.11

    • 16 x 10 Gigabit Ethernet + 8 x 10 Gigabit SFP+
    • with Cisco 8 x 10GE C9500-NM-8X Network Module

    [specifications] [/specifications]



    Cisco C9500-24X-E Switch Overview



    The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.



    Description Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Ess. License
    DRAM 16 G
    Flash 16 G
    Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
    Rack units (RU) 1 RU

    quick view
    Availability: In Stock
    $20,381.11
    $12,800.00
    quick view

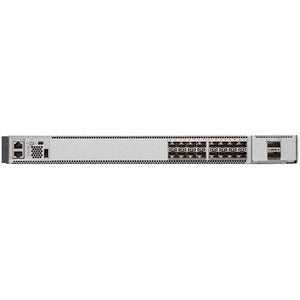

  • Cisco C9500-16X-A Switch - Network Devices Inc.
    Save $10,079.05

    CISCO C9500-16X-A SERIES SWITCH

    CISCO C9500-16X-A SERIES SWITCH

    $10,850.00
    $20,929.05

    • L3
    • Managed
    • 16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
    • Rack-mountable

    [specifications]

    Switching capacity Up to 240 Gbps
    Forwarding rate Up to 360 Mpps
    Total number of MAC addresses Up to 64,000
    Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 64,000 indirect
    Up to 80,000 host
    Total number of IPv6 routes Up to 32,000 indirect
    Up to 40,000 host
    QoS ACL scale Up to 18000
    Security ACL scale Up to 18000
    FNF entries Up to 512,000
    DRAM 16 GB
    Flash 16 GB
    VLAN IDs 4000
    Total Switched Virtual Interfaces (SVIs) 4000
    Jumbo frame 9198 bytes
    Power Supply Selection PWR-C4-950WAC-R or PWR-C4-950WDC-R
    Power max rating 950 W
    Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
    Rack units (RU) 1 RU
    Chassis with 2 power supplies and built-In fan 23.6 lb (10.7 kg)
    Input voltage 90 to 264 VAC
    Operating temperature 32 to 104F (0 to 40C)
    Storage temperature -4 to 149F (-20 to 65C)
    Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) Operating: 5% to 90%

    Ambient (noncondensing) nonoperating and storage: 5% to 95%
    Altitude Operation up to 6000 feet at 55C and 13,000 feet at 45C
    MTBF (hours) 315,790





    [/specifications]



    Cisco C9500-16X-A Switch Overview



    The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.



    Description Catalyst 9500 16-port 10Gig switch, with Network Advantage
    Switching capacity Up to 240 Gbps
    Forwarding rate Up to 360 Mpps
    DRAM 16 G
    Flash 16 G
    Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
    Rack units (RU) 1 RU

    quick view
    Availability: In Stock
    $20,929.05
    $10,850.00
    quick view

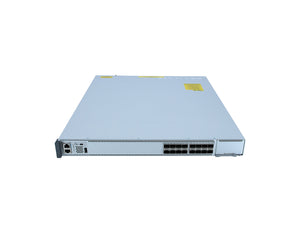

  • Cisco C9500-16X-E Switch - Network Devices Inc.
    Save $10,179.05

    CISCO C9500-16X-E SWITCH

    CISCO C9500-16X-E SWITCH

    $10,750.00
    $20,929.05

    • L3
    • Managed
    • 16 x 10 Gigabit Ethernet + 2 x 10 Gigabit SFP+
    • Rack-mountable

    [specifications]

    Switching capacity Up to 240 Gbps
    Forwarding rate Up to 360 Mpps
    Total number of MAC addresses Up to 64,000
    Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 64,000 indirect
    Up to 80,000 host
    Total number of IPv6 routes Up to 32,000 indirect
    Up to 40,000 host
    QoS ACL scale Up to 18000
    Security ACL scale Up to 18000
    FNF entries Up to 512,000
    DRAM 16 GB
    Flash 16 GB
    VLAN IDs 4000
    Total Switched Virtual Interfaces (SVIs) 4000
    Jumbo frame 9198 bytes
    Power Supply Selection PWR-C4-950WAC-R or PWR-C4-950WDC-R
    Power max rating 950 W
    Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
    Rack units (RU) 1 RU
    Chassis with 2 power supplies and built-In fan 23.6 lb (10.7 kg)
    Input voltage 90 to 264 VAC
    Operating temperature 32 to 104F (0 to 40C)
    Storage temperature -4 to 149F (-20 to 65C)
    Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) Operating: 5% to 90%
    Ambient (noncondensing) nonoperating and storage: 5% to 95%
    Altitude Operation up to 6000 feet at 55C and 13,000 feet at 45C
    MTBF (hours) 315,790







    [/specifications]

    Install Cisco C9500-16X-E Switch for Security, IoT and Cloud

    Cisco C9500-16X-E Switch is packed with next-generation enterprise-class core and aggregation layer switches. Find full programmability and serviceability support.

    Key Benefits of Cisco C9500-16X-E Switch

    Cisco C9500-16X-E Switch gives functionality leverages of the Catalyst 9500 Series that is based on an x86 CPU and that is Cisco’s main purpose-built fixed core and aggregation enterprise switching platform. It is built for security, IoT, and cloud. Industry's first purpose-built 40 Gigabit Ethernet line of switches, The Catalyst 9500 Series is targeted for the enterprise campus.



    Description Cisco Catalyst 9500 16-port 10G switch, NW Ess. License
    Switching capacity Up to 240 Gbps
    Forwarding rate Up to 360 Mpps
    DRAM 16 G
    Flash 16 G
    Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
    Rack units (RU) 1 RU

    quick view
    Availability: In Stock
    $20,929.05
    $10,750.00
    quick view

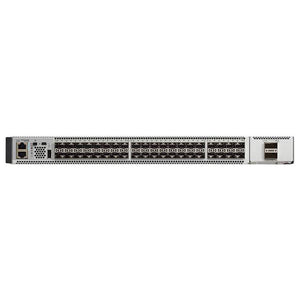

  • Cisco C9500-48Y4C-A Switch  - Network Devices Inc.
    Save $12,638.65

    CISCO CATALYST C9500-48Y4C-A SWITCH

    CISCO CATALYST C9500-48Y4C-A SWITCH

    $15,999.00
    $28,637.65

    • High-performance 48-port 25G, Layer 3 Switch

    [specifications]

    Switching capacity Up to 1.6 Tbps
    Forwarding rate Up to 1 Bpps
    Total number of MAC addresses Up to 82,000
    Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 212,000 indirect + direct

    Up to 90,000 host/ARP
    Total number of IPv6 routes Up to 212,000 indirect + direct

    Up to 90,000 host/ARP
    QoS ACL scale Up to 16000
    Security ACL scale Up to 27000
    FNF entries Up to 98,000
    DRAM 16 GB
    Flash 16 GB
    VLAN IDs 4000
    Total Switched Virtual Interfaces (SVIs) 4000
    Jumbo frame 9216 bytes
    Power Supply Selection C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
    Dimensions (H x W x D) 1.73 x 17.5 x 18.0 in
    Rack units (RU) 1 RU
    Chassis with 2 power supplies and built-In fan 21.96 lb (9.96 kg)
    Input voltage 90 to 264 VAC
    Operating temperature 32 to 104F (0 to 40C)
    Storage temperature -4 to 149F (-20 to 65C)
    Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%
    Ambient (noncondensing) nonoperating and storage: 5% to 95%
    Altitude Operation up to 13,000 feet at 40C
    MTBF (hours) 316,960







    [/specifications]The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

    quick view
    Availability: In Stock
    $28,637.65
    $15,999.00
    quick view

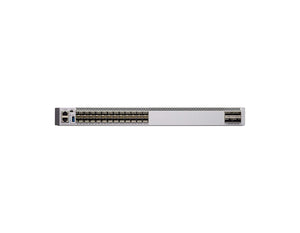

  • Cisco C9500-24Y4C-A Switch - Network Devices Inc.
    Save $13,469.19

    CISCO C9500-24Y4C-A SWITCH

    CISCO C9500-24Y4C-A SWITCH

    $12,850.00
    $26,319.19

    • L3, High-performance 24-port 1/10/25G switch

    [specifications]

    Switching capacity Up to 1.6 Tbps
    Forwarding rate Up to 1 Bpps
    Total number of MAC addresses Up to 82,000
    Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 212,000 indirect + direct
    Up to 90,000 host/ARP
    Total number of IPv6 routes Up to 212,000 indirect + direct
    Up to 90,000 host/ARP
    QoS ACL scale Up to 16000
    Security ACL scale Up to 27000
    FNF entries Up to 98,000
    DRAM 16 GB
    Flash 16 GB
    VLAN IDs 4000
    Total Switched Virtual Interfaces (SVIs) 4000
    Jumbo frame 9216 bytes
    Power Supply Selection C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
    Dimensions (H x W x D) 1.73 x 17.5 x 18.0 in
    Rack units (RU) 1 RU
    Chassis with 2 power supplies and built-In fan 20.99 lb (9.52 kg)
    Input voltage 90 to 264 VAC
    Operating temperature 32 to 104F (0 to 40C)
    Storage temperature -4 to 149F (-20 to 65C)
    Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

    Ambient (noncondensing) nonoperating and storage: 5% to 95%
    Altitude Operation up to 13,000 feet at 40C
    MTBF (hours) 336,780







    [/specifications]The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

    quick view
    Availability: In Stock
    $26,319.19
    $12,850.00
    quick view

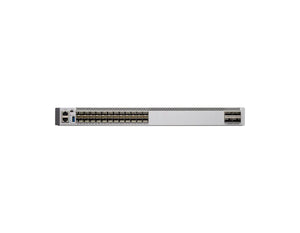

  • Cisco C9500-24Y4C-E Switch - Network Devices Inc.
    Save $13,819.00

    CISCO C9500-24Y4C-E SWITCH

    CISCO C9500-24Y4C-E SWITCH

    $12,500.00
    $26,319.00

    • L3, High-performance 24-port 1/10/25G Switch

    [specifications]

    Switching capacity Up to 1.6 Tbps
    Forwarding rate Up to 1 Bpps
    Total number of MAC addresses Up to 82,000
    Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 212,000 indirect + direct

    Up to 90,000 host/ARP
    Total number of IPv6 routes Up to 212,000 indirect + direct

    Up to 90,000 host/ARP
    QoS ACL scale Up to 16000
    Security ACL scale Up to 27000
    FNF entries Up to 98,000
    DRAM 16 GB
    Flash 16 GB
    VLAN IDs 4000
    Total Switched Virtual Interfaces (SVIs) 4000
    Jumbo frame 9216 bytes
    Power Supply Selection C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
    Dimensions (H x W x D) 1.73 x 17.5 x 18.0 in
    Rack units (RU) 1 RU
    Chassis with 2 power supplies and built-In fan 20.99 lb (9.52 kg)
    Input voltage 90 to 264 VAC
    Operating temperature 32 to 104F (0 to 40C)
    Storage temperature -4 to 149F (-20 to 65C)
    Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

    Ambient (noncondensing) nonoperating and storage: 5% to 95%
    Altitude Operation up to 13,000 feet at 40C
    MTBF (hours) 336,780







    [/specifications]The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

    quick view
    Availability: Out Of Stock
    $26,319.00
    $12,500.00
    quick view

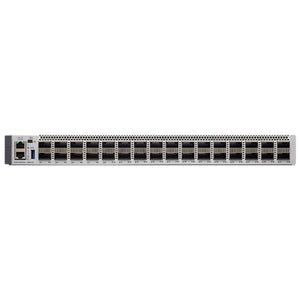

  • Cisco C9500-32QC-E Switch - Network Devices Inc.
    Save $19,601.83

    CISCO C9500-32QC-E SWITCH

    CISCO C9500-32QC-E SWITCH

    $16,831.17
    $36,433.00

    • THIS ITEM IS A SPECIAL ORDER AND MAY TAKE ADDITIONAL SHIPPING TIME
    • High-performance 32-port 40G or 16-port 100G Switch

    [specifications]

    Switching capacity Up to 1.6 Tbps
    Forwarding rate Up to 1 Bpps
    Total number of MAC addresses Up to 82,000
    Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 212,000 indirect + direct
    Up to 90,000 host/ARP
    Total number of IPv6 routes Up to 212,000 indirect + direct
    Up to 90,000 host/ARP
    QoS ACL scale Up to 16000
    Security ACL scale Up to 27000
    FNF entries Up to 98,000
    DRAM 16 GB
    Flash 16 GB
    VLAN IDs 4000
    Total Switched Virtual Interfaces (SVIs) 4000
    Jumbo frame 9216 bytes
    Power Supply Selection C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
    Dimensions (H x W x D) 1.73 x 17.5 x 21.2 in
    Rack units (RU) 1 RU
    Chassis with 2 power supplies and built-In fan 21.85lLb (9.91 kg)
    Input voltage 90 to 264 VAC
    Operating temperature 32 to 104F (0 to 40C)
    Storage temperature -4 to 149F (-20 to 65C)
    Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

    Ambient (noncondensing) nonoperating and storage: 5% to 95%
    Altitude Operation up to 13,000 feet at 40C
    MTBF (hours) 307,200







    [/specifications]The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

    quick view
    Availability: Out Of Stock
    $36,433.00
    $16,831.17
    quick view
  • Cisco C9500-32QC-A Switch - Network Devices Inc.
    Save $15,364.62

    CISCO C9500-32QC-A SWITCH

    CISCO C9500-32QC-A SWITCH

    $21,068.38
    $36,433.00

    • THIS ITEM IS A SPECIAL ORDER AND MAY TAKE ADDITIONAL SHIPPING TIME
    • High-performance 32-port 40G or 16-port 100G Switch

    [specifications]

    Switching capacity Up to 1.6 Tbps
    Forwarding rate Up to 1 Bpps
    Total number of MAC addresses Up to 82,000
    Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 212,000 indirect + direct

    Up to 90,000 host/ARP
    Total number of IPv6 routes Up to 212,000 indirect + direct

    Up to 90,000 host/ARP
    QoS ACL scale Up to 16000
    Security ACL scale Up to 27000
    FNF entries Up to 98,000
    DRAM 16 GB
    Flash 16 GB
    VLAN IDs 4000
    Total Switched Virtual Interfaces (SVIs) 4000
    Jumbo frame 9216 bytes
    Power Supply Selection C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
    Dimensions (H x W x D) 1.73 x 17.5 x 21.2 in
    Rack units (RU) 1 RU
    Chassis with 2 power supplies and built-In fan 21.85lLb (9.91 kg)
    Input voltage 90 to 264 VAC
    Operating temperature 32 to 104F (0 to 40C)
    Storage temperature -4 to 149F (-20 to 65C)
    Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

    Ambient (noncondensing) nonoperating and storage: 5% to 95%
    Altitude Operation up to 13,000 feet at 40C
    MTBF (hours) 307,200







    [/specifications]The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

    quick view
    Availability: Out Of Stock
    $36,433.00
    $21,068.38
    quick view
