AXIS P3905-R MK II M12 NETWORK CAMERA
| Model: | 01073-001 |
| Detail: |
|
| List Price: | |
| Price: | $560.00 |
| You Save: | $29.00 (5% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

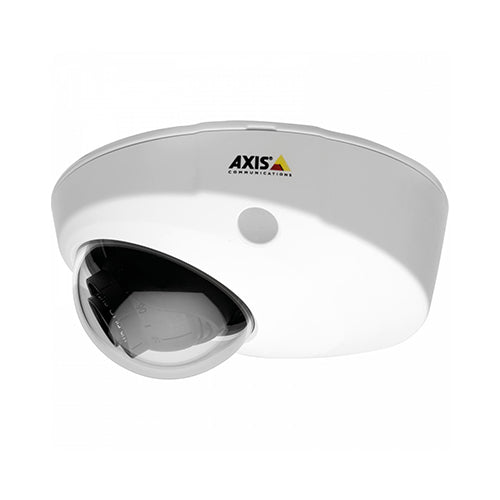

AXIS P3905-R Mk II M12 Network Camera (01073-001)
The AXIS P3905-R Mk II network camera is specifically engineered for video monitoring in vehicles and rolling stock. This compact, inconspicuous, and durable camera has an IP66 / IP67 rating, making it resilient to challenging environmental conditions, including vibrations, shocks, and temperature variations. Additional accessories are available for outdoor mounting and to achieve a broader field of view. The camera provides HDTV 1080p resolution with Wide Dynamic Range (WDR) and Lightfinder technology, ensuring superior image quality in varying lighting conditions.
Quick Specs:
- Compact, rugged design
- Complies with EN50155
- WDR and Lightfinder
- Traffic Light Mode
Please see the related tabs for the 01073-001 datasheet and compatible accessories.
Accessories
| Optional accessories | |
| Lenses | • 2.1 mm, F2.2: horizontal field of view 147° • 2.8 mm, F1.2: horizontal field of view 110° • 6 mm, F1.6: horizontal field of view 52° • 8 mm, F1.6: horizontal field of view 40° |
| Other | • AXIS T96B05 Outdoor Housing • AXIS T94D01S Mount Bracket • AXIS T94D02S Curved Mount Bracket • network coupler IP66 • network cable coupler indoor |
Specifications
| Specifications | AXIS P3905-R Mk II M12 Network Camera |
| Camera | |
| Image sensor | 1/2.9” Progressive scan RGB CMOS |
| Lens | 3.6 mm, F2.0 |
| Horizontal field of view: 87° | |
| Vertical field of view: 47° | |
| M12 mount, fixed iris | |
| See Optional accessories for exchangeable lenses | |
| Light sensitivity | HDTV 1080p 25/30 fps with Lightfinder |
| Color: 0.15 lux at 50 IRE F2.0 | |
| Color: 0.06 lux at 30 IRE F2.0 | |
| Color: 0.08 lux at 50 IRE F1.2 | |
| Color: 0.04 lux at 30 IRE F1.2 | |
| Shutter speed | 1/32500 s to 2 s |
| Camera angle adjustment | Pan: ±30° |
| Tilt: 15-90° | |
| Rotation: ±175° | |
| System on chip (SoC) | |
| Model | ARTPEC-7 |
| Memory | 1024 MB RAM, 512 MB Flash |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles |
| Motion JPEG | |
| Resolution | 1920x1080 to 160x90 |
| WDR | WDR - forensic capture |
| Frame rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264 and Motion |
| JPEG | |
| Axis Zipstream technology in H.264 | |
| Controllable frame rate and bandwidth | |
| VBR/MBR H.264 | |
| Image settings | Compression, color, brightness, sharpness, contrast, white |
| balance, exposure control, exposure zones, fine-tuning of | |
| behavior at low light, rotation: 0°, 90°, 180°, 270° including | |
| Corridor Format, text and image overlay, 20 individual privacy | |
| mask, mirroring of images, Traffic Light mode | |
| Pan/Tilt/Zoom | Digital PTZ, preset positions, guard tour, control queue |
| Network | |
| Security | Password protection, IP address filtering, HTTPS* encryption, network access control, digest authentication, user access log, centralized certificate management |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| Network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS* , SSL/TLS* , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| *: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (openssl.org), and cryptographic software written by Eric Young | |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and |
| AXIS Camera Application Platform; specifications at axis.com | |
| AXIS Video Hosting System (AVHS) with One-Click Connection | |
| ONVIF® Profile G and ONVIF® Profile S, | |
| Event conditions | Analytics, time scheduled, edge storage events |
| Event actions | Record video: SD card and network share |
| Upload images or video clips: FTP, SFTP, HTTP, HTTPS, network | |
| share and email | |
| Pre- and post-alarm video or image buffering for recording or | |
| upload | |
| Notification: email, HTTP, HTTPS, TCP, and SNMP trap | |
| PTZ: PTZ preset, start/stop guard tour | |
| Overlay text | |
| Data streaming | Event data |
| Built-in installation aids | Pixel counter |
| Analytics | |
| Applications | Included |
| AXIS Video Motion Detection, AXIS Motion Guard, | |
| AXIS Fence Guard, AXIS Loitering Guard, active tampering alarm* | |
| Supported | |
| AXIS Perimeter Defender | |
| Support for AXIS Camera Application Platform | |
| *: For detection of tampering attempts in static and non-crowded scenes. | |
| General | |
| Casing | Aluminum and polycarbonate casing |
| Sustainability | PVC free |
| Mounting | Inside vehicles and rolling stock (For outdoor applications, use AXIS T96B05 Outdoor Housing) |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 |
| Typical 2.9 W, max 3.6 W | |
| Connectors | M12: female, rugged, D-coded with rotatable coupling nut |
| All connectors support PoE | |
| Storage | Support for microSD/microSDHC/microSDXC card and encryption |
| Support for recording to network-attached storage (NAS) | |
| Operating conditions | Normal: -40 °C to 60 °C (-40 °F to 140 °F) |
| Maximum (intermittent): 70 °C (158 °F) | |
| Arctic Temperature Control: start-up at -40 °C (-40 °F) | |
| Humidity: 10-100% RH | |
| Storage conditions | (-40 °C to 65 °C) (-40 °F to 149 °F) |
| Approvals | EMC |
| EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, | |
| FCC Part 15 Subpart B Class A, ICES-003 Class A, | |
| VCCI Class A, RCM AS/NZS CISPR 32 Class A, | |
| KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, | |
| IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498, EAC | |
| Safety | |
| IEC/EN/UL 62368-1, EN 45545, UN ECE R118, parts of NFPA 130*, | |
| IS 13252 | |
| Environment | |
| IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66/67, | |
| NEMA 250 Type 4X, IEC/EN 62262 IK08, | |
| IEC 60721-3-5 Class 5M3 (vibration and shock), | |
| EN 50155:2017 Class OT2/ST2 (EN 50155:2007 Class TX), | |
| IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-27, | |
| IEC 60068-2-64, IEC 60068-2-78 | |
| Network | |
| NIST SP500-267 | |
| *: ASTM E162 and the non-flaming parts of ASTM E662 | |
| Dimensions | Height: 49 mm (1 15/16 in), ø 109 mm (4 3/16 in) |
| Weight | M12: 248 g (0.55 lb) |
| Included accessories | Installation guide, Windows® decoder 1-user license, drill hole |
| template, top cover tool, lens tool, Allen key Resistorx® | |
| Video management software | AXIS Companion, AXIS Camera Station, video management |
| software from Axis Application Development Partners available | |
| at axis.com/vms | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified |
| Chinese, Japanese, Korean, Portuguese, Traditional Chinese | |
Properties
| Properties | AXIS P3905-R Mk II M12 Network Camera |
| Description | The AXIS P3905-R Mk II Network Camera is designed for vehicle surveillance, featuring a rugged, compact design with IP66/IP67 rating for durability. With HDTV 1080p resolution, WDR, and Lightfinder, it excels in diverse lighting conditions. Compliance with EN 50155:2017 Class OT2/ST2 ensures reliability in transportation. The camera supports Zipstream for efficient bandwidth use and includes Traffic Light mode for color recognition in dark scenes. Optional accessories are available for outdoor installation and broader field of view. |
| Product Family | AXIS P3905-R Mk II Network Camera |
| Product Type | Camera |
