FORTINET FSR-112D-POE SWITCH
| Model: | FSR-112D-POE |
| Detail: | Layer 2 ruggedized FortiGate switch controller compatible PoE+ switch with 8 x GE RJ45 ports |
| List Price: | |
| Price: | $1,698.00 |
| You Save: | $652.00 (28% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

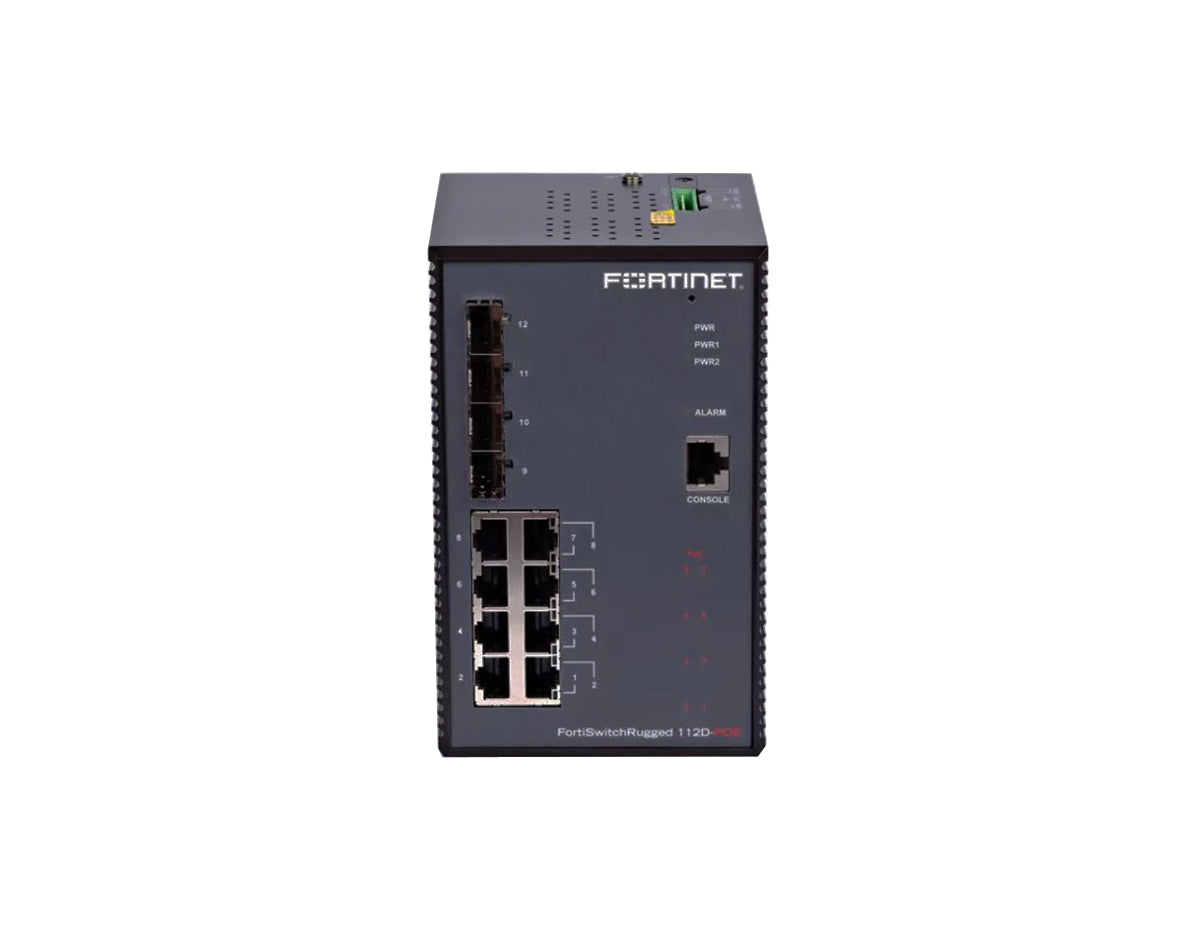

Fortinet FSR-112D-POE Switch
The Fortinet FSR-112D-POE is a member of the FortiSwitch Rugged family. The FortiSwitch Rugged FSR-112D-POE switch offers all the performance and security features of the proven FortiSwitch range. This product is additionally reinforced, making it ideal for operation in outdoor environments. It is generally very resilient and robust and can withstand severe temperature fluctuations. It ensures the integrity and performance of mission-critical networks in even the most challenging environments.
Quick Specs:
- 8x GE RJ45 ports
- 4x GE SFP ports uplink
- 8 PoE ports
- Switching Capacity (Duplex): 24 Gbps
Please see the related tabs for the FSR-112D-POE datasheet and compatible accessories.
Accessories
| FG-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots. |
| FG-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots. |
| FG-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots. |
| FR-TRAN-SX | 1 GE SFP SX transceiver module, -4085°C, over MMF, for all systems with SFP and SFP/SFP+ slots. |
| FR-TRAN-LX | 1 GE SFP LX transceiver module, -4085°C, over SMF, for all systems with SFP and SFP/SFP+ slots. |
| FR-TRAN-ZX | 1 GE SFP ZX transceiver module, -4085°C, 90 km range, for all systems with SFP and SFP/SFP+ slots. |
Specifications
| Dimensions in. | 3.8 x 4.15 x 6.06 |
| Input voltage range | 4457V DC (for PoE model), 1257 V (non-PoE model), 4449V input voltage can support PoE (802.3af) on all ports, 5057V input voltage can support PoE+ (802.3at) on all ports |
| MAC addresses | 8K |
| Switch power | With 8x PoE+ sources, the switch itself draws 10.4 W |
| Heat dissipation | The switch dissipates 69.6 BTU/h with 8x PoE+ devices attached |
| Operating temperature | -40167°F (-4075°C) |
| EMI | Radiated Emission: CISPR 22, EN55022 Class B Conducted Emission: EN55022 Class B |
| EMS | ESD: IEC61000-4-2 |
| Radiated RF (RS): IEC61000-4-3 EFT: IEC61000-4-4 | |
| Surge: IEC61000-4-5 | |
| Conducted RF (CS): IEC61000-4-6 |
Properties
| Properties | FSR-112D-POE |
| Description | Ruggedized L2 PoE Switch 8x GE RJ45 (including 8x PoE/PoE+ capable ports), 4x GE SFP slots, FortiGate switch controller compatible. |
| Product Family | FortiSwitch Rugged |
| Product Type | Switch |
| Ethernet interface | 8x GE RJ45 (including 8x PoE/PoE+ capable ports), 4x GE SFP slots PoE is 802.3 af PoE+ is 802.3at |
| Operating mode | Store and forward, L2/L3 wire-speed/non-blocking switching engine |
| Speed | 10/100/1000 Mbps |
| PoE+ (PSE) | IEEE 802.3at, up to 30 W per RJ45 GE port (up to 8 PoE+ ports) |
