The Cisco IE3000 series is a family of industrial Ethernet switches designed for use in harsh environments. They are perfect for industrial networks that require high availability, security, and ease of management.



     Their features include:

     - Withstanding extreme temperatures, vibration, and other challenging conditions

     - Advanced security features such as access control lists (ACLs) and denial of service (DoS) prevention

     - Cisco Industrial Network Director (IND), which makes it easy to deploy, monitor, and troubleshoot the switches.

Cisco IE3000 Series Switches

Show on page:
  • Cisco IE-3000-4TC Switch - Network Devices Inc.
    Sold Out

    CISCO IE-3000-4TC SWITCH

    CISCO IE-3000-4TC SWITCH

    $1,395.00
    $2,291.00

    • 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port one port active)

    [specifications]

    Performance   Wire-speed switching, 16 Gbps switching fabric

      Forwarding rate based on 64-byte packets: 6.5 Mpps

      128 MB DRAM

      64 MB Compact Flash memory

      Configurable up to 8000 MAC addresses (Layer 2)

      Configurable up to 2000 MAC addresses (Layer 3)

      Configurable up to 256 IGMP multicast groups (Layer 2)

      Configurable up to 1000 IGMP groups and multicast routes (Layer 3)

      Configurable up to 3,000 unicast routes (Layer 3)

      Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports
    Connectors and cabling   10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling

      100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling

      1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling

      1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber)

      100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber)
    Indicators   Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications

      System-status LED: System, link status, link duplex, link speed, indications
    Dimensions (H x W x D)   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 6.0"W x 5.8"H x 4.4"D (152mm W x 147mm H x 112mm D)

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 6.0"W x 5.8"H x 4.4"D (152mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8TM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8FM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4SM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8SM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4PC=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4PC-4TC=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco PWR-IE50W-AC=: 2.0"W x 5.8"H x 4.4"D (51mm W x 147mm H x 112mm D)

      Cisco PWR-IE50W-AC-IEC=: 2.0"W x 5.8"H x 4.4"D (51mm W x 147mm H x 112mm D)

      Cisco PWR-IE65W-PC-AC=: 2.6"W x 5.9"H x 4.6"D (66mm W x 150mm H x 117mm D)

      Cisco PWR-IE65W-PC-DC=: 2.6"W x 5.9"H x 4.6"D (66mm W x 150mm H x 117mm D)
    Weight   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 4.4 lb (2.0 kg)

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg)

      Cisco IEM-3000-8TM=: 2.2 lb (1.0 kg)

      Cisco IEM-3000-8FM=: 3.2 lb (1.45 kg)

      Cisco IEM-3000-4SM=: 2.5 lb (1.1 Kg)

      Cisco IEM-3000-8SM=: 3.0 lb (1.38 Kg)

      Cisco IEM-3000-4PC=: 2.4 (1.08 Kg)

      Cisco IEM-3000-4PC-4TC=: 2.5 (1.16 Kg)

      Cisco PWR-IE50W-AC=: 1.4 lb (0.65 kg)

      Cisco PWR-IE50W-AC-IEC=: 1.4 lb (0.65kg)

      Cisco PWR-IE65W-PC-DC=: 2.6 (1.18 Kg)

      Cisco PWR-IE65W-PC-AC=: 2.7 (1.24 Kg)
    Operating environment Operating temperature: -40C to +75C

      -40C to +70C (Vented Enclosure - 40 LFM Air Flow)

      -40C to +60C (Sealed Enclosure - 0 LFM Air Flow)

      -24C to +75C (Fan or Blower equipped Enclosure - 200 LFM Air Flow)

      -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)

      Storage temperature: -40C to +85C

      Operating relative humidity: 10 to 95% (non-condensing)

      Operating altitude: Up to 13,000 ft (3963m)

      Storage altitude: Up to 15,000 ft (4573m)
    Mean Time Between Failures (MTBF)   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 363,942

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451

      Cisco IEM-3000-8TM=: 926,999

      Cisco IEM-3000-8FM=: 264,689

      Cisco IEM-3000-4SM=: 8,887,990

      Cisco IEM-3000-8SM=: 7,732,890

      Cisco IEM-3000-4PC=: 1,494,990

      Cisco IEM-3000-4PC-4TC=: 1,291,440

      Cisco PWR-IE50W-AC=: 1,662,359

      Cisco PWR-IE50W-AC-IEC=: 1,662,359

      Cisco PWR-IE65W-PC-DC=: 2,468,430

      Cisco PWR-IE65W-PC-AC=: 2,488,401







    [/specifications]

    Build Secure Switching Infrastructure using Cisco IE-3000-4TC

    Cisco IE-3000-4TC switch is perfect for a rugged, easy-to-use, and secure switching infrastructure. It features industrial design and compliance, tools for easy deployment, management, and replacement with network security capability based on open standards.

    Cisco IE-3000-4TC switch includes factory automation, intelligent transportation systems (ITSs), substations, and other deployments in harsh environments. It offers design for Industrial Ethernet applications that add extended environmental, shock/vibration, and surge ratings. It features a complete set of power input options, convection cooling, and DIN-rail or 19" rack mounting, support for hundreds of hardware configurations, easy setup and management by using the Cisco Device Manager web interface and supporting tools.

    Cisco IE-3000-4TC switch includes Cisco Network Assistant and Cisco Works that is an easy switch replacement option by using removable memory. This feature allows the user to replace a switch without having to reconfigure high-availability, guaranteed determinism, and reliable security using Cisco iOS Software. This software is recommended for industrial applications to apply at the touch of a button.

    Key Benefits of Cisco IE-3000-4TC

    For its compliance with a wide range of Industrial Ethernet specifications covering industrial automation, ITS, substation, railway, and other markets, Cisco IE-3000-4TC switch can support IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications.



    Ports 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber
    Supported Expansion Modules Support up to two expansion modules with various combinations
    Power DC input range 18VDC-60VDC
    Software Layer 2 LAN Base Image
    Dimensions (H x W x D) 6.0" W x 5.8" H x 4.4" D

    (152mm W x 147mm H x 112mm D)
    Weight 4.4 lb (2.0 kg)

    Availability: Out Of Stock
    $2,291.00
    $1,395.00
  • Cisco IE-3000-8TC-E Switch - Network Devices Inc.
    Sold Out

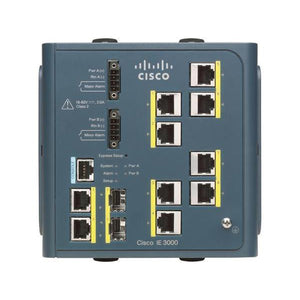

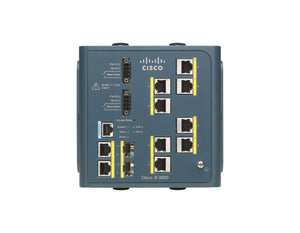

    CISCO IE-3000-8TC-E SWITCH

    CISCO IE-3000-8TC-E SWITCH

    $2,295.00
    $6,386.00

    • Switch
    • L3
    • Managed
    • 8 x 10/100 + 2 x combo Gigabit SFP
    • DIN Rail Mountable

    [specifications]

    Performance   Wire-speed switching, 16 Gbps switching fabric

      Forwarding rate based on 64-byte packets: 6.5 Mpps

      128 MB DRAM

      64 MB Compact Flash memory

      Configurable up to 8000 MAC addresses (Layer 2)

      Configurable up to 2000 MAC addresses (Layer 3)

      Configurable up to 256 IGMP multicast groups (Layer 2)

      Configurable up to 1000 IGMP groups and multicast routes (Layer 3)

      Configurable up to 3,000 unicast routes (Layer 3)

      Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports
    Connectors and cabling   10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling

      100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling

      1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling

      1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber)

      100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber)
    Indicators   Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications

      System-status LED: System, link status, link duplex, link speed, indications
    Dimensions (H x W x D)   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 6.0"W x 5.8"H x 4.4"D (152mm W x 147mm H x 112mm D)

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 6.0"W x 5.8"H x 4.4"D (152mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8TM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8FM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4SM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8SM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4PC=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4PC-4TC=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco PWR-IE50W-AC=: 2.0"W x 5.8"H x 4.4"D (51mm W x 147mm H x 112mm D)

      Cisco PWR-IE50W-AC-IEC=: 2.0"W x 5.8"H x 4.4"D (51mm W x 147mm H x 112mm D)

      Cisco PWR-IE65W-PC-AC=: 2.6"W x 5.9"H x 4.6"D (66mm W x 150mm H x 117mm D)

      Cisco PWR-IE65W-PC-DC=: 2.6"W x 5.9"H x 4.6"D (66mm W x 150mm H x 117mm D)
    Weight   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 4.4 lb (2.0 kg)

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg)

      Cisco IEM-3000-8TM=: 2.2 lb (1.0 kg)

      Cisco IEM-3000-8FM=: 3.2 lb (1.45 kg)

      Cisco IEM-3000-4SM=: 2.5 lb (1.1 Kg)

      Cisco IEM-3000-8SM=: 3.0 lb (1.38 Kg)

      Cisco IEM-3000-4PC=: 2.4 (1.08 Kg)

      Cisco IEM-3000-4PC-4TC=: 2.5 (1.16 Kg)

      Cisco PWR-IE50W-AC=: 1.4 lb (0.65 kg)

      Cisco PWR-IE50W-AC-IEC=: 1.4 lb (0.65kg)

      Cisco PWR-IE65W-PC-DC=: 2.6 (1.18 Kg)

      Cisco PWR-IE65W-PC-AC=: 2.7 (1.24 Kg)
    Operating environment Operating temperature: -40C to +75C

      -40C to +70C (Vented Enclosure - 40 LFM Air Flow)

      -40C to +60C (Sealed Enclosure - 0 LFM Air Flow)

      -24C to +75C (Fan or Blower equipped Enclosure - 200 LFM Air Flow)

      -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)

      Storage temperature: -40C to +85C

      Operating relative humidity: 10 to 95% (non-condensing)

      Operating altitude: Up to 13,000 ft (3963m)

      Storage altitude: Up to 15,000 ft (4573m)
    Mean Time Between Failures (MTBF)   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 363,942

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451

      Cisco IEM-3000-8TM=: 926,999

      Cisco IEM-3000-8FM=: 264,689

      Cisco IEM-3000-4SM=: 8,887,990

      Cisco IEM-3000-8SM=: 7,732,890

      Cisco IEM-3000-4PC=: 1,494,990

      Cisco IEM-3000-4PC-4TC=: 1,291,440

      Cisco PWR-IE50W-AC=: 1,662,359

      Cisco PWR-IE50W-AC-IEC=: 1,662,359

      Cisco PWR-IE65W-PC-DC=: 2,468,430

      Cisco PWR-IE65W-PC-AC=: 2,488,401







    [/specifications]

    Cisco IE-3000-8TC-E Offers Easy Deployability for All Settings

    Cisco IE-3000-8TC-E Switch is perfect for rugged, easy-to-use, secure switching infrastructure for harsh environments. It features industrial design and compliance, tools for easy deployment, management, and replacement, with network security based on open standards.

    Key Benefits of Cisco IE-3000-8TC-E

    Cisco IE-3000-8TC-E Switch has compliance with industrial Ethernet applications that include factory automation, intelligent transportation systems (ITSs), substations, and other deployments in all rugged settings.



    Ports 8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber
    Supported Expansion Modules Support up to two expansion modules with various combinations
    Power DC input range 18VDC-60VDC
    Software Layer 3 IP Services Image
    Dimensions (H x W x D) 6.0" W x 5.8" H x 4.4" D

    (152mm W x 147mm H x 112mm D)
    Weight 4.4 lb (2.0 kg)

    Availability: Out Of Stock
    $6,386.00
    $2,295.00
  • Cisco IE-3000-4TC-E Switch - Network Devices Inc.
    Sold Out

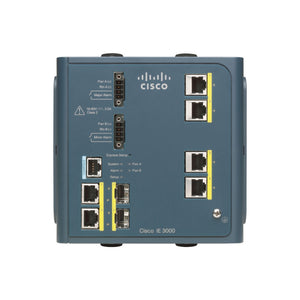

    CISCO IE-3000-4TC-E SWITCH

    CISCO IE-3000-4TC-E SWITCH

    $2,320.00
    $5,682.65

    • Switch
    • L3
    • Managed
    • 4 x 10/100 + 2 x combo Gigabit SFP
    • DIN Rail Mountable
    • DC power

    [specifications]

    Ports 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber
    Supported Expansion Modules Each switch supports 2 Cisco modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module
    Power DC input range 18VDC-60VDC
    Software Layer 3 IP Services Image
    Dimensions (H x W x D) 6.0" W x 5.8" H x 4.4" D

    (152mm W x 147mm H x 112mm D)
    Weight 4.4 lb (2.0 kg)
    Performance   Wire-speed switching, 16 Gbps switching fabric

      Forwarding rate based on 64-byte packets: 6.5 Mpps

      128 MB DRAM

      64 MB Compact Flash memory

      Configurable up to 8000 MAC addresses (Layer 2)

      Configurable up to 2000 MAC addresses (Layer 3)

      Configurable up to 256 IGMP multicast groups (Layer 2)

      Configurable up to 1000 IGMP groups and multicast routes (Layer 3)

      Configurable up to 3,000 unicast routes (Layer 3)

      Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports
    Connectors and cabling   10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling

      100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling

      1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling

      1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber)

      100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber)
    Indicators   Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications

      System-status LED: System, link status, link duplex, link speed, indications
    Dimensions (H x W x D)   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 6.0"W x 5.8"H x 4.4"D (152mm W x 147mm H x 112mm D)

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 6.0"W x 5.8"H x 4.4"D (152mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8TM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8FM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4SM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-8SM=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4PC=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco IEM-3000-4PC-4TC=: 3.5"W x 5.8"H x 4.4"D (89mm W x 147mm H x 112mm D)

      Cisco PWR-IE50W-AC=: 2.0"W x 5.8"H x 4.4"D (51mm W x 147mm H x 112mm D)

      Cisco PWR-IE50W-AC-IEC=: 2.0"W x 5.8"H x 4.4"D (51mm W x 147mm H x 112mm D)

      Cisco PWR-IE65W-PC-AC=: 2.6"W x 5.9"H x 4.6"D (66mm W x 150mm H x 117mm D)

      Cisco PWR-IE65W-PC-DC=: 2.6"W x 5.9"H x 4.6"D (66mm W x 150mm H x 117mm D)
    Weight   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 4.4 lb (2.0 kg)

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg)

      Cisco IEM-3000-8TM=: 2.2 lb (1.0 kg)

      Cisco IEM-3000-8FM=: 3.2 lb (1.45 kg)

      Cisco IEM-3000-4SM=: 2.5 lb (1.1 Kg)

      Cisco IEM-3000-8SM=: 3.0 lb (1.38 Kg)

      Cisco IEM-3000-4PC=: 2.4 (1.08 Kg)

      Cisco IEM-3000-4PC-4TC=: 2.5 (1.16 Kg)

      Cisco PWR-IE50W-AC=: 1.4 lb (0.65 kg)

      Cisco PWR-IE50W-AC-IEC=: 1.4 lb (0.65kg)

      Cisco PWR-IE65W-PC-DC=: 2.6 (1.18 Kg)

      Cisco PWR-IE65W-PC-AC=: 2.7 (1.24 Kg)
    Operating environment Operating temperature: -40C to +75C

      -40C to +70C (Vented Enclosure - 40 LFM Air Flow)

      -40C to +60C (Sealed Enclosure - 0 LFM Air Flow)

      -24C to +75C (Fan or Blower equipped Enclosure - 200 LFM Air Flow)

      -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)

      Storage temperature: -40C to +85C

      Operating relative humidity: 10 to 95% (non-condensing)

      Operating altitude: Up to 13,000 ft (3963m)

      Storage altitude: Up to 15,000 ft (4573m)
    Mean Time Between Failures (MTBF)   Cisco IE-3000-4TC, Cisco IE-3000-4TC-E: 363,942

      Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451

      Cisco IEM-3000-8TM=: 926,999

      Cisco IEM-3000-8FM=: 264,689

      Cisco IEM-3000-4SM=: 8,887,990

      Cisco IEM-3000-8SM=: 7,732,890

      Cisco IEM-3000-4PC=: 1,494,990

      Cisco IEM-3000-4PC-4TC=: 1,291,440

      Cisco PWR-IE50W-AC=: 1,662,359

      Cisco PWR-IE50W-AC-IEC=: 1,662,359

      Cisco PWR-IE65W-PC-DC=: 2,468,430

      Cisco PWR-IE65W-PC-AC=: 2,488,401





    [/specifications]The Cisco Industrial Ethernet 3000 (IE 3000) Series Switches are a new family of switches that provide a rugged, easy-to-use, secure switching infrastructure for harsh environments. The Cisco IE 3000 family features industrial design and compliance, tools for ease of deployment, management, and replacement; and network security based on open standards. The Cisco IE 3000 is an ideal product for industrial Ethernet applications, including factory automation, intelligent transportation systems (ITSs), substations, and other deployments in harsh environments.



    Cisco IE-3000-4TC-E Switch Overview



    Ports 4 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber
    Supported Expansion Modules Support up to two expansion modules with various combinations
    Power DC input range 18VDC-60VDC
    Software Layer 3 IP Services Image
    Dimensions (H x W x D) 6.0" W x 5.8" H x 4.4" D

    (152mm W x 147mm H x 112mm D)
    Weight 4.4 lb (2.0 kg)

    Availability: Out Of Stock
    $5,682.65
    $2,320.00
  • Cisco IE-3000-8TC Switch - Network Devices Inc.
    Sold Out

    CISCO IE-3000-8TC SWITCH

    CISCO IE-3000-8TC SWITCH

    $1,795.00
    $2,307.00

    • Industrial Ethernet switch with eight Ethernet 10/100 ports and two dual-purpose uplink ports

    [specifications]

    Cisco IE-3000-8TC Switch Specifications



    Ports 8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber
    Supported Expansion Modules Each switch supports 2 Cisco IEM-3000-8TM= modules, 1 Cisco IEM-3000-8FM= module, or 1 Cisco IEM-3000-8TM= module and 1 Cisco IEM-3000-8FM= module
    Power DC input range 18VDC-60VDC
    Software Layer 2 LAN Base Image
    Dimensions (H x W x D) 6.0"W x 5.8"H x 4.4"D
    (152mm W x 147mm H x 112mm D)
    Weight 4.4 lb (2.0 kg)
    Performance Wire-speed switching, 16 Gbps switching fabric
    Forwarding rate based on 64-byte packets: 6.5 Mpps
    128 MB DRAM
    64 MB Compact Flash memory
    Configurable up to 8000 MAC addresses (Layer 2)
    Configurable up to 2000 MAC addresses (Layer 3)
    Configurable up to 256 IGMP multicast groups (Layer 2)
    Configurable up to 1000 IGMP groups and multicast routes (Layer 3)
    Configurable up to 3,000 unicast routes (Layer 3)
    Support jumbo frames up to 9018 bytes on Gigabit uplink port and mini-jumbo frame (system MTU) up to 1998 bytes on both 10/100 and 10/100/1000 ports
    Connectors and cabling 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling
    100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling
    1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling
    1000BASE-SX, -LX/LH, -ZX SFP-based ports: LC fiber connectors (single/multimode fiber)
    100BASE-LX10, -FX: LC fiber connectors (single/multimode fiber)
    Indicators Per-port status LED: Link integrity, disabled, activity, speed, full-duplex indications
    System-status LED: System, link status, link duplex, link speed, indications
    Dimensions (H x W x D) 6.0"W x 5.8"H x 4.4"D (152mm W x 147mm H x 112mm D)
    Weight Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 4.4 lb (2.0 kg)
    Operating environment Operating temperature: -40C to +75C
    -40C to +70C (Vented Enclosure - 40 LFM Air Flow)
    -40C to +60C (Sealed Enclosure - 0 LFM Air Flow)
    -24C to +75C (Fan or Blower equipped Enclosure - 200 LFM Air Flow)
    -40C to +85C (IEC 60068-2-2 Environmental Type Testing - 16 hours)
    Storage temperature: -40C to +85C
    Operating relative humidity: 10 to 95% (non-condensing)
    Operating altitude: Up to 13,000 ft (3963m)
    Storage altitude: Up to 15,000 ft (4573m)
    Mean Time Between Failures (MTBF) Cisco IE-3000-8TC, Cisco IE-3000-8TC-E: 329,451



     [/specifications]

    Install Cisco IE-3000-8TC for Harsh Work Environments

    Cisco IE-3000-8TC-E Switch is perfect solution for Industrial Ethernet applications, including factory automation, energy and process control, and Intelligent Transportation Systems (ITSs). It is built for rugged, easy-to-use, secure switching infrastructure for every setting.

    Key Benefits of Cisco IE-3000-8TC

    Cisco IE-3000-8TC Switch covers industrial automation, ITS, substation, railway, and other markets and provides support for IEEE1588v2, a precision timing protocol with nanosecond-level precision for high-performance applications.



    Model IE-3000-8TC
    Ports 8 Ethernet 10/100 ports and 2 dual-purpose uplinks (each dual-purpose uplink port has one active port either 10/100/1000 copper or SFP fiber
    Supported Expansion Modules Support up to two expansion modules with various combinations
    Power DC input range 18VDC-60VDC
    Software Layer 2 LAN Base Image
    Dimensions (H x W x D) 6.0" W x 5.8" H x 4.4" D
    (152mm W x 147mm H x 112mm D)
    Weight 4.4 lb (2.0 kg)

    Availability: Out Of Stock
    $2,307.00
    $1,795.00
Show on page:
Just added to your wishlist:
My Wishlist
You've just added this product to the cart:
Checkout
