Fortinet FS-124F-POE Switch

Name: Fortinet FS-124F-POE Switch
Brand: Fortinet
SKU: FS-124F-POE-NEW
Price: 829.0 USD
Availability: InStock

Part Number: FS-124F-POE

Technical Details

L2+ managed POE switch with 24GE + 4SFP+, 12port POE with max 185W limit and smart fan temperature control

$1,388.00

$829.00

40% OFF

You Save: $559.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Special Order

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

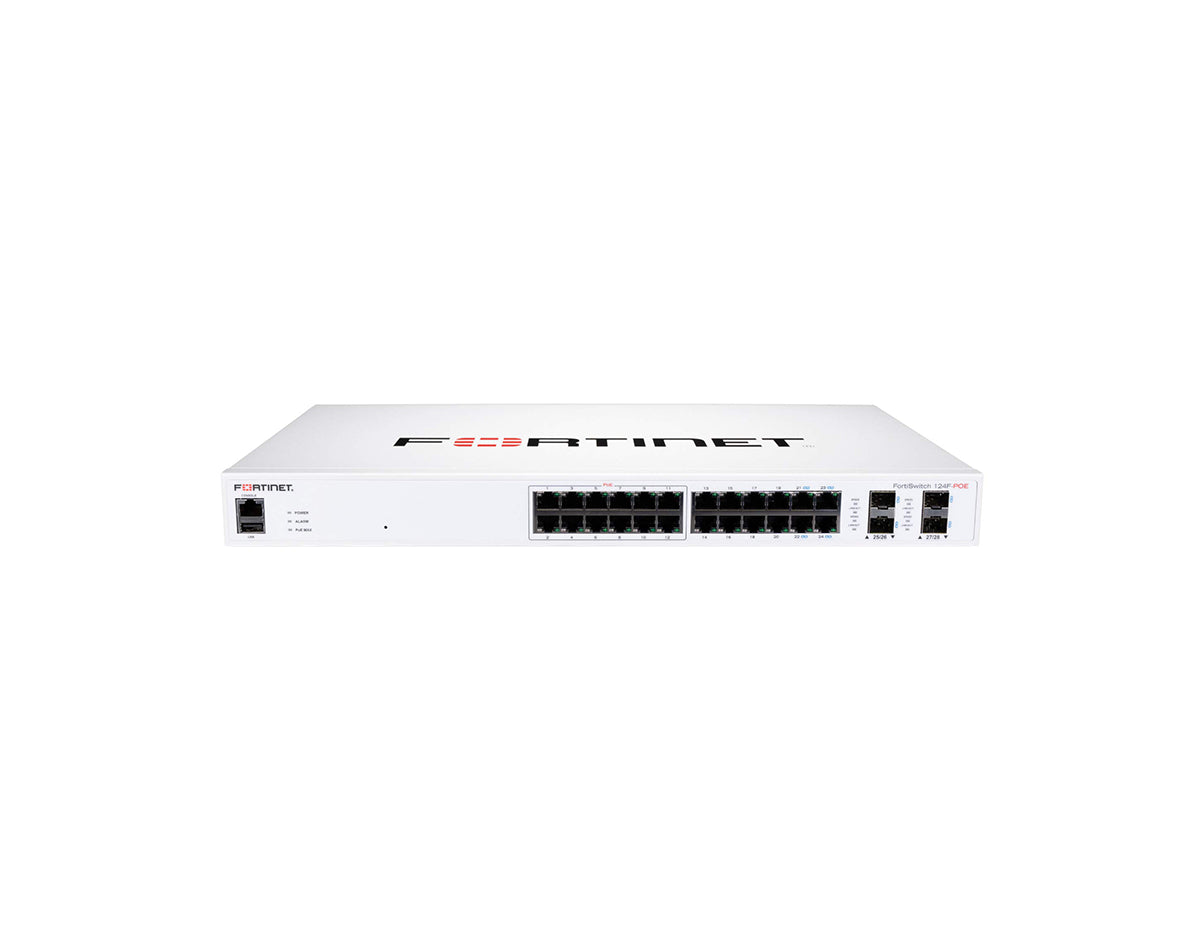

Fortinet FS-124F-POE Switch

The FS-124F-POE is a 24-port switch that supports PoE+ on 12 ports with maximum PoE+ budget of 185 W. It offers reliable connectivity and flexibility as it has 4 SFP+ uplinks. It can be integrated into the FortiGate NGFW security fabric via FortiLink. It offers centralized management and converged security. It is ideal for SD-Branch and campus deployments.

Quick Specs:

24x GE RJ45 ports
4x 10GE SFP+ uplinks
128 Gbps of switching capacity
Rack-mountable
Layer 2/3 functionalities

Please see the related tabs for the FS-124F-POE datasheet and compatible accessories.

Properties

Properties	FS-124F-POE
Description	Layer 2 FortiGate switch controller compatible PoE+ switch with 24 GE RJ45 + 4 10G SFP+ ports, 12 port PoE with maximum 185 W limit.
Product Family	FortiSwitch
Product Type	Switch
Total Network Interfaces	24x GE RJ45 and 4x 10GE SFP+
Dedicated Management 10/100/1000 Ports	0
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack Mount
Power over Ethernet (PoE) Ports	12 (802.3af/at)
PoE Power Budget (single/dual PSU)	185 W
Mean Time Between Failures	> 10 years

Specifications

Switching Capacity (Duplex)	128 Gbps
Packets Per Second (Duplex)	190 Mpps
MAC Address Storage	32 K
Network Latency	< 1µs
VLANs Supported	4 K
Link Aggregation Group Size	8
Total Link Aggregation Groups	16
Packet Buffers	2 MB
DRAM	512 MB DDR3
FLASH	64 MB
ACL	768
Spanning Tree Instances	16
Route Entries (IPv4/IPv6)	-
Multicast Route Entries	-
Host Entries	-
Dimensions in.	1.73 x 10.24 x 17.32
Power Required	100240V AC, 50-60 Hz
Power Supply	AC built in
Redundant Power	No
Power Consumption (Average / Maximum)	235.9 W / 237.4 W
Heat Dissipation	102.982 BTU/h
Operating Temperature	32°113°F (0°45°C)
Certification	FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
