ACX2200
AC version
1 RU
SyncE/1588
Temperature hardened
Passive;y cooled
2 x GE SFP+
2 x GE SFP
4 x GE Combo (SFP or RJ45)
4 x GE RJ45
Redundant AC power supply

[/shortdesc]

[properties]

Properties	Juniper ACX2200-AC
Description	ACX2200 unit, 2x10GbE SFP+, 4xGbE copper, 4xGbE combination (copper or fiber), 2xGbE SFP, 1 U, ETSI 300, redundant AC power, temperature hardened, passively cooled, Junos OS (optics sold separately)
Product Family	ACX2200 Series
Product Type	Router
Built-In Interface Options
GbE (copper)	4
GbE (combo)	4
GbE (SFP)	2
10GbE (SFP+)	2
Console port	RJ-45 connector
Management Ethernet port	RJ-45 connector
Dimension (WxHxD)	17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
Weight (lb/kg) fully configured	8.3 lb (3.77 kg)
Power	90 to 240 VAC
Maximum power draw	70 W
Rack Unit	1 U

[/properties][specifications]

Specifications	ACX2200-AC
System Throughput	Up to 60 Gbps
Operating temperature	-40° to 149° F (-40° to 65° C)
Humidity	95% RH noncondensing
Platform Features
Layer 2	IEEE 802.3 bridging IEEE 802.1q IEEE 802.1ad (Q-in-Q) VLAN id manipulation for outer/inner: swap/pop/push Rapid Spanning Tree Protocol (RSTP)/VLAN Spanning Tree Protocol (VSTP)/Multiple Spanning Tree Protocol (MSTP) Link Aggregation Control Protocol (LACP) Enhanced load balancing based on L2-L4 header info Link Layer Discovery Protocol (LLDP) Layer 2 bridge protocol data unit (BPDU) tunneling/MAC rewrite
Layer 3	IPv4 IPv6 RPF Equal-cost multipath (ECMP) Enhanced load balancing based on L2-L4 header info OSPF IS-IS BGP Indirect/composite next hop
MPLS and Seamless MPLS	RSVP LDP Path Computation Element Protocol (PCEP) RSVP-TE BGP-LU LDP-RSVP RSVP fast reroute (FRR)
Services	IEEE 802.3 bridge domain PWE (T-LDP) L2VPN (BGP) Layer 3 VPN Integrated routing and bridging (IRB) Stateless filters L2-L4 Circuit emulation SAToP/CESoPSN/ATM o MPLS
Class of Service (CoS)	8 queues per port with schedulers and shaping Classification based on 802.1p, DiffServ code point(DSCP), IP-precedence, Exp bit Single-rate policer ingress/egress Two-rate three-color policer ingress/egress Per-Port Egress Shaping
OAM and SLA Management	Bidirectional Forwarding Detection (BFD) Connectivity fault management (CFM) Y.1731 RFC2544 TWAMP
Multicast	Protocol Independent Multicast (PIM) Internet Group Management Protocol (IGMP) IGMP snooping
Timing and Sync	BITS/1pps/10MHz 1588v2 BC 1588v2 over IP 1588v2 over Ethernet Synchronous Ethernet Hybrid mode
Security	L2 storm control
Configuration, Management and Automation	CLI NETCONF NMP v2/v3 SLAX/Python on-box scripting tools ZTD YANG
Safety Approvals	CAN/CSA-C22.2 No. 60950-1 UL 60950-1 EN 60950-1 IEC 60950-1CB Scheme EN 60825-1
EMC	AS/NZS CISPR22 Class A EN55022 Class A VCCI Class A FCC Part 15 Class A IECS-003 Issue 4 BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions KN 22, Class A CISPR 32/EN55032: 2012 European Radiated Emissions Class A EN-61000-4-6 Low Frequency Common Immunity EN-61000-4-11 Voltage Dips and Sags CISPR 24/EN55024 Information Technology Equipment Immunity Characteristics
ETSI (European Telecommunications Standardization Institute)	EN 300 386 V1.6.1 Telecommunication Network Equipment, Electromagnetic Compatibility Requirements ETSI EN 300 019-2-3 (2003) Stationary Use at Weather Protected Locations, Class T3.4 ETSI EN 300 019-2-1 (2000) Storage, Class T1.2 ETSI EN 300 019-2-2 (1999) Transportation, Class T2.3 ETSI 300753 (1997) Acoustic Noise Emitted by Telecommunications Equipment
NEBS	SR-3580 NEBS Criteria Levels (Level 3 Compliance) GR-63-CORE: NEBS, Physical Protection GR-1089-CORE: EMC and Electrical Safety for Network Telecommunications Equipment (Issue 6 compliant) GR-3108-CORE: Generic Requirements for Network Equipment in the Outside Plant (OSP)
Telecomm Compliance	Device management: NETCONF, CLI, SNMP v1/v2/v3 End-to-end provisioning of E-Line, emulated LAN (ELAN), Layer 3 VPN (L3VPN), OAM, class of service (CoS) Device and service-level fault management Device and service-level performance management
Metro Ethernet Forum (MEF)	MEF CE2.0 compliant

[/specifications][accesories]

Accessories
PKG-1U-ACXS	Package Spare for ACX 1RU Chassis
RACK-MNT-1RU-19-S	ACX Series 1 RU 19" Mounting Bracket"
RACK-MNT-1RU-23-S	ACX Series 1 RU 23" Mounting Bracket"
CBL-PWR-C15M-HITEMP-US	Power Cord, AC, C15M

[/accesories]

Juniper ACX2200 Universal Metro Router is a compact, Ethernet only, environmentally hardened router with fanless passive cooling. It has a fixed port configuration that includes four copper 10/100/1000 Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports, making it ideal for IP-RAN deployments.

ACX2200

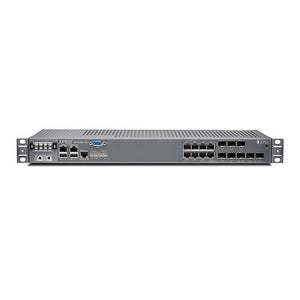

Juniper ACX2200-AC Router
