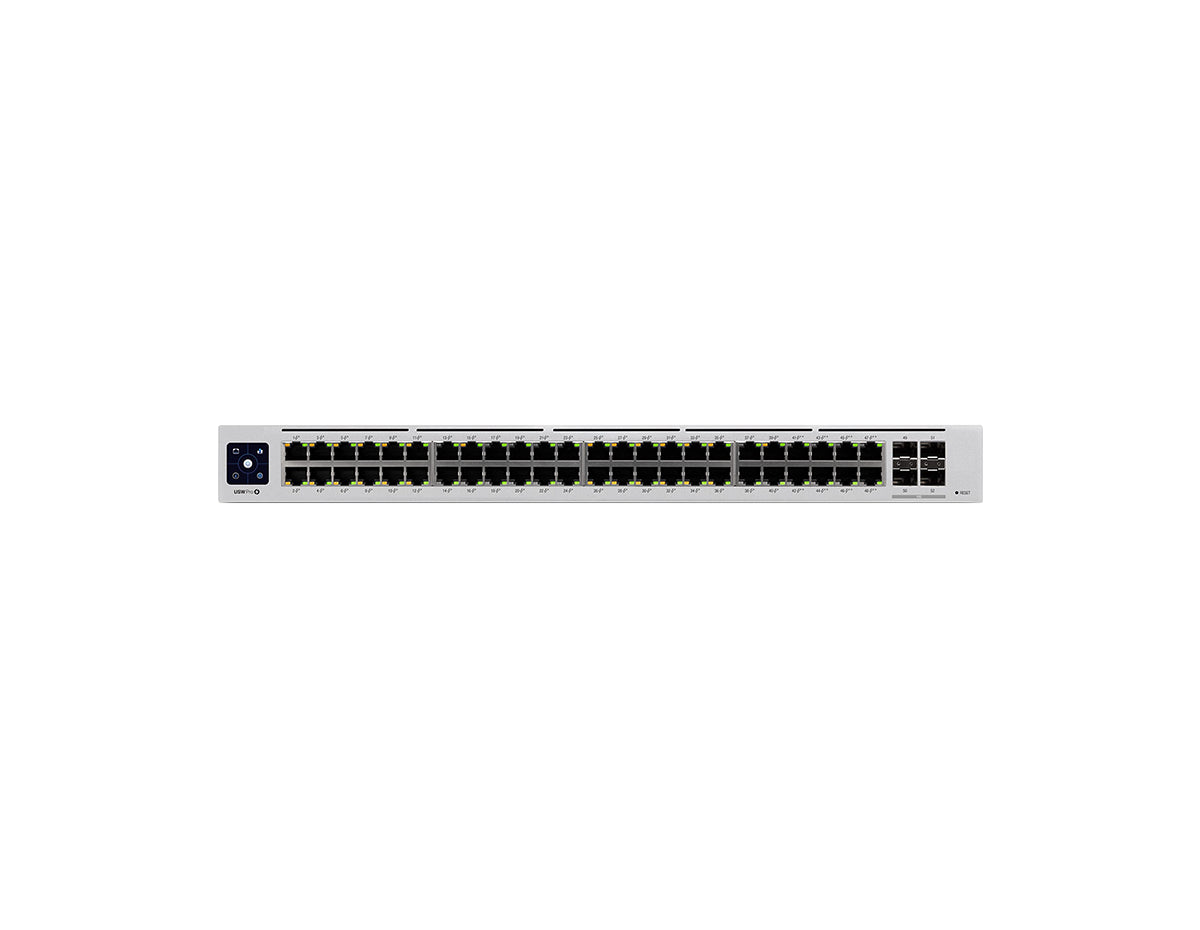

Ubiquiti USW-PRO-48-POE Switch

Ubiquiti USW-PRO-48-POE Switch

The USW-PRO-48-PoE is a fully managed Layer 3 switch with 8x 802.3bt (PoE++) and 40x 802.3at (PoE+) Gigabit Ethernet ports. It also includes 4x 10G SFP+ uplinks supporting link aggregation for increased capacity and availability. This switch offers a comprehensive set of Layer 2 functionalities and incorporates Layer 3 features such as inter-VLAN routing, static routing, and DHCP server. It is designed to be the access layer switch for any UniFi solution, providing up to 600W of nearly silent PoE power and UniFi SmartPower RPS power redundancy.

Quick Specs:

• 48x 10/100/1000 Ethernet RJ45 Ports
• 4x 1/10G SFP+ ports
• Non-blocking throughput: 88 Gbps
• Switching Capacity: 176 Gbps

Please see the related tabs for the USW-PRO-48-POE datasheet and compatible accessories.



Properties	USW-PRO-48-POE
Description	48x Gigabit Ethernet ports, 4 SFP+ Ports, 40x POE+ IEEE 802.3af/at, 8x 60W PoE++ IEEE 802.3bt output ports
Product Family	UniFi Switch USW Pro PoE
Product Type	Switch Professional
Overview
Total Non-Blocking Line Rate	88 Gbps
Switching Capacity	176 Gbps
Forwarding Rate	130.944 Mpps
USW-PRO-48-POE provides these features:	• 3" LCM color touchscreen with AR switch management • (40) GbE, 802.3at PoE+ RJ45 ports • (8) GbE, 802.3bt PoE++ RJ45 ports • (4) 10G SFP+ ports • USP RPS DC input • 600W total PoE supply • Near-silent cooling • Layer 3 switching features



Specifications	USW-PRO-48-POE
Dimensions	442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72")
Weight With Rackmount Brackets	6.25 kg (13.78 lb) 6.34 kg (13.98 lb)
Interfaces       Networking       Management	(48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports  Ethernet In-Band
Power Method     Universal Input     USP RPS DC Input	100-240VAC/50-60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A
Power Supply	AC/DC, Internal, 660W
Supported Voltage Range	100 to 240VAC
Max. Power Consumption (Excluding PoE Output)	60W
LEDs System RJ45 Data Ports SFP+ Data Ports	Status PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection	Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 to 90% Noncondensing
Certifications	CE, FCC, IC
PoE
Total Available PoE	600W
PoE Interfaces Ports 1-40	POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
PoE Interfaces Ports 41-48 802.3af/at 802.3bt	60W PoE++ IEEE 802.3af/at/bt (Pins 1, 2+; 3, 6-) (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE 802.3at 802.3bt	32W 64W
Voltage Range 802.3af Mode	44-57V
Voltage Range 802.3at/bt Mode	50-57V
Sound Level*
25% PoE Load, 25° C Room Temperature	0.9 dBr
50% PoE Load, 25° C Room Temperature	7.3 dBr
100% PoE Load, 40° C	22.5 dBr
* Background noise level: 27.5 dBa
