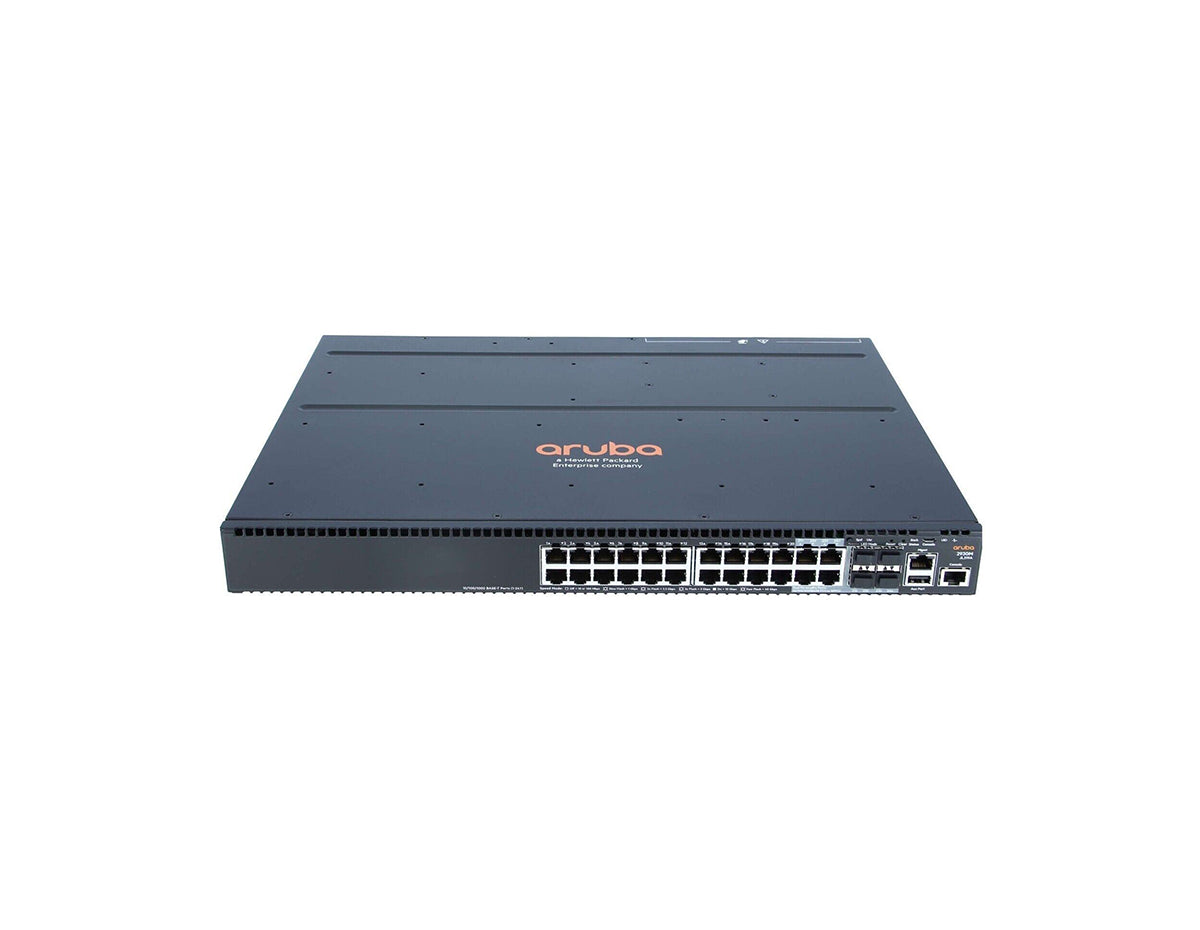

HPE Aruba Networking 2930M JL319A 24-Port Gigabit Data Switch with 1 Modular Uplink Slot
- Managed, Rack-mountable, 24 x 1G (4 shared SFP) ports, No PoE, Layer 3
Overview
The HPE Aruba Networking 2930M Series is an access-layer switch family that HPE positions for smart digital workplaces with integrated wired and wireless policy through ClearPass Policy Manager and dynamic segmentation. The JL319A is the 24-port data-only configuration, and its single uplink slot lets backhaul move from 1GbE or 10GbE to 40GbE by changing the module rather than the switch. Its routing is built for routed access toward the next layer of the LAN rather than for core routing. An optional second hot-swappable power supply and VSF stacking let a closet grow and stay serviceable without a forklift change.
Technical Details
The HPE Aruba Networking 2930M JL319A is a Layer 2+ managed 1U switch with 24 Gigabit Ethernet ports, four of them combo RJ-45/SFP, and one modular uplink slot for 10GbE SFP+, Smart Rate or 40GbE QSFP+. Switching capacity is 128 Gbps and forwarding rate is 95.2 Mpps. It carries no Power over Ethernet, so all 24 access ports are data-only. Routing covers static, RIP and single-area Access OSPF. It supports VSF backplane stacking of up to 10 members at 100 Gbps per switch. It connects desktops, printers and wired IoT devices in campus and branch wiring closets.
Best For
The JL319A suits campus and branch wiring closets that connect non-powered endpoints such as desktops, printers and wired IoT devices and want routed access at the edge. The uplink slot takes a 10GbE SFP+, Smart Rate or 40GbE QSFP+ module, and VSF stacking joins up to 10 switches into one logical chassis.
Not suitable if:
- you need to power access points, IP phones or IP cameras, since this model has no Power over Ethernet
- you need BGP or multi-area OSPF, because routing is limited to static, RIP and single-area Access OSPF
- you need multigigabit access ports, since all 24 access ports are Gigabit
- you need more than 24 access ports in one switch, since this model has 24
- you need a DIN-rail or hardened industrial switch, since this is a 1U rack-mount campus switch
JL319A Specifications
| Class & Licensing | |
|---|---|
| License Tier | None (no feature license tiers published) |
| License Detail / MTBF | None (no feature license tiers; HPE Aruba Networking Central Foundation/Advanced subscriptions listed as software options); MTBF not published |
| Ports & Uplinks | |
| Port Speed | Gigabit (incl. 4 combo 10/100/1000BASE-T or 100/1000 Mbps SFP ports) |
| Uplink Configuration | 1 uplink module slot, module not included: JL083A 4-port 100M/1G/10G SFP+ MACsec, JL081A 4-port 1/2.5/5/10GbE HPE Smart Rate (no PoE on non-PoE switches), or JL078A 1-port 40GbE QSFP+; plus 4 combo 100/1000 Mbps SFP ports among the access ports |
| Performance & Scale | |
| Stacking | VSF (Virtual Switching Framework) backplane stacking; requires JL325A 2-port Stacking Module (not included) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| MAC Table | 32,768 entries |
| Stacking Bandwidth | 100 Gbps per switch (up to 25 Gbps in each direction per port, 2-port stacking module) |
| Max Stack Members | 10 (ring or chain topology) |
| Hardware & Memory | |
| DRAM | 1 GB DDR3 SDRAM |
| ASIC | HPE Aruba Networking ProVision ASIC |
| Flash | 4 GB eMMC |
| Power & Thermal | |
| Power Input / PSU | JL085A X371 12VDC 250W 100-240VAC PSU (only PSU listed for this model), not included; 1 required, max 2; input 100-127/200-240 VAC |
| Redundant PSU | Optional (2 hot-swappable PSU slots; second JL085A adds redundancy) |
| Cooling | Front to Back airflow (QuickSpecs; data sheet prints Port to Power); fan details not published |
| Physical & Environmental | |
| Dimensions (H x W x D) | 1.73 x 17.42 x 12.77 in (4.39 x 44.25 x 32.43 cm) |
| Weight | 9.81 lbs (4.45 kg) |
| Operating Temperature | 32 to 131 °F (0 to 55 °C) up to 5000 ft, 32 to 122 °F (0 to 50 °C); derate -1 °C for every 1000 ft from 5000 ft to 10,000 ft; 32 to 122 °F (0 to 50 °C) if JL308A, JH231A, JH232A or JH233A QSFP+ transceivers are installed (QuickSpecs); data sheet names J9150A, J9151A, J9152A or J9153A X132 10G SFP+ transceivers for the same 0 to 50 °C limit |
| Software | |
| Operating System | Not published |
FAQ
Does the HPE Aruba Networking 2930M JL319A support PoE?
No. The HPE Aruba Networking 2930M JL319A is a data-only switch: HPE lists its PoE power as N/A, so none of its 24 Gigabit ports can power access points, IP phones or IP cameras. Even an HPE Smart Rate uplink module receives no PoE power on this model. If the access ports must deliver PoE+, the closest sibling is the 2930M 24G PoE+ 1-slot Switch, JL320A, which keeps the 24 Gigabit ports and the single uplink slot and adds IEEE 802.3at PoE+.
What uplink modules and transceivers does the JL319A use?
The JL319A has one uplink slot that holds one module at a time: the JL083A 4-port 100M/1G/10G SFP+ MACsec module, the JL081A 4-port 1/2.5/5/10GbE HPE Smart Rate module, which receives no PoE power on this data-only switch, or the JL078A 1-port 40GbE QSFP+ module. The slot ships empty. The four combo ports take 100 Mbps or 1G SFP transceivers only; 10G SFP+ optics need the JL083A module. HPE's QuickSpecs state that installing the JL308A, JH231A, JH232A or JH233A 40G QSFP+ transceivers lowers the switch's operating range to 0 to 50 °C (32 to 122 °F); HPE's data sheet names the J9150A, J9151A, J9152A and J9153A 10G SFP+ transceivers for the same 0 to 50 °C limit. HPE lists the supported optics in the 2930M QuickSpecs. Transceivers are sold separately.
Can the JL319A be stacked?
Yes. The JL319A supports HPE Aruba Networking Virtual Switching Framework (VSF) backplane stacking of up to 10 switches in a ring or chain topology, and the stacked switches act as a single chassis. Stacking throughput is up to 100 Gbps per switch, with each port of the 2-port stacking module carrying up to 25 Gbps in each direction. Each member needs the JL325A 2-port Stacking Module and stacking cables (J9734A 0.5 m, J9735A 1 m or J9736A 3 m), which are sold separately.
Does the JL319A support BGP or full OSPF?
No. The JL319A does not support BGP. Its Layer 3 feature set is static routing with ECMP, RIPv1, RIPv2 and RIPng, Access OSPF (OSPFv2 and OSPFv3 limited to one OSPF area and up to eight interfaces), policy-based routing limited to 16 next-hop routes, VRRP, and PIM sparse and dense mode multicast routing. That makes it suited to routed access toward the next layer of the LAN rather than to core or multi-area routing.
What is the difference between the JL319A and the JL321A?
The two are closely matched 2930M data-only switches with one uplink slot, VSF stacking and the same JL085A power supply option. Differences documented by HPE include size and throughput: the JL319A has 24 Gigabit ports, 128 Gbps of switching capacity and a 95.2 Mpps forwarding rate, while the JL321A has 48 Gigabit ports, 176 Gbps and 112 Mpps. The JL319A weighs 9.81 lbs and the JL321A 10.14 lbs. Choose the JL321A when one closet switch must terminate more endpoints.
Does the JL319A come with a power supply?
No. The JL319A has two power supply slots and ships with no power supply. HPE lists the JL085A X371 12VDC 250W 100-240VAC power supply as the compatible unit for this model; one is required and a second can be added for redundancy. Both supplies are hot-swappable, and HPE recommends matching supplies for full redundancy on a fully populated switch.
What condition is the JL319A sold in, and what warranty applies?
The JL319A is sold new and factory-sealed. It is covered by the Network Devices Inc. 1-year warranty and a 30-day return policy.
